AiXun DT02 – Professional Smart Thermometer 2in1 for Hot-Air and Soldering Irons

AiXun DT02 is a technologically advanced, intelligent thermometer designed specifically for professional electronics services, soldering workshops and laboratories. It combines the functionality of two devices – enabling simultaneous temperature measurement of soldering tips and hot air station nozzles, offering unprecedented precision and convenience.

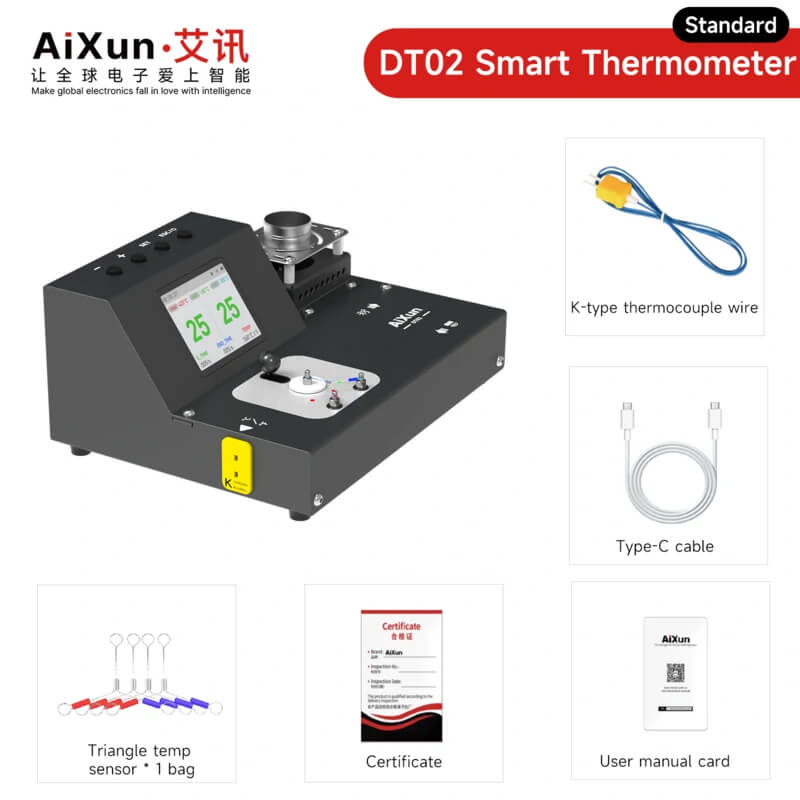

AiXun DT02 Kit Contents

What sets the DT02 apart from the competition is its dual-channel measurement with independent inputs for a K-type thermocouple and a surface sensor. This allows the user to simultaneously monitor the temperature of two different heat sources – e.g., a soldering iron tip and a hot air nozzle.

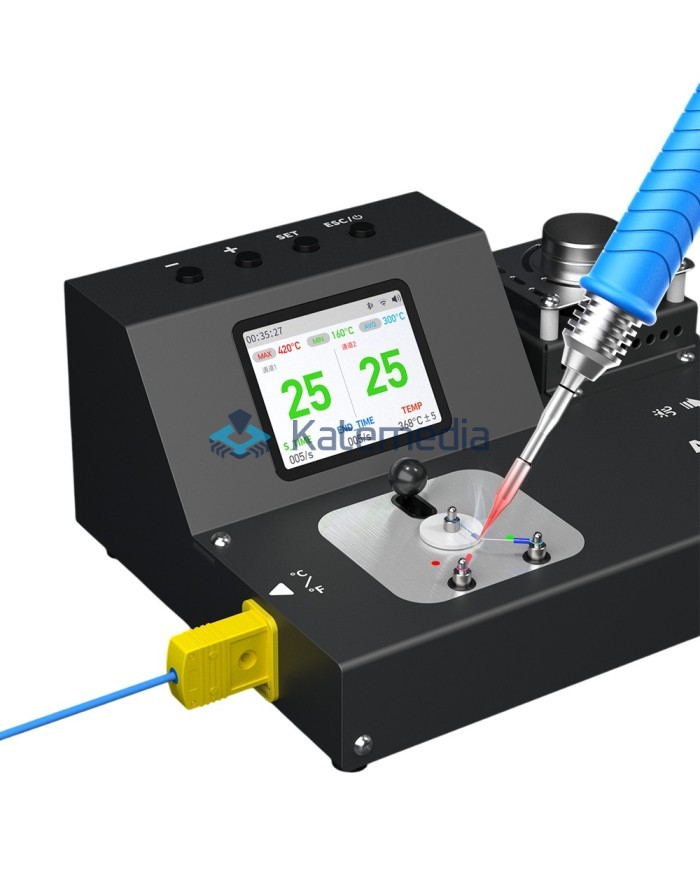

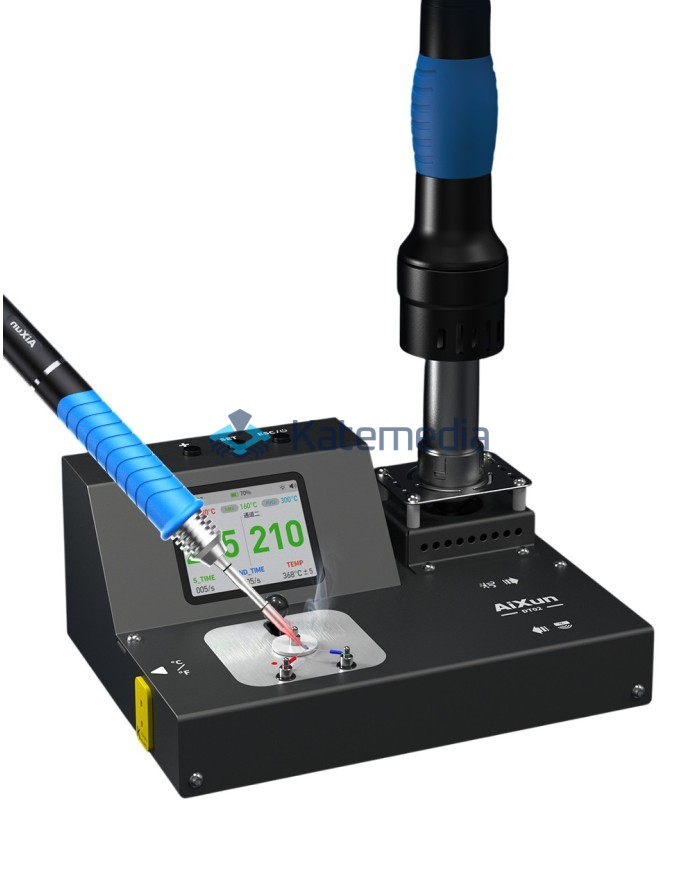

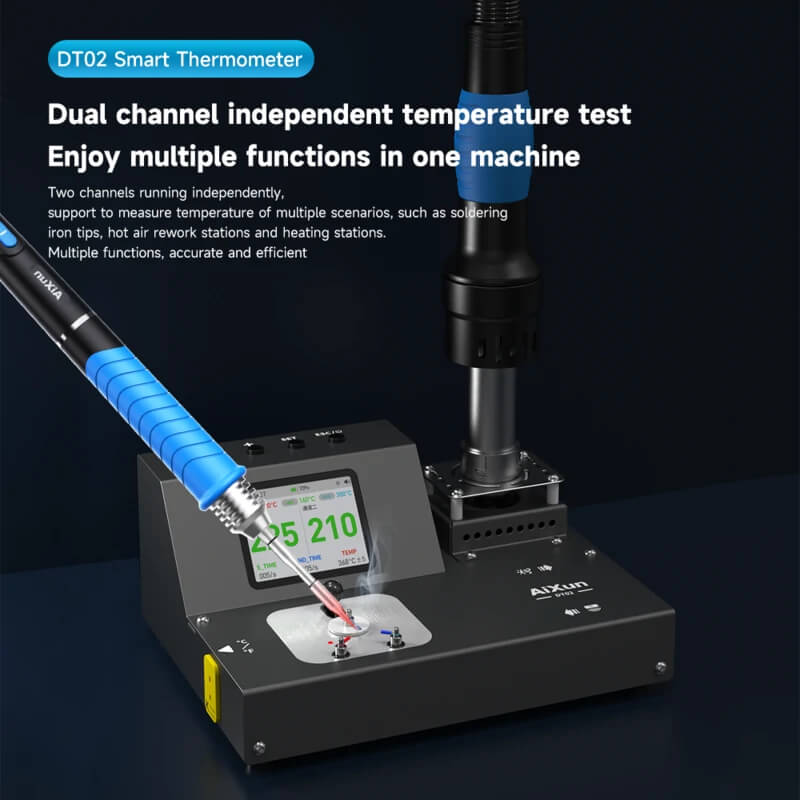

Independent temperature measurement of the soldering iron and hot air

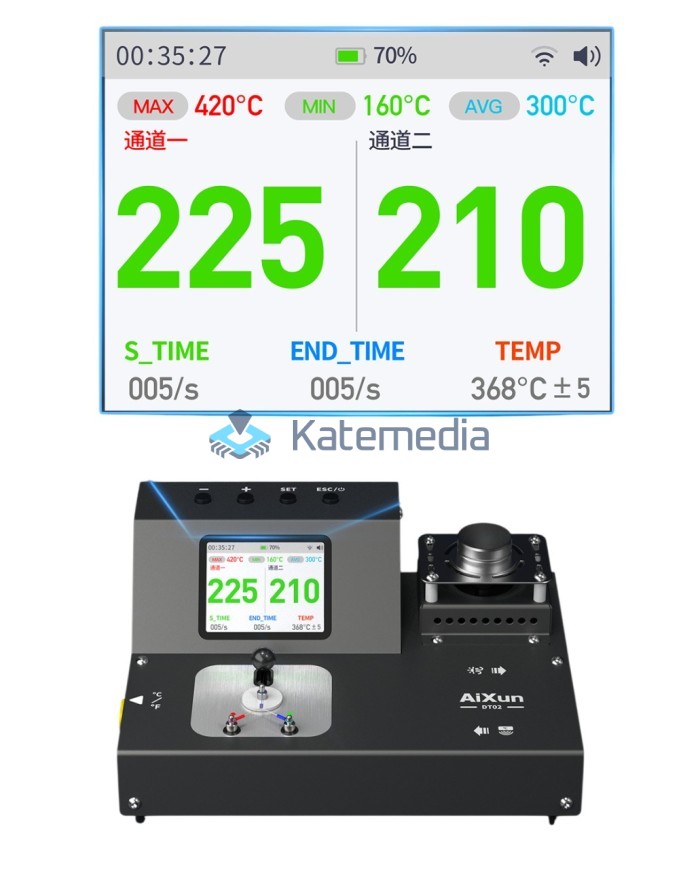

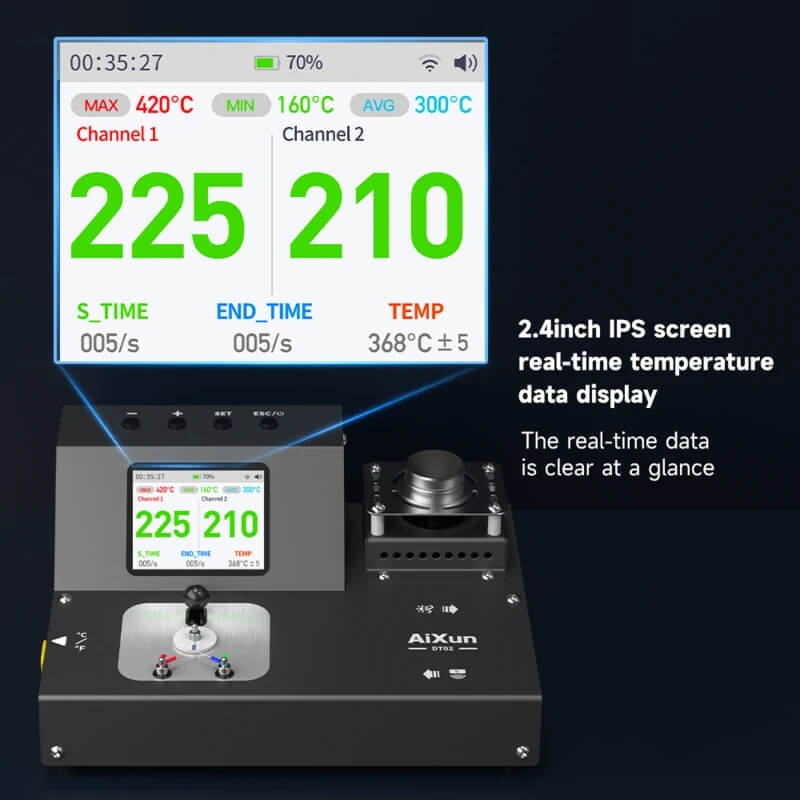

The front of the device features a clear 2.4-inch IPS display that presents all the necessary parameters in real time – current temperatures, heating times, and temperature change graphs. These graphs allow the user to precisely analyze heating curves, check maximum and minimum temperatures, and average values for a given operating cycle.

The color screen displays measurement data in real time.

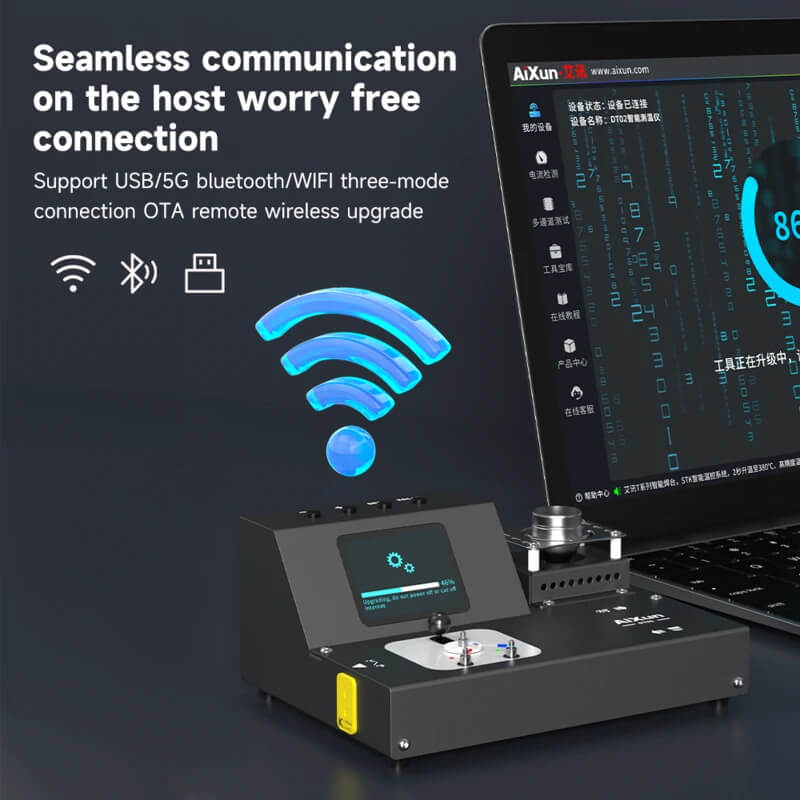

The device is equipped with wireless communication – Bluetooth 5G, Wi-Fi, and USB-C, allowing for instant software updates (OTA), data transfer, and remote calibration. This makes the AiXun DT02 perfectly integrated into modern service stations, offering support in both mobile and stationary modes.

Full connectivity: Bluetooth, Wi-Fi, and USB-C

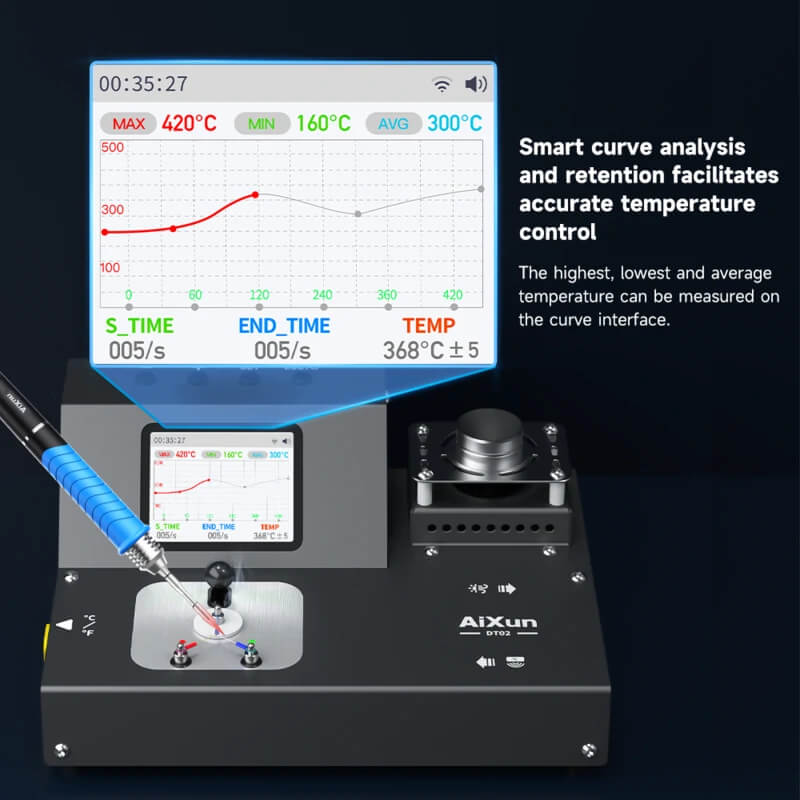

The AiXun DT02 analyzes and records temperature changes over time, allowing you to effectively optimize your soldering processes. Intelligent heating curve analysis is an ideal solution, for example, for BGA reflow or when testing the heating stability of a workstation.

Temperature curve analysis simplifies calibration and testing.

A robust metal housing and the ability to be powered by a 3500 mAh 18650 battery make the DT02 a device ready for use in any conditions. What's more, its versatility allows for measurements not only on metal surfaces, but also on liquids, which opens the door to many laboratory applications.

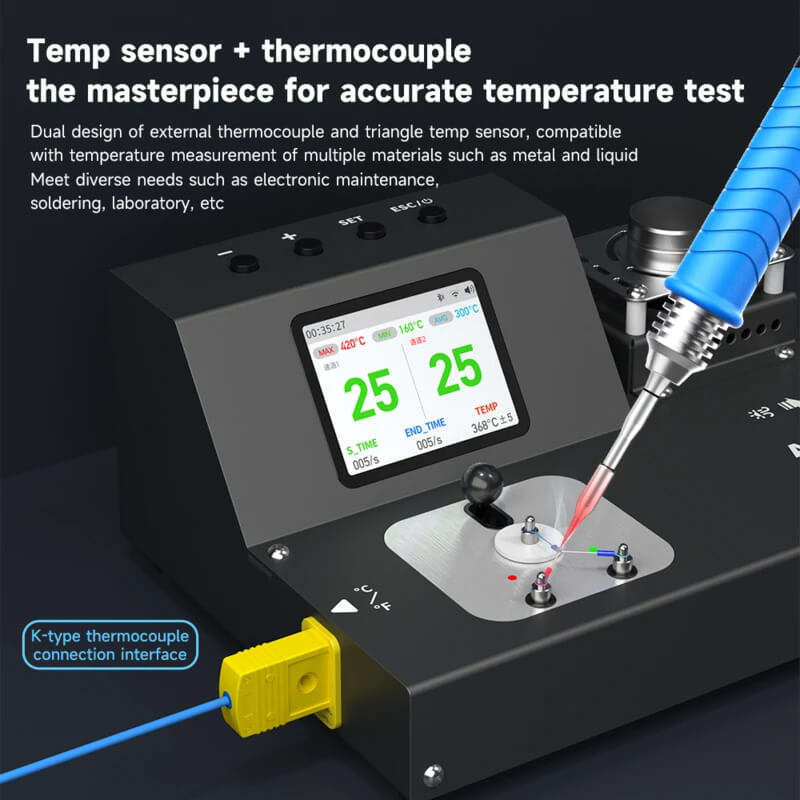

Type-K thermocouple connector and sensor kit included

Key parameters Technical

• Model: AiXun DT02
• Measuring range: 0–700°C
• Display: 2.4" IPS color
• Number of channels: 2 (independent)
• Connectivity: USB-C, Bluetooth 5G, Wi-Fi
• Battery: 18650 Li-Ion, 3500mAh, 4.2V (not included)
• Net weight: 1.07 kg
• Gross weight: 1.24 kg

Package Contents

• 1× DT02 main unit
• 1× Type-K thermocouple cable
• 1× Triangular surface sensor set
• 1× Type-C USB cable
• 1× User card + certificate

🔋 Note: 18650 battery not included. For proper operation, you must purchase a 3.7–4.2 V, minimum 2600 mAh battery.
