SUNSHINE S4 – automatic soldering tip cleaner

SUNSHINE S4 is an automatic soldering tip cleaner equipped with a dual infrared detection system, three speed levels, and automatic and manual modes. The device helps quickly remove solder, flux, and tarnish residues created during soldering, streamlining everyday work in GSM repair shops and electronics workshops.

Model The SUNSHINE S4 was designed for work stations where the soldering tip is heavily used and requires regular cleaning. Built-in sensors detect when the tip is inserted into the socket, allowing the cleaning mechanism to be activated without having to press a button every time.

The use of rotating brushes allows for cleaning all around the tip, while the silicone socket cover helps prevent solder particles from escaping from the device. The compact housing takes up minimal space on a workbench and can be placed next to a soldering station or microscope.

See the SUNSHINE S4 in action

The manufacturer's presentation video shows how the automatic cleaner works, how to use the control panel, and how to clean the tip using rotating brushes.

Presentation of the operation of the SUNSHINE S4 automatic tip cleaner.

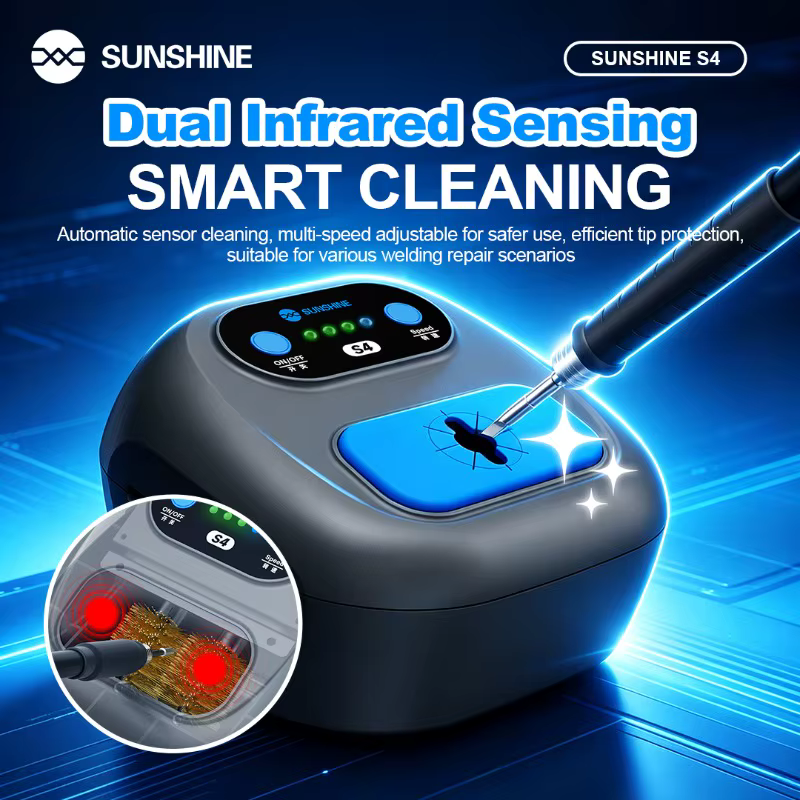

Automatic Tip Detection

The dual infrared detection system recognizes the presence of a soldering tip and allows automatic cleaning. This solution reduces the number of steps required during work and allows you to operate the cleaner with one hand.

Faster and more convenient soldering work

When repairing electronic devices, flux residue, solder, and oxidation deposits accumulate on the tip. Regular cleaning helps keep the tip's working surface in good condition and facilitates proper solder flow.

The SUNSHINE S4's automatic mechanism reduces the time spent manually rubbing the tip against the cleaner. This is especially useful when working for long hours, soldering SMD components, repairing motherboards, and making multiple connections one after another.

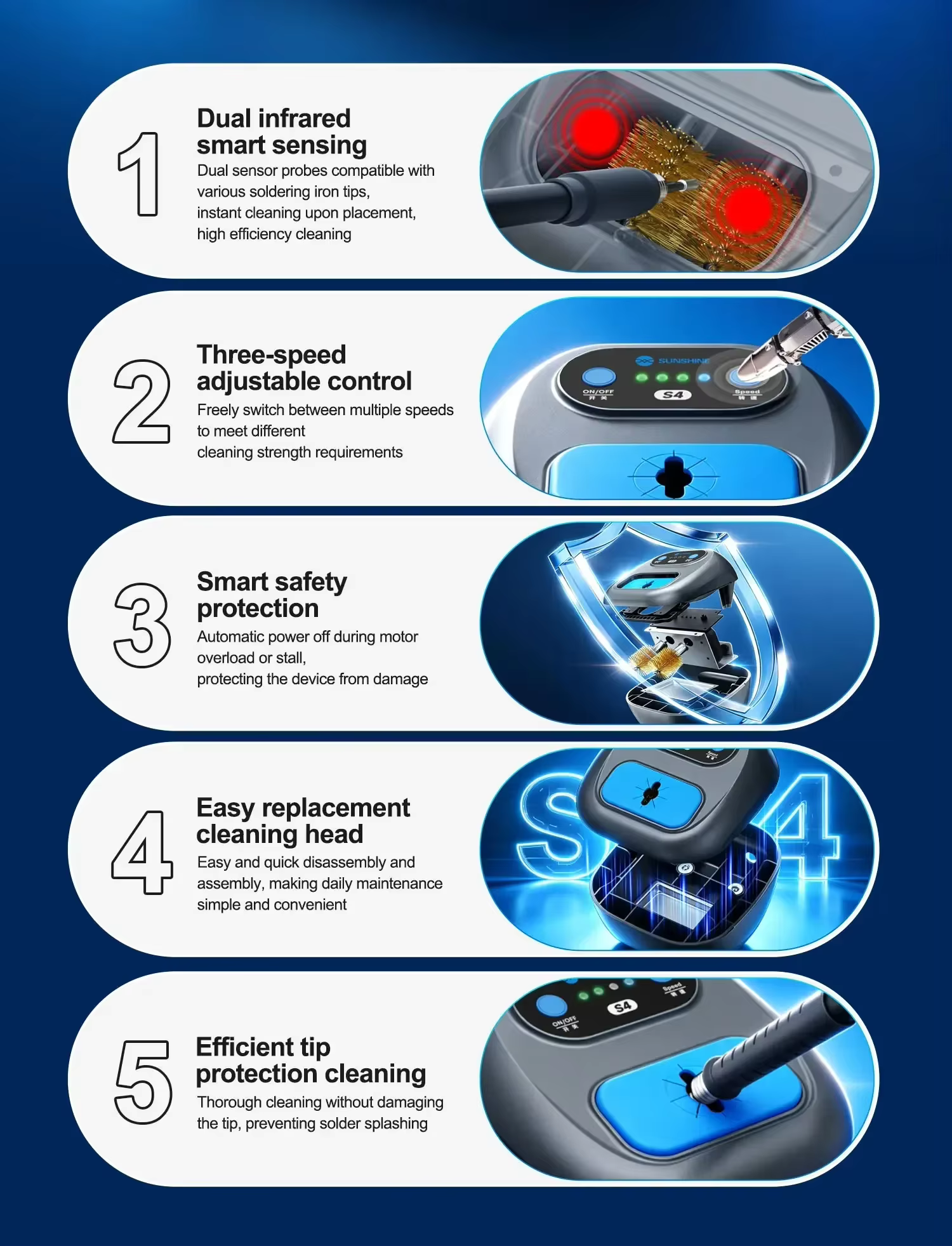

Key Features of the SUNSHINE S4

The cleaner combines automatic tip detection, speed regulation, and motor protection with a modular design for easy maintenance.

Dual detection, three speeds, motor protection, and easy maintenance.

Intelligent Motor Protection

If the mechanism becomes blocked or the motor is overloaded, the device automatically shuts off the drive. This feature helps protect the cleaning mechanism from damage and increases the safety of everyday use.

Modular Cleaning Head

The head's design allows for quick removal from the housing. This facilitates the removal of accumulated solder residue, cleaning the interior, and periodic brush maintenance.

The module is magnetically attached, so its removal does not require disassembling the entire device. This is a practical solution for workshops where the cleaner is used daily.

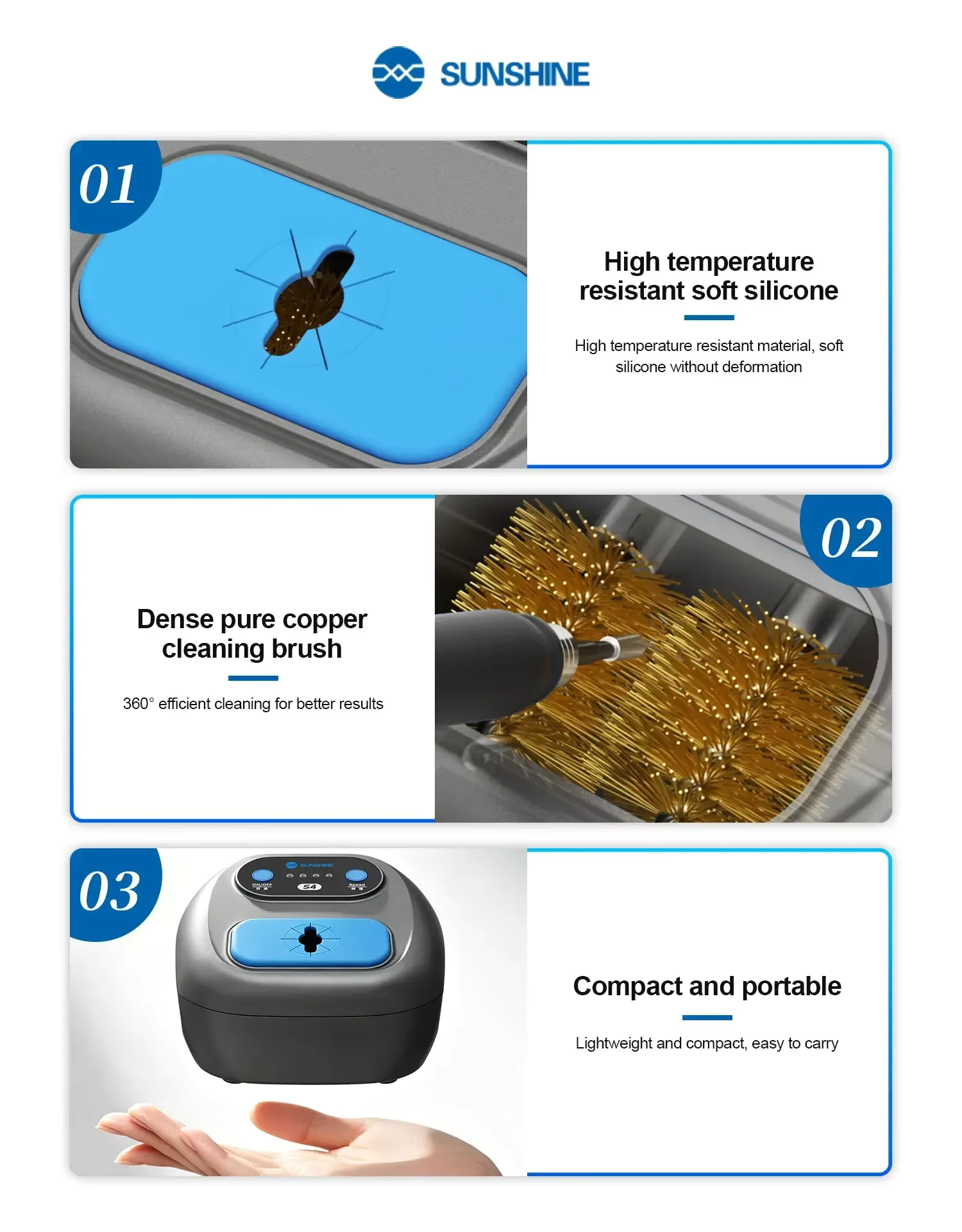

Cleaning Brushes and Heat-Resistant Cover

The mechanism uses dense copper wire brushes that surround the tip during cleaning. The rotating brushes remove solder residue and dirt from different sides of the tip's working surface.

The blue bore cover is made of soft, heat-resistant silicone. It helps guide the tip into the cleaning zone and reduces the splattering of fine solder residue.

Silicone cover, dense cleaning brushes, and a compact design.

How to use the SUNSHINE S4 cleaner?

1. Connect the device to the power supply.
2. Turn on the cleaner using the ON/OFF button.
3. Select the appropriate speed level.
4. Place the heated tip in the silicone hole.
5. Allow the brushes to briefly clean the tip surface.
6. After removing the tip, coat its surface with a small amount of fresh solder.

Use

• mobile phone and mobile device services,
• motherboard and consumer electronics repair,
• soldering SMD components, connectors, and wires,
• working with integrated circuits and small components,
• soldering stations in electronics workshops,
• technical, educational, and hobby workshops,
• regular tip cleaning during intensive work.

Specificationstechnical me

Why choose the SUNSHINE S4?

The SUNSHINE S4 is practical equipment for a professional soldering station. Automatic tip detection, three speed levels, motor protection, and an easily removable head allow you to perform daily maintenance tasks faster and keep your workspace tidy.

The device is perfect for both professional GSM repair shops and electronics workshops, technical labs, or hobby stations where precise soldering work is regularly performed.

Set contents

• 1× SUNSHINE S4 automatic soldering tip cleaner,
• 1× AC adapter with European EU plug,
• 1× card with user manual and QR codes,
• 1× quality certificate,
• 1× original manufacturer's packaging.

SUNSHINE S4 Automatic Tip Cleaner Kit Contents.
