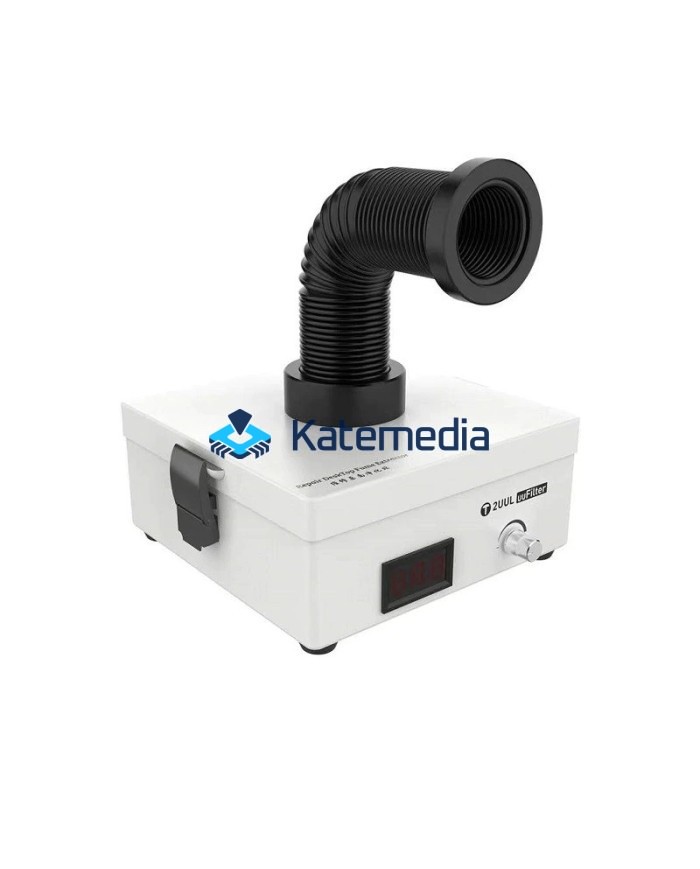

2UUL – Professional Fume, Smoke, and Pollution Extractor

The 2UUL fume extraction device is an effective and efficient air purification system designed for services and workshops specializing in soldering and repairing electronic devices. Thanks to its versatility, this canister is perfect for soldering and other precision tasks.

• High Efficiency: The device effectively absorbs smoke, fumes, and other harmful substances generated during soldering and other maintenance work, improving the air quality in the workplace.

• Easy Installation: Easy installation and no need for additional pipes allow for a clean and tidy workspace.

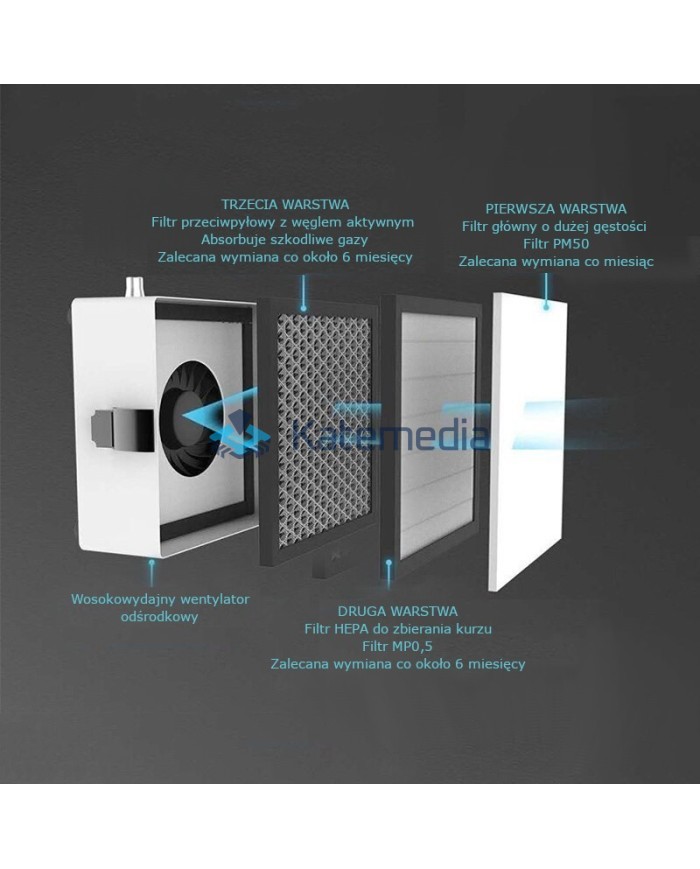

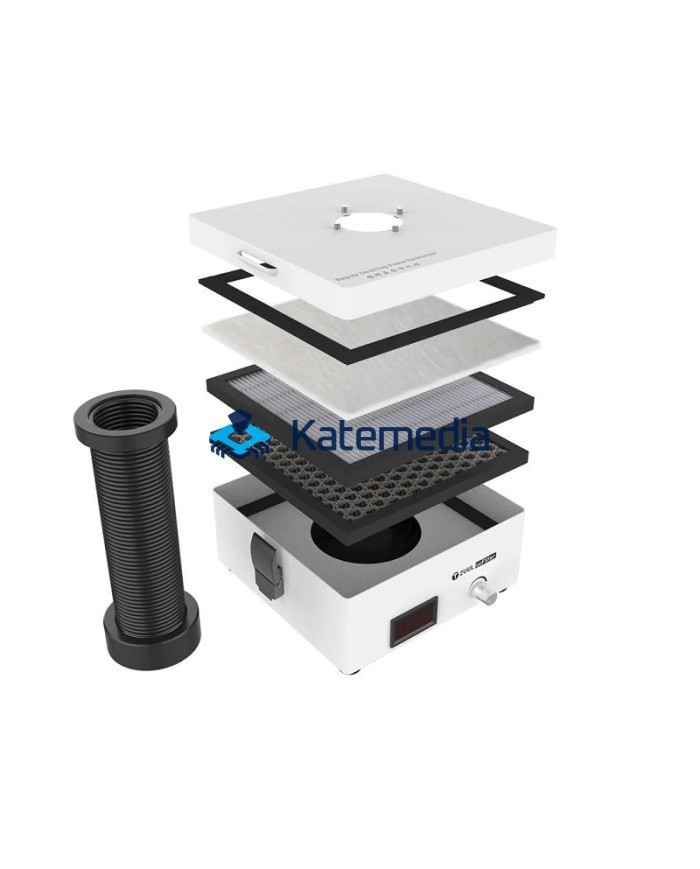

• Triple Filter Design: The 2UUL canister uses three stages of filtration – a pre-filter, a mid-efficiency filter, and a main filter – which can be replaced individually, extending their service life. This ensures high efficiency in removing harmful substances from the air.

• Built-in air circulation: The built-in air circulation system prevents the release of polluted air outside, ensuring a clean room.

• Energy shield: The device meets environmental requirements, saves energy, and operates at a low noise level, which increases work comfort.

• Multifunctionality: The ability to adjust the air volume and the directional adjustment of the channel allow for free positioning of the device depending on your needs.

Specifications:

• Power: 20W
• Maximum air flow: 5M/s
• Maximum air volume: 168L/min
• Input voltage: 100V/240V
• Output voltage: 12V
• Device dimensions: 185 x 185 x 80 mm
• Packaging dimensions: 340 x 240 x 160 mm
• Device weight: 1.7 kg
• Tube extension range: 20-70 cm

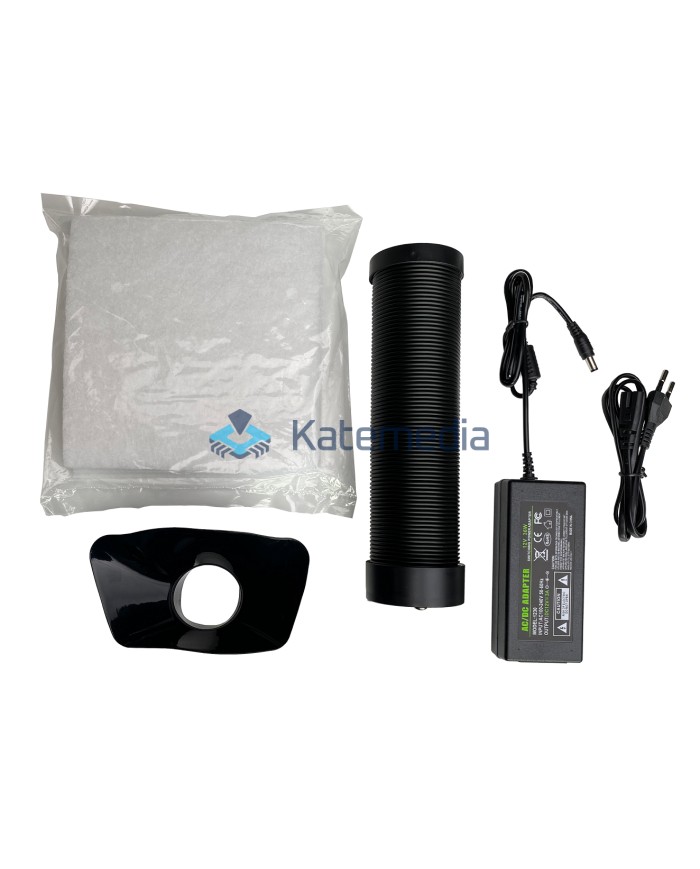

• Kit includes:
  • 2UUL fume extractor
  • Carbon tube Extraction

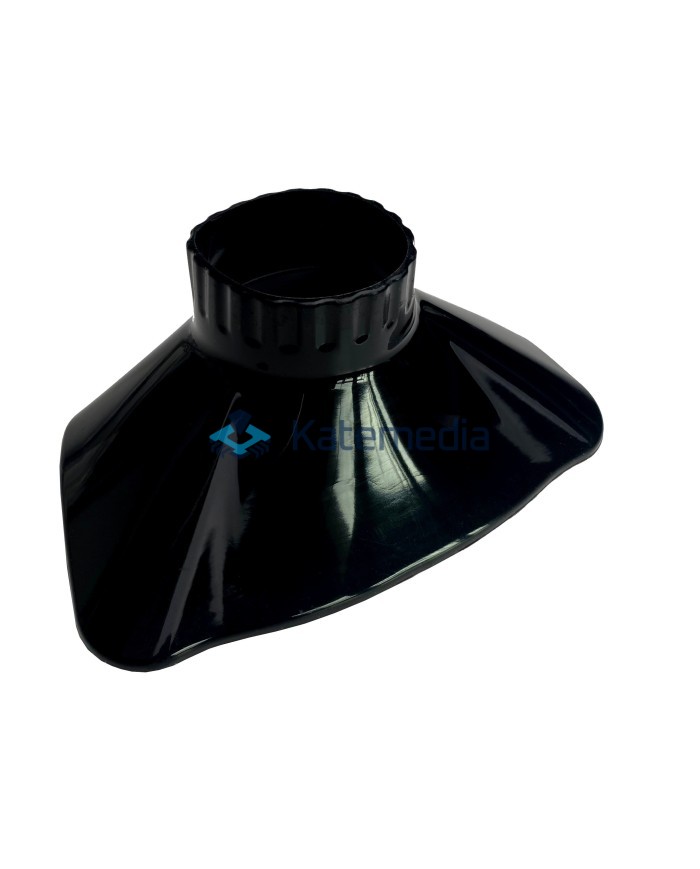

  • Rectangular flexible nozzle
  • Replaceable filters (4 pcs.)
  • Power cord

Filter data:

Acupuncture cotton

Size: 176 x 176 x 10mm

Dust filtration efficiency: 75% (0.3um)

Recommended replacement period: every 1-2 months

HEPA dust collection filter

Size: 176 x 176 x 10mm

Dust filtration efficiency: 90% (0.3um), 99% (2.5um)

Recommended replacement interval: every 6 months

Activated carbon filter

Size: 176 x 176 x 5mm

Odor filtration: iodine value 800 mg/g

Recommended replacement interval: every 6 months

Certification: CE certified

The 2UUL device is an indispensable tool for professionals that improves air quality and ensures safety during precision repair work.
