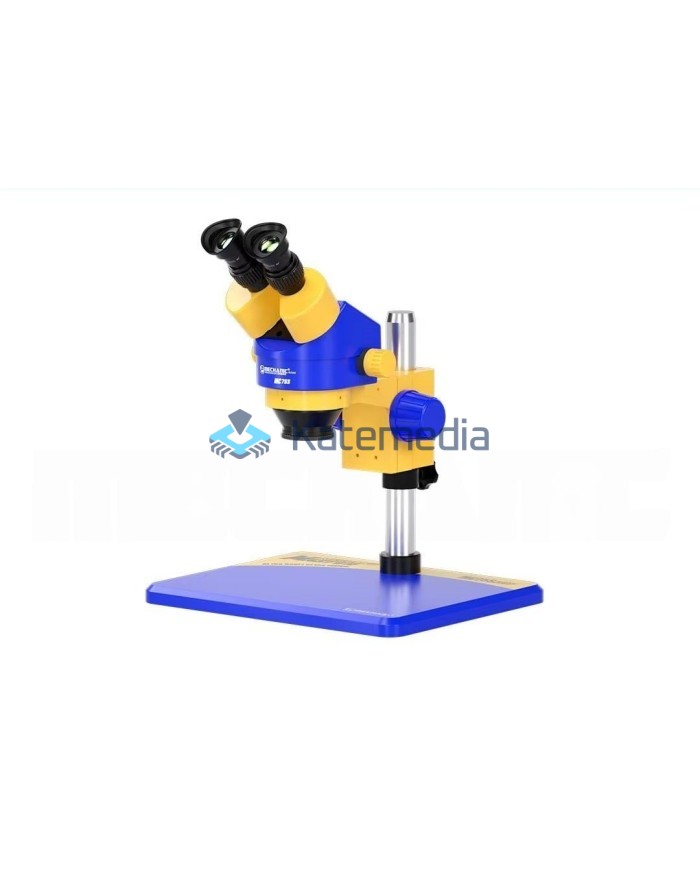

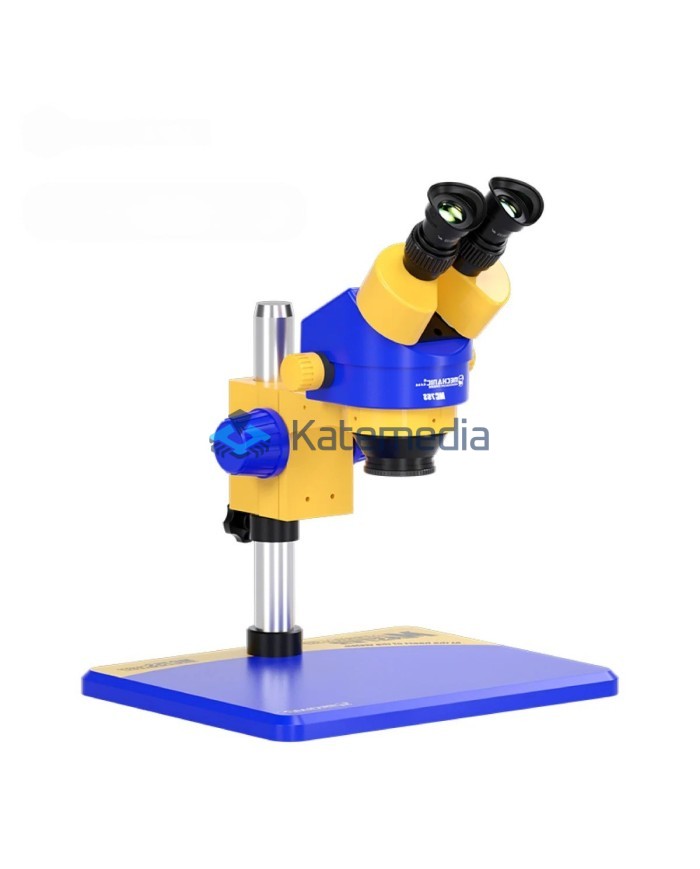

Stereo microscope Binocular Mechanic MC75S-B11
Stereo microscope Binocular Mechanic MC75S-B11
Mechanic MC75S-B11 stereoscopic microscope
A professional microscope from the renowned MECHANIC brand for specialized applications in various industries. It will work wherever high magnification is needed. Working with micro elements will be much easier and thus also more pleasant. The difference compared to cheap devices of this type is visible from the very first moment.
It is made of the highest quality materials, which ensures durability and maintaining the same work culture for many years of intensive use.
The designers have anticipated every detail, so the ergonomics is adapted to the user. Eye strain and muscle strain when tilting is kept to a minimum.
zł999.99
Tax included
Product availability
Last remaining items
Delivery options
Learn more

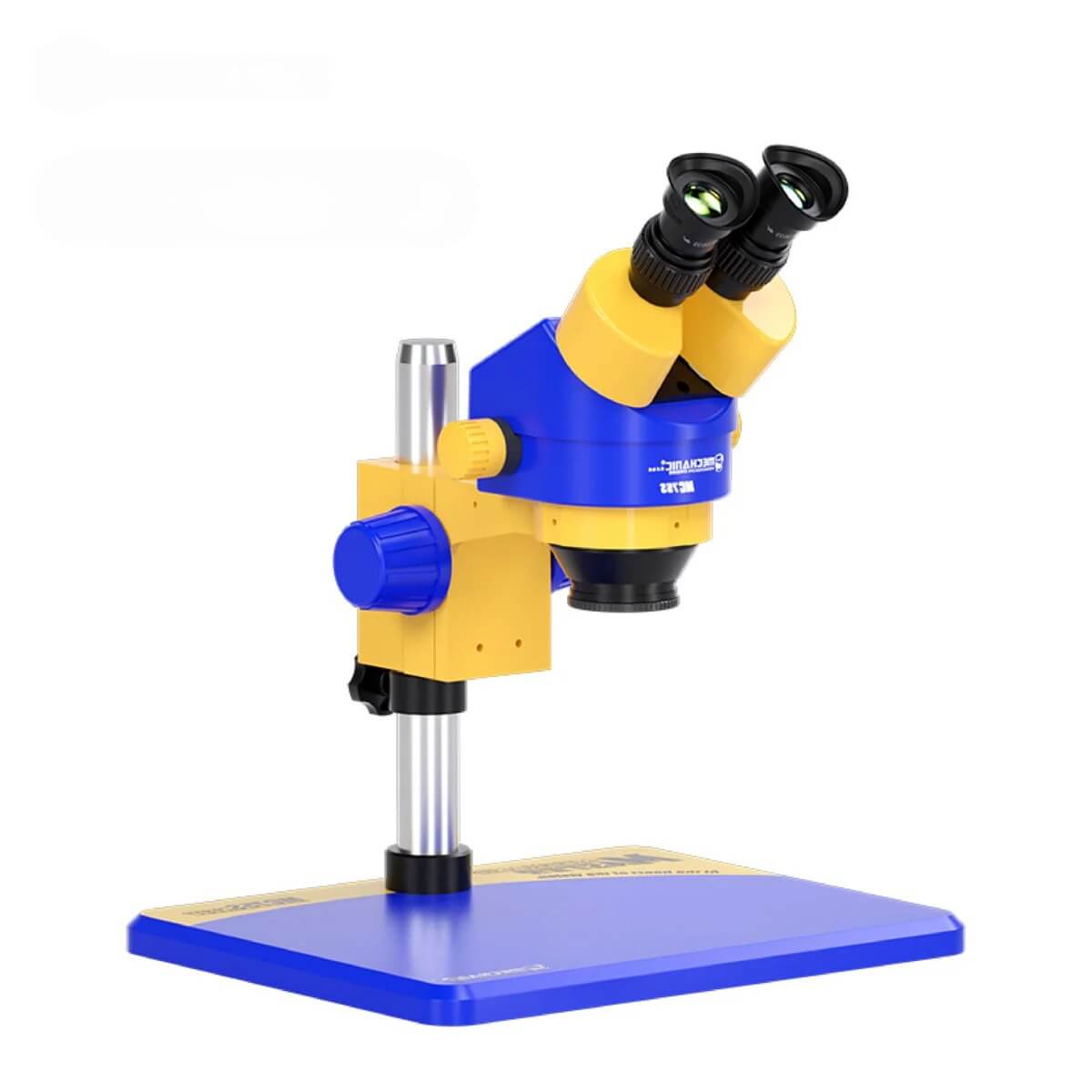

Mechanic MC75S-B11 – Stereomicroscope for electronics service (7–45×)
Precision "zoom" microscope designed for SMD/BGA soldering and PCB inspection. The MC75S-B11 version combines the MC75S head (7–45x) with the large, stable B11 base and the LS3 LED ring light – a ready-to-use set right out of the box.
Why Worth it
-
Wide magnification range of 7–45×
0.7–4.5× zoom and WF10×/25 eyepieces allow you to quickly adjust the scale for soldering, inspection, and rework.
-
Ergonomy for long work
The 45° inclined head, adjustable interpupillary distance of 54–76 mm, and a long working distance of ~100 mm facilitate precise maneuvers with the tip.
-
Stable B11 base
The wide, heavy plate and column ensure smooth height adjustment and secure guiding of the focusing arm.
-
LED lighting included
The LS3 ring light guarantees even, Adjustable light without shadows on the work area.
MC75S-B11 Set: head, focusing arm, WF10×/25 eyepieces, 2× rubber eyecups, dust cover, LS3 ring light, stop block, base B11.
Product specifications
| Model | Mechanic MC75S-B11 |
| Type | Binocular stereomicroscope, zoom |
| Zoom range | 7× – 45× (zoom 0.7×–4.5×) |
| Glasses | WF10×/25 (pair) + 2× rubber eyecups |
| Working Distance | approx. 100 mm (with 1× lens) |
| Head tilt | 45° |
| Pupillary distance | 54–76 mm |
| Base / stand | B11 base with column and Ø76 mm focusing arm |
| Lighting | LS3 LED ring light (included) |
| Applications | Soldering SMD/BGA, rework, PCB inspection, and precision mechanics |
What's worth buying?
1) Tripod
FlexArm – very wide adjustment range, comfortable working on larger boards; mounts on a vise or with screws.
Mechanic L2 – stable column tripod; smaller adjustment range than FlexArm, requires a larger workspace.
2) Auxiliary lenses (objectives)
Increase the field of view and working distance:
0.3× – approx. 287 mm,
0.5× – approx. 160 mm,
0.7× – approx. 120 mm.
3) Additional lighting
LED illuminators with adjustable brightness (beams, rings, spots) to adapt to the specific work.

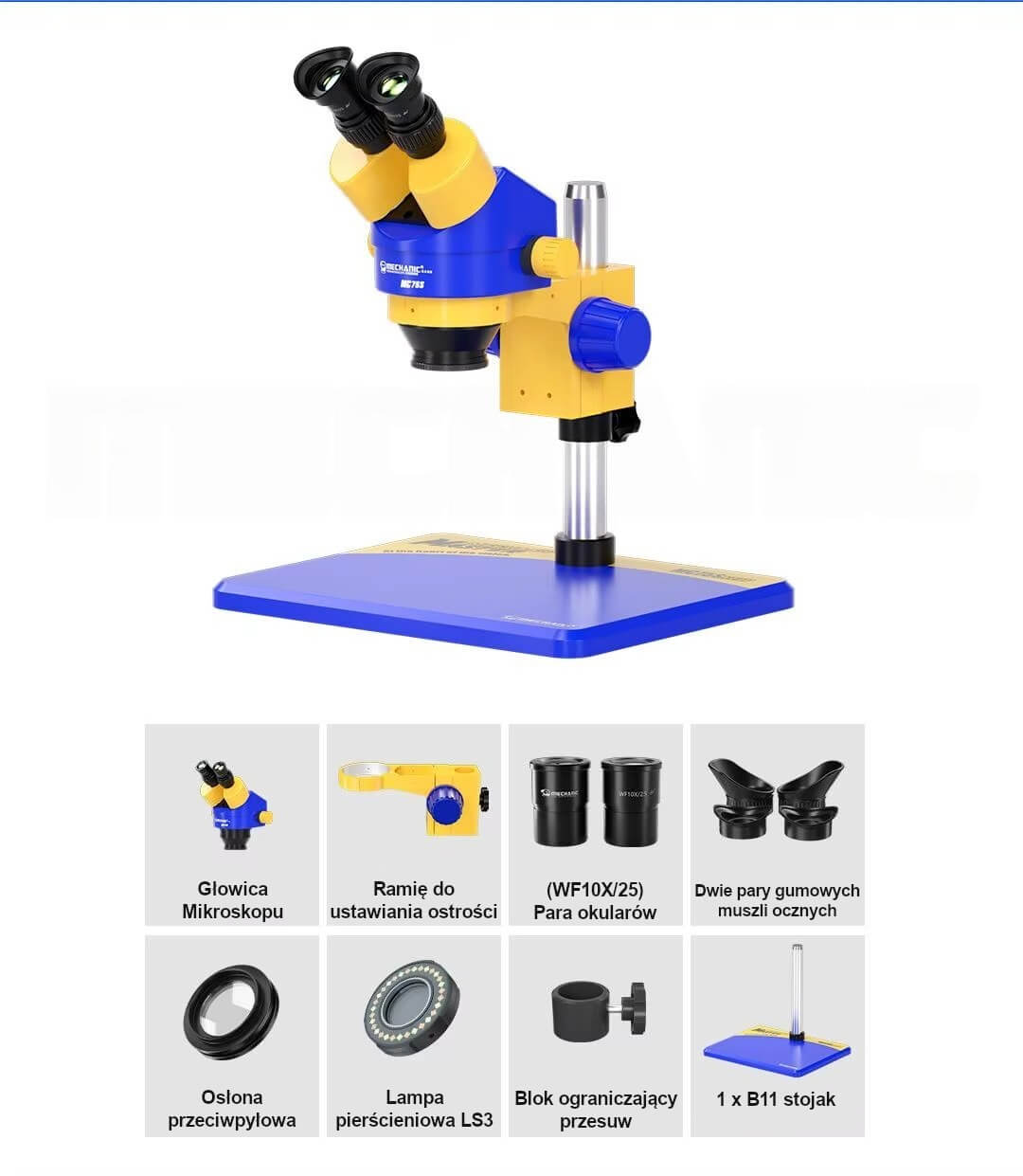

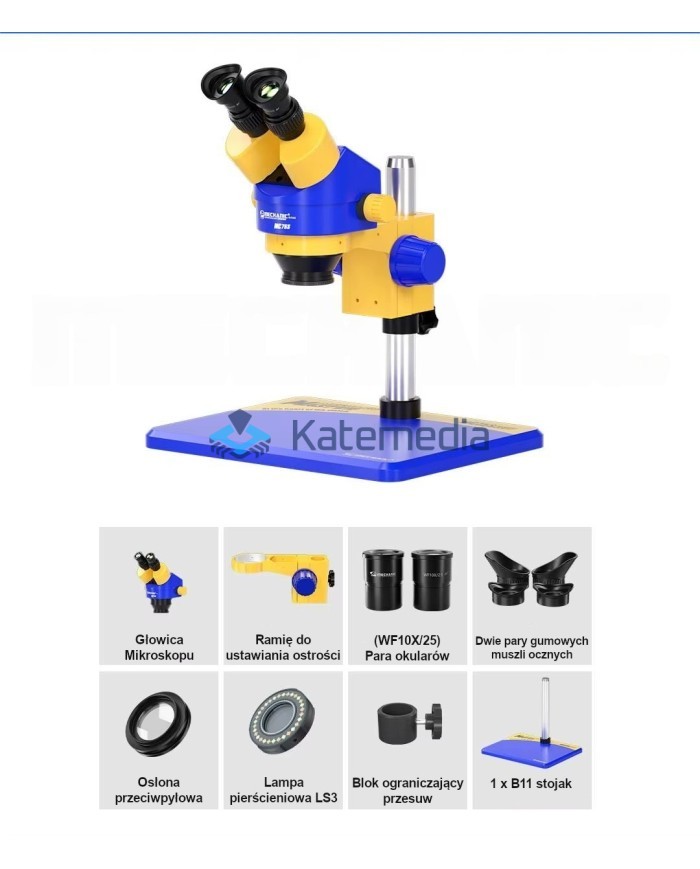

Package Contents
- Mechanic MC75S Microscope Head
- Focusing Arm (Ø76 mm Bracket)
- Pair of Eyepieces WF10×/25
- Two Pairs of Rubber Eyecups
- Dust Cover (Protective Glass)
- LED Ring Light LS3
- Stop Block slide
- Base / stand B11
