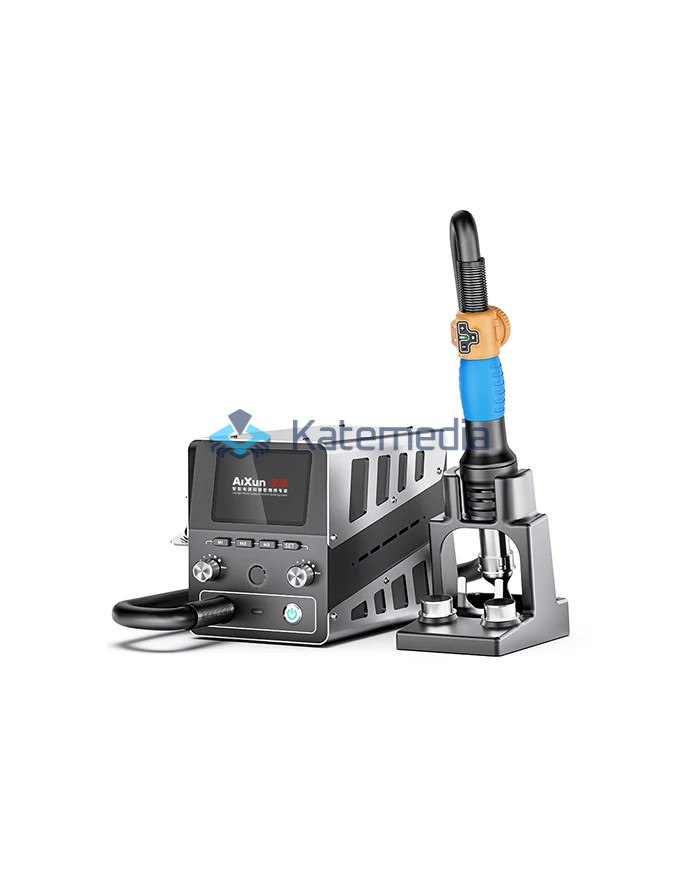

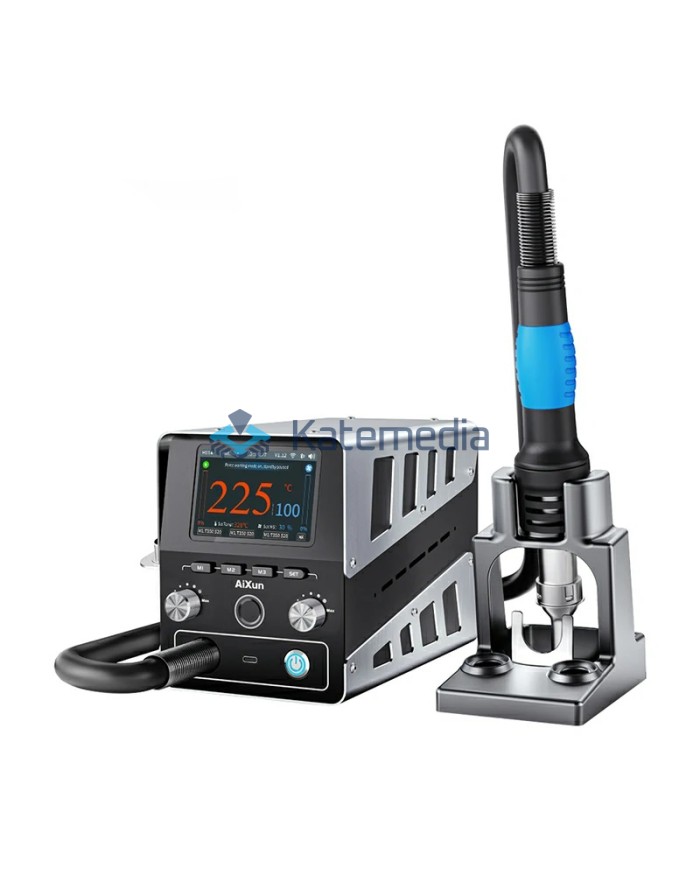

Hot Air Soldering Station Aixun H314 1400W
Hot Air Soldering Station Aixun H314 1400W
Hot Air Soldering Station Aixun H314 1400W
Intelligent soldering station for hot air, model AX-H314, manufactured by Aixun. Designed for efficient operation in an electronic environment, the station offers 1400W peak power and 1200W rated power for quick warm-up and high efficiency.
zł1,353.99
Tax included
Product availability
Product available
Delivery options
Learn more
Dobierz akcesoria
The station enables communication via various interfaces, such as USB-C, Bluetooth and WiFi, which allows for easy integration with other devices and remote management and software updates.
Thanks to the wide temperature regulation range from 100 to 500°C and airflow regulation from 1 to 150%, the user can precisely adjust the settings to various applications.
Equipped with a 3.5-inch IPS HD display, the station displays all necessary parameters, settings and temperature values, making it easy to monitor and control the soldering process. The station offers three operating modes: desoldering mode, cold blow mode and full power mode, which can be quickly switched with a single switch, making it convenient to use even for beginners.
In addition, the station has an intelligent operating system for management and operation, a flexible air supply hose from the turbine and a quiet brushless fan, which ensures effective and convenient work.
Thanks to the ability to save desoldering parameters and create your own desoldering function database, the station allows users to adjust the soldering characteristics to various applications.
It is worth using Aixun hot air soldering stations, especially when working with BGA (Ball Grid Array) and SMD (Surface Mount Device).
Precise temperature and airflow control is essential when soldering and desoldering components that require precise and controlled heat delivery. This allows you to avoid damage to delicate integrated circuits and ensure durable and reliable connections.
.png)
*Compatibility with the Bluetooth module for managing the BS06 station (not included)

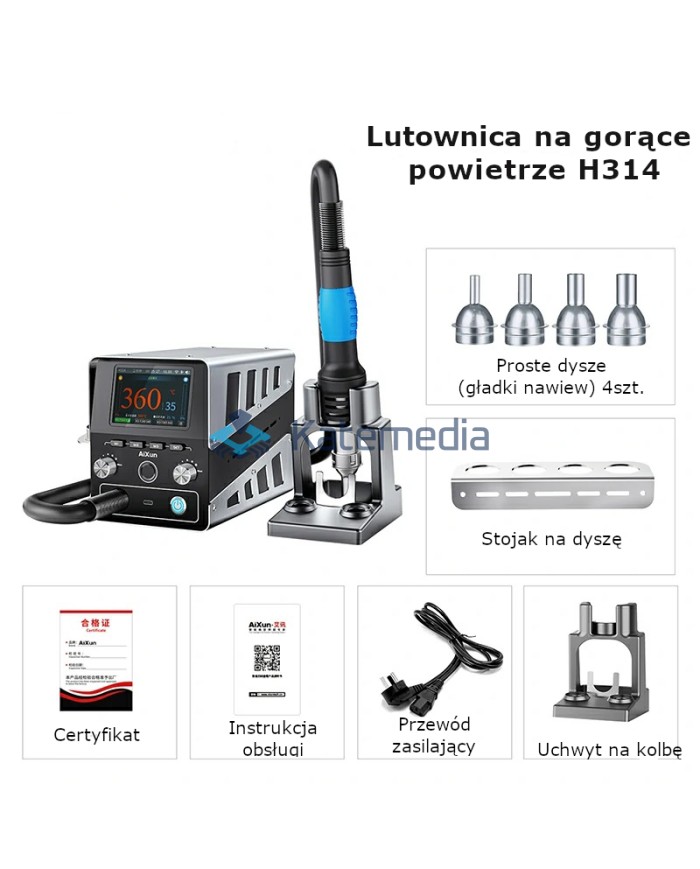

Set includes:
- 1 x Aixun H314 soldering station
- 1 x power cord
- 1 x base with holder
- 4 x nozzles for the station in different sizes
- 1 x nozzle holder
- Stand for the iron
Key Features:
High power and efficiency:
- Peak power: 1400W, rated power: 1200W.

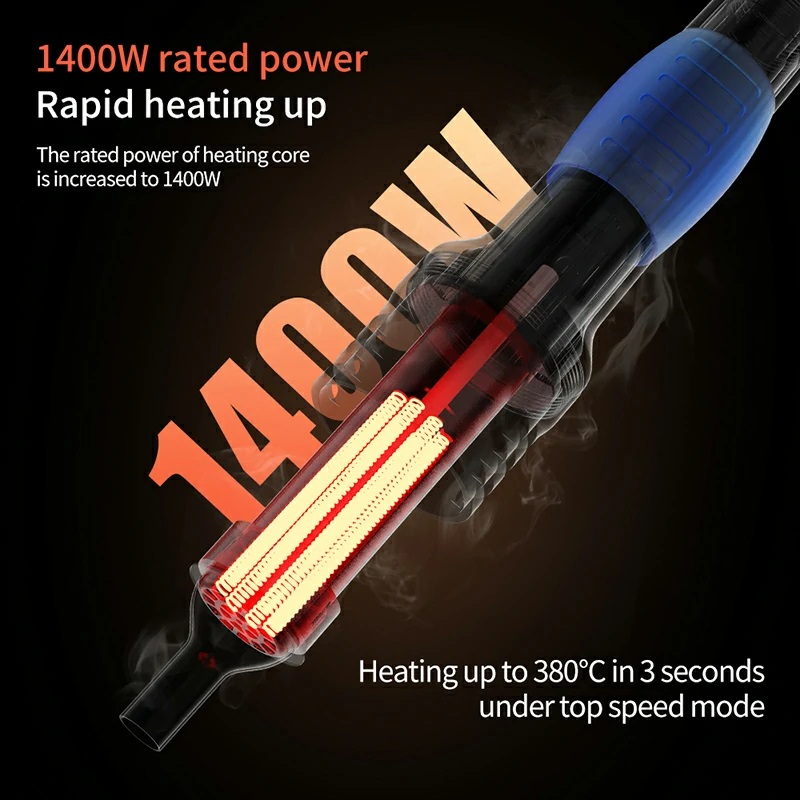

- Fast heating - reaches 380°C in 3 seconds.
Advanced regulation:
- Temperature regulation: 100–500°C.
- Air flow regulation: 1–150%, at a speed of 10–50 m/s.
Intelligent functions:

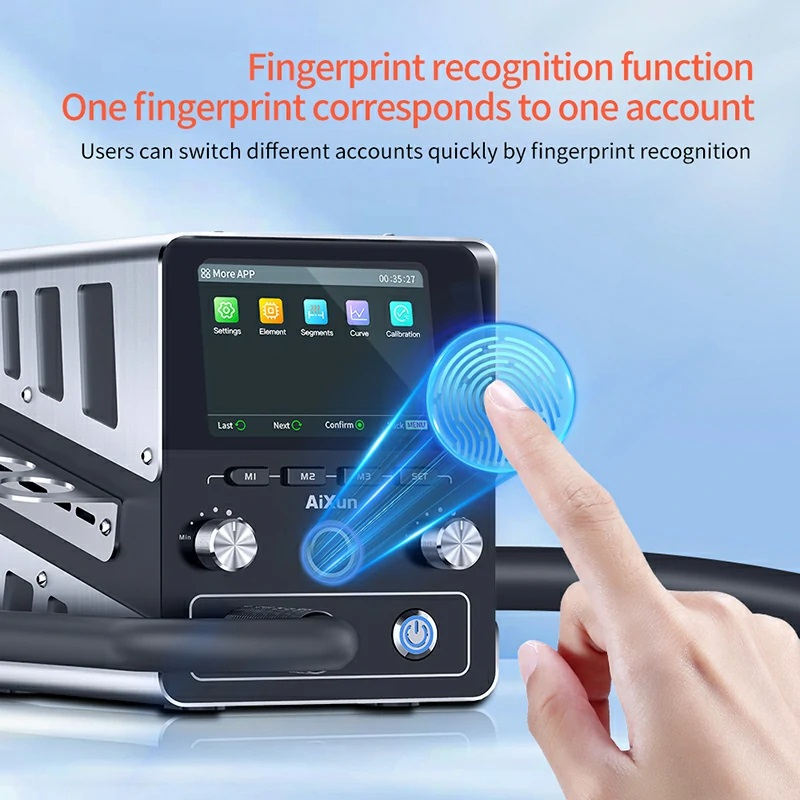

- Fingerprint reader allowing to assign up to 5 users with individual settings.
- 9 memory cells for personalized settings.
- Creating and recalling your own database of desoldering parameters.

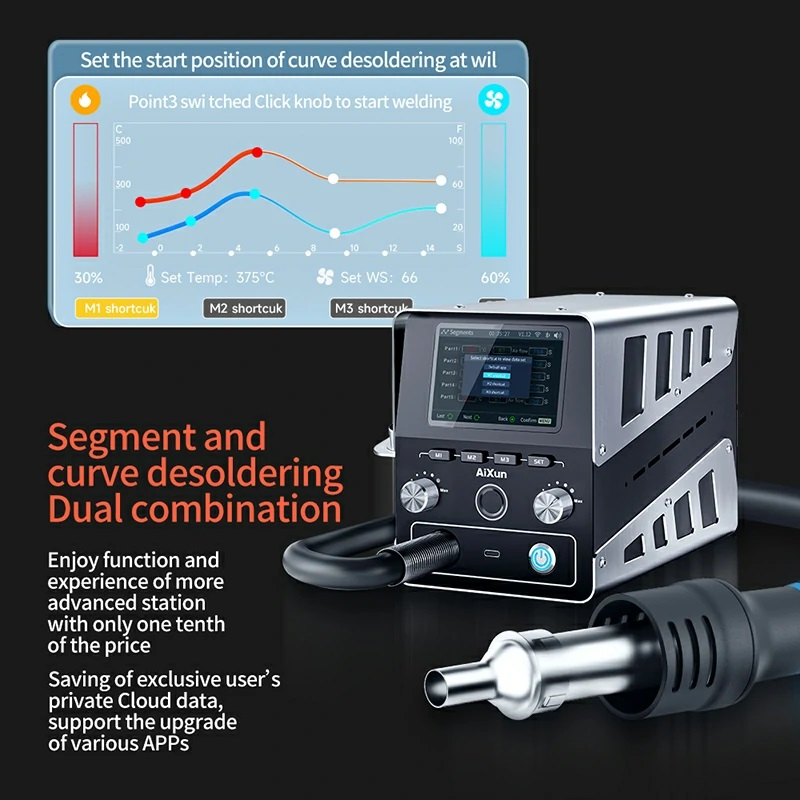

- Ability to work with fixed parameters or according to a programmed curve.

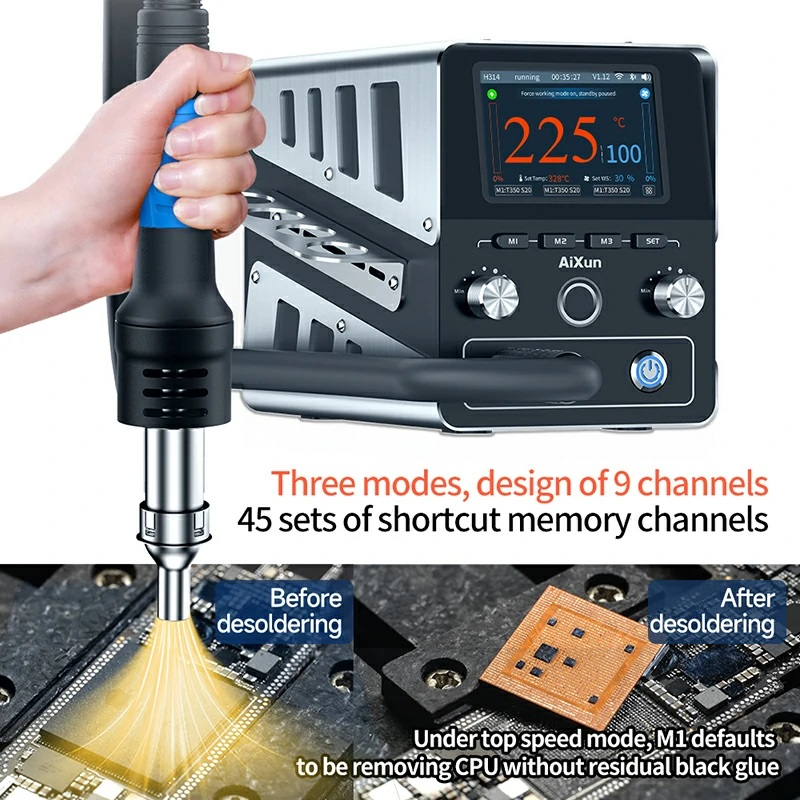

Three operating modes:
- Mode desoldering (adapted to solder paste).
- Cold blow mode.
- Full power mode.
Connectivity and integration:

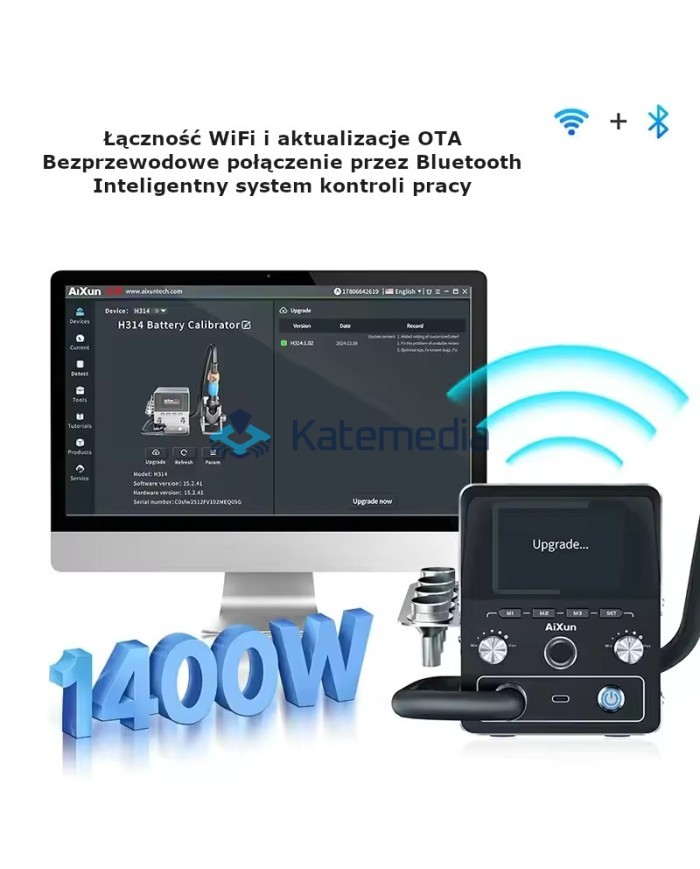

- Communication via USB-C, Bluetooth, WiFi.
- OTA (Over-The-Air) updates.
- Compatibility with optional control module and Aixun thermal imaging camera.
Display and operation:
- 3.5-inch IPS HD display displaying parameters and settings.
- Operation using knobs and buttons.
Ergonomics and comfort of use:
- Flexible cable air from the turbine.
- Quiet brushless fan.
- Solid base with quick nozzle change function and nozzle holder.
- Compact dimensions (220 x 170 x 100 mm).
Safety and durability:
- ESD Safe function - protection against electrostatic charges.

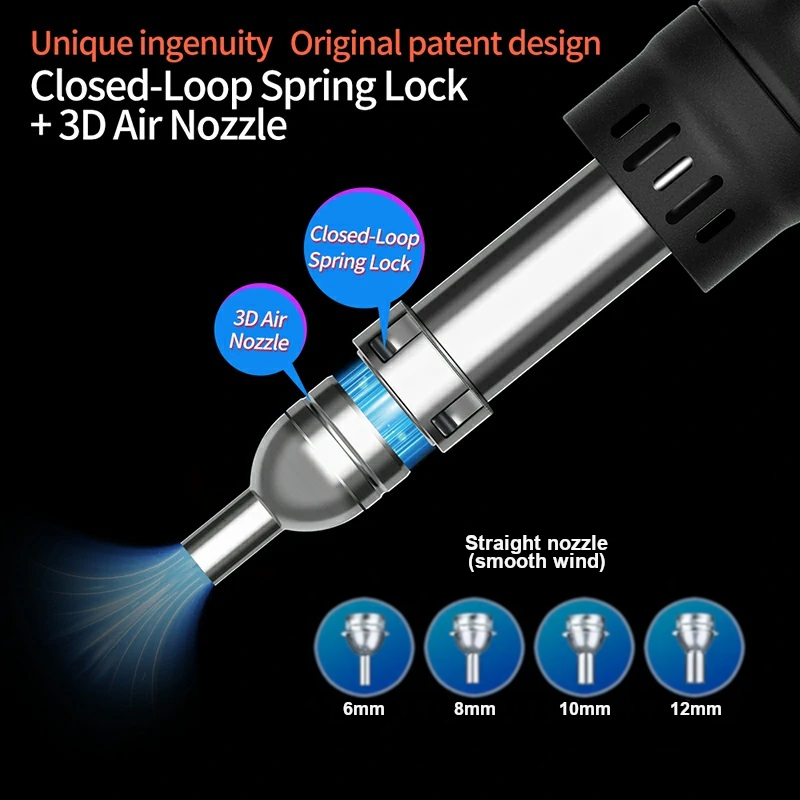

- Spring lock enabling "hot" nozzle assembly and replacement.
- Station grounding connector.
