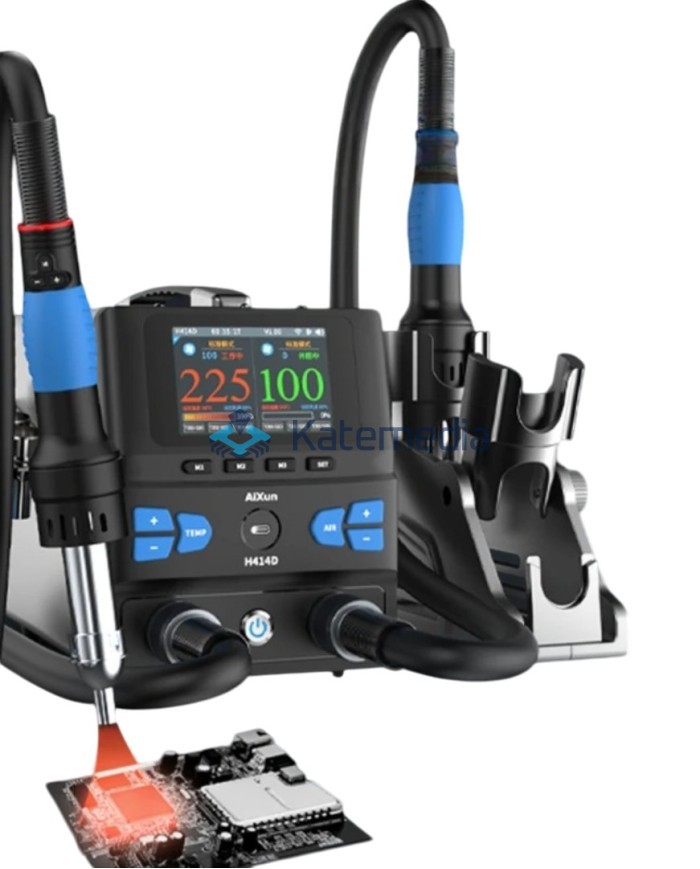

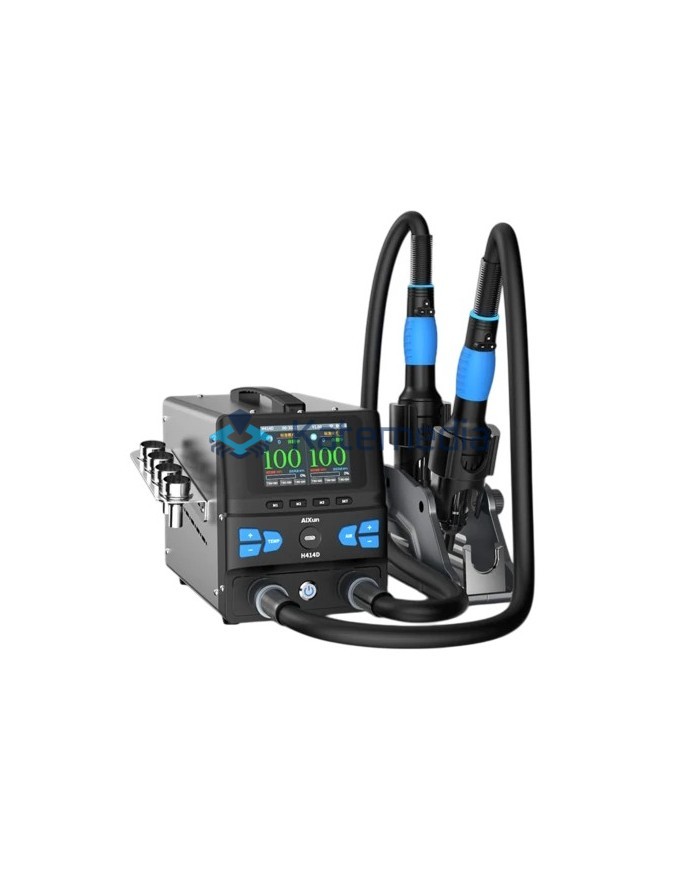

Aixun H414D 1400W Dual-Channel Hot Air Soldering Station
Aixun H414D 1400W Dual-Channel Hot Air Soldering Station

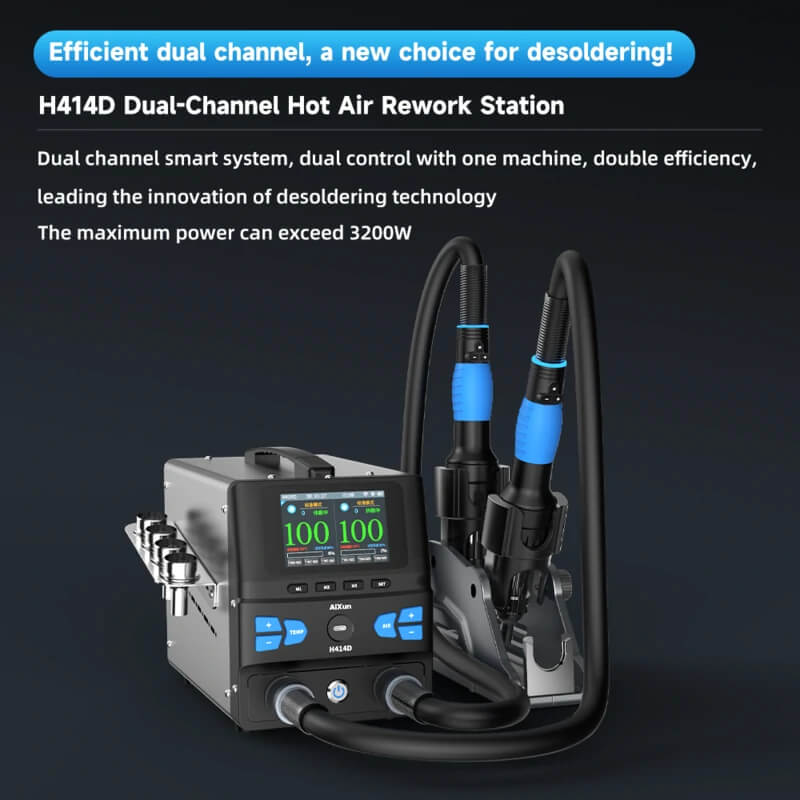

AiXun H414D – Dual-Channel Hot-Air Station 2×1400W
AiXun H414D is a modern hot-air soldering station, designed for professional repair shops and demanding users. Thanks to two independent channels and a power of up to 3200W, it ensures instant heating and maximum work efficiency.
The built-in IPS 3.5” screen displays all parameters in real time, while the handle control and 6-axis gyroscope enable intuitive and stress-free operation. Smart features such as Bluetooth/Wi-Fi, OTA, and vibration notifications increase work comfort.

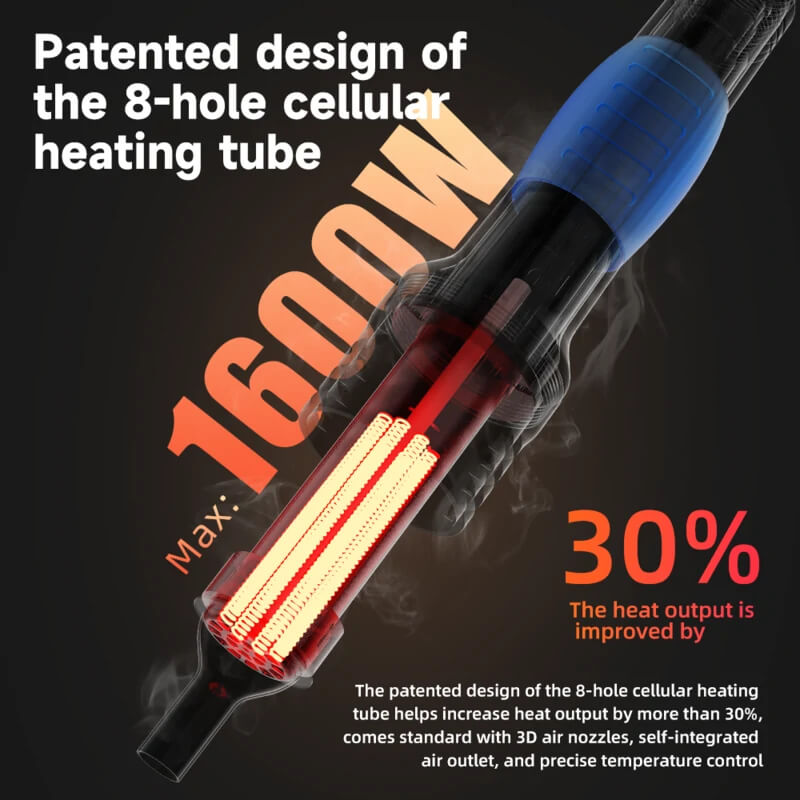

Thanks to the patented 8-hole heating tube, the station achieves over 30% greater thermal efficiency than traditional solutions, ensuring precise temperature control and reliable operation in all conditions.
zł1,749.99
Tax included
Product availability
Product not available
Delivery options
Learn more
AiXun H414D – Dual-Channel Hot Air Station 2×1400W with Bluetooth/Wi-Fi
Professional station for BGA rework and precise hot air soldering. Two independent channels, a 3.5" IPS screen, Bluetooth/Wi-Fi connectivity, OTA updates, and a patented 8-hole heat pipe deliver over 30% greater thermal efficiency.

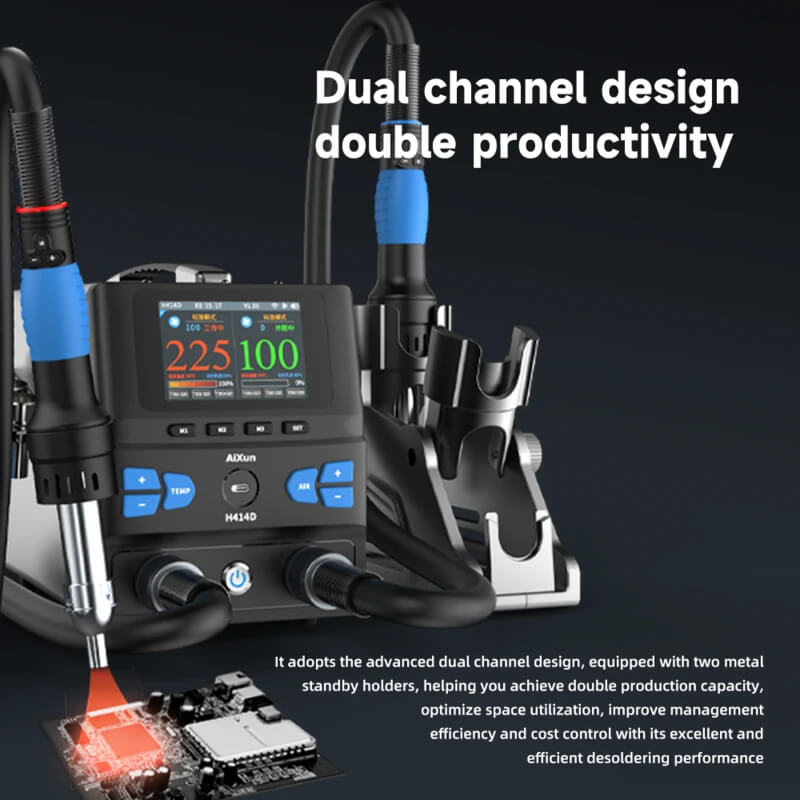

Key benefits – the advantage of dual-channel design
-
Double productivity without compromise
Two irons work simultaneously – you can heat and remove components in parallel (e.g., both sides of a PCB, pre-heating + reflow). Less downtime, more completed jobs.
-
Two profiles – full process control
Set separate parameters for each hot melt (temperature, flow) and switch in seconds. Consistent quality and repeatability across different components.
-
Less risk for PCBs and systems
Precise heat dissipation and shorter exposure time reduce the risk of overheating, pad detachment, and microcracks.
-
Space and cost savings
One station replaces two separate devices – fewer cables, less space consumption, lower purchase and service costs.
-
Ready for teamwork
Two handpieces allow two operators to work comfortably on one board or divide tasks (e.g., removing the chip + cleaning the pads).
Features that will speed up your work

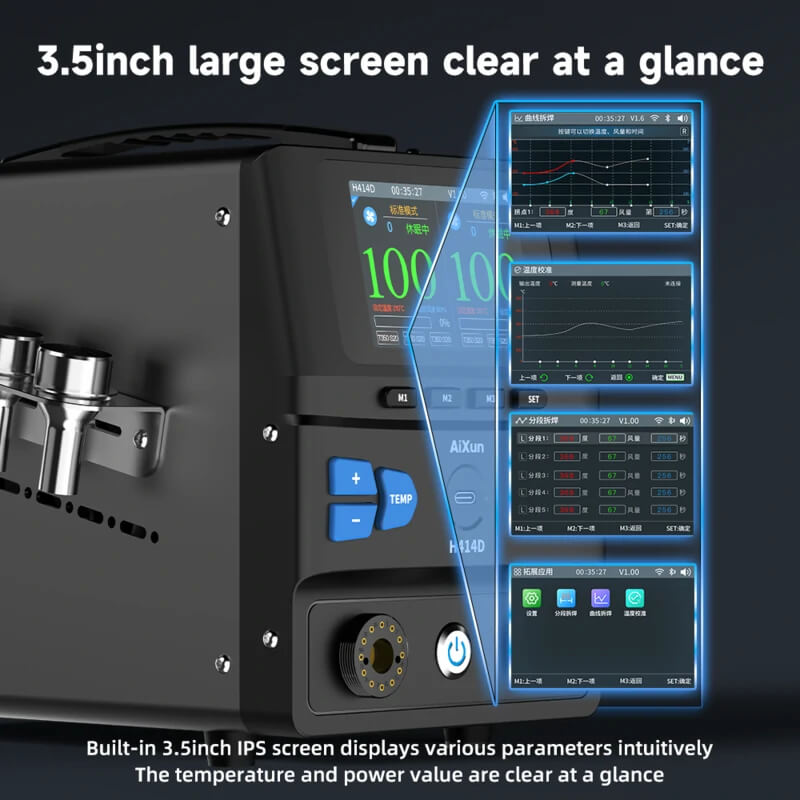

- 3.5” IPS screen – real-time temperature, power, and airflow readable.
- Operator control – three buttons (mode, +, −) for instant parameter changes without putting the handle down.

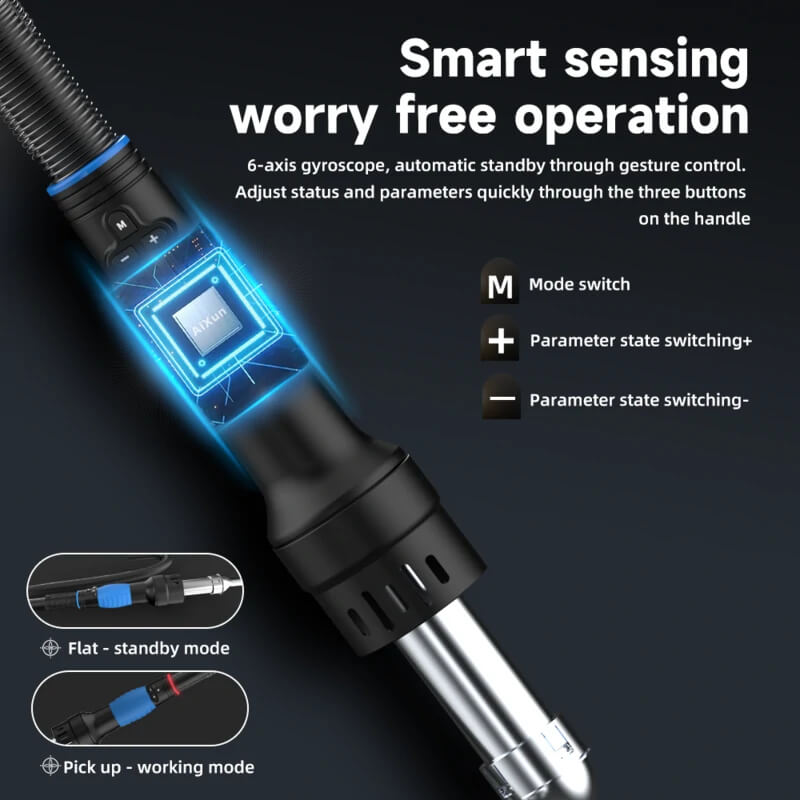

- 6-axis gyroscope – automatic switch to standby when the portafilter is put down; energy savings and longer heater life.

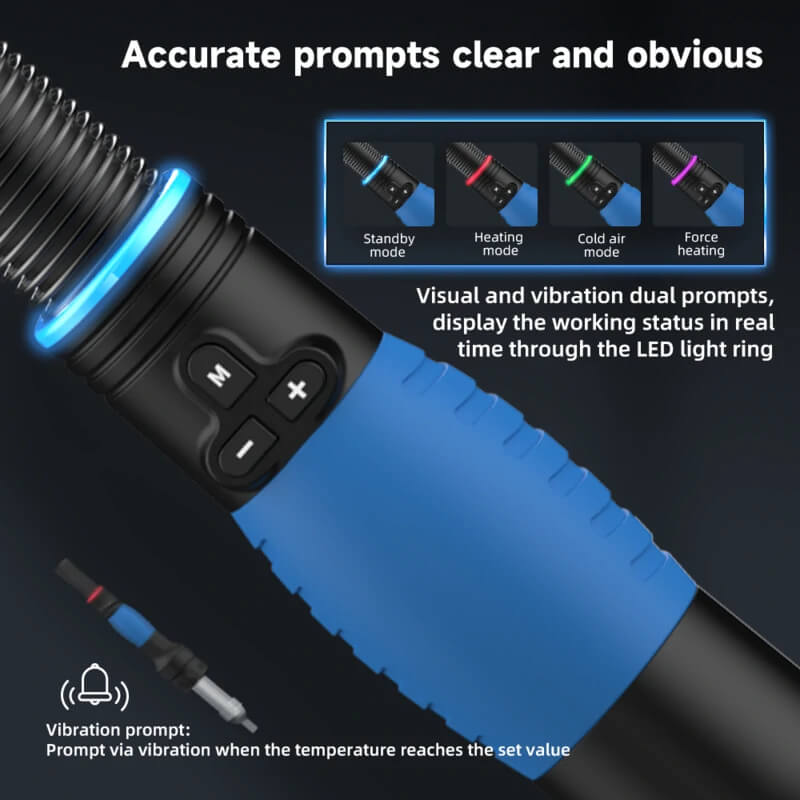

- LED ring + vibration – immediate information on operating status (standby / heating / flow / cooling).

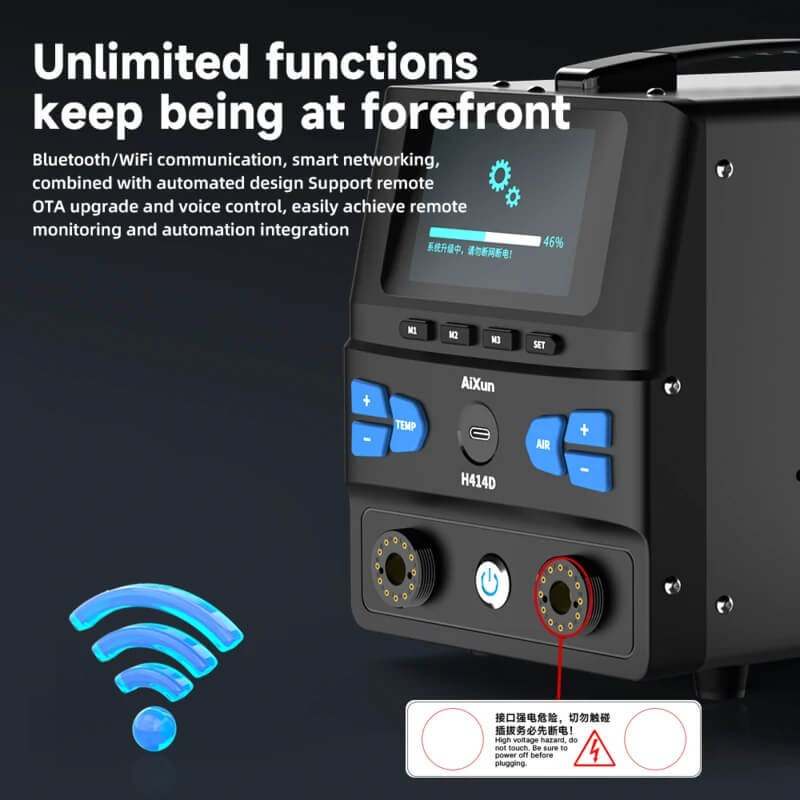

- Bluetooth/Wi-Fi/USB – remote monitoring, OTA updates, and automation integration.

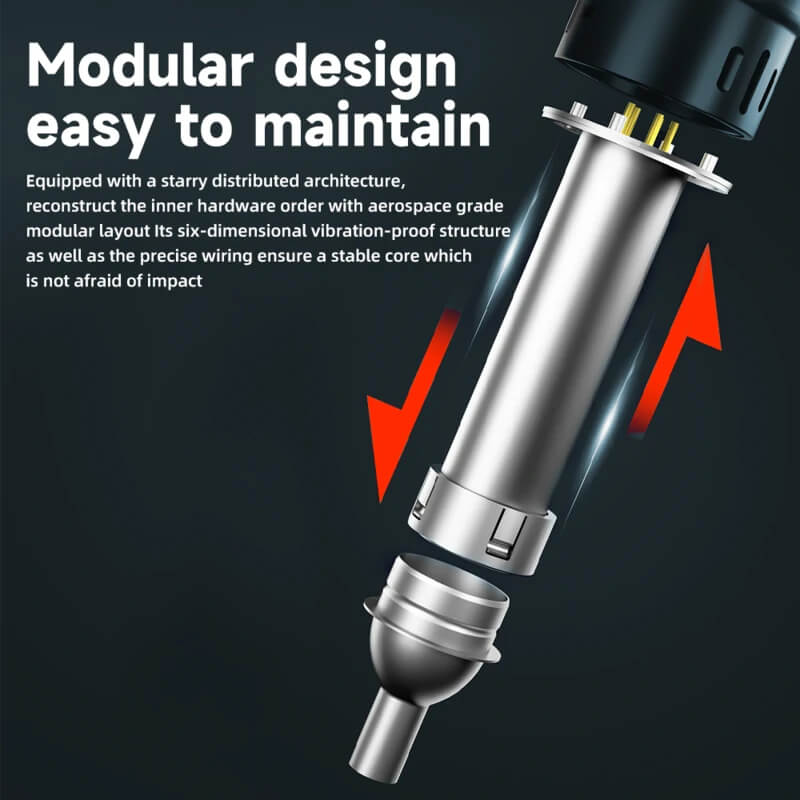

- Modular architecture – reinforced and vibration-resistante; easy service and stable operation even in difficult conditions.
Technical Specifications
| Model | AiXun H414D |
| Rated Power | 2 × 1400 W (supports 1000/1200/1400/1600 W cores; total power can exceed 3200 W) |
| Temperature Range | 100 – 500 °C |
| Airflow | 1 – 60 L/min |
| Display | IPS 3.5 inch |
| Connectivity | USB, Bluetooth, Wi-Fi; OTA updates; Voice control |
| Power supply | 230 V AC, 50 Hz |
| Flasks | HK14 with buttons (×2) – parameter control from the handle |
| Net weight* | approx. 7.26 kg |
| Gross weight* | approx. 7.9 kg (*with packaging) |
Business Applications and Effects
Electronics/GSM services, BGA/QFN/QFP rework, R&D and prototyping, universities and laboratories, industrial repairs (large connectors and solders).
- Shorter order times – parallel operations reduce rework times by up to several dozen percent.
- Higher quality – a stable thermal profile and precise airflow reduce the risk of PCB damage.
- Lower costs – one station instead of two, less space consumption, and lower maintenance costs.

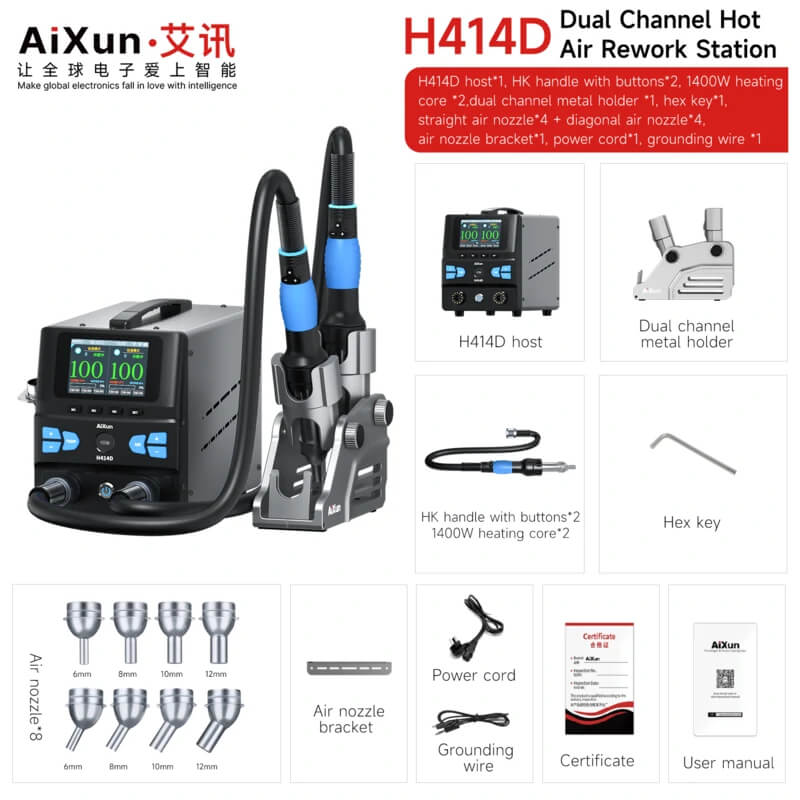

Package Contents
- 1 × H414D Main Unit
- 2 × HK14 Iron with Buttons
- 2 × 1400W Heating Core
- 1 × Double Metal Stand
- 8 × Air Nozzles (Straight and Angled: 6/8/10/12 mm)
- 1 × Nozzle Holder
- 1 × Allen Key
- 1 × Power Cord
- 1 × Grounding Wire
- 1 × Certificate, 1 × User Manual
SAIH414D00
