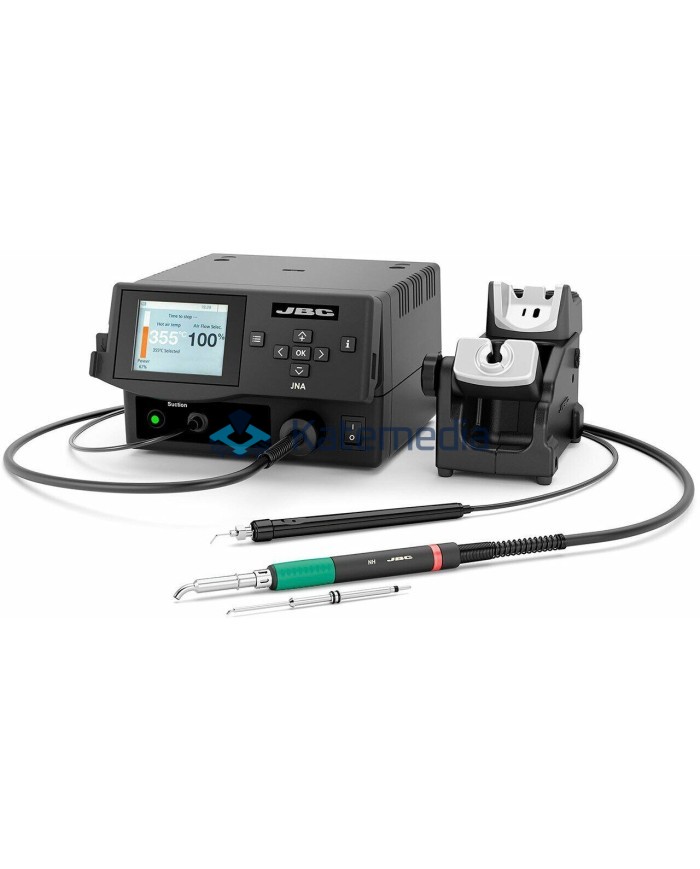

Hot Air Soldering Station JBC JNA-2B and Accessories
Hot Air Soldering Station JBC JNA-2B and Accessories
Precision rework and full control – JBC JNA-2B
JBC JNA-2B is a precision hot air station for micro-soldering and rework SMD/SMT, even 01005 under a microscope. Spot heating and ultra-low flow 0.15–2.5 SLPM allow you to work on dense PCBs without disturbing adjacent components. The 150–450 °C range, manual mode, and programmable profiles provide full process control. The integrated Pick&Place with a vacuum pump and the P-405 pedal make it easy to lift and position components. The JNA-2B is ESD Safe (ANSI/ESD S20.20), offers USB-A/USB-B and RJ12 connectivity, and the compact housing takes up minimal space. Includes: NH-A handle, NAS stand, Ø1.0 and 3.0 mm nozzles, and a T260-A pipette. Ideal for service centers, laboratories, and R&D.
zł9,299.99
Tax included
Product availability
Last remaining items
Delivery options
Learn more
JBC JNA-2B – Precision Hot Air Station with Pick&Place Function
Discover JBC JNA-2B – the smallest, ultra-accurate hot air station for microscopy. Perfect for precise SMD/SMT rework (even 01005) with minimal impact on adjacent components.
Important Note!
For full precision and durability, we recommend using original JBC J125/J325 series nozzles and Pick&Place accessories. Substitutes may reduce performance and increase runtime.
Key Advantages of the JBC JNA-2B
- 🎯 Ultra-accurate, spot heating: 150–450°C range and ultra-low flow 0.15–2.5 SLPM ensure control over the most delicate components.
- 🧬 Rework of the smallest size: convenient work under the microscope with 01005 / 0201 components and small QFN/MLF components.
- 🖱️ Built-in Pick&Place: integrated vacuum pump and P-405 foot pedal facilitate precise lifting and positioning of components.
- 🧠 Manual and programmable modes: ability to work according to step profiles for repetitive service tasks.
- 🛡️ ESD Safe and Connectivity: ANSI/ESD S20.20-2021 compliant, USB-A/USB-B, RJ12 (remote/FAE) ports, and a foot pedal jack.
- 📦 Compact Design: Small dimensions make it easy to work in tight spaces and on dense PCBs.
JBC JNA-2B Technical Specifications
- ⚡ Nominal Power: 70W
- 🌡️ Temperature Range: 150–450°C / 300–840°F
- 💨 Airflow: 0.15–2.5 SLPM (standard liters per minute)
- 🧲 Vacuum (Pick&Place): 53% / 397 mmHg (15.6 inHg)
- 🛡️ ESD Safety: Complies with ANSI/ESD S20.20-2021
- 🔌 Interfaces: USB-A (FW/profile), USB-B (PC), RJ12 (remote/FAE), pedal jack
- 📐 Unit dimensions: 180 × 170 × 110 mm
- ⚖️ Net weight: ~4.06 kg
- 🧩 Compatible nozzles: J125 / J325 series (e.g. Ø1.0 mm J125410 and Ø3.0 mm J325410)
- 🏷️ Type: hot air station (precision)
What's included?
- Control unit JNA-2B
- Hot air handle NH-A with stand NAS
- Nozzles: Ø1.0 mm (J125410) and Ø3.0 mm (J325410)
- Vacuum Pipette T260-A Pick&Place (curved needles and suction cups)
- Footswitch P-405
- Factory Cables and Accessories
The JBC JNA-2B is the perfect choice for precise SMD rework on dense PCBs – wherever local, fully controlled heating is important.
