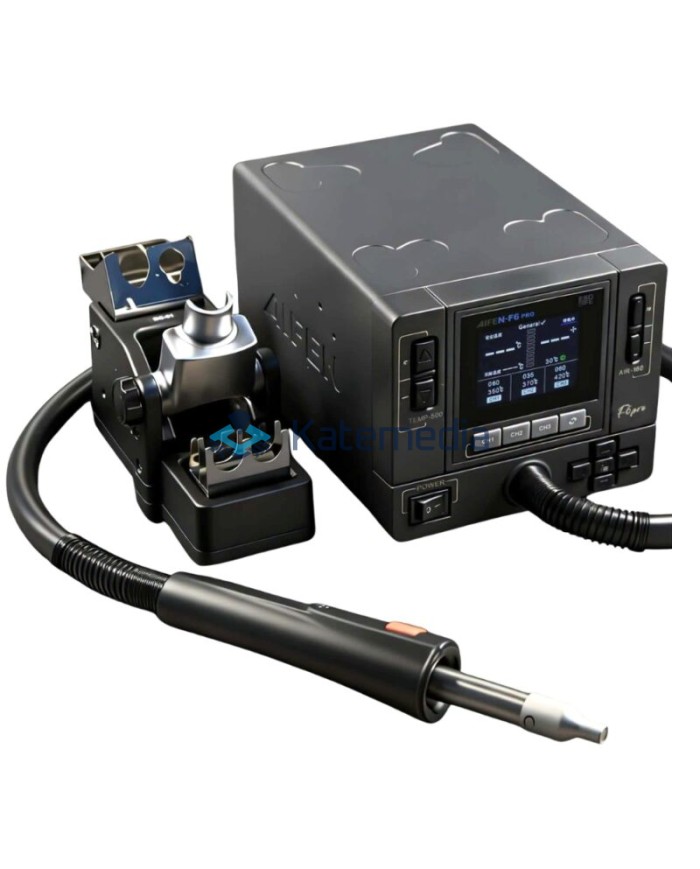

Aifen F6 Pro 1000W – Professional Hot Air Rework Station with Colour Display

Aifen F6 Pro is a modern hot air rework station designed for professional electronics repair services. Its 1000W power, fast heating and precise temperature control make it suitable for both delicate SMD work and more demanding tasks such as removing BGA chips, connectors, shields and other components from motherboards.

The F6 Pro features a newly designed hot air handle with a slim heating section, which improves visibility when working under a microscope. The colour display provides a clear overview of temperature, airflow and saved settings.

1000W Power and 100–500°C Temperature Range

The high power output ensures fast heating and sufficient thermal reserve when working with multilayer PCBs and components that dissipate heat efficiently.

The temperature can be adjusted within the range of:

100–500°C

The station also offers a wide airflow adjustment range of AIR up to level 160, allowing the parameters to be adapted to both small components and larger areas of the PCB.

Fast Heating and Cooling

The improved temperature control system enables rapid heating as well as efficient cooling of the hot air handle after work is completed.

This reduces waiting time between tasks and improves productivity in professional repair environments.

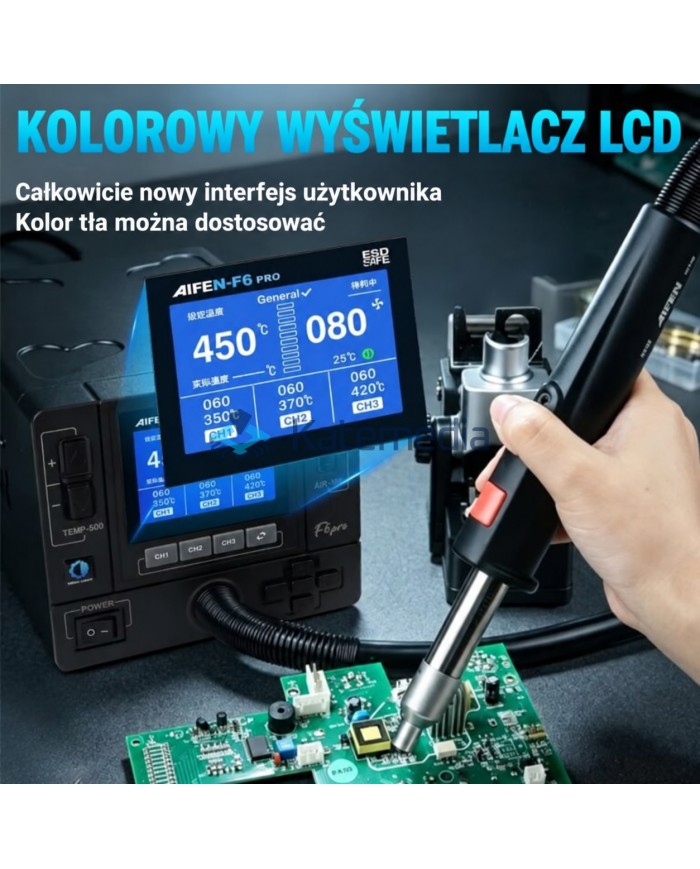

Colour LCD Display and New User Interface

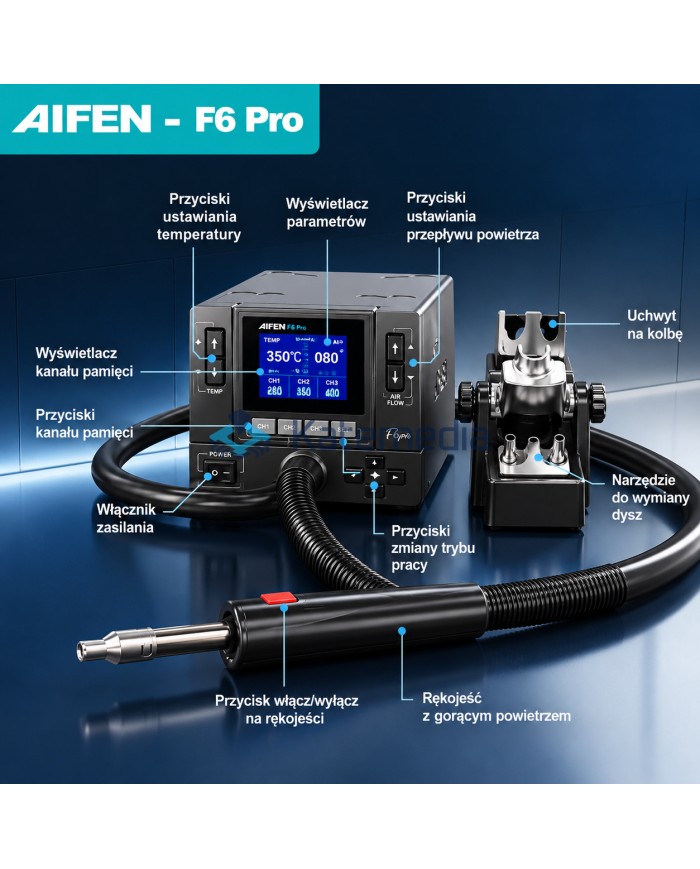

The Aifen F6 Pro is equipped with a colour display showing the most important operating parameters.

The screen allows the user to monitor:

• set temperature,

• actual temperature,

• airflow level,

• selected memory channel,

• current operating mode.

The interface has been designed so that the most frequently used functions are easily accessible without navigating through complicated menus.

3 Memory Channels – CH1, CH2 and CH3

The station allows three frequently used parameter presets to be stored.

The CH1, CH2 and CH3 memory channels make it possible to quickly switch between saved temperature and airflow settings without having to configure the station from scratch each time.

This is especially useful for repetitive repair tasks.

Programmable Temperature Curve Mode

The F6 Pro features an automatic temperature curve function.

This allows the heating process to be divided into multiple stages, enabling gradual preheating before reaching the temperature required for soldering or component removal.

This function is particularly useful when working with larger ICs and PCBs that require controlled heating.

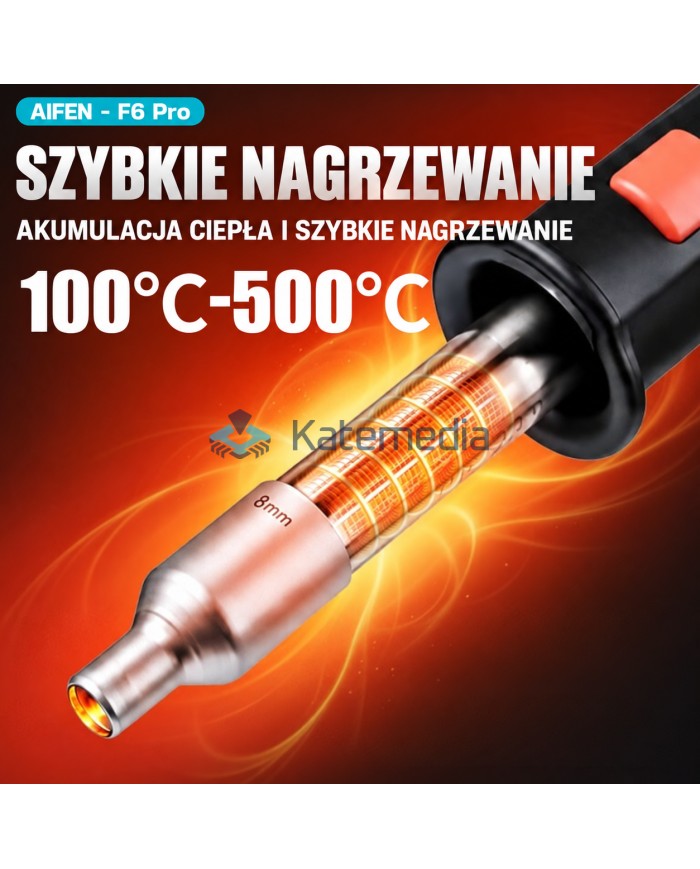

Slim Hot Air Handle – Improved Visibility Under a Microscope

One of the key improvements of the F6 Pro is its redesigned hot air handle.

The slim heating section reduces obstruction of the working area and provides better visibility when working under a microscope.

This allows the hot air stream to be directed more precisely onto the component being repaired.

Replaceable Heating Module

The heating element used in the F6 Pro has been designed as an easily replaceable module.

If the heater becomes worn, there is no need for complicated disassembly of the entire handle. This simplifies future servicing and can significantly extend the service life of the station.

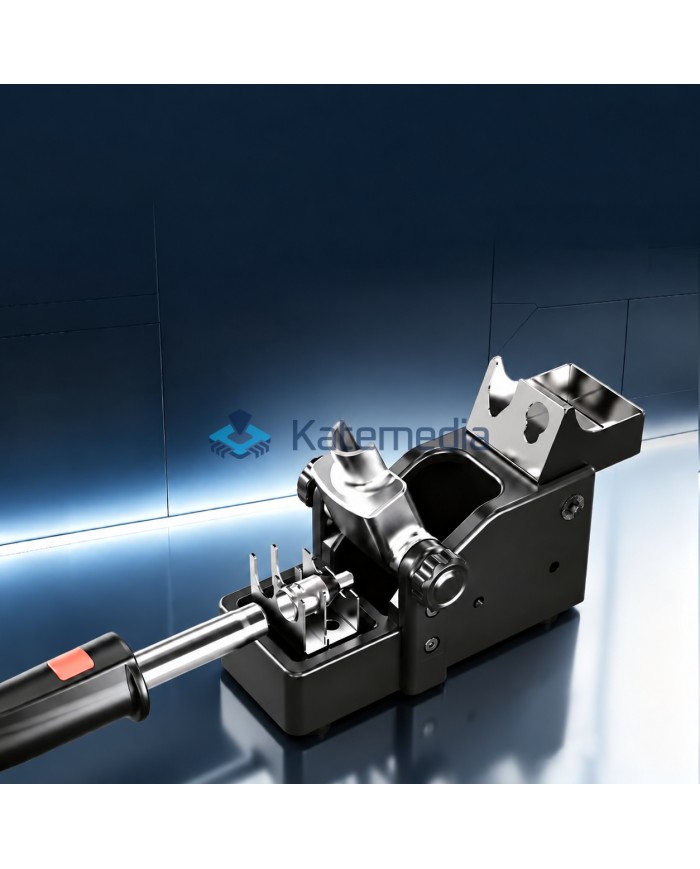

Quick Nozzle Changing System

The dedicated holder includes a convenient area for changing hot air nozzles.

The nozzle can be removed and replaced without having to touch the hot component by hand.

This makes it easier to quickly change the airflow diameter during repair work.

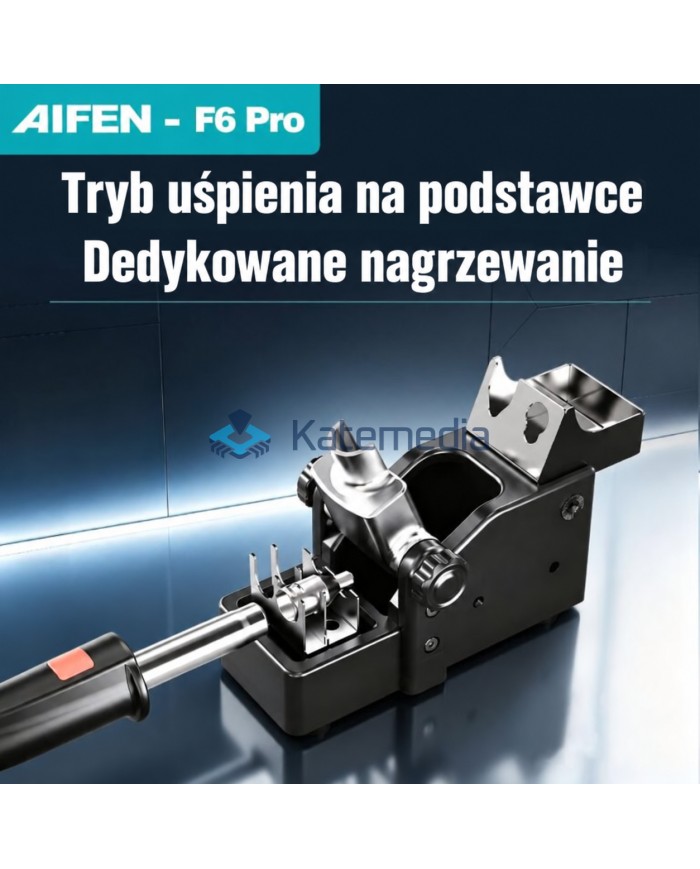

Two Ways to Activate Sleep Mode

The F6 Pro features a convenient automatic standby system.

Sleep mode can be activated:

• automatically when the hot air handle is placed in the holder,

• manually using the button located directly on the handle.

When work is resumed, the station quickly returns to the previously set operating parameters.

Extensive Device Settings

The F6 Pro menu allows the station to be adapted to the user's preferences. Available settings include:

• heating mode,

• temperature curve settings,

• language,

• sound signals,

• °C / °F temperature units,

• temperature calibration,

• sleep mode parameters,

• background colour,

• display brightness,

• button operation settings.

Applications

The Aifen F6 Pro is suitable for:

• soldering and desoldering SMD components,

• removing BGA chips,

• repairing smartphone and tablet motherboards,

• replacing connectors and sockets,

• heating shields and displays,

• removing adhesives,

• repairing consumer electronics,

• precision work under a microscope.

Technical Specifications

Model: Aifen F6 Pro
Power: 1000W
Power supply: AC 220V, 50/60Hz
Temperature range: 100–500°C
Airflow adjustment: AIR up to level 160
Display: Colour LCD
Memory channels: 3 – CH1 / CH2 / CH3
Temperature curve mode: Yes
Sleep mode: Automatic when the handle is placed in the holder / manual activation from the handle

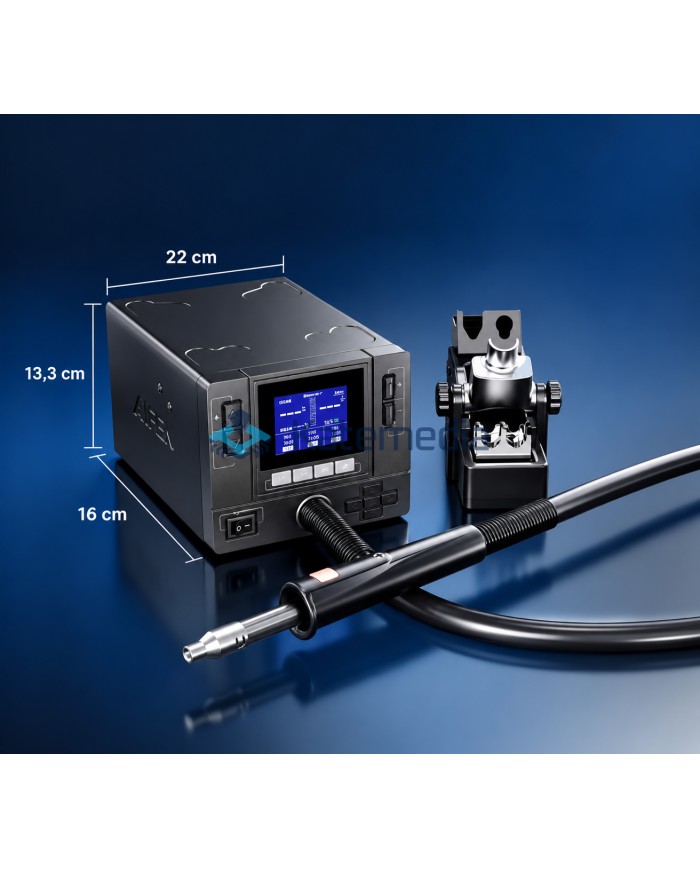

Station dimensions: approx. 22 × 16 × 13.3 cm
Main unit weight: approx. 3.95 kg

Package Contents

• Aifen F6 Pro Hot Air Rework Station,

• hot air handle,

• adjustable handle holder,

• 3 hot air nozzles,

• power cable,

• user manual.

Why Choose the Aifen F6 Pro?

The Aifen F6 Pro combines 1000W power, fast heating, a modern colour interface and convenient operation. Its slim hot air handle provides excellent visibility when working under a microscope, while the replaceable heating element and quick nozzle changing system make everyday servicing easier.

It is designed primarily for professional repair centres that require high hot air performance, precise parameter control and comfortable operation during long working sessions.
