C245 tip with M4 form for desoldering joysticks
C245 tip with M4 form for desoldering joysticks

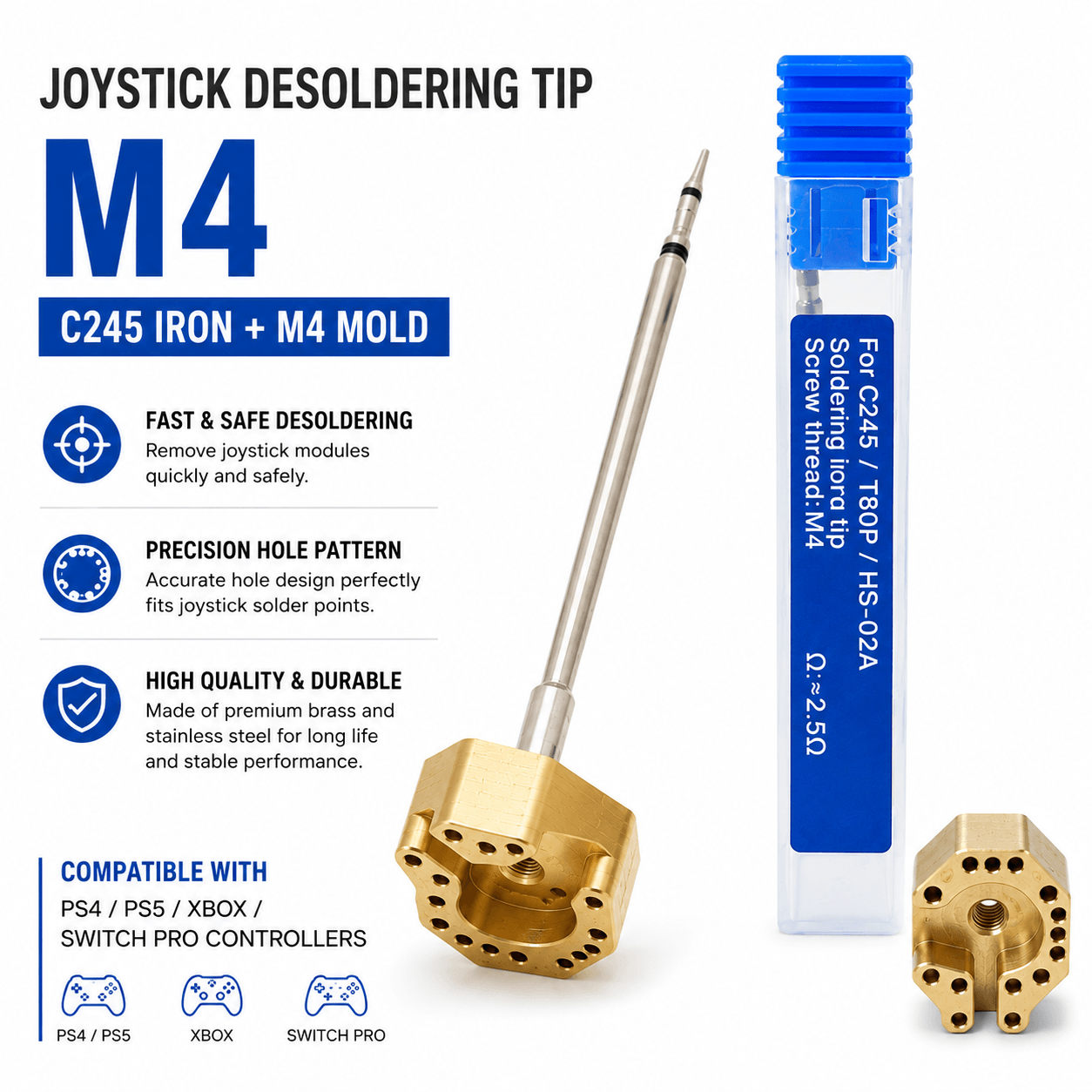

C245 Iron + M4 Mold for Desoldering Joysticks
C245 Iron + M4 Mold is a specialized tip designed for the quick and even desoldering of joystick modules in console controllers. A brass mold with precisely spaced holes allows for simultaneous heating of multiple solder points.
The tool simplifies the disassembly of a worn analog module and reduces the need to desolder each pin individually. It is ideal for console and electronics repair shops, as well as professional controller repairs.
The tip is designed for stocks that support the C245 standard, while the brass mold uses an M4 thread mount. The product is compatible with joystick modules used in PS4, PS5, Xbox, and Nintendo Switch Pro controllers.
zł149.99
Tax included
Product availability
Last remaining items
Delivery options
Learn more
C245 tip with M4 mold for unsoldering joysticks
Grot C245 Iron + M4 Mold is a specialized tool that facilitates the removal of joystick modules from PS4, PS5, Xbox and Nintendo Switch Pro controllers. The precise hole pattern allows for even heating of the analog module's solder pads.
Faster analog module replacement

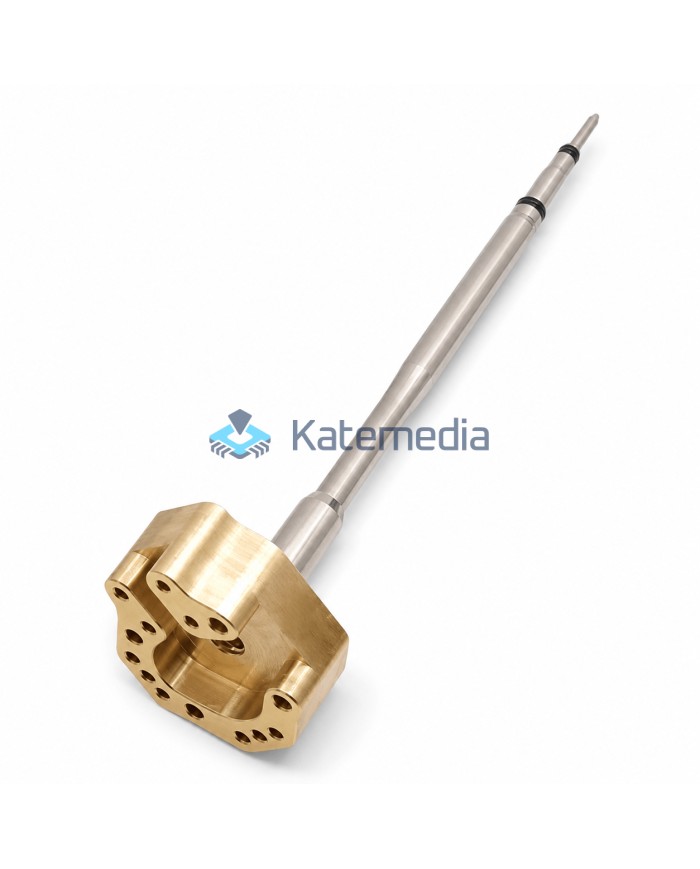

The brass head is made with a hole pattern that matches the solder pads of popular joystick modules. A large work surface allows for simultaneous heat transfer to multiple connections, reducing the need to desolder each pin individually.
- version designed for irons supporting C245 tips,
- brass mold with M4 thread mount,
- even heating of the joystick soldering points,
- easier module disassembly without excessive prying PCB,
- Designed for console, controller, and electronics servicing.
Compatibility
The tool can be used when replacing analog modules in the following controllers:
- PlayStation 4 – DualShock 4,
- PlayStation 5 – DualSense,
- Xbox One and Xbox Series X/S,
- Nintendo Switch Pro Controller.
Specification
| Product type: | tip with a mold for unsoldering joysticks |
| Standard arrowhead: | C245 |
| Mold mounting: | M4 thread |
| Mold material: | brass |

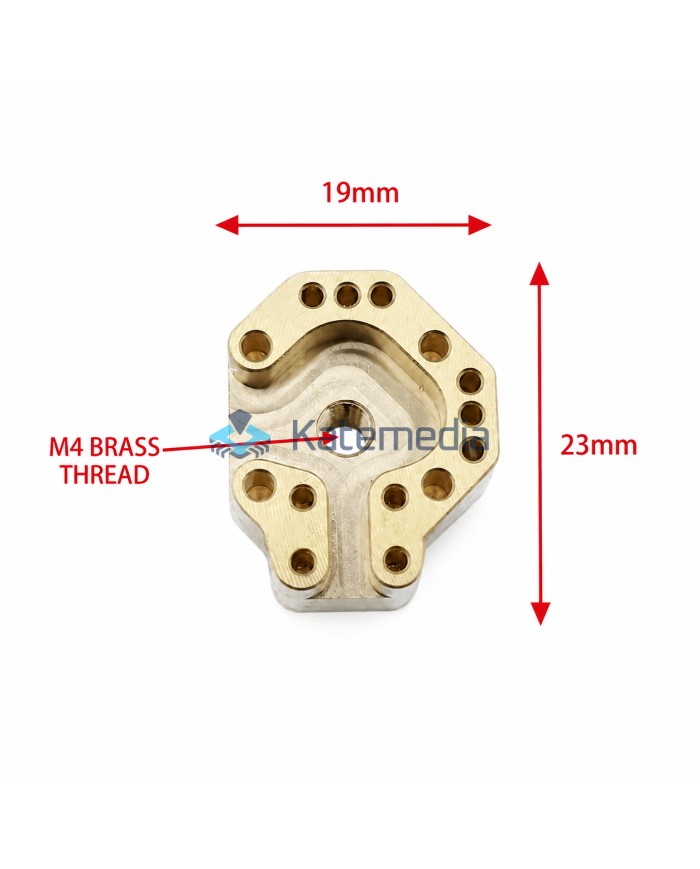

| Form dimensions: | about 19 × 23 mm |
| Arrow resistance: | about 2.5 Ω |
Kit Contents

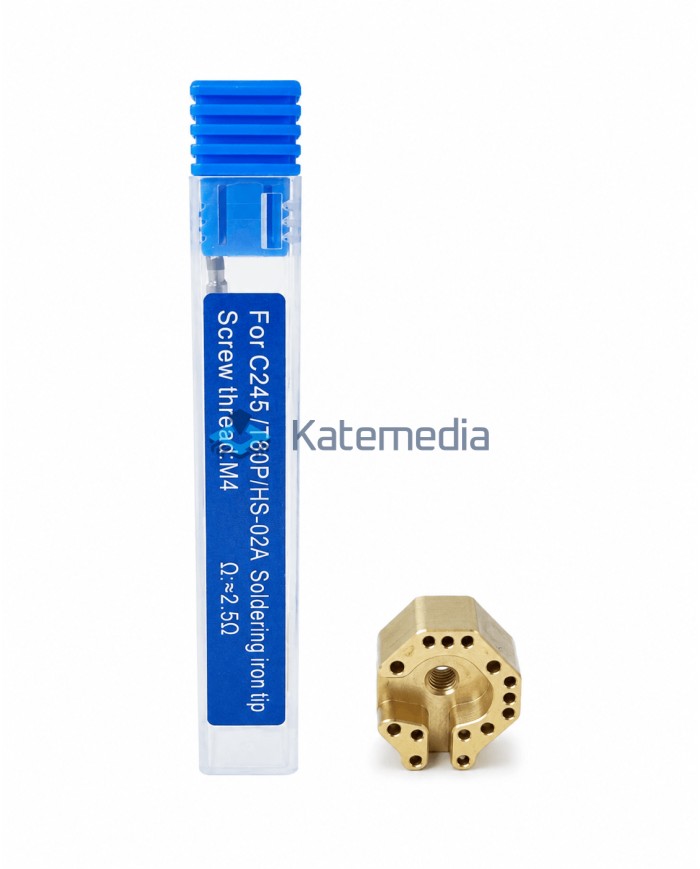

- 1× C245 standard heating tip/insert,
- 1× brass mold for joysticks with M4 thread,
- 1× protective plastic packaging.
Note: Before starting work, check the tip's compatibility with your soldering iron and soldering station. For best results, it is recommended to use flux and add fresh solder to the factory lead-free connections. Do not overheat the PCB laminate for long periods.
