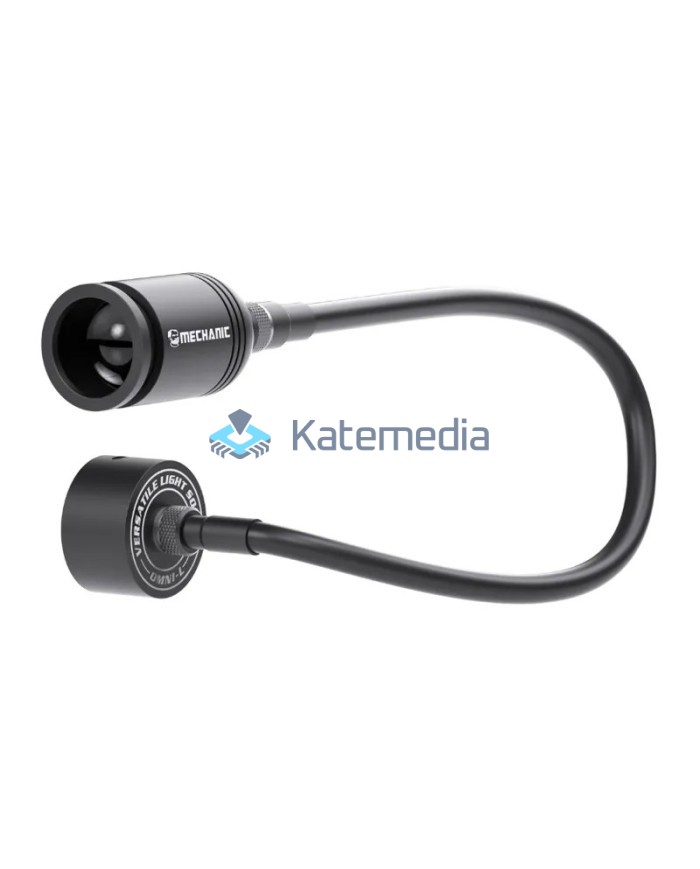

Mechanic Omni-L – flexible LED illumination for a microscope 5 W

Mechanic Omni-L is an adjustable LED light source designed for microscopes, soldering stations and precision electronics work. The flexible arm allows you to direct the light precisely onto the observed element, and the smooth adjustment of brightness and spot size allows you to adapt the lighting to the current task.

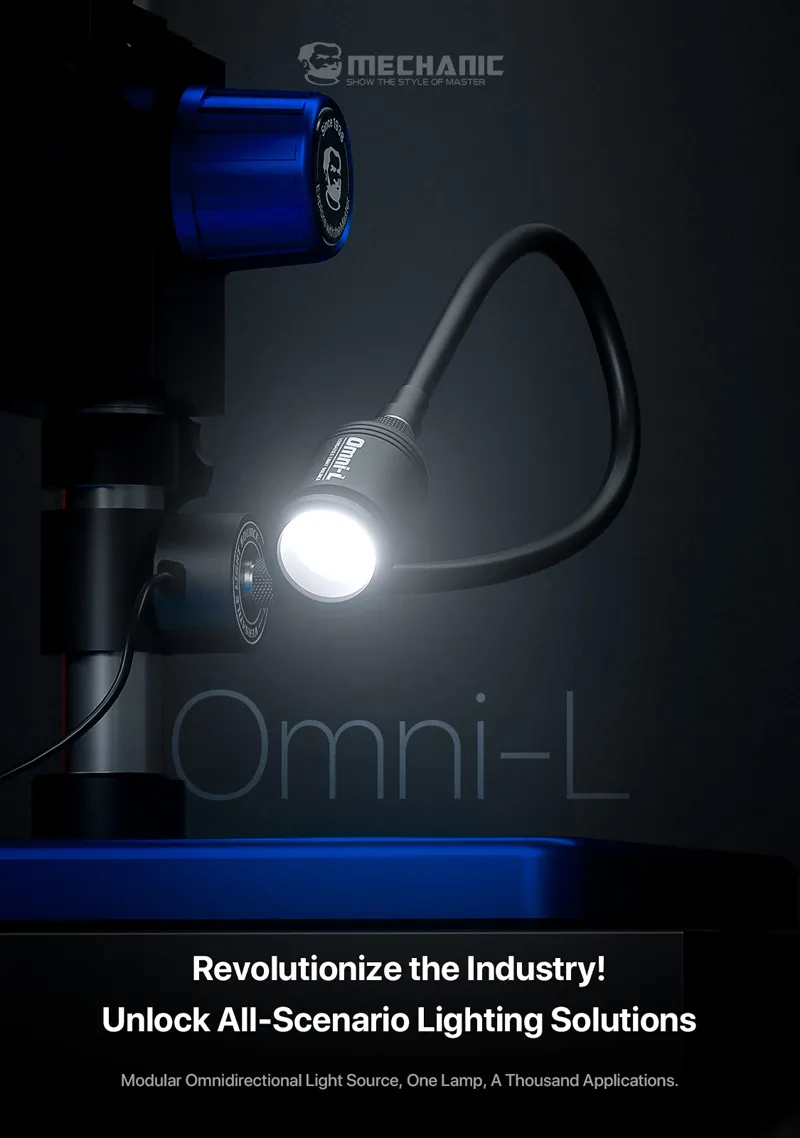

Mechanic Omni-L – a directional light source for a microscope.

The Omni-L model was designed with GSM repair shops, electronics technicians, and micro-soldering technicians in mind. Unlike a classic ring light, it allows you to illuminate the motherboard from a selected direction. The side light helps you better see component edges, solder joint structure, irregularities, dirt, and minor trace damage.

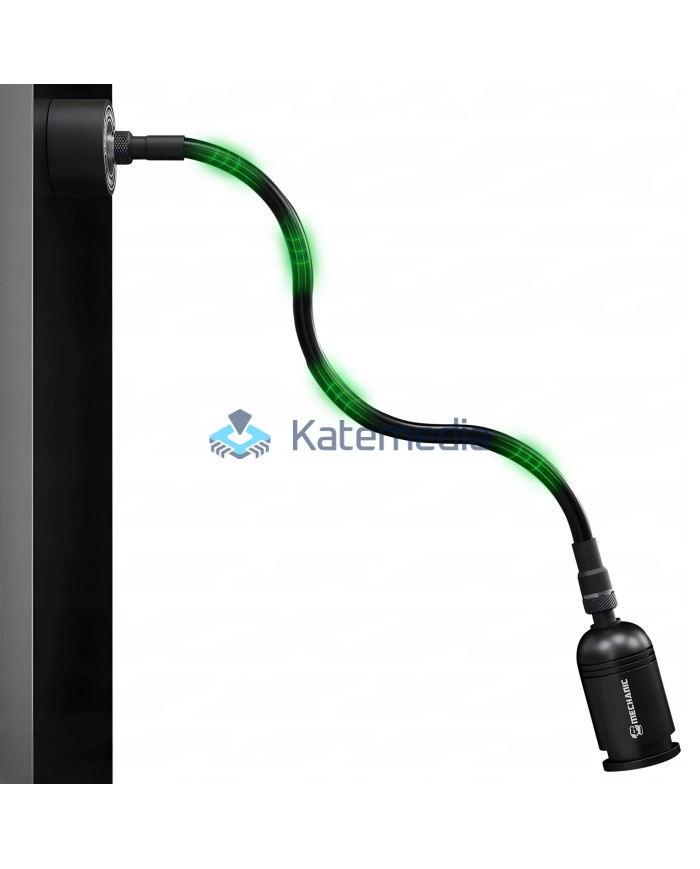

Precise light where you need it

The lamp's long, flexible arm can be freely bent and angled. This allows you to direct the light directly onto the chip, connector, solder pad, or small SMD component being repaired. The arm remains in the set position, allowing you to work with both hands.

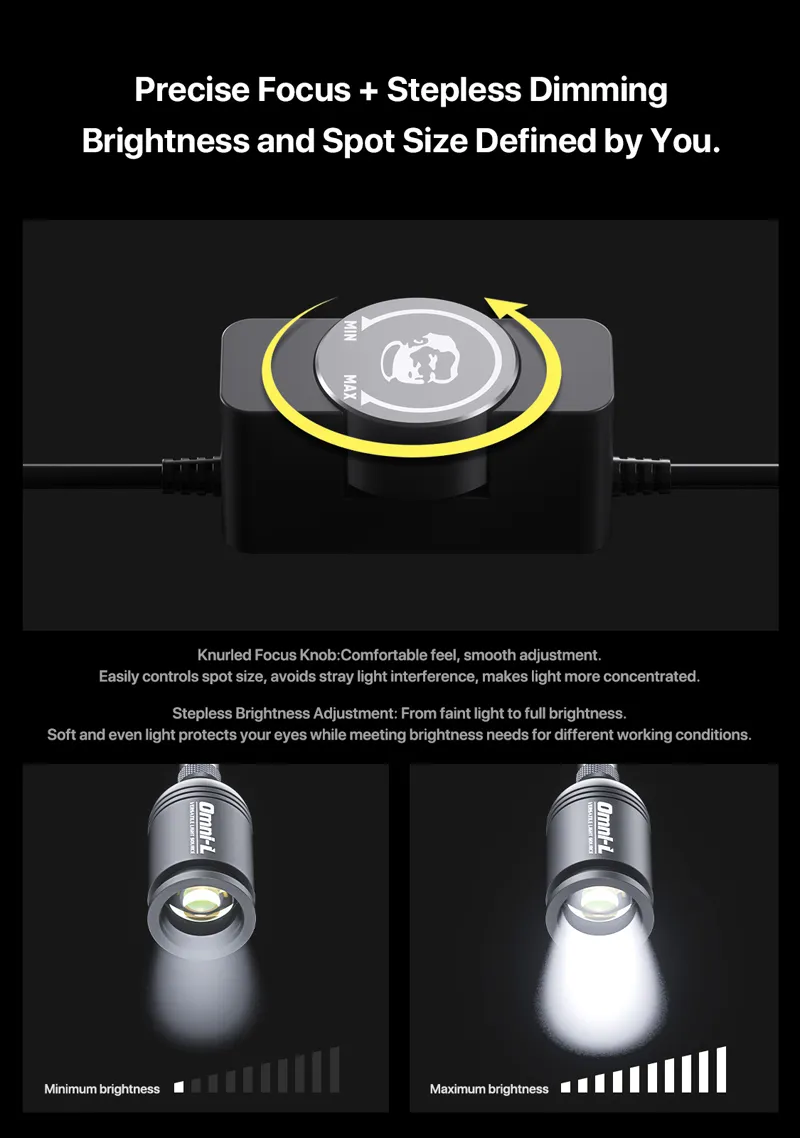

Smooth adjustment of brightness and light beam focus.

Smooth adjustment of brightness and Focus

The Mechanic Omni-L allows for smooth brightness adjustment from 0 to 100%. The user can set a soft light for observing surfaces or increase its intensity for precise inspection of small details.

The adjustable knob also allows you to change the size of the light spot. A narrower beam provides more focused illumination of a specific area, while a wider beam allows for even illumination of a larger portion of the PCB.

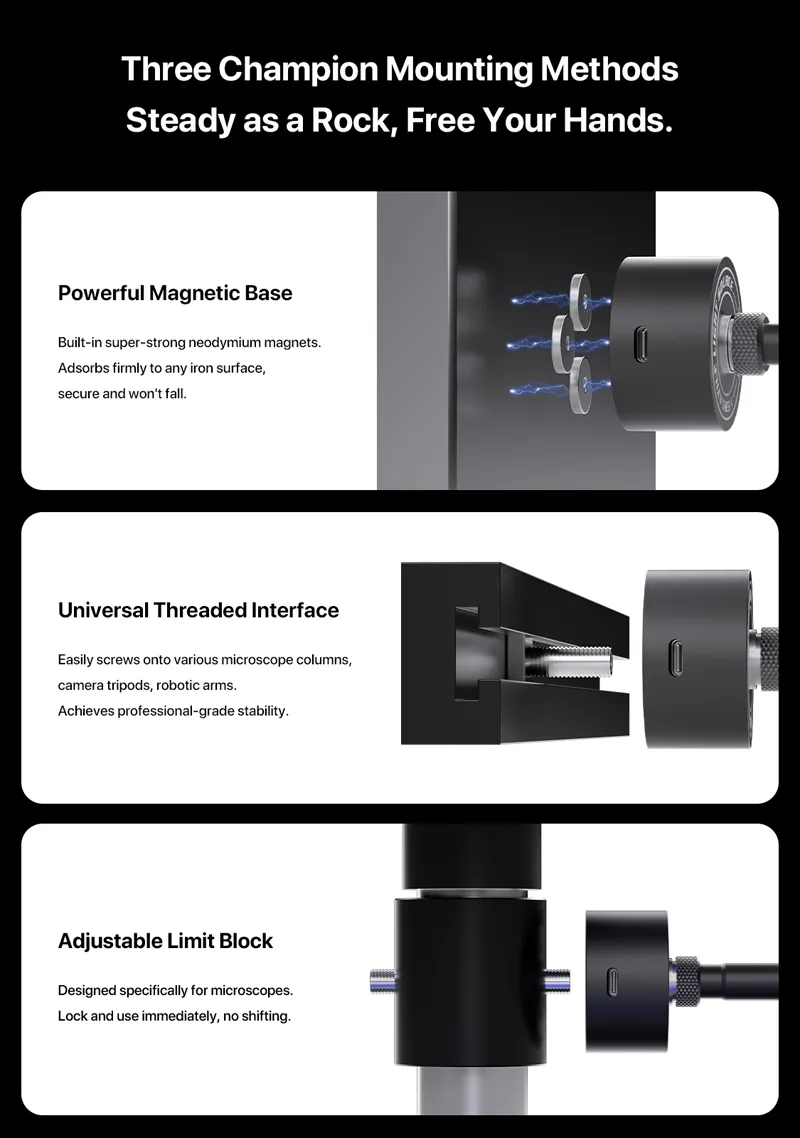

Stable mounting in three ways

The lamp can be mounted on a workstation in several ways. The magnetic base allows for quick attachment of the device to a steel surface. The universal thread allows you to connect the lamp to a compatible holder, tripod, or microscope column. The set also includes an adjustable mounting block for mounting on the microscope column.

Magnetic base, universal thread, and microscope column holder.

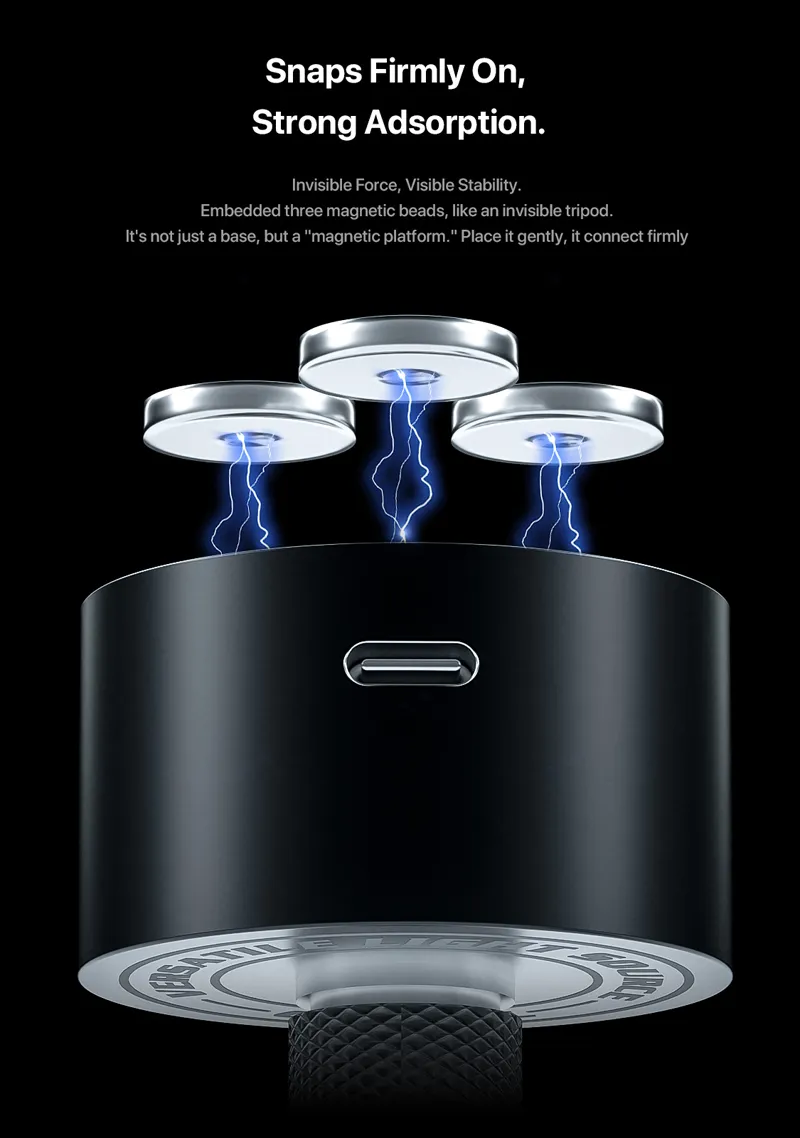

Magnetic Base

The base features three magnets that ensure a stable fit to any metal surface. This solution allows for quick lamp setup without drilling additional holes or using complex brackets.

Three magnets ensure a stable base attachment.

Applications

• phone and tablet repair,
• microsoldering under a microscope,
• motherboard and PCB inspection,
• SMD and BGA soldering,
• pad, trace, connector, and integrated circuit inspection,
• laptop and consumer electronics repair,
• precision laboratory and workshop work,
• observation of small mechanical components, coins, and jewelry.

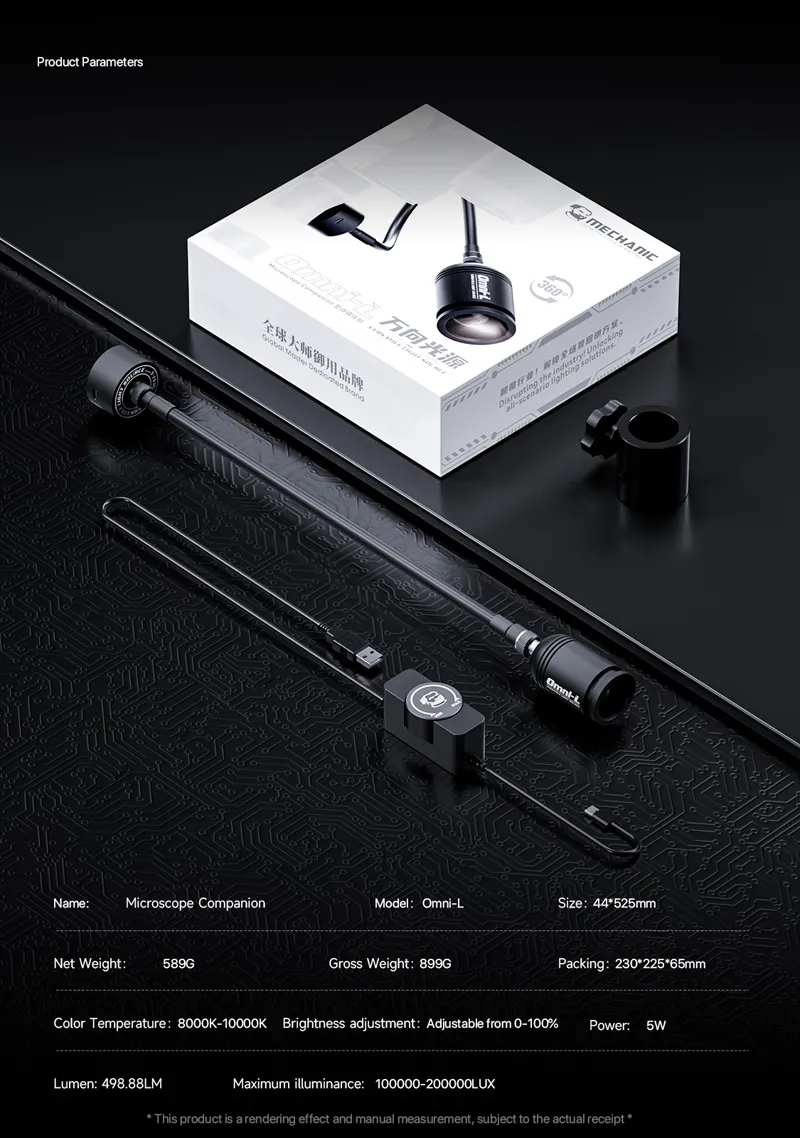

Product parameters

Lamp, control cable and mounting bracket.

Technical specifications

Key Advantages

• precise, directional lighting of the work area,
• powerful 5W LED,
• smooth brightness adjustment from 0 to 100%,
• adjustable light spot size,
• flexible arm that stays in the set position positions,
• three available mounting methods,
• stable base with three magnets,
• can be used as a complement to a ring light,
• intended for GSM, electronics, and micro-soldering.

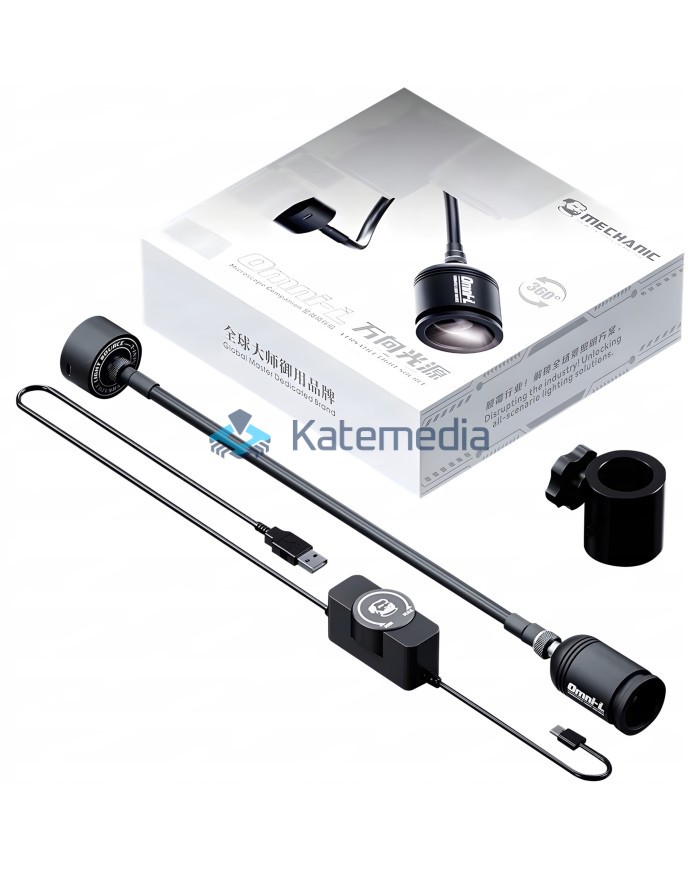

Kit Contents

• 1× Mechanic Omni-L LED lamp,
• 1× brightness control module,
• 1× cable Power supply,
• 1× magnetic base,
• 1× microscope column holder,
• 1× manufacturer's packaging.

Why choose the Mechanic Omni-L?

The Mechanic Omni-L is a practical addition to your service station that provides greater control over the direction and intensity of light than standard ring lighting. The ability to position the lamp from the side helps reveal details that may be difficult to see with light coming from directly above.

The flexible arm, smooth brightness adjustment, adjustable beam, and several mounting methods allow the Omni-L to be conveniently adapted to your microscope and the layout of your specific workstation. This solution is intended for both professional GSM service centers, electronics workshops, and precision soldering professionals.
