Application and functions:

• Activation and unpairing of WiFi chips (unbind)
• Reconfiguration of data in syscfg memory
• Support for various BGA systems thanks to replaceable FPC ribbons
• Works only with the JCID V1S Pro programmer
• A tool designed for professional service applications

Advantages:

• Faster and safer repairs of WiFi modules
• Universal use in many Apple communication systems
• Compact design and easy operation
• Ready-to-go kit working straight out of the box

How to use the module:

1. Put on the appropriate FPC (BGA) tape included in the kit and attach the WiFi chip to the module board.

2. Connect module to JCID V1S Pro via USB-C port.

3. In the software, select the "WiFi unbind/activation" function, which will automatically detect the module.

4. Run the process - the programmer will remove incorrect assignments from syscfg and assign the configuration to the new chip.

5. Once complete, the module will display a confirmation that the WiFi chip is ready to be installed in the device.

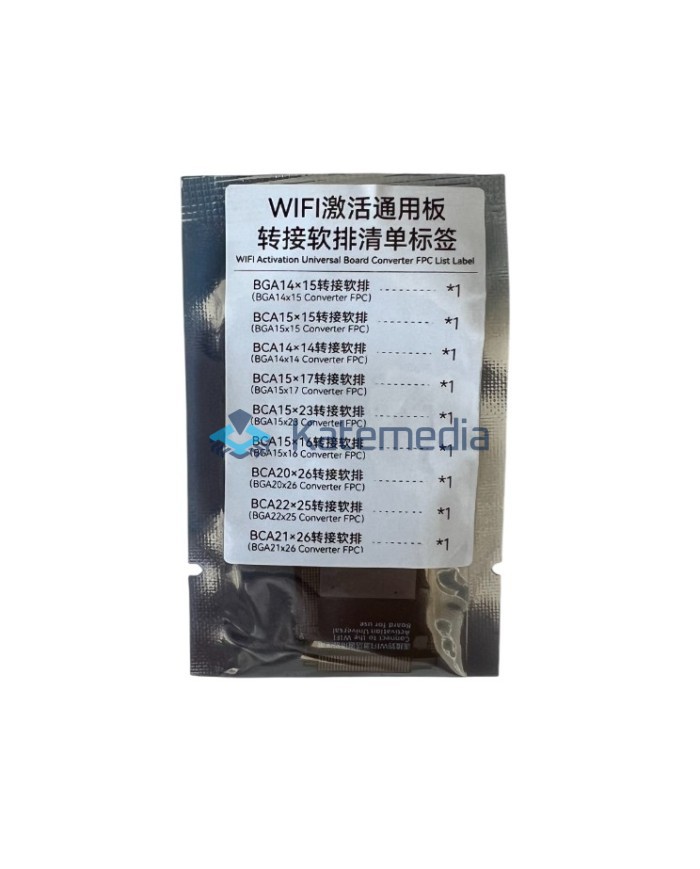

Kit contents:

• JCID Universal WiFi Activation Module (for V1S Pro)
• 9 FPC ribbons (converters for various chips BGA):

  BGA14×15

  BCA15×15

  BCA14×14

  BCA15×17

  BCA15×23

  BCA15×16

  BCA20×26

  BCA22×25

  BCA21×26

• User Card
• JCID Certificate of Authenticity
