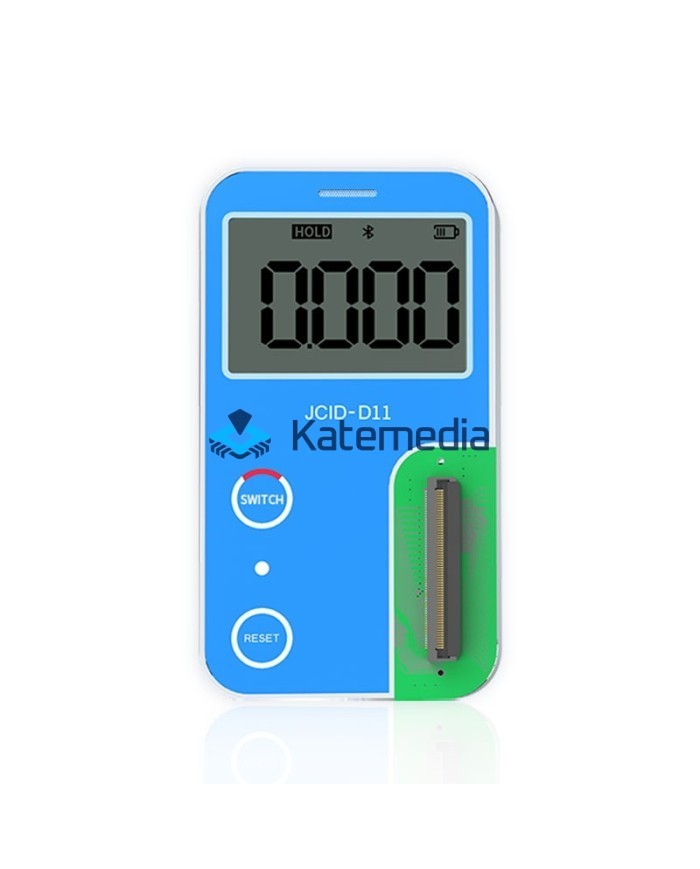

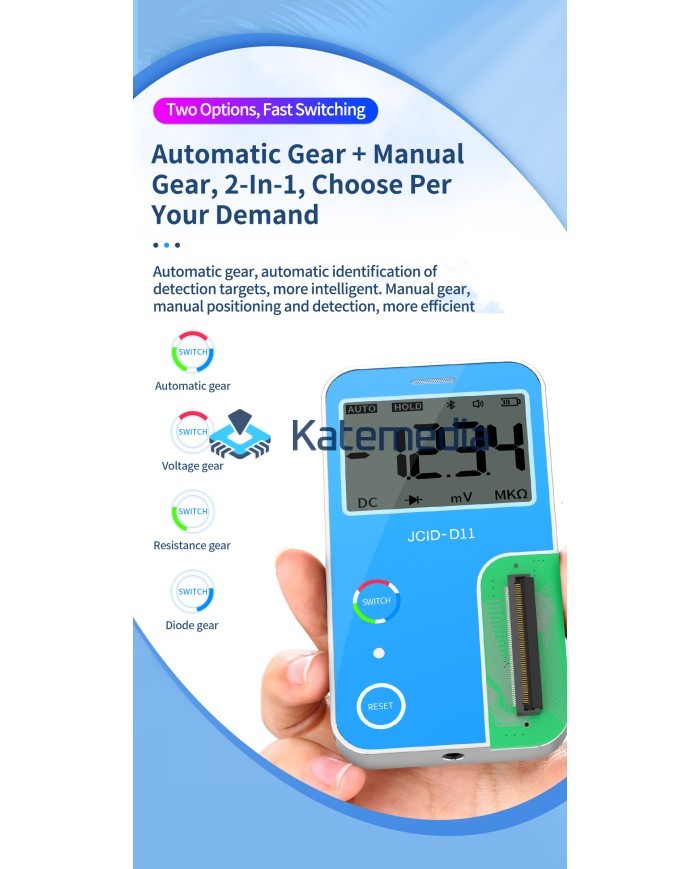

JCID D11 Diagnostic multimeter for iPhone

Professional device designed for fast disc diagnostics major iPhone . The multimeter connects to the computer via the bluetooth interface which allows us to measure the elements on the motherboard in real time and compare them with the nominal values.

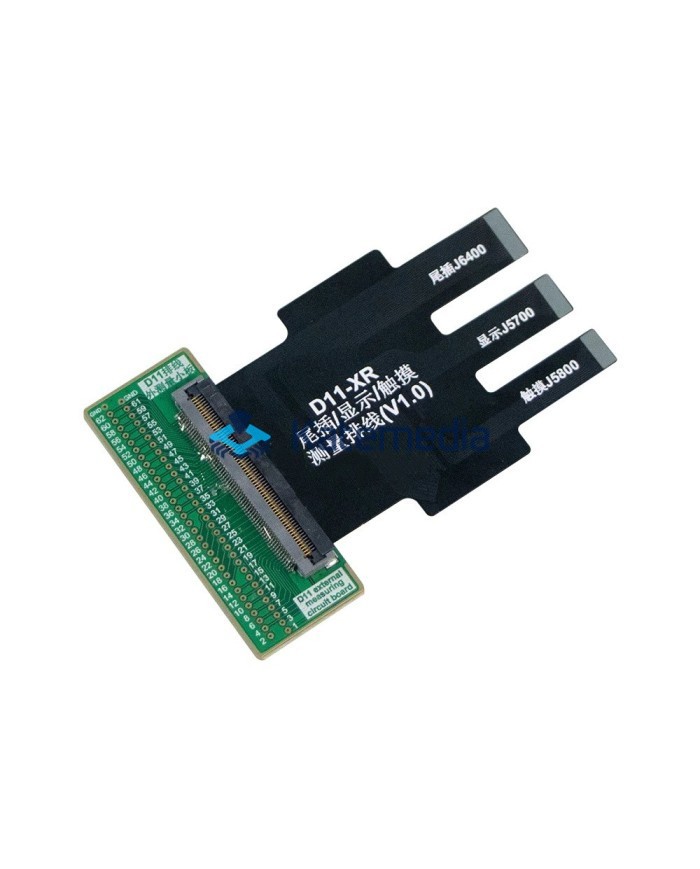

There are special cables in the set that we connect to the tester and the board Main. Then, in the diagnostic program, we select the line of interest and perform the measurement. Everything is automatic . If the multimeter detects a deviation from the nominal value, will mark the element in red , thanks to which we know where to look for the fault.

The motherboard layout handler is JC DRAWINGS very similar to the well-known ZXW.
