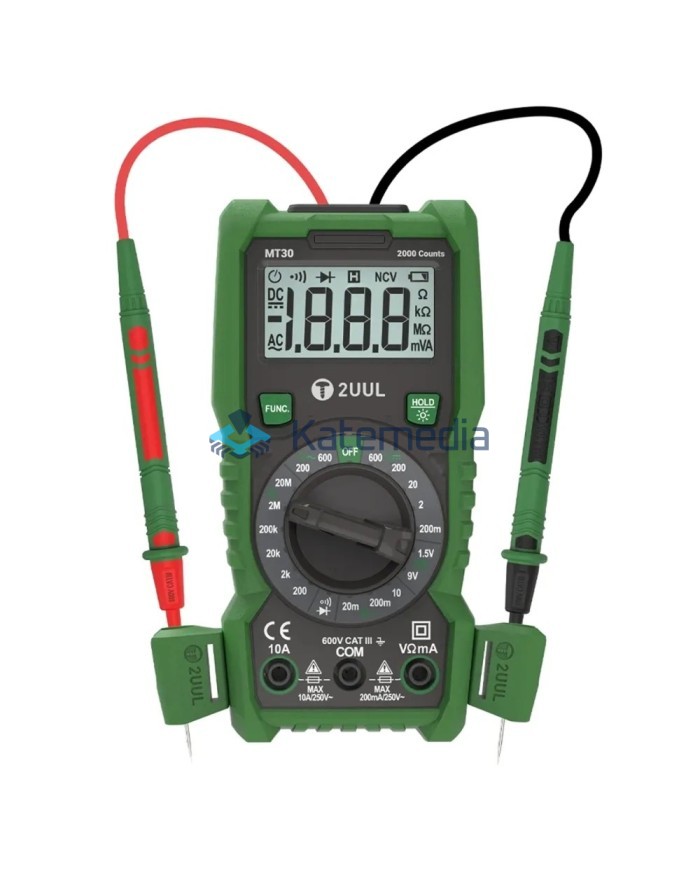

Digital multimeter meter 2UUL MT30
Digital multimeter meter 2UUL MT30
2UUL MT30 – Intelligent Digital Multimeter for Electronics Repair
2UUL MT30 is a compact digital multimeter designed for diagnosing phones, motherboards, batteries, and small electronic circuits. Thanks to the auto-ranging function, the device simplifies everyday measurements without the need to manually set the appropriate range.
The multimeter allows you to measure DC and AC voltage, DC current, and resistance. It also offers continuity testing, diode testing, and a HOLD function. The clear display with 2000-count resolution allows you to quickly read results during service work.
The MT30 model is equipped with extra-thin test probe tips, which facilitate work with small measurement points and SMD components.
zł129.99
Tax included
Product availability
Product available
Delivery options
Learn more
2UUL MT30 – intelligent digital multimeter for electronics service
2UUL MT30 is a compact digital multimeter designed for diagnosing phones, motherboards, and small electronics. Automatic range selection, thin test probes, and a clear display make it easy to perform everyday measurements in GSM service centers.
The 2UUL MT30 model allows you to measure DC and AC voltage, DC current, and resistance. It also offers continuity and diode testing, making it ideal for locating faults, checking power lines, and inspecting components on PCBs.

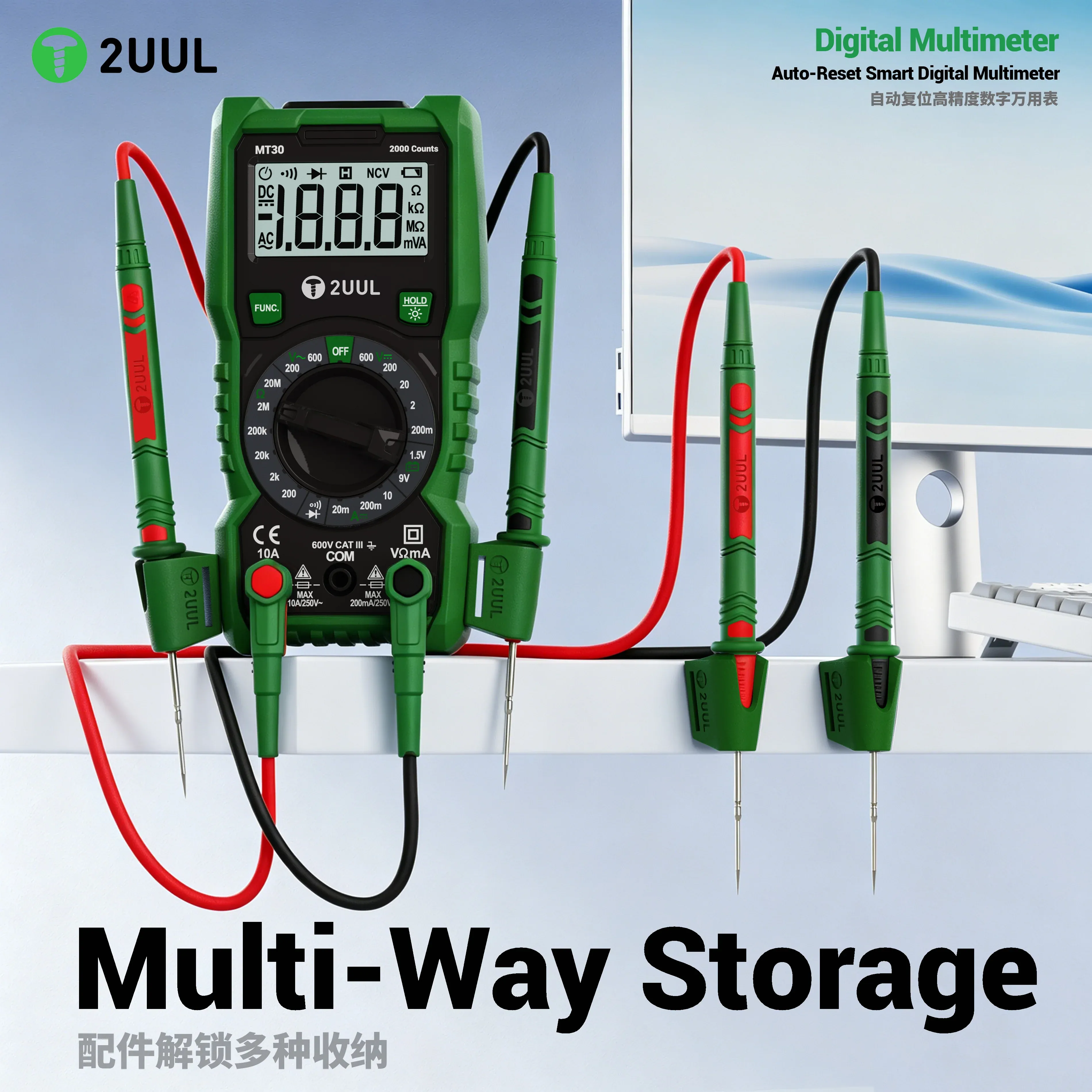

Practical cable and probe organization
The housing design allows for convenient mounting of test probes. The leads can be organized at the back of the device, so the multimeter takes up less space on your workstation and is easy to store.
-
Automatic range selection
Makes it easier to take measurements without having to manually set the appropriate range each time.
-
2000-count display
The easy-to-read screen allows you to quickly check measurement results during service work.
-
Thin measuring tips
Precision probes make it easy to reach small measurement points and SMD components.
-

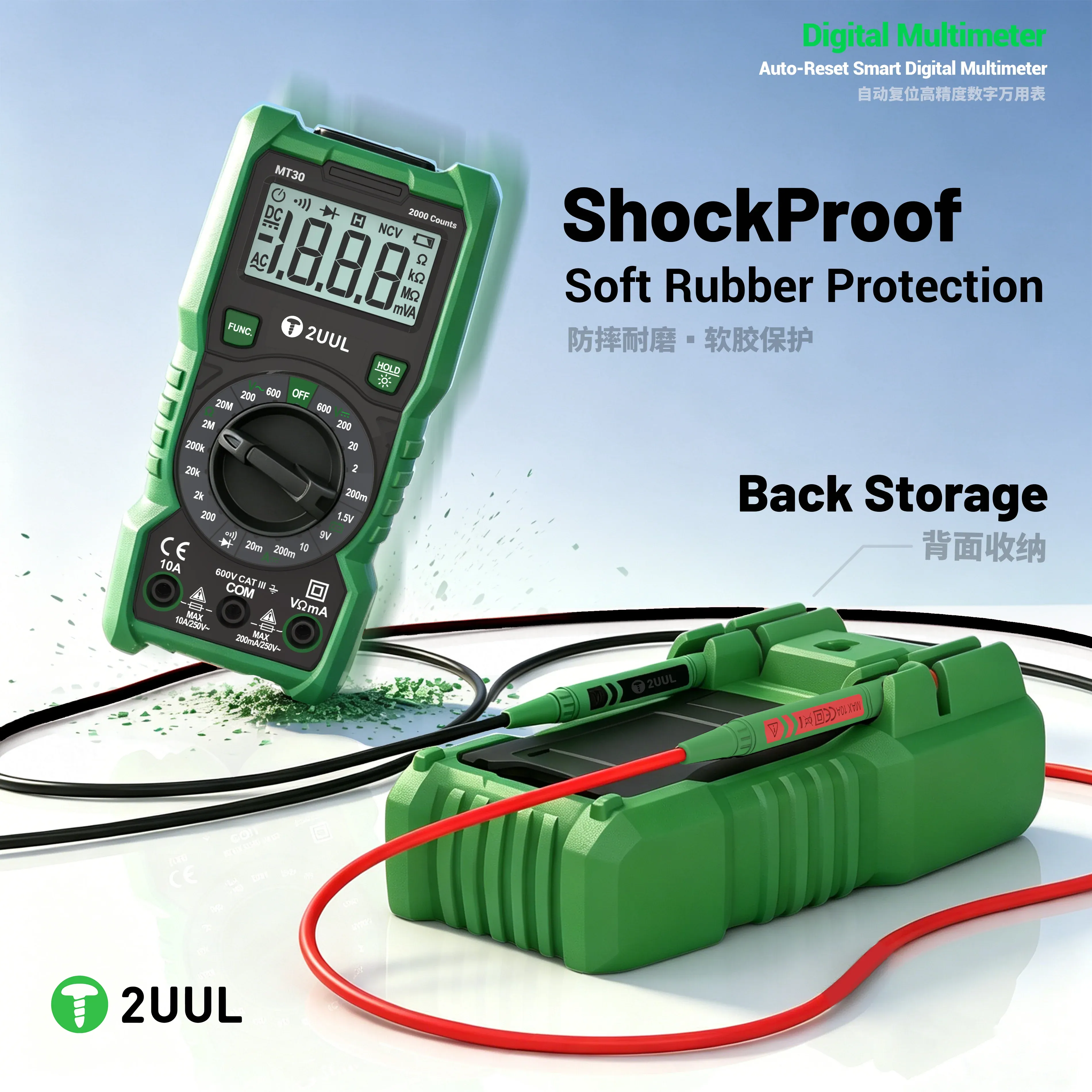

Housing with rubber cover
The reinforced design improves grip and helps protect the meter during everyday use.

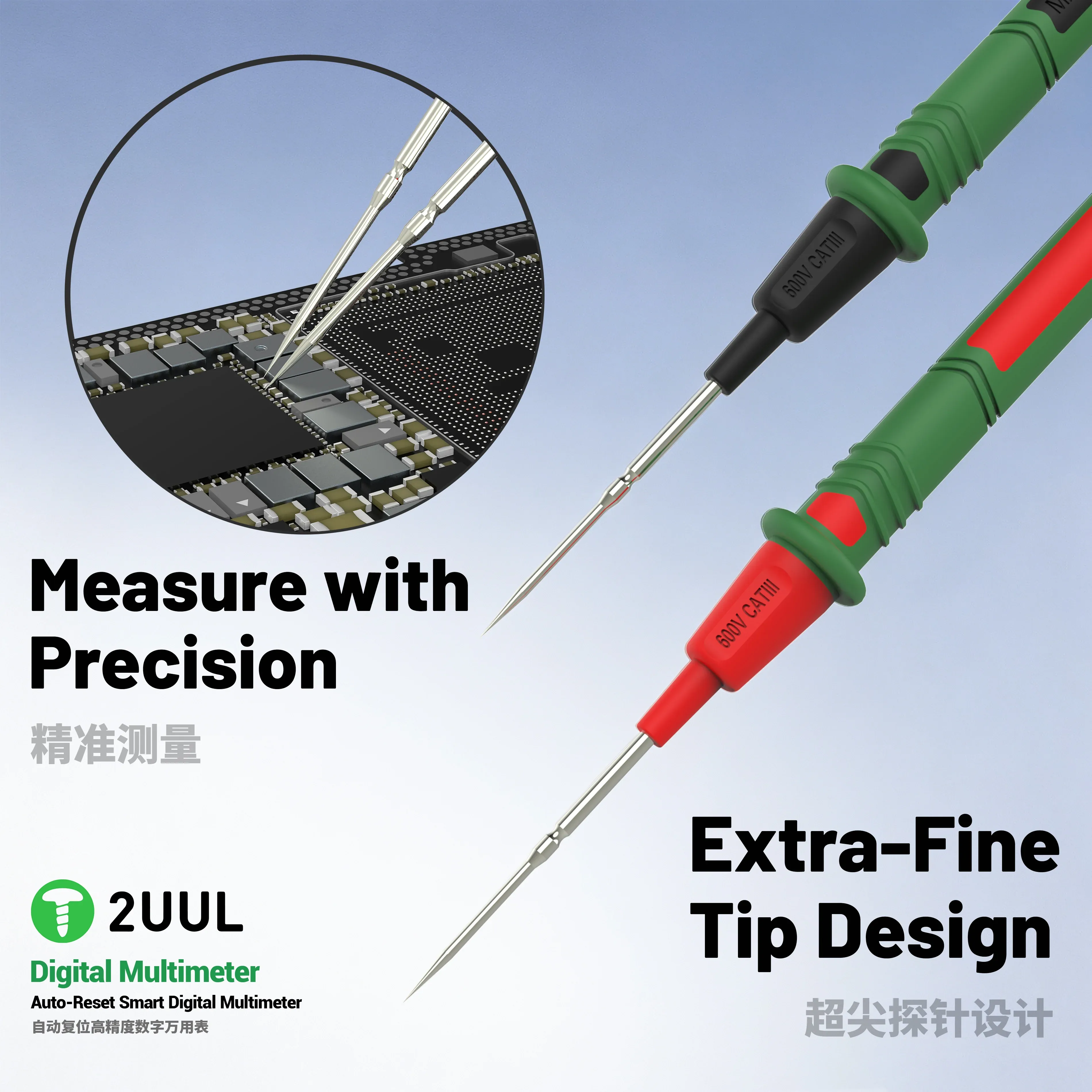

Precision Probes for Working with Electronics
Very thin probe tips allow you to conveniently perform measurements on densely spaced components on motherboards. This is especially useful when diagnosing smartphones, tablets, laptops, and other electronic devices.

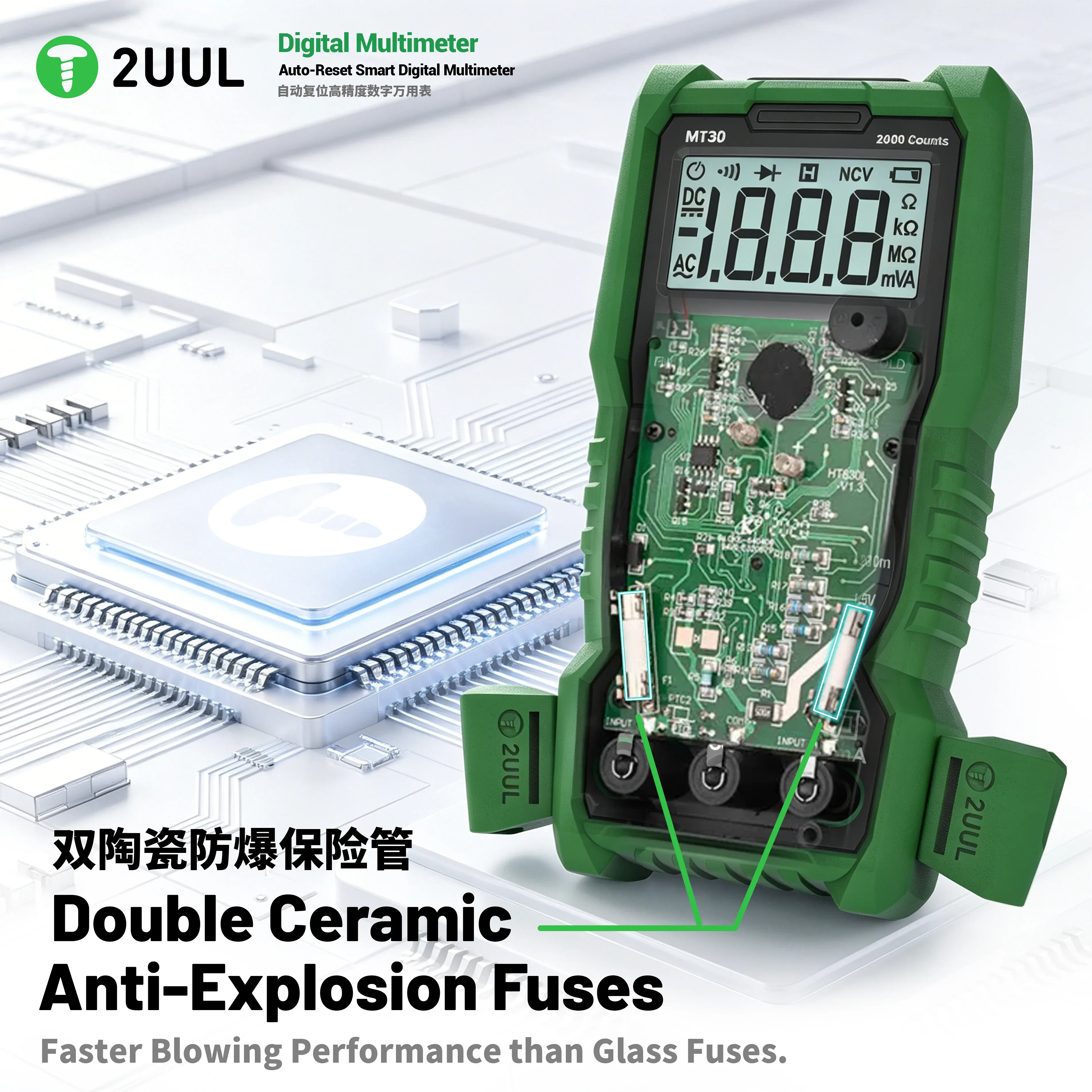

Dual Ceramic Fuses
The multimeter is equipped with two ceramic fuses protecting the measurement circuits. This solution increases the safety of the device when performing current measurements.
Applications
- phone and tablet diagnostics,
- PCB motherboard measurements,
- checking voltages and power lines,
- locating shorts and open circuits,
- testing resistors, diodes, and fuses,
- inspecting batteries and electronic circuits,
- service, workshop, and educational work.

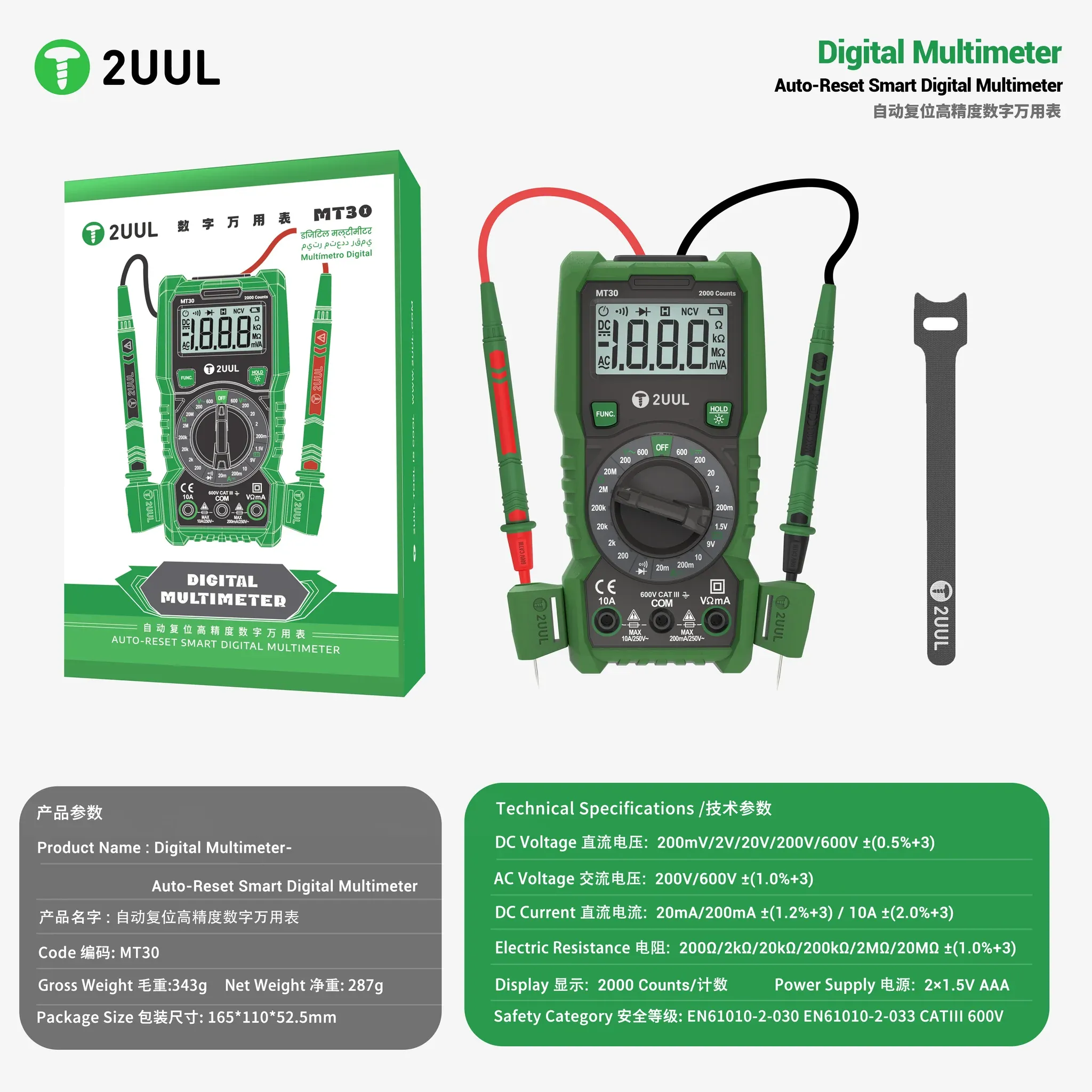

Technical specifications
| Brand: | 2UUL |
| Model: | MT30 |
| Type: | Automatic Digital Multimeter |
| DC Voltage: | 200 mV / 2 V / 20 V / 200 V / 600 V |
| DC Voltage Accuracy: | ±(0.5% + 3 digits) |
| AC voltage: | 200 V / 600 V |
| AC Voltage Accuracy: | ±(1.0% + 3 digits) |
| DC Current: | 20 mA / 200 mA / 10 A |
| Resistance: | 200 Ω / 2 kΩ / 20 kΩ / 200 kΩ / 2 MΩ / 20 MΩ |
| Display: | Maximum 2000 counts |
| Additional features: | Continuity test, diode test, HOLD function |
| Power: | 2 × 1.5V AAA battery |
| Net weight: | about 287 g |
| Package dimensions: | 165 × 110 × 52.5 mm |
| Security Category: | CAT III 600 V |
| Standards: | EN 61010-2-030, EN 61010-2-033 |
Package Contents
- 1 × 2UUL MT30 digital multimeter,
- 1 × set of test leads with probes,
- 1 × strap/holder for the device.
- 1 × batteries for the device.
Why choose the 2UUL MT30?
The 2UUL MT30 is a practical multimeter for GSM repair shops, electronics technicians, and DIY enthusiasts. It combines simple operation, automatic range selection, precise probes, and functions needed for basic diagnostics of electronic devices. Its compact design and easy-to-organize cables facilitate everyday use at the service station.
