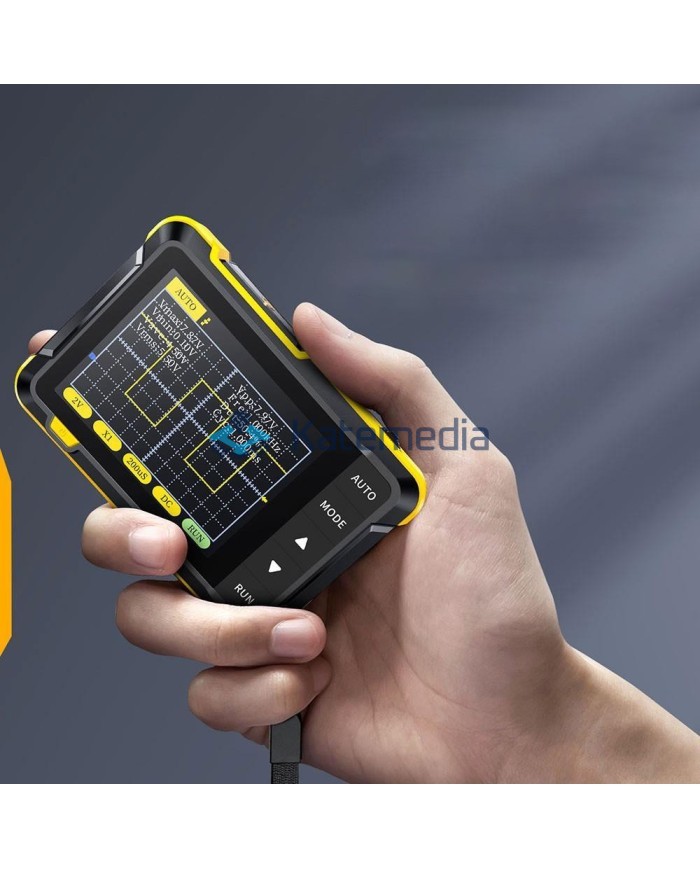

Mini Digital Osilloscope FNIRSI DSO152 200KHz with probe
Mini Digital Osilloscope FNIRSI DSO152 200KHz with probe
FNIRSI DSO152 portable digital oscilloscope 200kHz
FNIRSI Mini Digital Oscilloscope , model DSO152, is a small device designed to perform simple measurements. The easy-to-read 2.8" color LCD display is clear and transparent. The oscilloscope offers a bandwidth of up to 200kHz and a sampling rate of 2.5MSa/s. b>
The device is able to execute measurements of both analog and digital signals. Several trigger modes expand the instrument's usefulness.
DSO152 offers triggering in single, normal and automatic mode. Additionally, the user can change the triggering with a rising and falling edge.
zł104.99
Tax included
Product availability
Product not available
Delivery options
Learn more
The oscilloscope has MCXconnector to connect the signal under test. The maximum input voltage is 80Vpp when using a 1:1 probe and a 800Vpp 1:10 probe.
Additional functions such as measurements mathematical, one-button auto function makes it easier to perform measurements.
The oscilloscope has a connector< b>USB-Cwhich is used for charging and updating. It is perfect as a basic measuring tool for a hobbyist, for car repairs and as a simple tool for quickly checking the signal in various systems.
SPECIFICATIONS :
- model: DSO152
- producer: FNIRSI
- number of channels: 2
- bandwidth 200kHz
- maximum input voltage: 80Vpp (probe 1:1), 800Vpp (probe 1:10)
- measurement of 8 different parameters automatically
- AUTOSET function
- sampling rate: 2.5MSa/s
- 2.8" 320x240 LCD color display
- approximately 4 hours of operation with a fully charged battery
- trigger functions: single, normal, automatic
- Li-ion battery with a capacity of 1000mAh
- MCX connector for connecting cables
- button operation
- vertical sensitivity: 10mV/div - 20V/div in steps 1-2-5
- time base adjustment: 10us/div - 50s/div in steps 1-2-5
- SQW frequency calibration: 1kHz
- coupling modes: AC/DC/GND
- charging voltage: 5V/1A USB
- input impedance >1MΩ
- dimensions: 99x68x20 mm
- weight: 100g

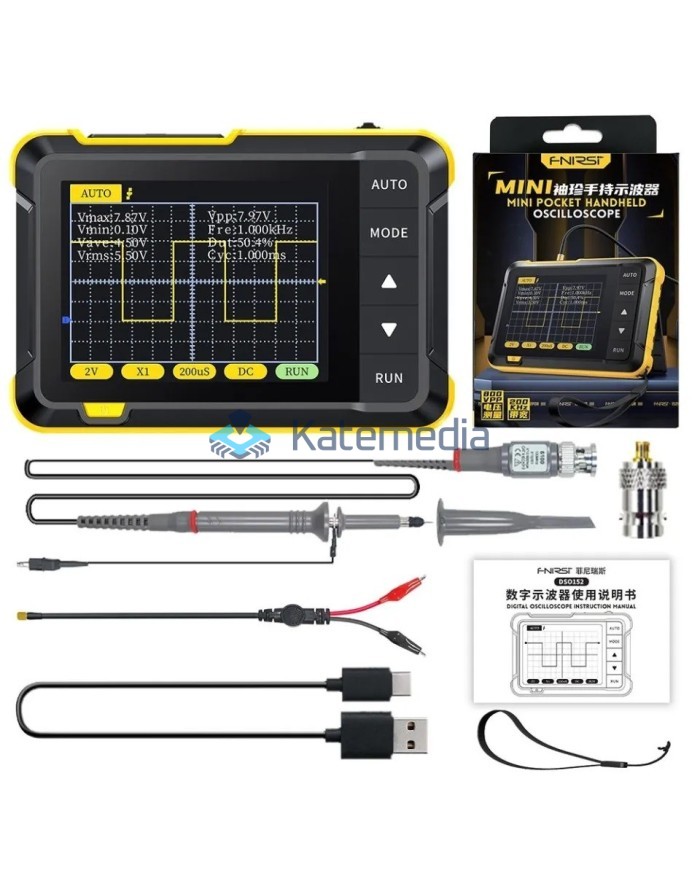

Content set
- 1x DSO152 digital oscilloscope
- 1x BNC-crocodile cable
- 1x USB cable
- 1x Wrist Lanyard
- 1x P6100 100Mhz X10/X1 measurement probe
- 1x MCX-BNC adapter
- 1x User manual
SFNRDSO152
