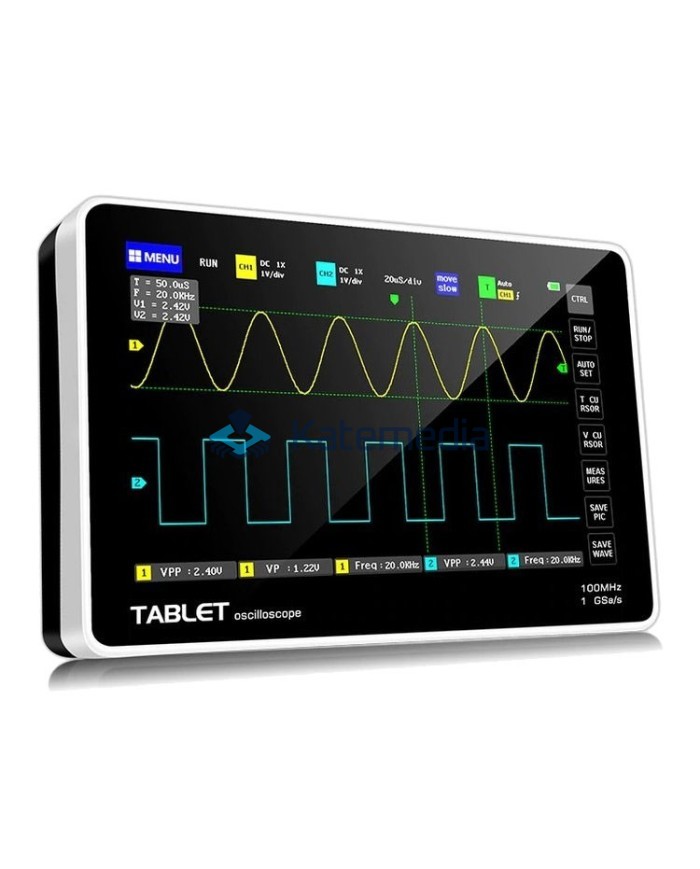

Dual-channel oscilloscope with a width 100MHz bandwidth for each channel and 1GSa/s sampling rate. Touch LCD screen TFT with a diagonal of 7" and a resolution of 800 x 480 allows you to use the device quickly and easily. The capacitive touch screen also supports gestures . Built-in 1GB memory allows you to store up to 1000 screenshots and up to 1000 waveforms. Intuitive menu makes it easy to use.

The auto function allows you to with one button you can adjust parameters such as time base or voltage sensitivity. Memory record length is 240kB.

Built-in rechargeable battery 6000mAh allows you to work remotely up to 4 hours without a break. Charging time is only 5 hours. The maximum voltage that can be supplied to the measurement input is 400V with the x10 divider set or 40V with the x1 divider. The system is protected against overvoltage and continuous measurements up to 400V. Built-in cursors and automatic measurement of 12 parameters. Three trigger modes Normal, single and autocratic with rising or falling edge. The device has the ability to export files via USB to a computer. After connecting the device, the files are visible in the folder. Thanks to this, we can easily export screenshot files and saved waveforms. Small dimensions and weight make the device ideal for mobile use and for people who value independence from power supply and no need to connect additional cables.

The oscilloscope also works after connecting it to a power source so that when working when the battery is already discharged, you can power it using a powerbank or charger.

Technical data:

• Compact and functional oscilloscope.
• High voltage protection: built-in module provides protection up to 400 V
• Equipped with a built-in 1kHz generator with the ability to calibrate probes
• Possibility to save up to 1000 waveforms and up to 1000 screenshots
• Automatic measurement function
• Roll function
• Lissage function
• Coupling modes: DC, AC
• Large 7-inch TFT touch screen (800 × 480 pixels)
• Input impedance: 1MΩ
• Screen brightness adjustment function
• Equipped with a stand for table use

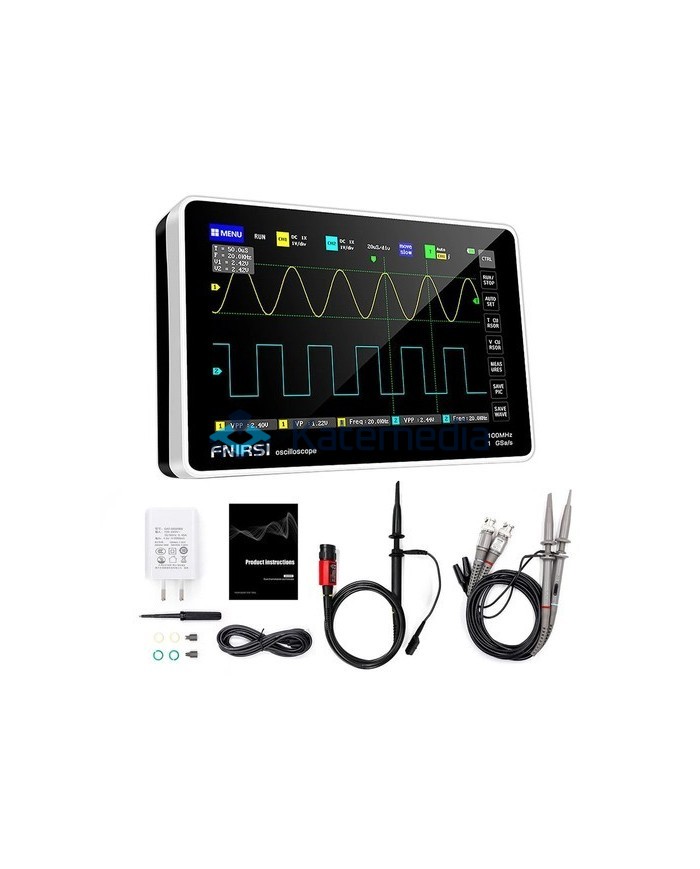

Package contents

• FNIRSI 1013D digital oscilloscope - 1 pc.
• Oscilloscope probe - 2 pcs
• USB cable - 1 pc.
• User manual - 1 pc
