MECHANIC iBoot AD – Android power and boot service cable
MECHANIC iBoot AD – Android power and boot service cable
MECHANIC iBoot AD – Power and Boot Service Cable for Android Phones (octopus)
MECHANIC iBoot AD is a professional "power boot" cable that allows you to boot Android phone motherboards without a battery using a laboratory power supply. Perfect for diagnostics, measuring current consumption, software uploads, and post-repair testing.
The set includes 8 tips adapted to popular battery sockets (3/4/5 pin), allowing you to service multiple models with one tool (Samsung, Xiaomi, Huawei, OPPO, vivo, and others). The 4mm banana plug input ensures a secure connection to the DC power supply.
zł49.99
Tax included
Product availability
Product available
Delivery options
Learn more
MECHANIC iBoot AD – Android power and boot service cable
Professional service cable to boot and power Android phone motherboards without batteries. Perfect for diagnostics, measuring current consumption, and flashing software using a laboratory power supply.
.jpeg)

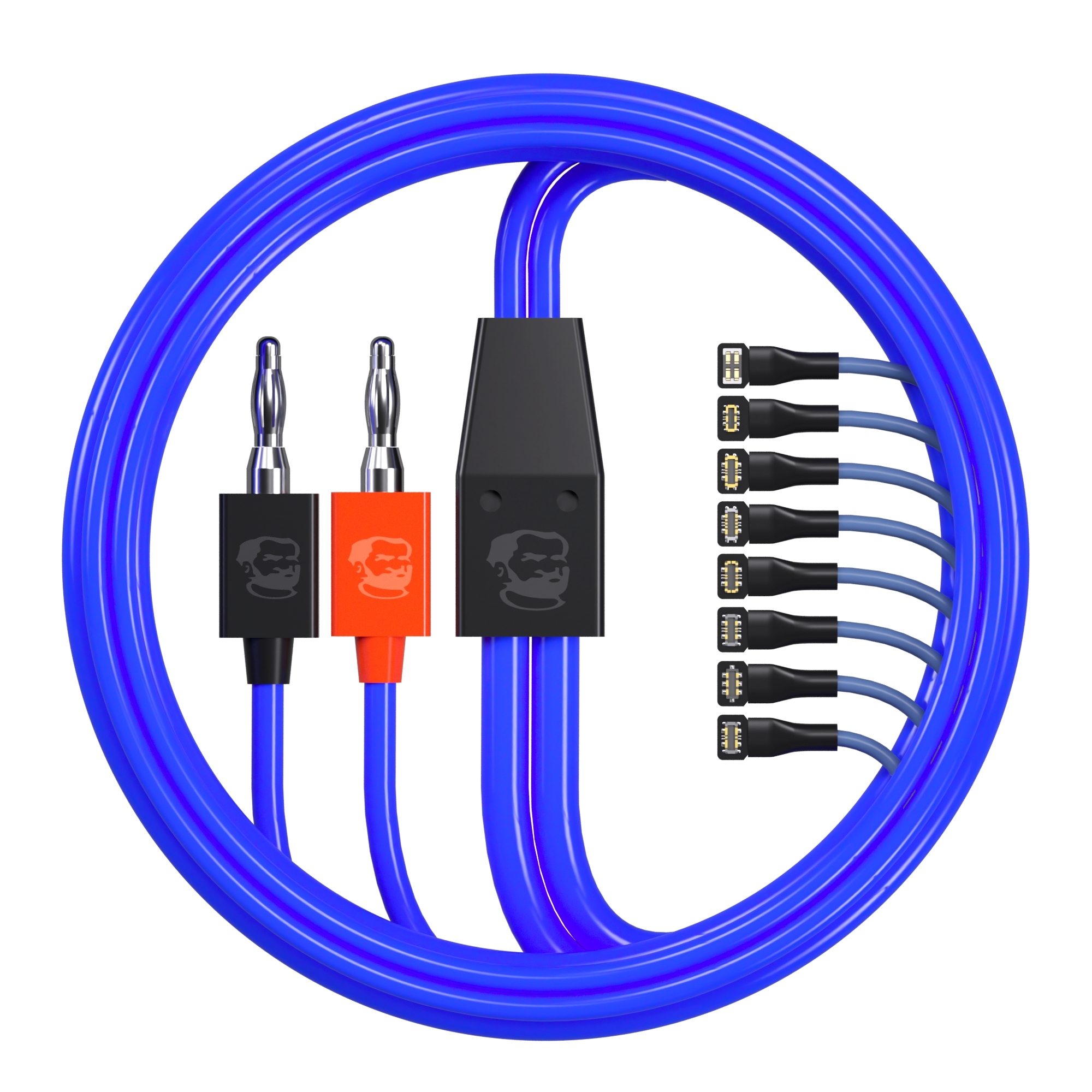

4mm banana plugs for the power supply and 8 battery terminals – one tool for most models.
Key Advantages
-
Battery-free booting
Quickly boot the board, check the boot stages, and diagnose short circuits based on current draw.
-
Wide Compatibility
Set of 8 tips suitable for popular battery sockets (3/4/5 pin): Samsung, Xiaomi, Huawei, OPPO, vivo, and others.
-
Safe operation with power supply
Recommended settings: 3.8–4.2 V and current limit 1–2 A (temporarily higher values at startup). Maximum cable load up to 10 A.
-
Solid construction
Thick, flexible wires with silicone sheath, clear polarity marking, and high-quality 4mm banana plugs.
Tip set 01–08 – simple selection based on pin count and spacing.
How to use (in short)
- Set the power supply: ok. 4.0 V, limit 1–2 A.
- Connect the banana plugs to the power supply: red = B+, black = B−.
- Match the pin header to the battery socket (by the number and spacing of the pins) and connect it to the board.
- Turn on the board (POWER/service button) and observe the current draw to assess the system's condition.
Safety note: Do not connect simultaneously with the battery. Always check polarity and ground (B- has continuity with board ground). The cable is for power only – it does not transfer data.
Specifications
| Model: | MECHANIC iBoot AD (Android) |
| Operating voltage: | 3.7–5.0 V DC (3.8–4.2 V recommended) |
| Max. Current: | up to 10 A |
| Input Connectors: | 4mm Bananas (Red B+, Black B−) |
| Output Connectors: | 8 battery socket terminals (various 3/4/5 pin layouts – 01 to 08) |
| Application: | Diagnostics, starting without a battery, measuring current consumption, service/flash work |
| Compatibility: | Android phones including Samsung, Xiaomi, Huawei, OPPO, vivo, etc. (depending on battery slot) |
Kit Contents
- 1× MECHANIC iBoot AD – Power Boot Cable for Android
