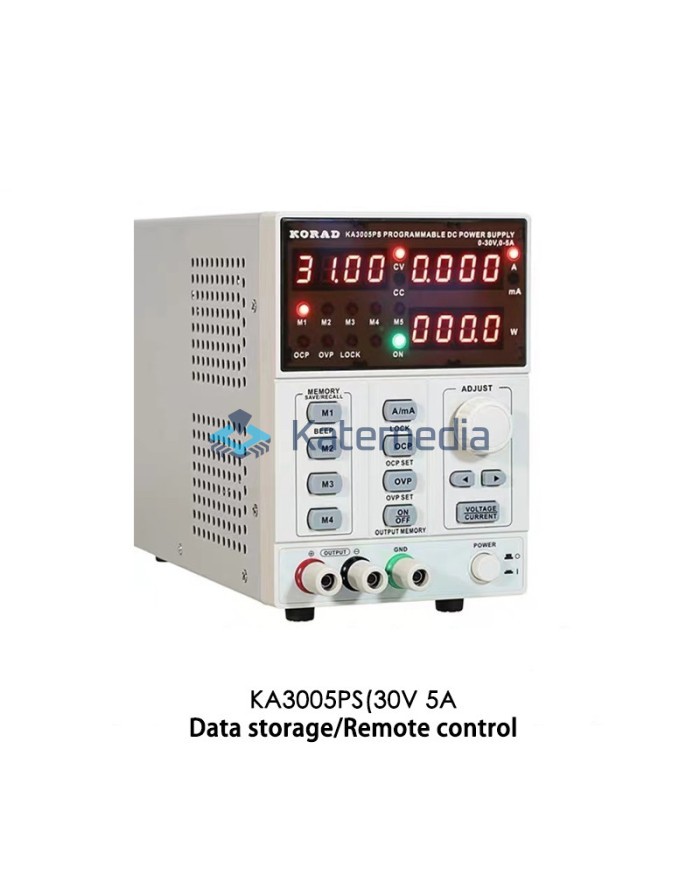

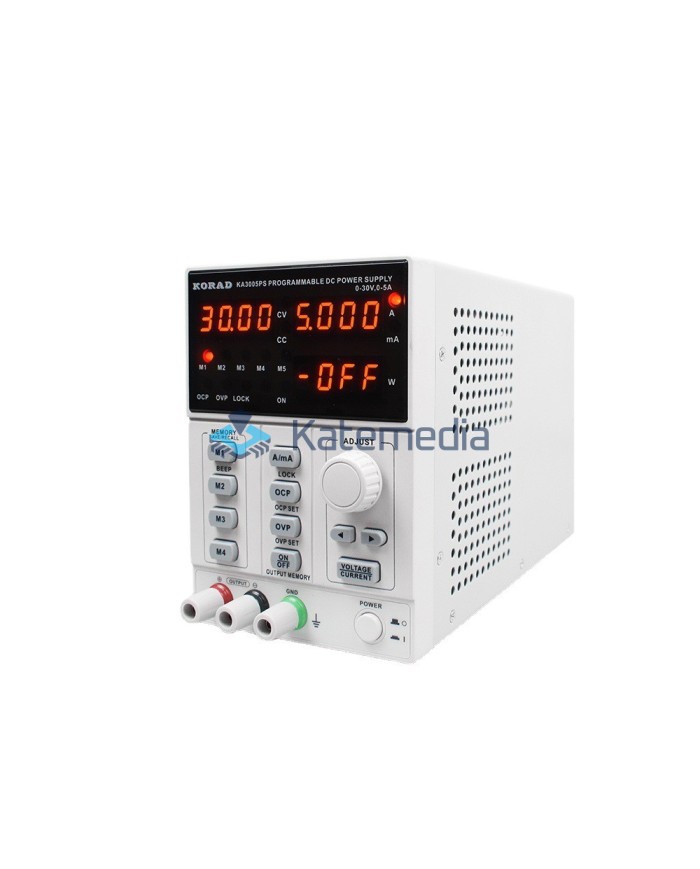

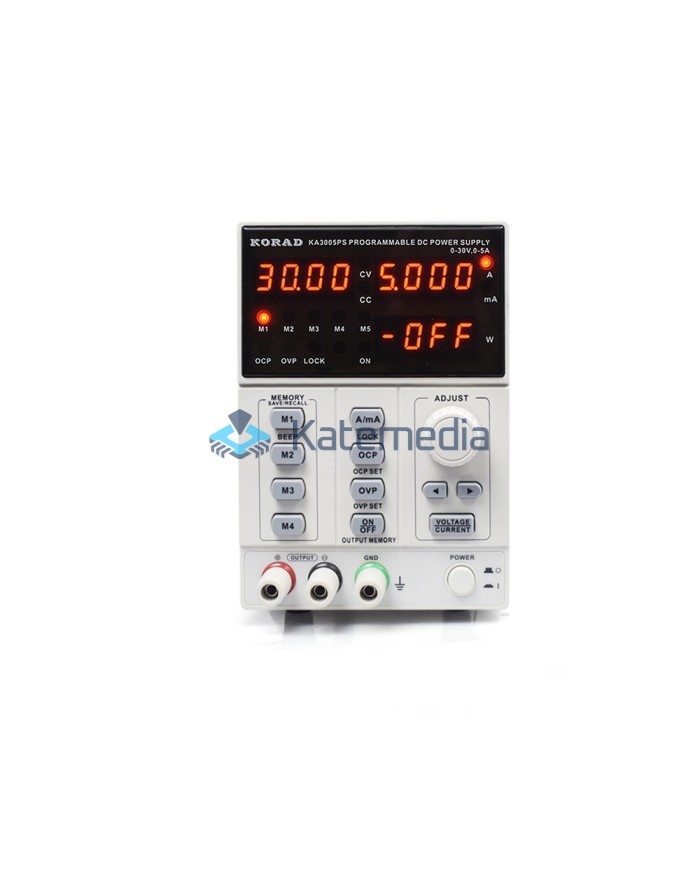

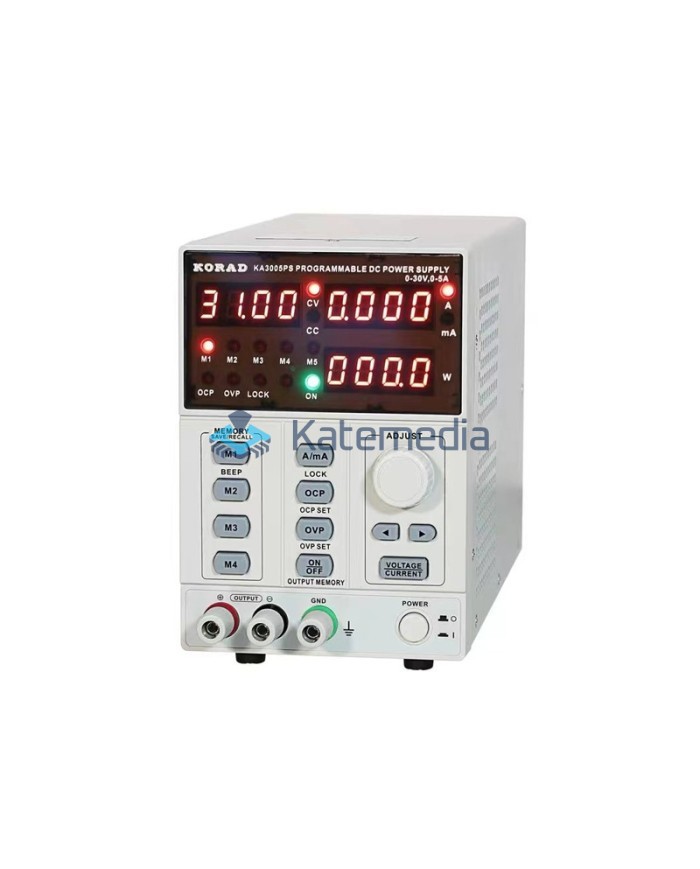

Main functions of the Korad KA3005PS power supply

• The device can operate in the following modes:

  C.V. - constant output voltage

  C.C. - constant load current

• The system is equipped with overvoltage and overload protection
• The power supply has 5 memories for saving current, voltage and operating modes
• The device has full current regulation, not just its limits
• It has an accuracy of current indications up to 3 decimal places
• It has two types of security:

  OVP (overvoltage protection)

  OCP (overload protection)

• Regulations:

  Smooth voltage regulation over the entire range

  Smooth intensity regulation over the entire range

  Turning the power supply on and off - 4 buttons

  Writing and reading from device memory

  Control via software via USB cable or RS232 port

  Button lock function

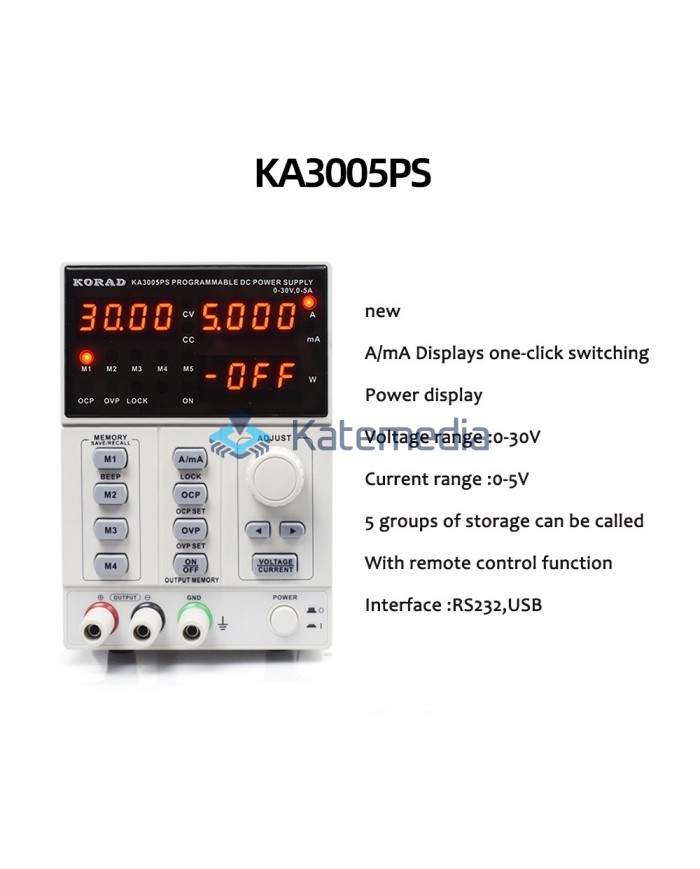

Technical specifications of the laboratory power supply

• Voltage range: 0 V to 30 V
• Current range: 0 A to 5 A

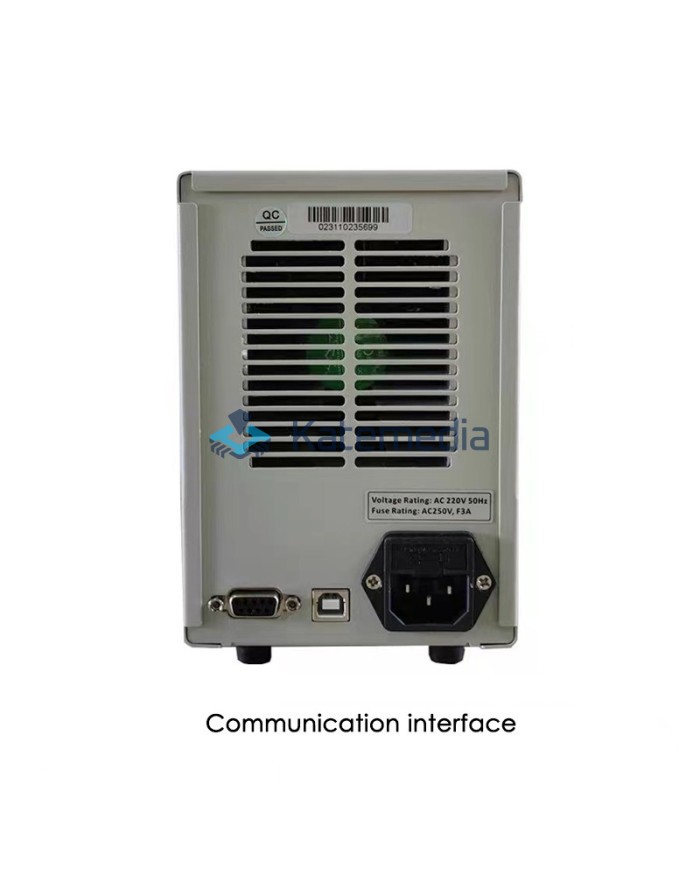

• RS-232 interface, USB interface
• Load regulation

  Voltage: =< 0.01% +2 mV

  Intensity: =< 0.1% +5 mA

• Accuracy of parameter setting

  Voltage: 10 mV

  Current: 1 mA

• Setting accuracy

  Voltages: =< 0.5% +20 mV

  Intensities: =< 0.5% +5 mA

• Output voltage ripple

  Voltage: =< +2mVrms

  Intensity: =< + 3 mArms

• Response time
• Voltage build-up: =< 100 mS (Rated load 10%)
• Voltage drop: =< 100 mS (Rated load 10%)

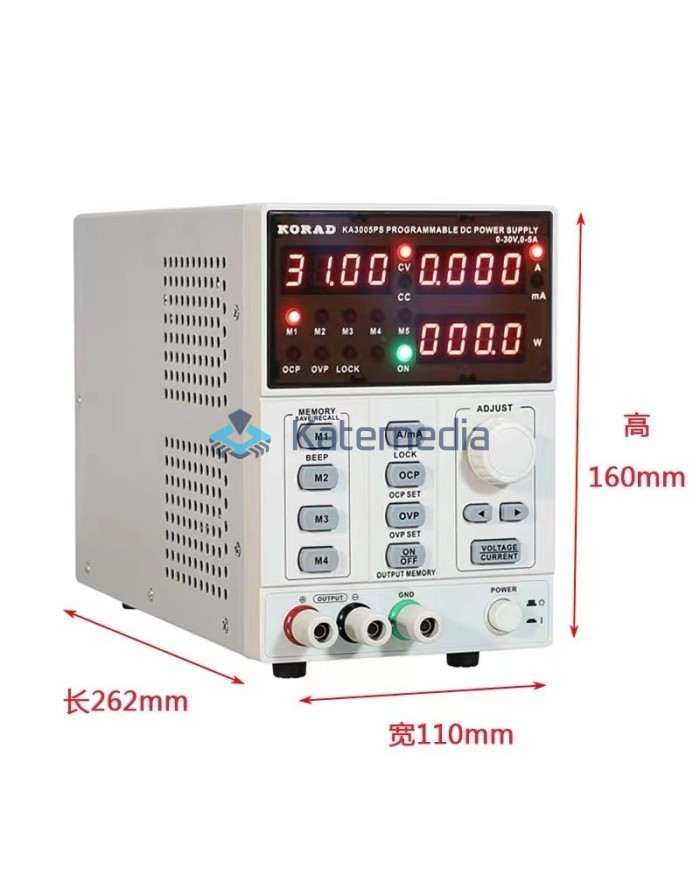

• Dimensions: 262 x 110 x 160 mm
• Weight: 4.3 kg

W set:

• Power cord
• Software disc
• User manual
• USB A - USB B cable
• Korad KA3005PS power supply
