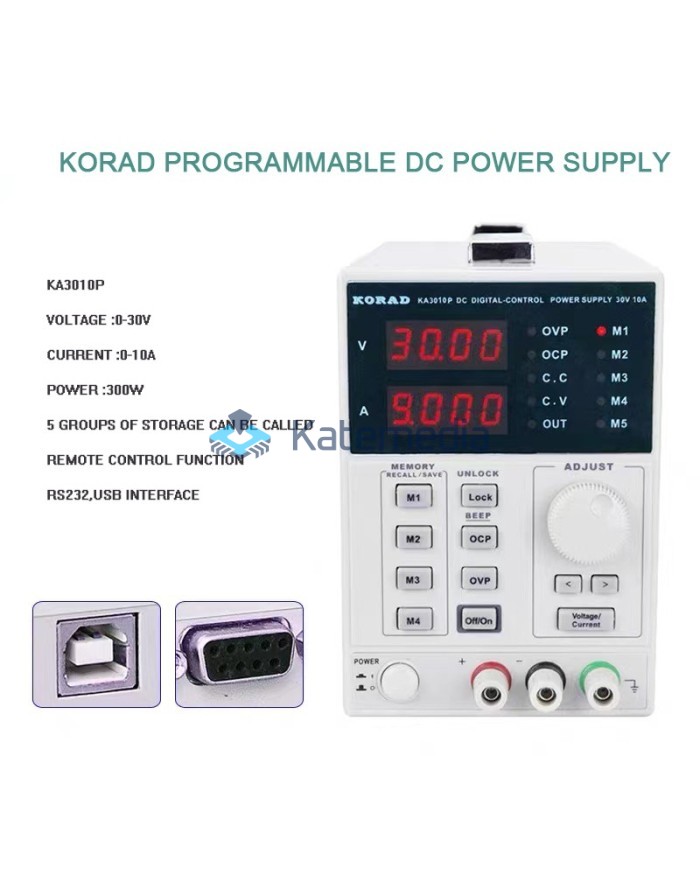

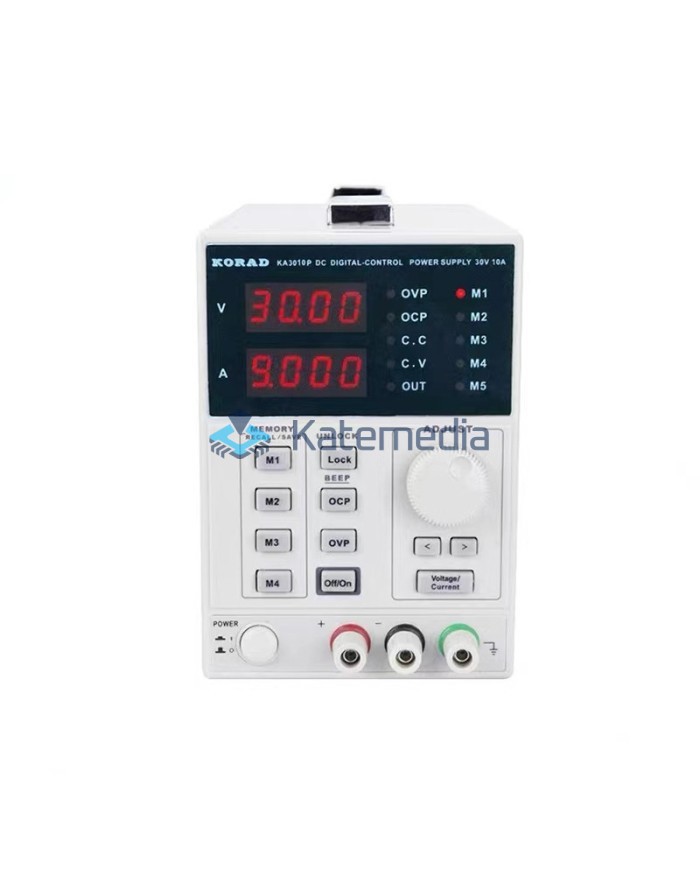

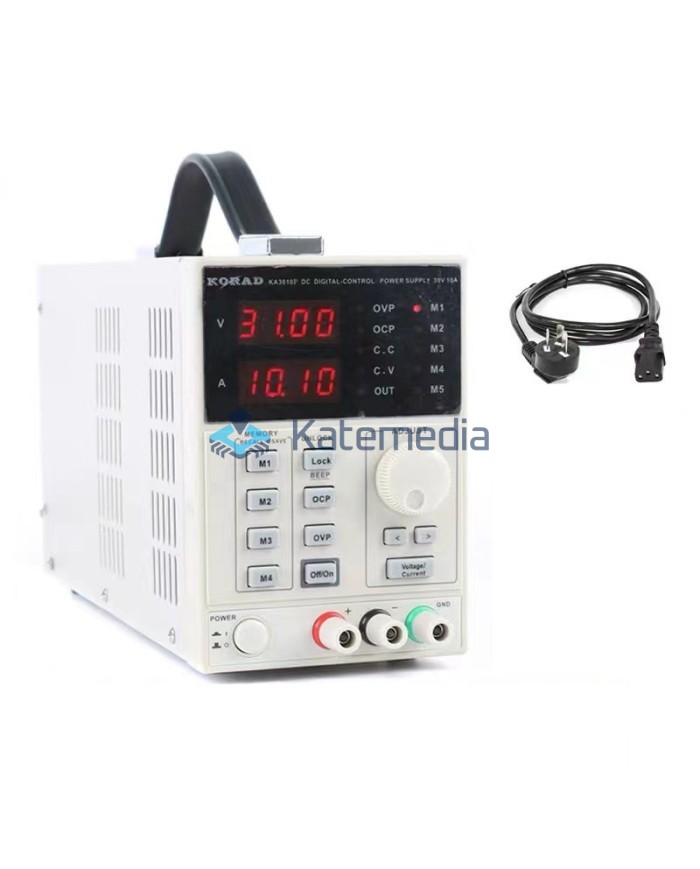

Service power supply KORAD KA3010P 30V 10A
Service power supply KORAD KA3010P 30V 10A
Lab power supply KA3010P is a stabilized power supply with programmable memory and smooth voltage regulation in the range from 0 to 30V and smooth current regulation in the range from 0-10A.
POWER SUPPLY DESIGN BASED ON TRANSFORMERS.
- It has overvoltage and overload protection.
- The power supply has 5 memories for saving current, voltage and operating modes of the power supply.
- The only power supply with full current regulation and no current limits.
- The power supply has an accuracy of current indications up to 3 decimal places!!!
- Transformer-based power supply design
KA3010P is cooled by a fan that runs non-stop and its speed depends on the load.
zł949.99
Tax included
Product availability
Product not available
Delivery options
Learn more
Regulation:
- Smooth voltage regulation in the entire range
- Smooth current regulation in the entire range
- Power supply on and off.
- 4 Memory buttons (save, load)
- Coarse and fine voltage regulation,
- Coarse and fine current regulation
- Software control via USB
- Button lock function
Modes:
- C.V. - constant output voltage
- C.C. - constant load current
Protection:
- OVP - overvoltage protection
- OCP - overload protection
The power supply can operate in the following modes: C.V. - constant output voltage and C.C. constant load current. With two possible protections OVP (overvoltage protection) and OCP (overload protection)
The power supply is used KA3010P:
- Industrial institutes
- Research institutes
- Laboratory equipment
- Electronics industries
- Electronics services
- Education and schooling
- Hobbyist workshops
- Wherever precise power supply is required
The power supply is distinguished by large precise LED displays that constantly inform about the current voltage and load.
Voltage and current can be set in a very convenient way using the position selection buttons for changing and the multi-turn potentiometer, which selects the desired value.
Lab power supply specifications:
- Voltage range: 0-30 V
- Current range: 0-10 A
- RS-232 interface, USB interface
- Load regulation
Voltage: =< 0.01% +2mV
Current: =
- Parameter setting accuracy
Voltage: 10 mV
Current: 1 mA
- Setting accuracy
Voltage . 0.5% +20mV
Current . 0.5% +10mA
- Output voltage ripple
Voltage: + 2mVrms
Current: + 3 mArms
- Response time
Voltage rise: =< 100mS (10% rated load)
Voltage drop: =< 100mS (10% rated load)
- Size: 110*156x*260 (WxHxL)
Included:
- Power cord
- Board with software
- User manual
- USB A - USB B cable
- Korad KA3010P power supply
SKKA3010P0
