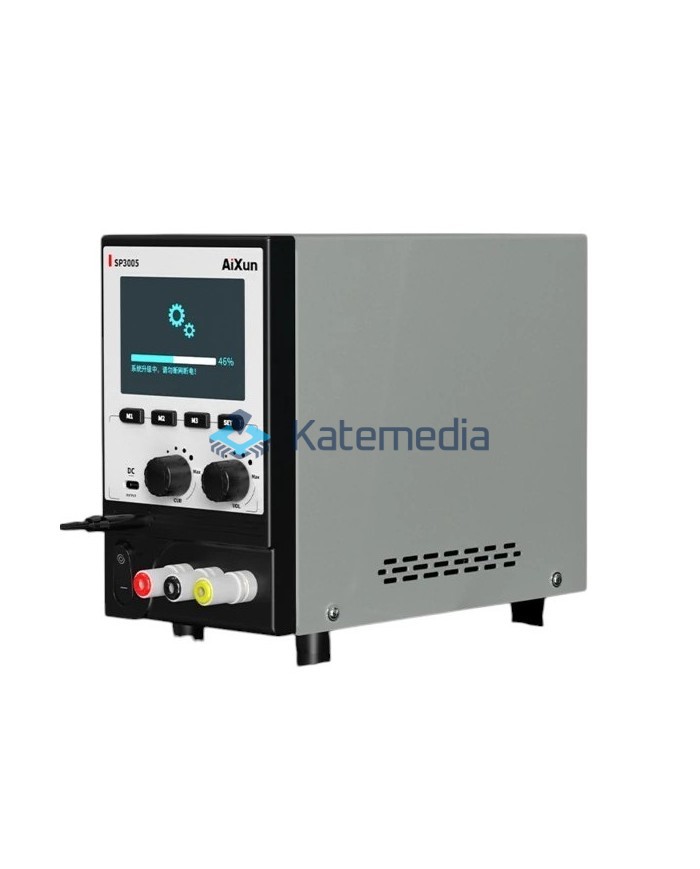

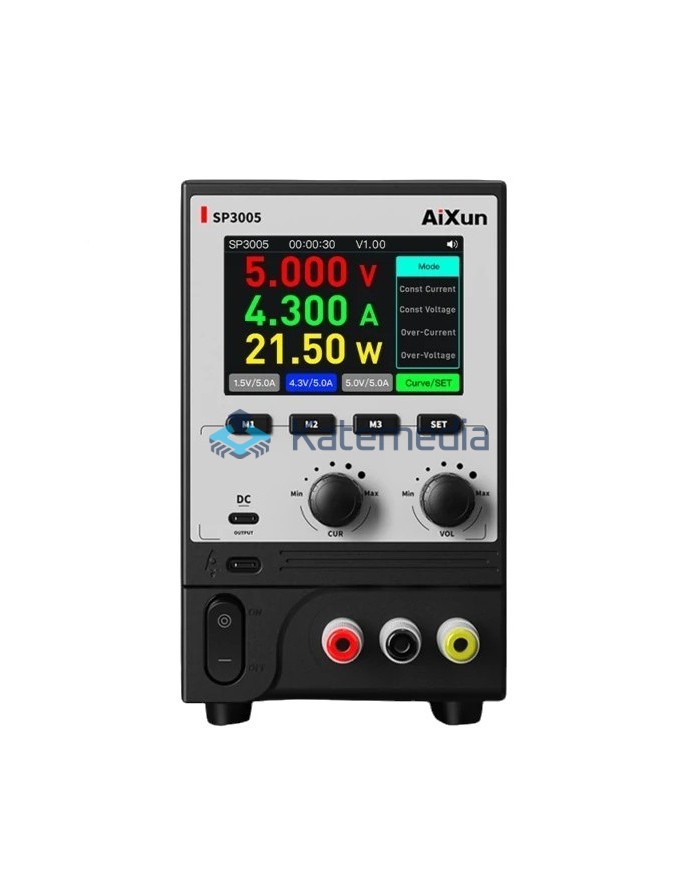

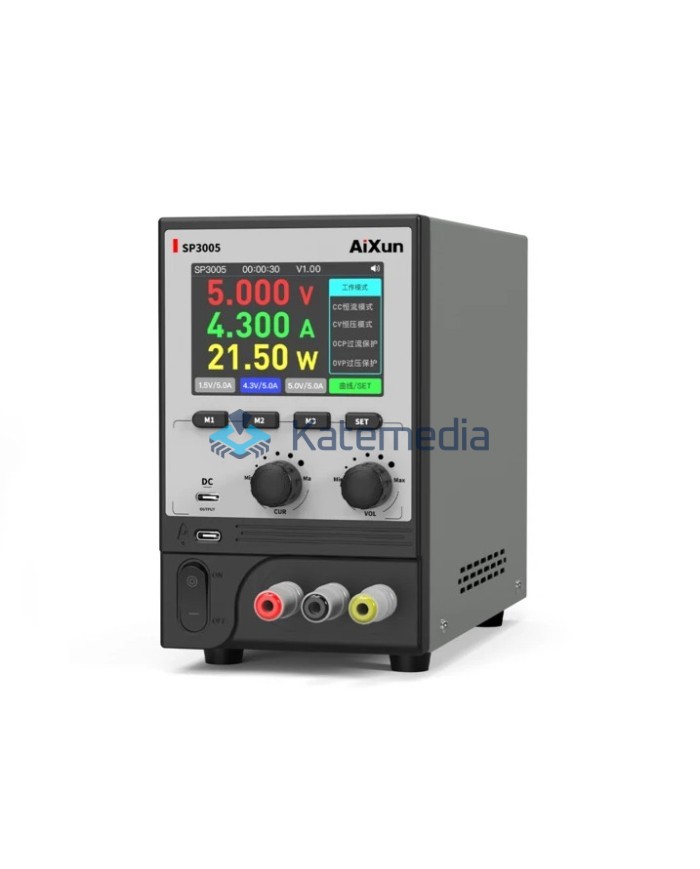

AiXun SP3005 30V 5A Service Power Supply
AiXun SP3005 30V 5A Service Power Supply

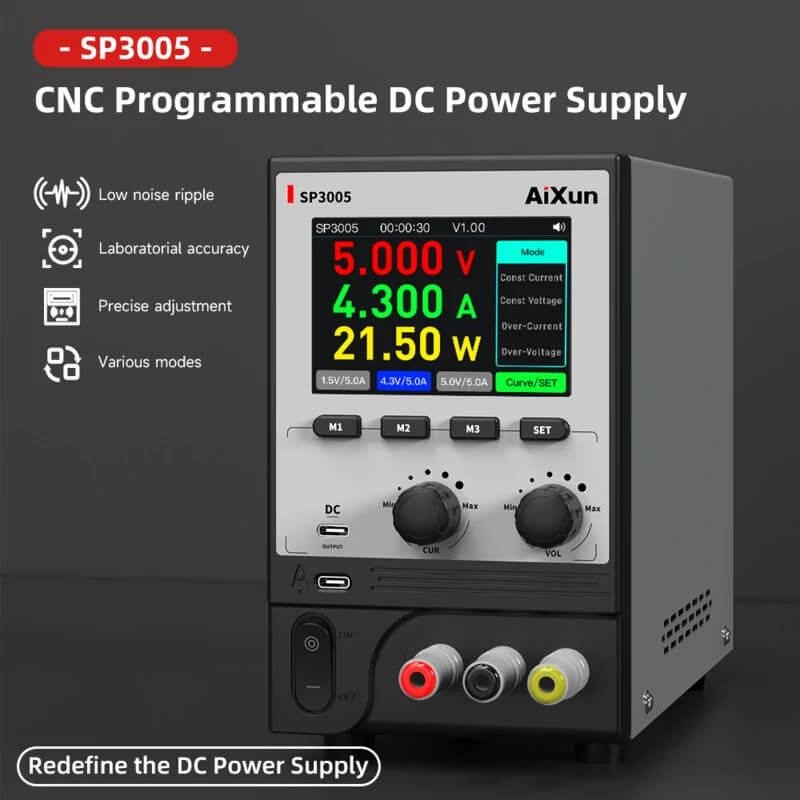

AiXun SP3005 – Programmable DC Laboratory Power Supply 30V / 5A
AiXun SP3005 is a modern programmable laboratory power supply designed for professionals. It offers 150W of power and an adjustable 0-30V / 0-5A range, ensuring stable and clean power with ultra-low ripple of ≤2 mVrms / 3 mArms.

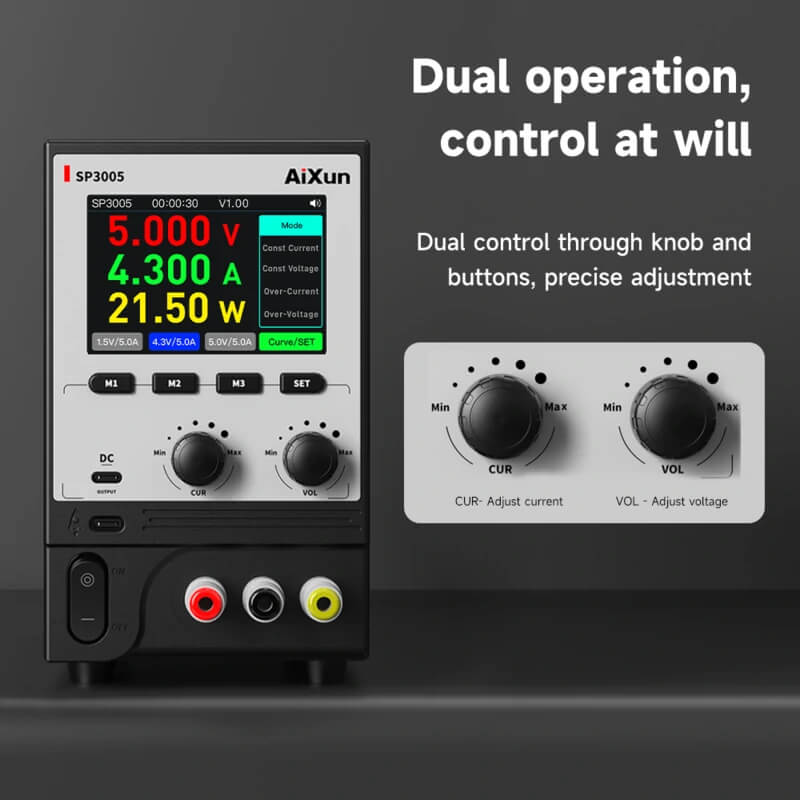

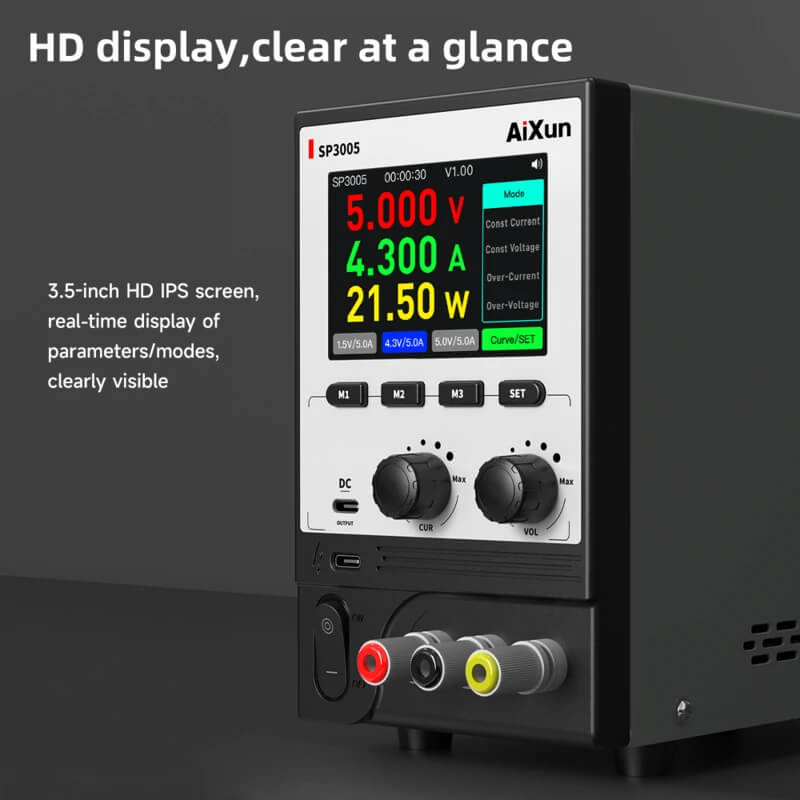

Equipped with a 3.5-inch IPS screen, it displays real-time parameters. It supports 30W USB-C fast charging (QC/PD), CV/CC modes, and OVP/OCP security. Thanks to its dual controls – knobs and buttons – it allows for precise settings down to three decimal places.
The power supply is ideal for GSM and electronics services, laboratories, audio equipment development, and PCB testing.
zł699.99
Tax included
Product availability
Product not available
Delivery options
Learn more
AiXun SP3005 – Programmable laboratory power supply DC 30V / 5A (150 W)
Ultra-low ripple (≤2 mVrms / 3 mArms), fine tuning to three decimal places, CV/CC modes with OVP/OCP, 3.5″ IPS display and USB-C 30W (QC/PD). Perfect for electronics repair, laboratories, and audio applications.
AiXun SP3005 is a precision, programmable DC power supply with a power output of 150 W and a range of 0-30 V / 0-5 A. It provides stable, low-noise power thanks to ultra-low ripple, while the 3.5-inch IPS screen clearly displays parameters in real time. Dual controls (knobs + buttons), the ability to save presets, and USB communication with OTA updates allow the SP3005 to grow with your needs. The 30W USB-C port supports QC/PD fast charging, useful for servicing mobile devices.
Key Benefits
-

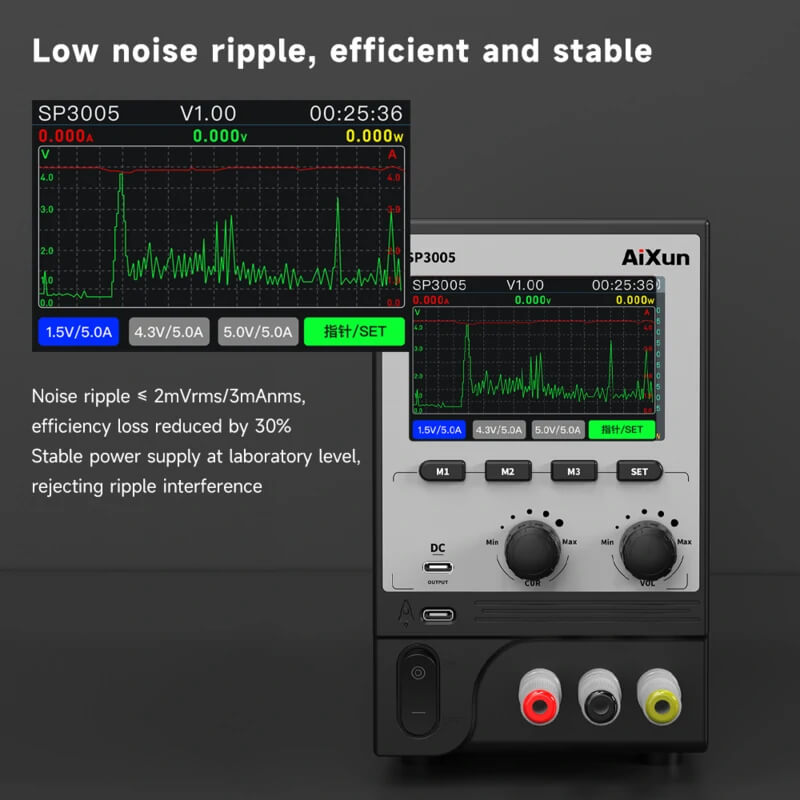

Ultra-low ripple
≤ 2 mVrms / 3 mArms; stability and a clean power signal.
-

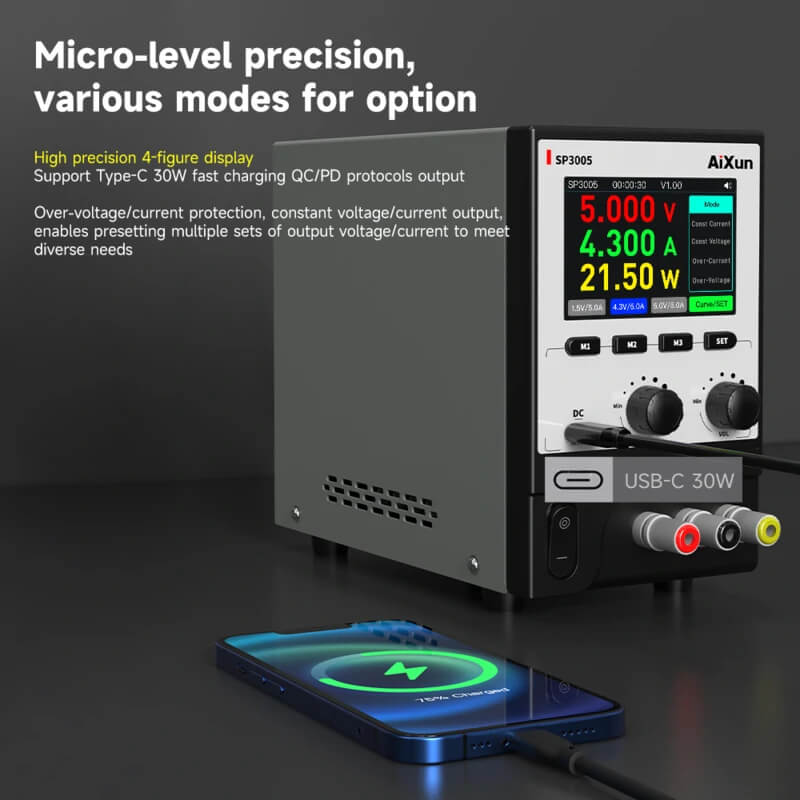

Precise adjustment
Voltage/current settings accurate to three decimal places, 4-digit readout.
-
Operational safety
CV/CC modes, OVP/OCP protection – overvoltage protection and overload.
-
USB-C 30W (QC/PD)
Fast charging and convenient work with mobile devices.
-
Smart features

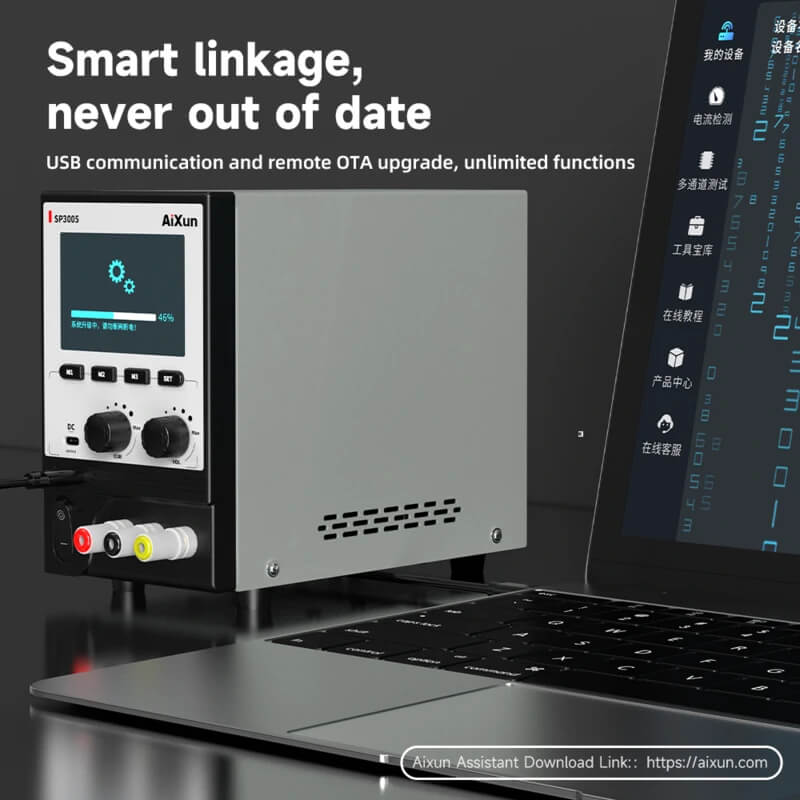

USB communication and remote OTA updates – constantly expanding capabilities.
Technical specifications
| Model: | AiXun SP3005 |
| Rated power: | 150 W (toroidal transformer) |
| Input voltage: | 230 V |
| Voltage / current range: | 0–30 V / 0–5 A (continuously adjustable) |
| Load regulation: | U: ≤ 0.01% + 2 mV / I: ≤ 0.1% + 5 mA |
| Linear adjustment: | U: ≤ 0.01% + 3 mV / I: ≤ 0.1% + 3 mA |
| Riples (20 Hz–20 MHz): | U: ≤ 2 mV rms / I: ≤ 3 mA rms |
| Modes/security: | CV / CC; OVP (Over Voltage) / OCP (Over Current) |
| Display: | 3.5″ color IPS (4-digit readout) |
| Ports / Communication: | USB (communication), USB-C 30W (QC/PD), OTA (updates) |
| Housing material: | Steel sheet + plastic |
| Dimensions (W×H×D): | 200 × 100 × 170 mm |
| Net weight: | approx. 4.6 kg |
| Gross weight (with packaging): | approx. 6.0 kg |

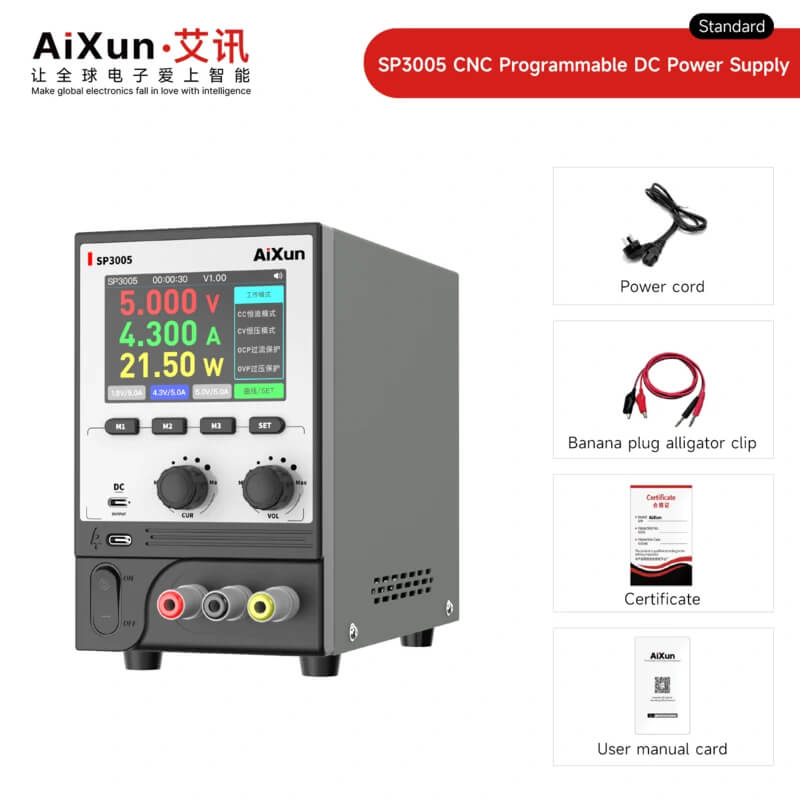

Package Contents
- 1 × AiXun SP3005 Power Supply
- 1 × Power Cord
- 1 × Banana Cable with Alligator Clips
- 1 × Quality Certificate
- 1 × User Manual
