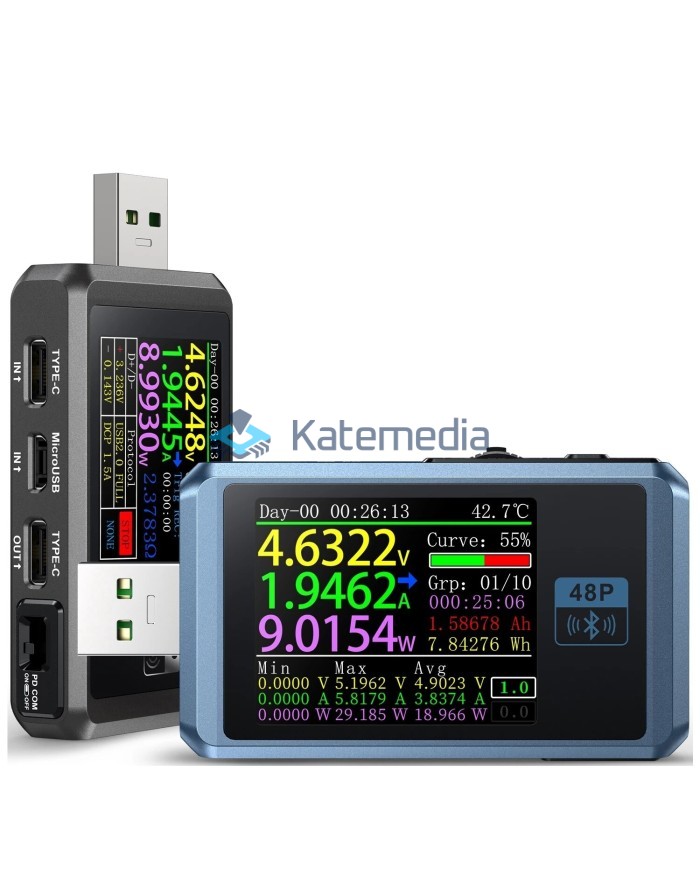

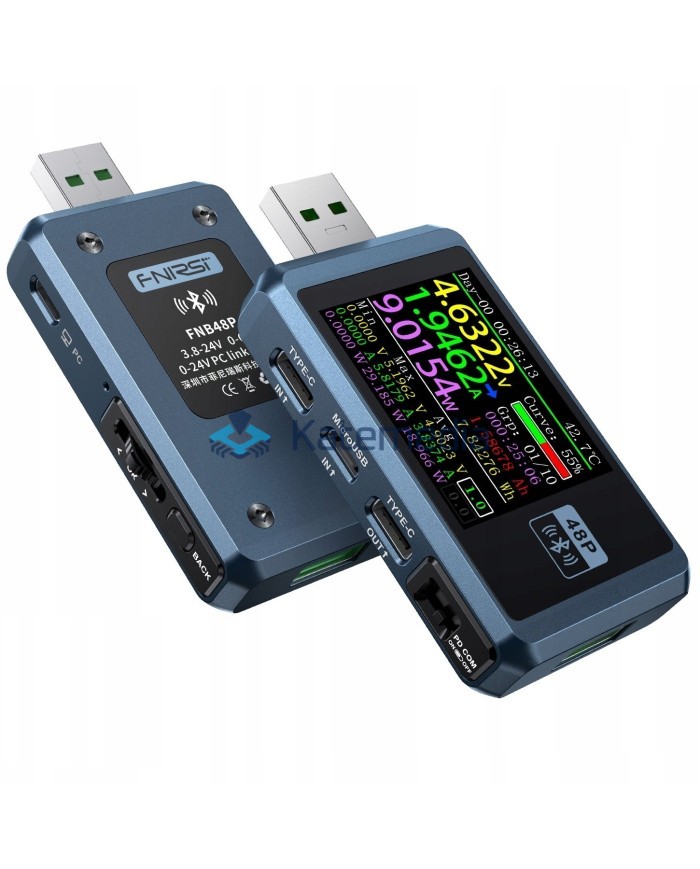

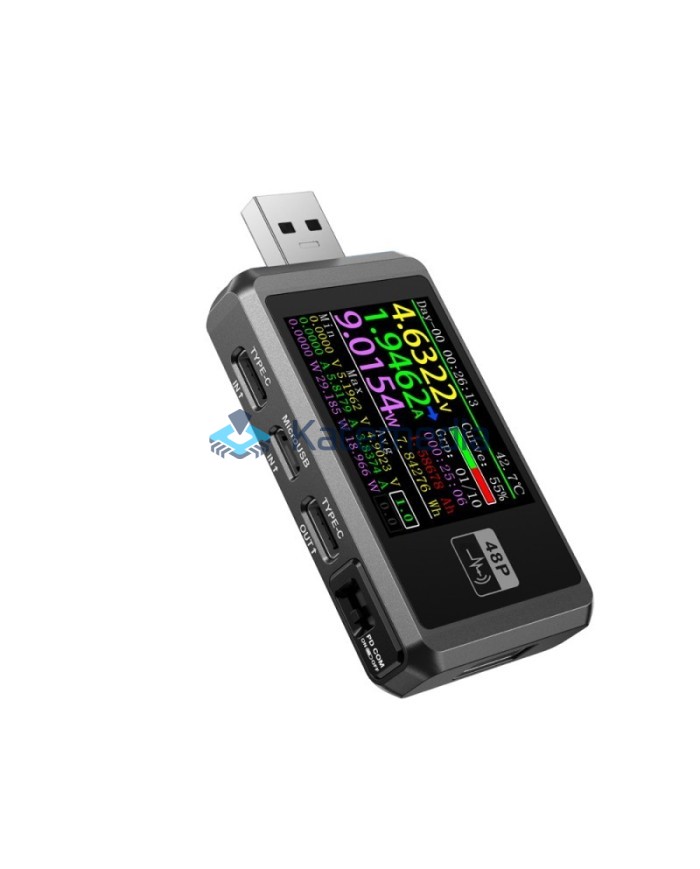

Tester has a 1.77" TFT LCD display and 2 control buttons. It uses an internal ADC converter, which allows for very accurate measurements. It allows you to monitor input voltage, current and power. It also displays the value of internal resistance. The USB tester can measure temperature and flowing charge and energy . This data is stored with a time stamp. The user can update the software via the micro USB port (PC). The whole thing is enclosed in a nice metal housing. The USB tester can serve as a reliable diagnostic tool in various applications, including in the electronics, industrial and home.

Specification:

• Precise voltage and current measurements
• Fast charging mode recognition: QC2.0, QC3.0, Huawei FCP, Huawei SCP, Samsung AFC, VOOC/WARP, SuperVOOC and MTK-PE
• Monitoring work in Power Delivery mode
• PD Protocol Conversion
• Data storage
• Software update
• 1.77" TFT LCD display
• 2 control buttons
• USB type A plug
• USB type A, micro USB, USB type C socket
• Internal 16-bit ADC converter
• Input voltage: 3.8 to 24 V
• Input current: 0 to 6.5 A
• Input power: 156 W
• Internal resistance: 0 to 10 kΩ
• D+/D- voltage: 0 to 3.3 V
• Temperature measurement
• Capacity: 0 to 10000 mAh
• Energy: 0 to 10000 Wh
• Working time registration
• Independent power supply
• PD physical switch
• Display orientation detection
• Metal CNC housing
• Dimensions: 77 x 38.6 x 14 mm
