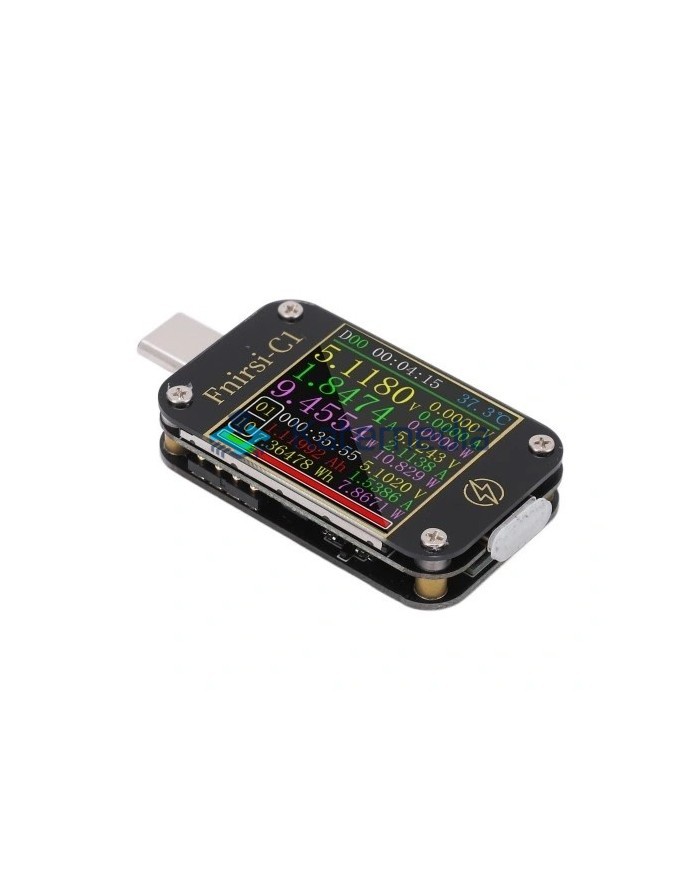

Tester has a 1.3" TFT LCD display and 3 control buttons. It uses an internal ADC converter, which allows for very accurate measurements. It allows you to monitor input voltage, current and power. It also displays the value of internal resistance. The USB tester can measure temperature and flowing charge and energy . This data is stored with a time stamp. The user can update the software via the micro USB port (PC). The USB tester can serve as a reliable diagnostic tool in various applications, including in the electronics, industrial and home industries.

Specification:

• Precise voltage and current measurements
• Recognition of fast charging modes: QC2.0, QC3.0, Huawei FCP, Huawei SCP, Samsung AFC
• Monitoring work in Power Delivery mode
• PD Protocol Conversion
• Data storage
• Software update
• 1.3" TFT LCD display
• 3 control buttons
• USB type C plug
• USB type C port
• Internal ADC converter
• Input voltage: 4 to 24 V
• Input current: 0 to 6.5 A
• Input power: 130 W
• Internal resistance: 0 to 10 kΩ
• D+/D- voltage: 0 to 3.3 V
• Temperature measurement
• Capacity: 0 to 10000 mAh
• Energy: 0 to 10000 Wh
• Working time registration
• Independent power supply
• Display orientation detection

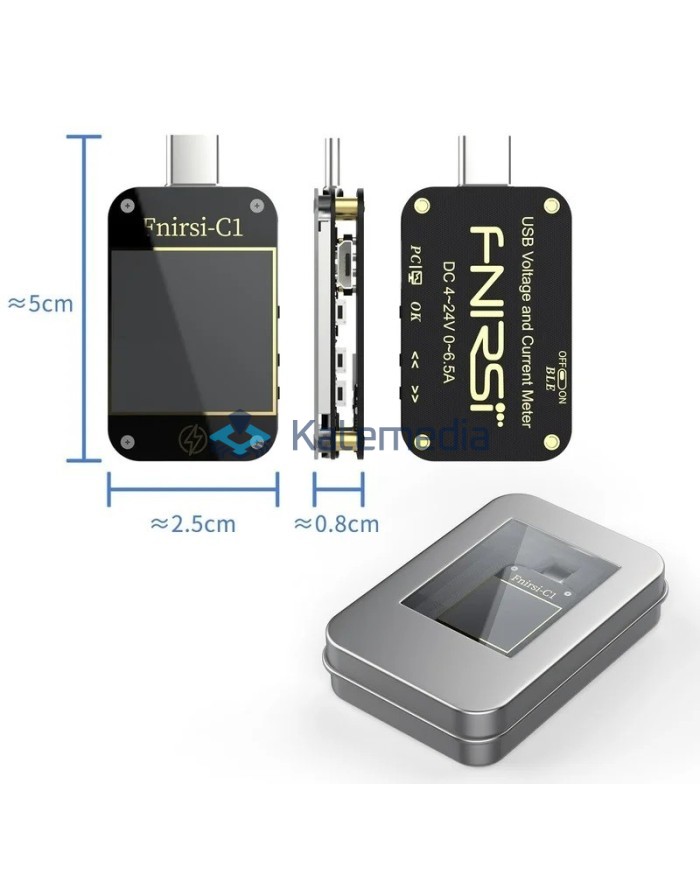

• Dimensions: 50 x 25 x 8 mm
