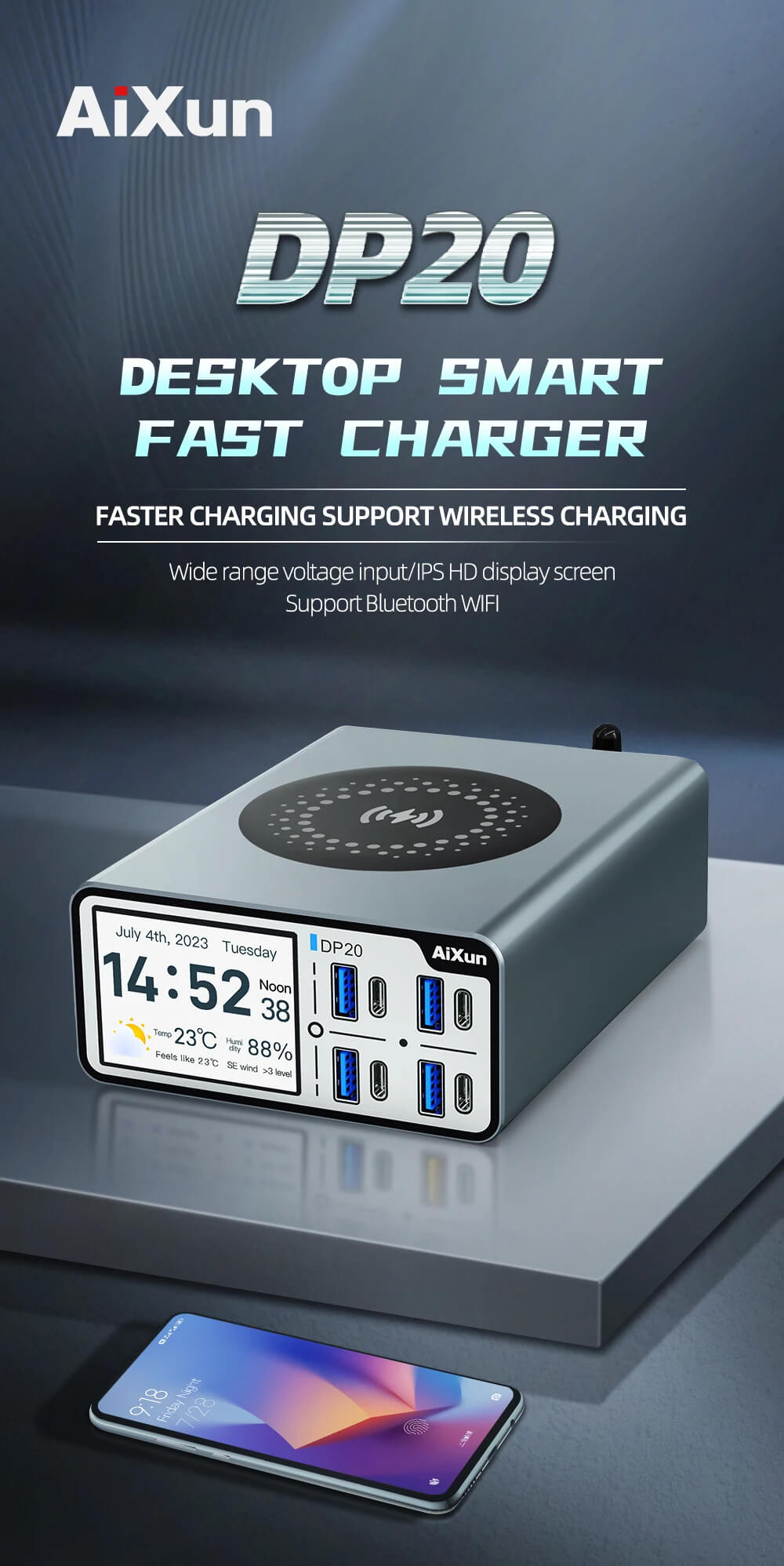

AiXun DP20 – Intelligent Fast Charging Station

Professional charging center with up to up to 200W, with support for wireless charging, full parameter monitoring and Wi-Fi / Bluetooth connectivity. The perfect choice for GSM services, electronics specialists, and demanding users.

Charging station with IPS screen and wireless charging capability.

Key Features:

• Maximum power 200W:

  3 channels of 44W each + one channel of 60W and 15W wireless charging.

• IPS HD Display:

  The easy-to-read 2.4" screen shows voltage, current, protocols, and operating time.

• Bluetooth and Wi-Fi Connectivity:

  Remote control and OTA updates without the need for a cable connection.

• Multiple port support:

  USB-C, USB-A, and wireless ports working simultaneously.

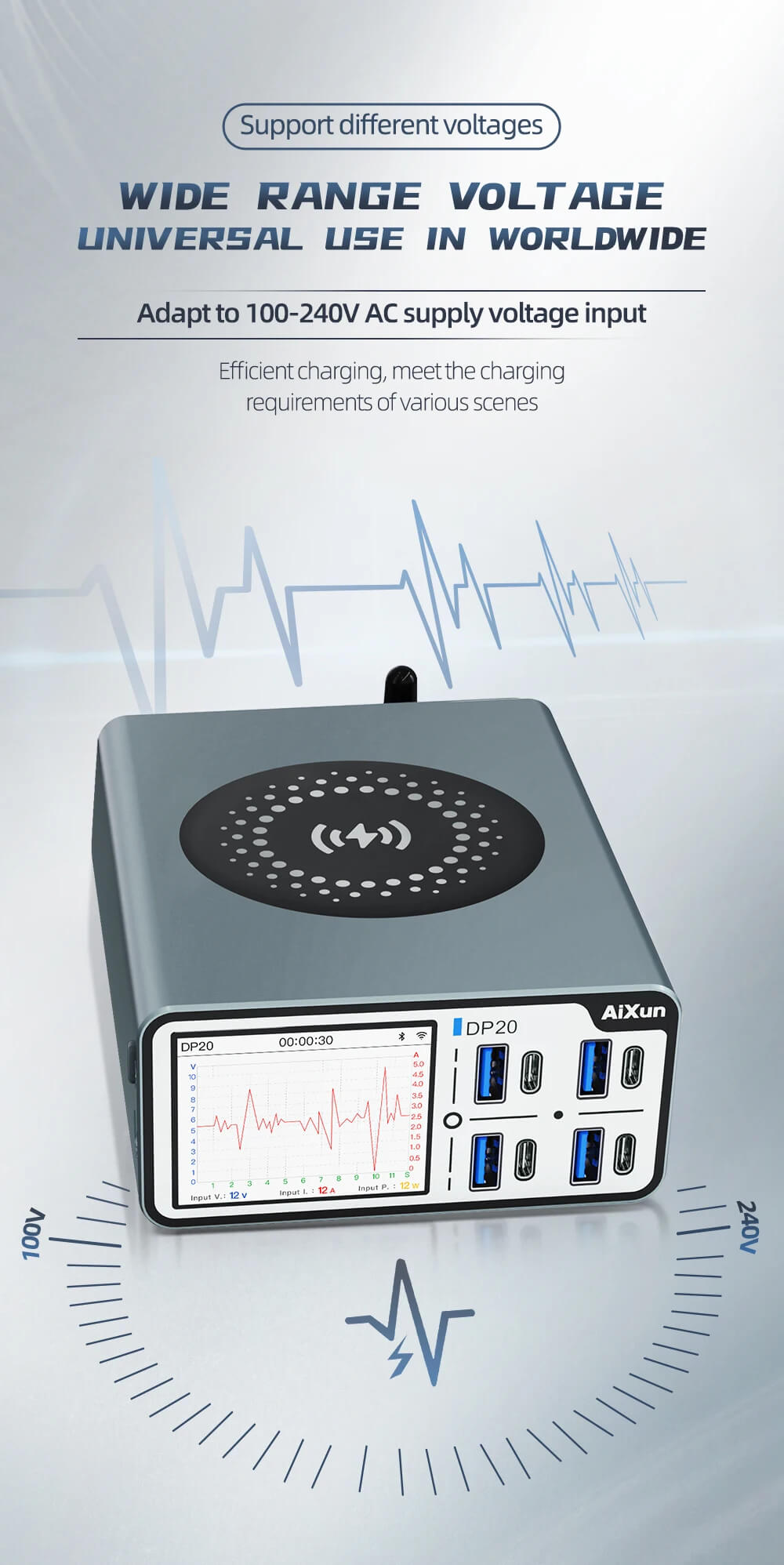

Worldwide use

The AiXun DP20 supports an input voltage of 100–240V AC, making it ideal for use in any country.

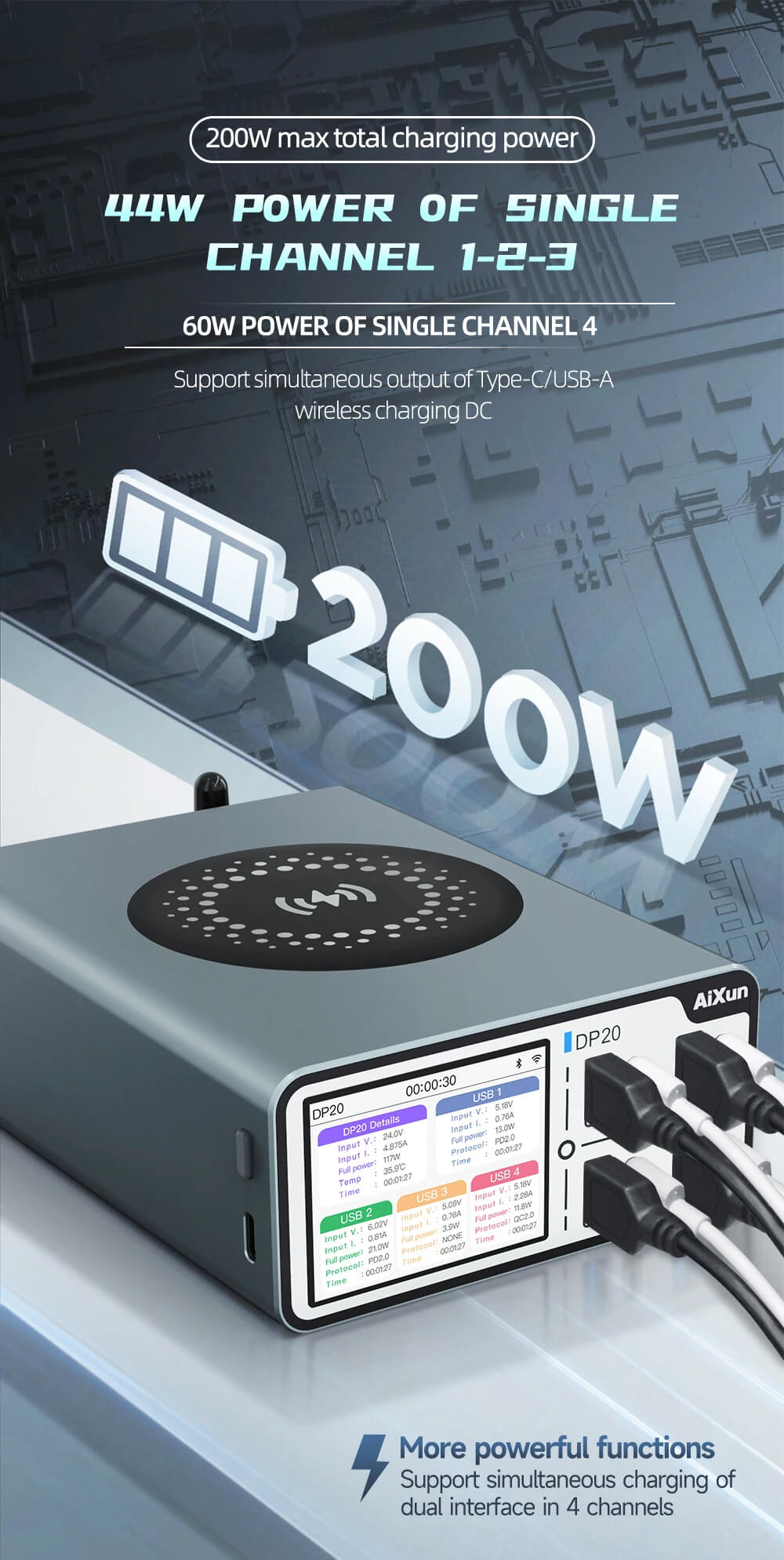

Advanced Output Power

Support for dual interfaces in each channel allows you to charge multiple devices simultaneously without performance degradation.

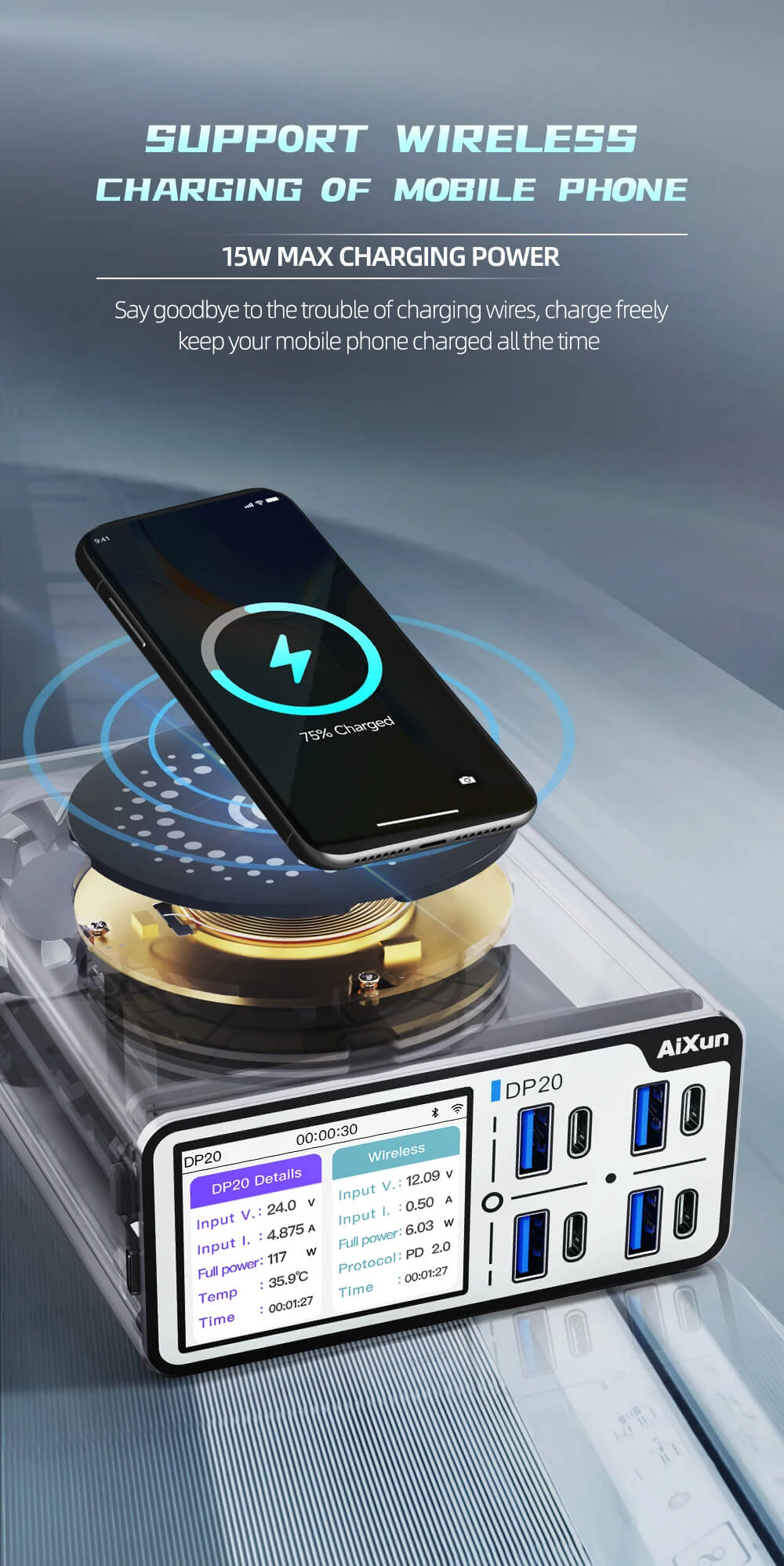

Wireless Charging

Wireless charging of smartphones with power up to 15W. Just place your phone on the station surface – no cables, no unnecessary movements.

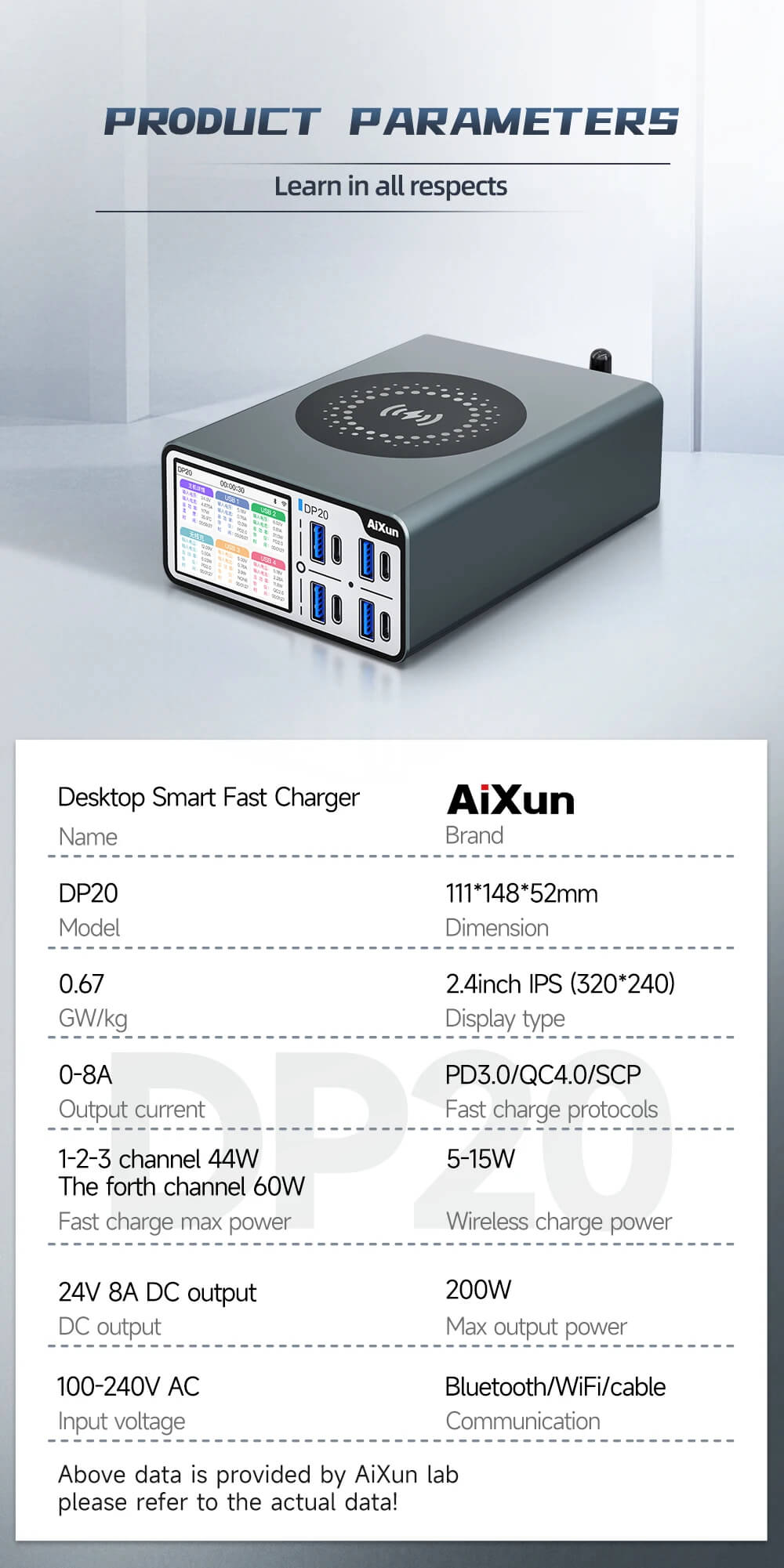

Technical Specifications

• Model: DP20
• Dimensions: 111 × 148 × 52 mm
• Weight: 0.67 kg
• Display: IPS 2.4” (320×240)
• Channel power: 3x44W + 1x60W
• Wireless charging: 5–15W
• Protocols: PD3.0 / QC4.0 / SCP
• DC output: 24V 8A
• Total power: 200W
• Input voltage: 100–240V AC
• Connectivity: Bluetooth / Wi-Fi / Cable
