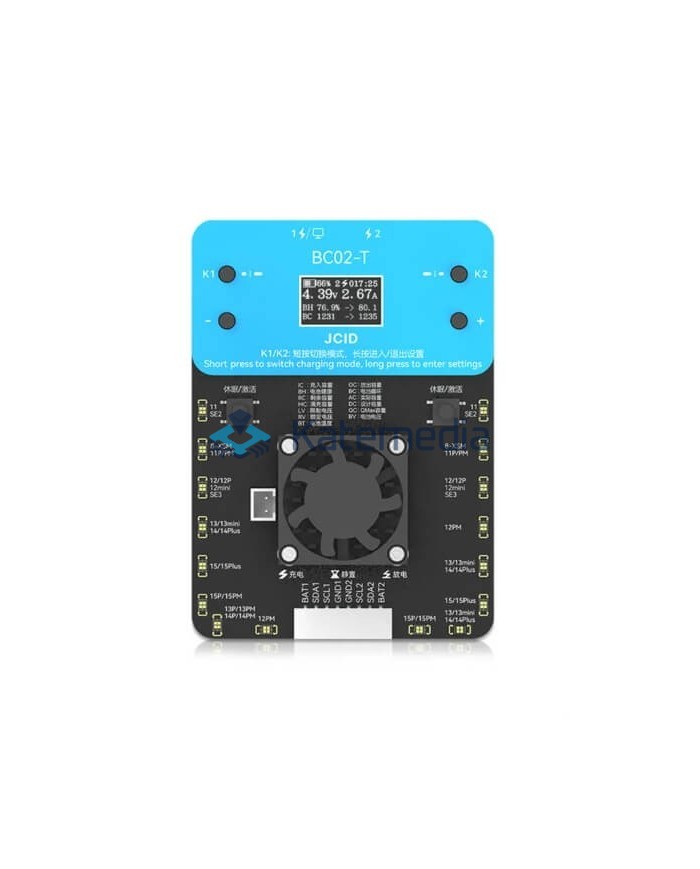

JCID BC02-T is an advanced battery tester and cycler, designed for professional service centers dealing with Apple devices. The device allows you to perform full battery charge and discharge cycles, which allows not only for testing them, but also for partial regeneration by improving the cell's condition.

Main functions and capabilities:

• Measurement of real charge and discharge capacity (IC/OC)
• Detection of non-original cells and false manufacturer's markings
• Reading the number of battery cycles and the Battery Health parameter
• Increase in battery health by 1–5% with 4–6 full cycles
• Support for two batteries simultaneously thanks to dual channel operation

The device works in offline mode, without the need to connect to a computer. The operating parameters can be set directly using the function buttons (K1/K2), and the manual and automatic modes enable flexible adjustment of the operation to the user's needs. The K1 button allows you to quickly change the operating mode, while a longer press opens the settings menu.

Technical parameters:

• Maximum charging current: 4A
• Maximum discharge current: 2A
• Continuous operation in a cycle of 4–6 times a day

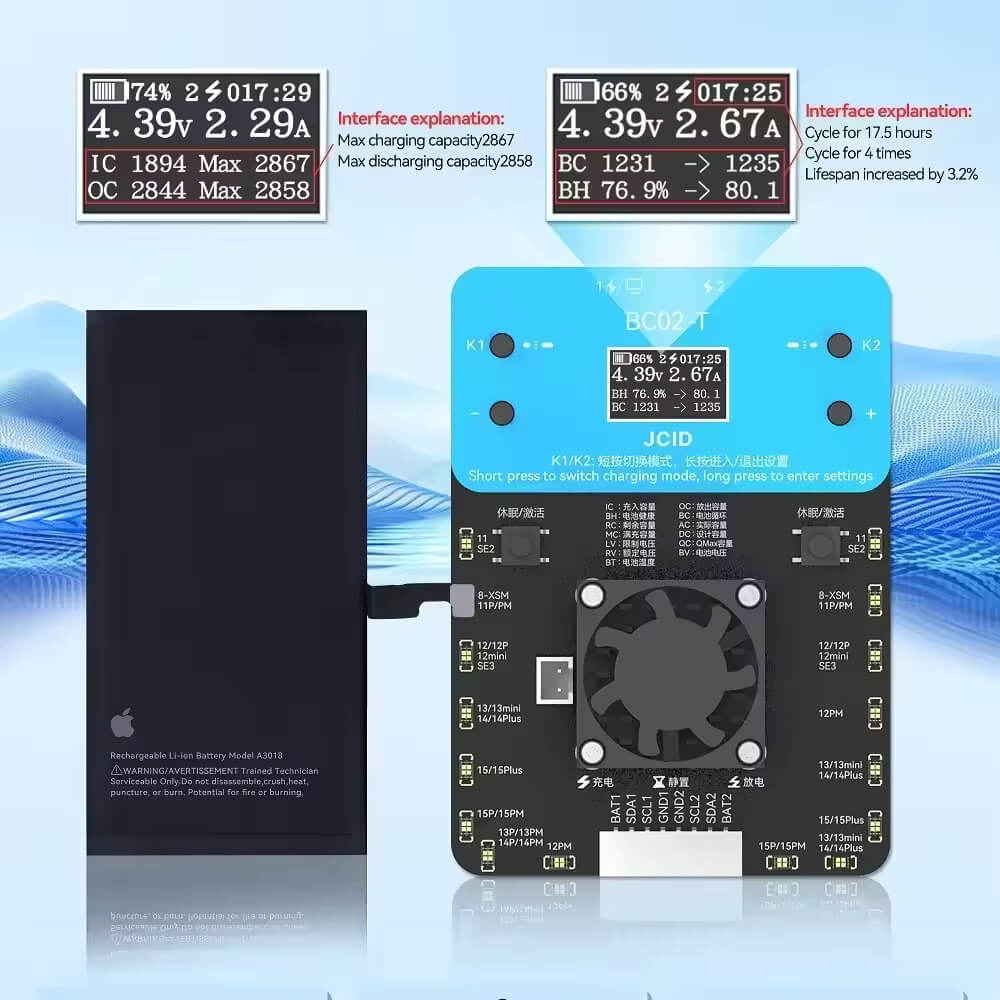

• Display of time, voltage, current, battery condition and capacity
• Automatic standby system (auto sleep/wake)
• Built-in fan ensuring effective cooling of the device
• Connectors for the latest iPhone models (supports iPhone 16, 17 and later by connecting an adapter to the expansion port, *adapter not included*)
• Possibility of updating via the JCID Device platform

Application:

JCID BC02-T is designed for GSM services, technicians and laboratories that need a precise tool for battery quality control, regeneration and preparation for reassembly. It is perfect for cell selection, quality verification of deliveries and work with regenerated batteries.

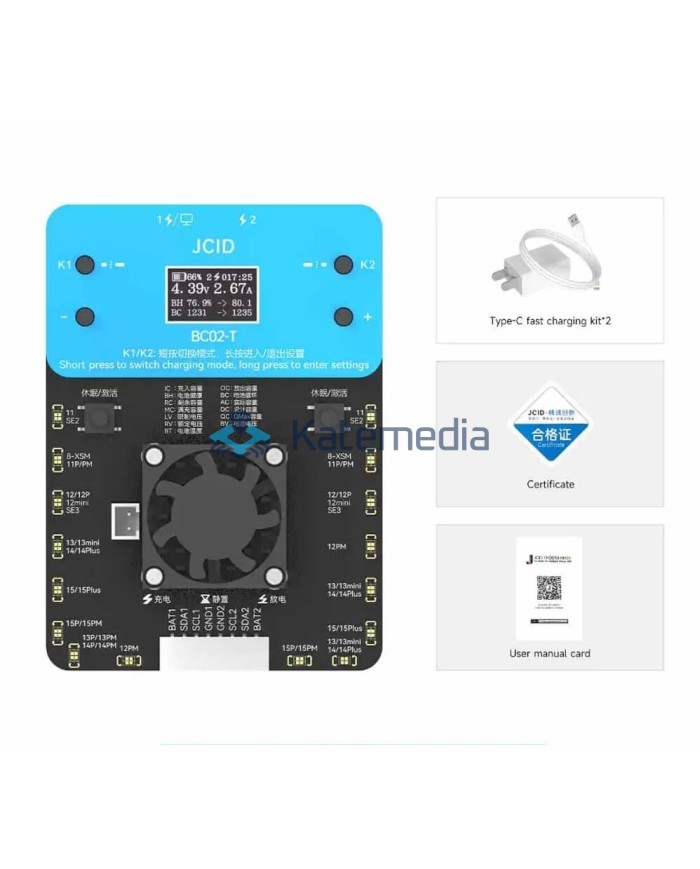

Kit contents:

• 1 × JCID BC02-T
• 2 × sets of cables and fast charging cubes 20W USB-C
• 1x certificate of authenticity
• 1x user card
