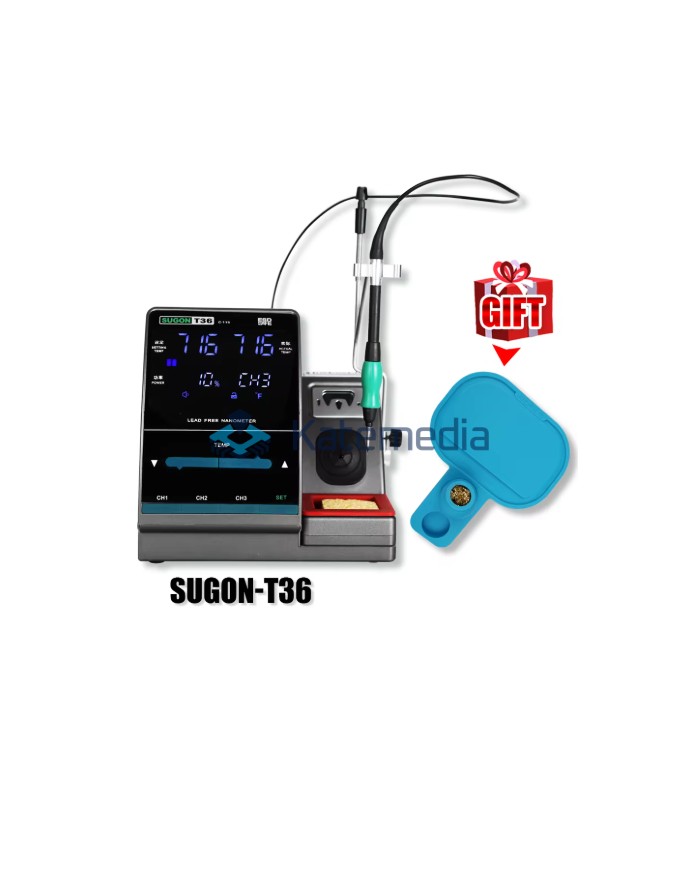

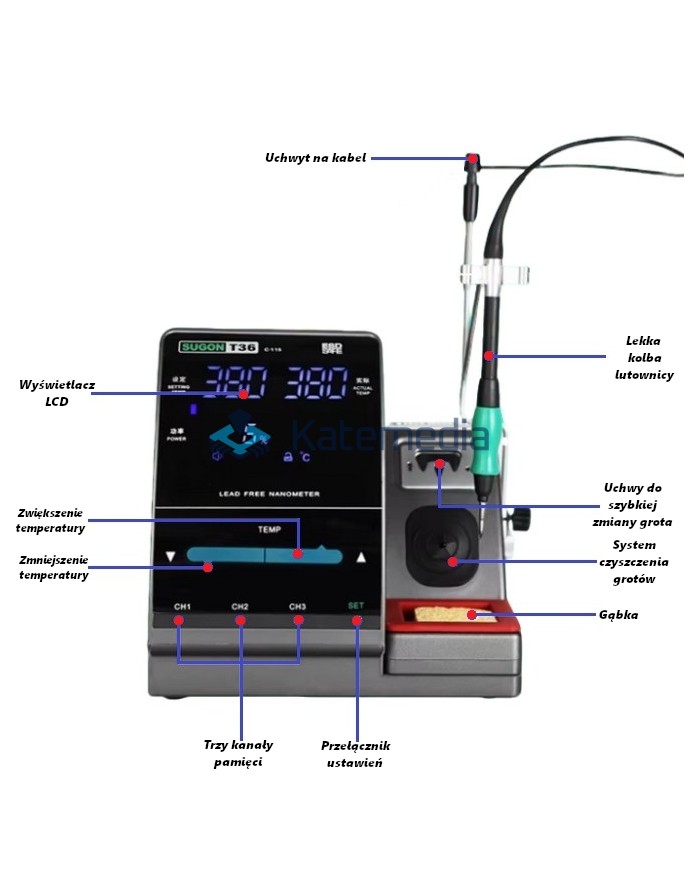

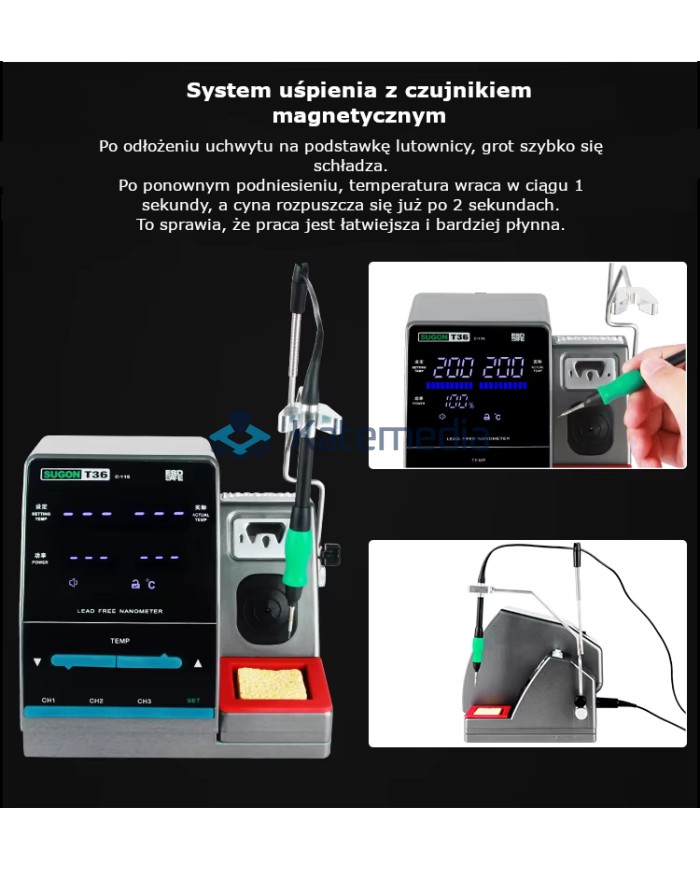

Soldering station Sugon T36 with handle for JBC tips + Oryginal Soldering Tip JBC
Soldering station Sugon T36 with handle for JBC tips + Oryginal Soldering Tip JBC
The highest quality SUGON soldering station designed for professional work with electronics under a microscope. The C115 tip holder allows for easy operation on microelements.
This station is a new improved model designed for professional service work on motherboards. The holder used allows for the installation of C115 tips, which are very small and precise, so we can work without any obstacles. The modern system and construction make the tip reach the set temperature up to twice as fast as in its predecessor.
Kit equipment:
- Soldering stationT36,

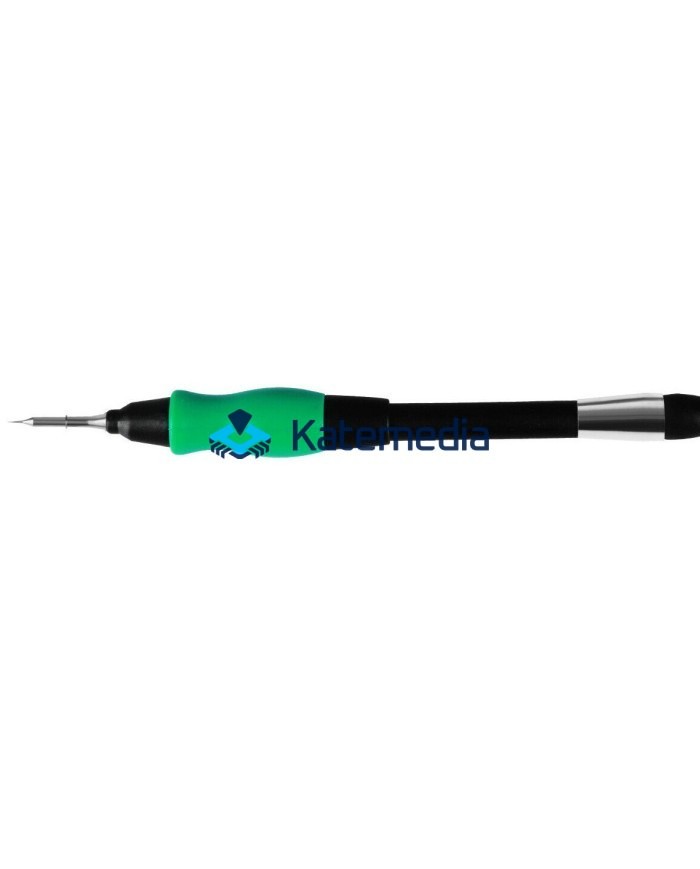

- IronC115,
- Oryginal Soldering Tip JBC C115101
- instructions manual,
The station supports the following stocks:
-
SG-115 for JBC C115 tips
zł1,299.99
Tax included
Product availability
Last remaining items
Delivery options
Learn more
Dobierz akcesoria
*We recommend using original JBC tips, thanks to which you will gain the highest precision, better thermal conductivity and longer service life. Substitute tips do not use the full capabilities of the station, causing a decrease in efficiency and functionality, which will significantly extend the time of work performed.
Sugon T36 Soldering Station – Precision Soldering
Sugon T36 is a modern soldering station, designed for precise service work under a microscope. Thanks to the use of C115 tip holder, it allows for free operation on microelements and motherboards. The advanced temperature control system ensures exceptional stability, and the optimized design allows for rapid heating of the tip – even twice as fast as in previous models.
The most important features of Sugon T36:
- Precise temperature control - range from 200°C to 450°C with the possibility of selecting units °C/°F

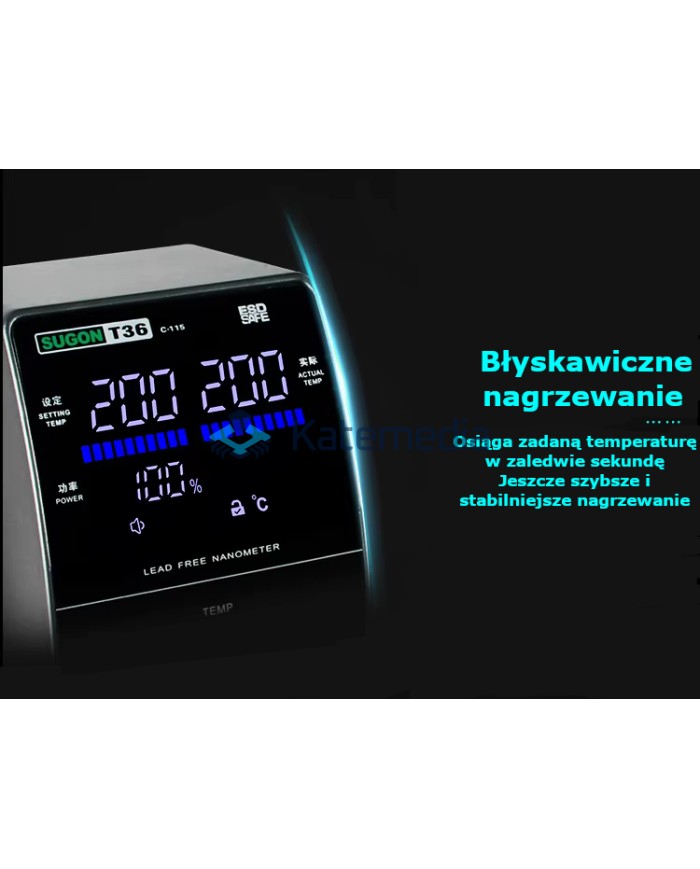

- Instant heating - modern technology allows you to reach the temperature in just a few seconds

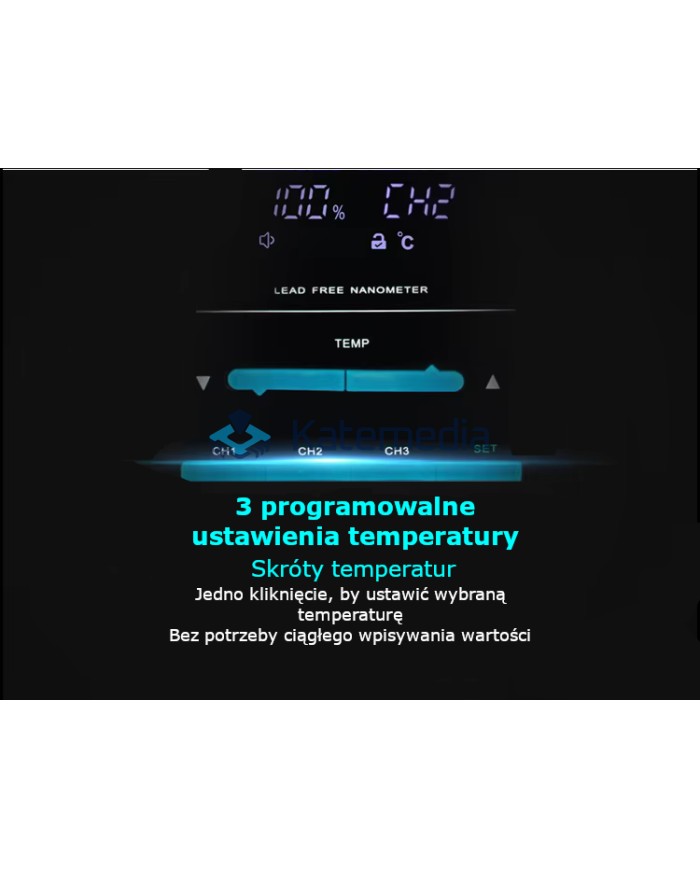

- Settings memory - the ability to save and quickly recall the temperature on the selected channel
- Temperature calibration - manual adjustment function for precise control of the soldering process
- Sound adjustment – ability to enable/disable the buzzer for greater work comfort

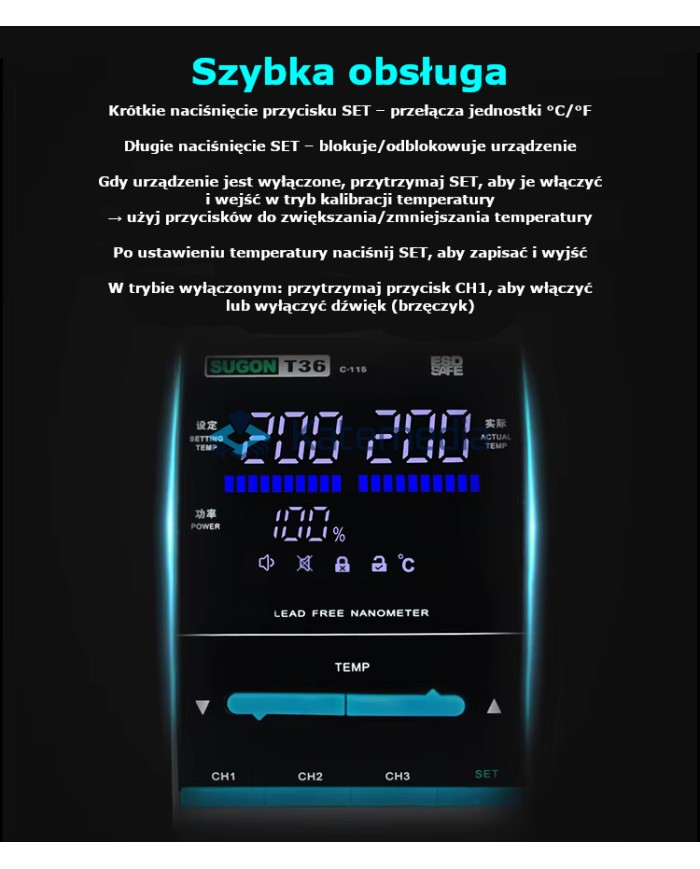

Quick operation functions:
- Changing temperature units (°C/°F) – quick switching with one button
- Saving and recalling settings – long press of the button allows you to lock/unlock the channel memory
- Temperature calibration – available from the user interface
- Buzzer sound control – can be turned off by holding the CH1 button
Specification:
- Model: Sugon T36
- Power: 85W
- Input voltage: AC 110V / AC 220V (50/60Hz)
- Temperature range: 200°C - 450°C / 392°F - 842°F
- Temperature stability: ±2°C (no air flow or load)
- Tip ground resistance: <1Ω (DC)
- Tip to ground potential: <25mV (True RMS)
Kit contents:
- ✔ Sugon T36 soldering station
- ✔ C115 iron
- ✔ JBC C115101 tip
- ✔ User manual
Sugon T36 is a professional solution for GSM and electronics services, offering exceptional precision and reliability in soldering SMD and microelectronics components.
