Aifen A9HD Soldering Station 210 Iron
Aifen A9HD Soldering Station 210 Iron
Aifen A9HD Soldering Station 210 Iron
The Aifen A9HD is a professional 180W soldering station, designed for fast heating and stable operation in the 100–450°C range. It is suitable for GSM and precision electronics repair: motherboards, CPU/BGA systems, tinning, and pad cleaning.
The station is equipped with a 210 iron with control buttons directly from the handle (changing temperatures and presets), as well as a 2.8-inch color IPS screen with temperature curve mode (Curve Mode). Four memories CH1–CH4 speed up work, and the hibernation function during core replacement increases safety.
This is a reliable tool for demanding users who expect high power, precision, and convenient operation without interrupting their work.
zł699.99
Tax included
Product availability
Last remaining items
Delivery options
Learn more
Aifen A9HD Soldering Station Iron 210
Professional 180W soldering station with intelligent and precise temperature control. The station is equipped with a 210 iron and a 2.8″ IPS color screen with temperature graph mode. Perfect for GSM and precision electronics servicing: motherboards, CPU/BGA, tinning and pad cleaning.
2.8″ IPS color screen, fast temperature recovery, and a new, intuitive interface. Maximum power: 180 W.
The Aifen A9HD is based on JBC data and uses an efficient 1.8Ω heating core, which ensures rapid heating and very stable temperature maintenance. The enlarged display area simultaneously shows the set temperature, the actual temperature, and four saved presets. The hibernation during core replacement feature increases safety: the component does not heat up when removed.
Key Benefits
-
High power and fast heating
Maximum 180 W and a 1.8 Ω core ensure dynamic heating and excellent heat dissipation at a 210°C soldering iron.
-
Precise temperature control
Range 100–450°C with intelligent stabilization – safe for delicate SMD and BGA components.
-

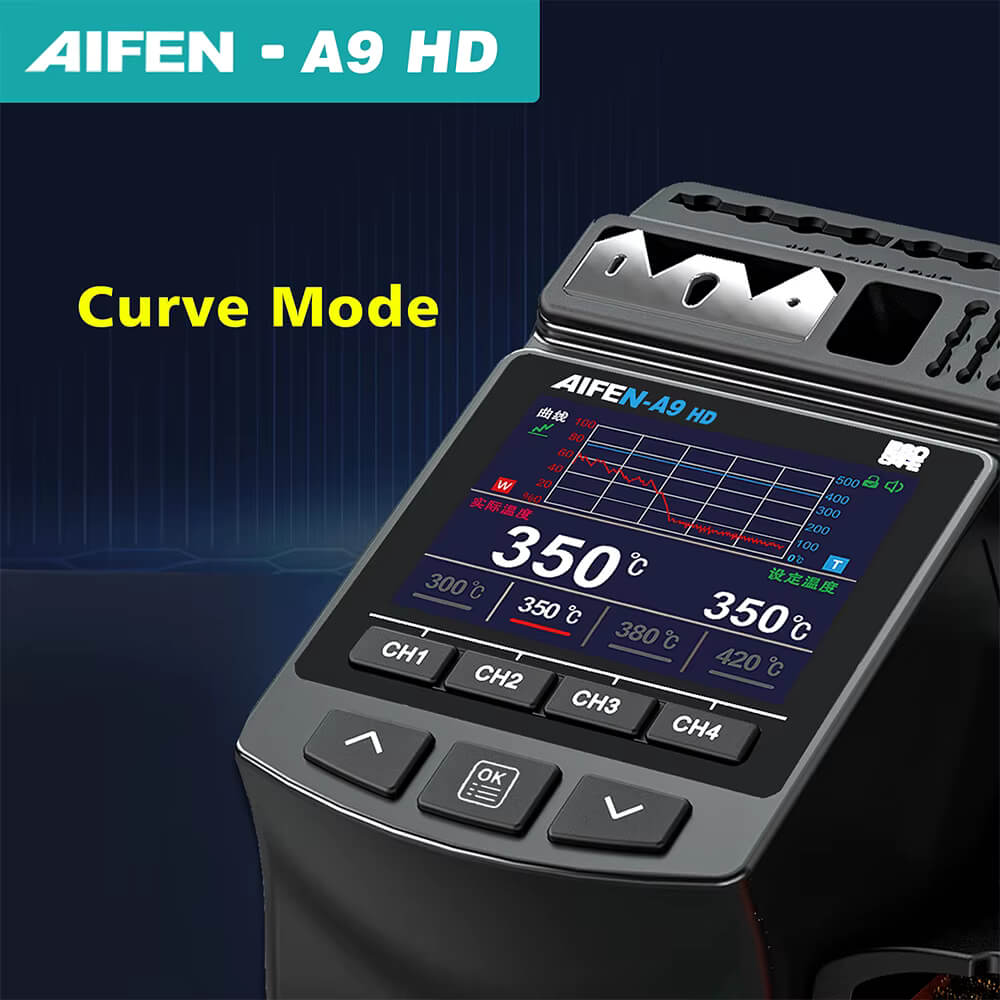

Graph Mode (Curve Mode)
View temperature changes over time on a clear graph – full control of the soldering process.
-

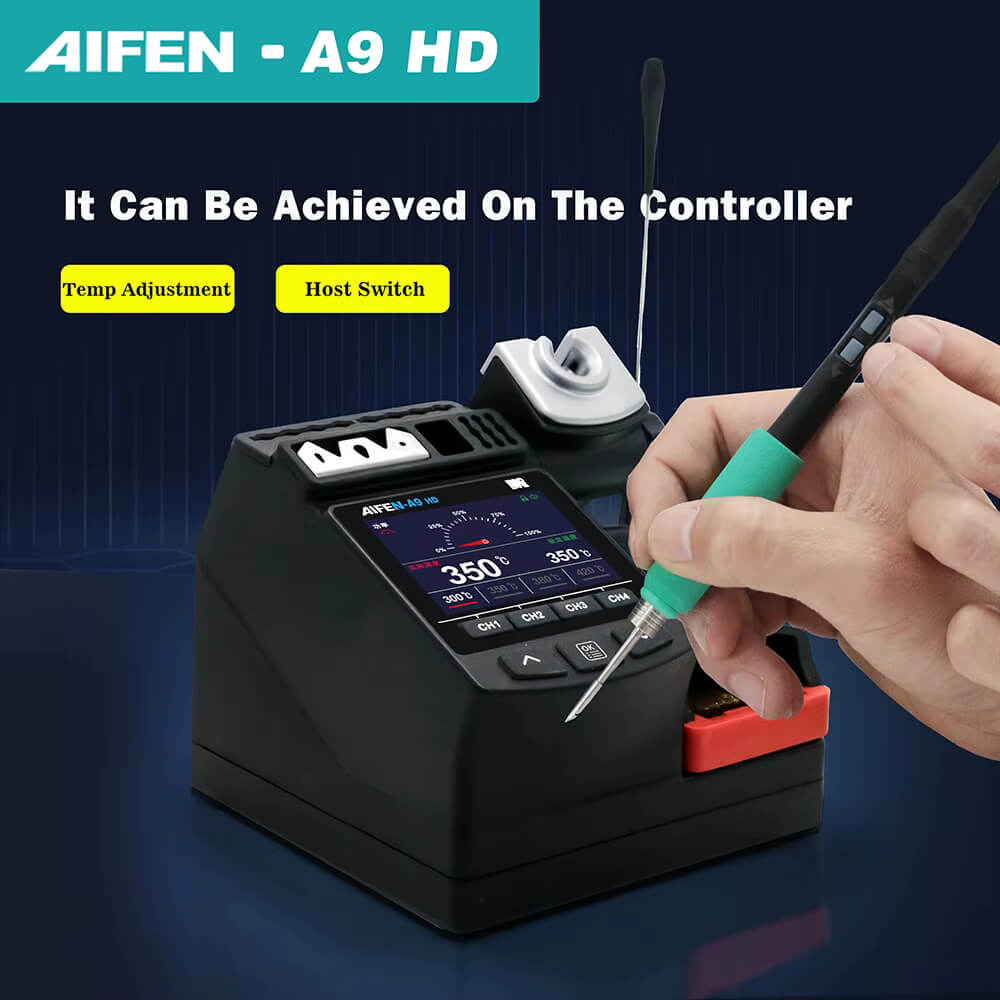

Control from the iron
The buttons on the handle allow you to adjust the temperature and switch modes/presets without putting the tool down.
Control directly from the portafilter: quick temperature adjustment and mode switching.
Temperature curve mode (Curve Mode) – view the setpoint and actual values on one screen.
Soft design: socket for connecting and disconnecting tips, CH1–CH4 memories, copper wool cleaner, brush, and adjustable handle.
Technical specifications
| Model | Aifen A9HD (stock 210) |
| Power | 180 W (max) |
| Input voltage | AC 100–240V, 50/60Hz |
| Temperature range | 100–450 °C (212–842 °F) |
| Display | 2.8″ IPS color screen, curve mode |
| Features | 4 presets (CH1–CH4), hotend control, hibernation when replacing the core, quick temperature recovery, ESD-safe design |
| Gross weight | 2 kg |
Package Contents
- 1× Aifen A9HD Soldering Station
- 1× 210 Iron
- 1× Cable Hanger
- 1× Sugon S-210 PLP Tip
- 1× Sugon S-210 YF Tip
- 1× Sugon S-210 LMX Tip
- 1× User Manual
- 1× Power Cord
