JBC NASE-2C soldering station with NT115 iron and AN115 micro tweezers
JBC NASE-2C soldering station with NT115 iron and AN115 micro tweezers
Nano precision and work comfort – JBC NASE-2C
JBC NASE-2C is a two-channel station from the Premium Line, designed for tasks requiring Absolute precision, including SMD/SMT assembly and rework in sizes 0201/0402/01005. Two independent tools – the NT115-A nano iron and the AN115-A nano tweezers (14 W each) – guarantee a secure grip and a short path from the handle to the tip, which translates into excellent control under a microscope. Digital regulation 90–450 °C with an accuracy of ±3% and dynamic profiles allow for faithful reproduction of the reflow process, while Sleep/Hibernation modes save tips and energy. Convenience is enhanced by hot-swap tips and a built-in cleaning system.
zł7,099.99
Tax included
Product availability
Last remaining items
Delivery options
Learn more
Dobierz akcesoria

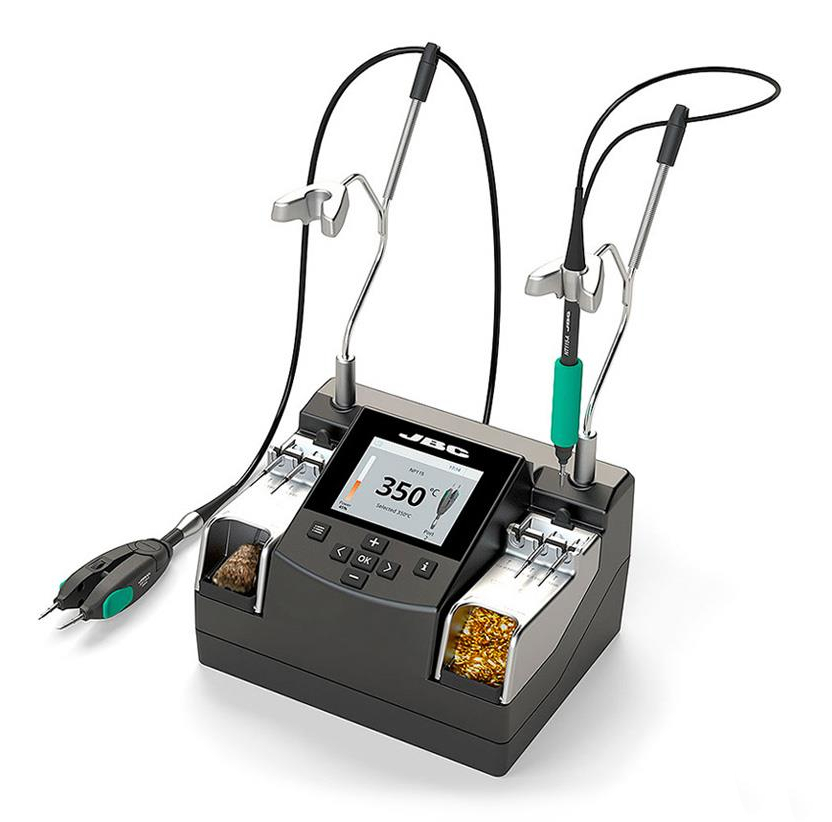

JBC NASE-2C – Premium Line Dual-Channel Nano Soldering Station
JBC NASE-2C is a high-precision, dual-tool station soldering and desoldering station from the Premium Line, designed to work on the smallest SMD/SMT components (0201, 0402, 01005). Digital temperature control 90–450 °C, power 2×14 W, and an ultra-short handle-to-tip distance guarantee maximum control under the microscope.
Important note!
Use only original JBC C115 series tips. They provide the highest precision, very good thermal conductivity, and a longer service life. Substitutes may reduce performance and increase runtime.
Key advantages of the JBC NASE-2C
- 🎯 Ultra-precise tools: Includes NT115-A (nano flask) and AN115-A (nano tweezers) – perfect for microscopy.
- 🌡️ Stable Temperature control: 90–450 °C, accuracy ±3%, fast heat recovery.
- 🚀 Dynamic temperature profiles: Programmable heating patterns – mimic the reflow process and facilitate repeatable rework.
- 🔁 Two independent channels: Parallel operation of 2 tools (14 W each) increases efficiency and ergonomics.
- 🧹 Hot-swap & cleaning: Hot tip replacement; Built-in cleaner with wiper and brush.
- 💤 Sleep & Hibernation Modes: Saves energy and extends tip life.
- 🛡️ Full ESD Safety: Complies with ANSI/ESD S20.20-2021, Rtip-ground < 2 Ω, Utip-ground < 2 mV RMS.
- 🔌 Connectivity and automation: USB-A (updates/profiles), USB-B (PC), FAE/robot connector, pedal inputs – 1 per tool.
Applications
- Repairs and rework of SMD/SMT systems – including 0201, 0402, 01005.
- Micro-assembly, prototyping, and development work in microelectronics.
- Precision soldering of sensitive components temperature.
Kit Contents
- 1× NAE control unit
- 1× NT115-A nano stock
- 1× AN115-A nano tweezers
- 1× pair of spare handles N1738
- C115 bit set: 1× C115-101, 1× C115-103, 2× C115-105, 1× C115-107, 1× C115-112, 2× C115-113
- 1× P405 pedal
- Power cord, user manual
JBC NASE-2C Technical Specifications
| Producer / line | JBC – Premium Line |
| Model / catalog number | NASE-2C / NASE-2C |
| Station Type | Nano Dual-Channel Soldering and Desoldering (Rework) Station |
| Included Tools | NT115-A (nano iron), AN115-A (nano tweezers) |
| Power per tool | 14 W (total 2×14 W) |
| Temperature range | 90 – 450 °C / 190 – 840 °F |
| Temperature accuracy | ±3% |
| Compatible Tips | C115 Series (hot-swap) |
| Temperature Profiles | Dynamic Profiles – Precise Phase Control, Reflow Process Imitation |
| Power Saving Modes | Sleep, Hibernation |
| Display / Operation | Capacitive, multi-function, intuitive menu |
| Connectors | USB-A (FW/profiles), USB-B (PC), FAE/robot (remote control/FAE), 2× pedal inputs (1 per tool), equipotential bonding |
| ESD Safety | Compliant with ANSI/ESD S20.20-2021, Rtip-to-ground < 2 Ω, Utip-to-ground < 2 mV RMS, connected to EPA |
| Power Supply | 230 V AC |
| Device Dimensions (W x L x H) | 170 × 140 × 125 mm |
| Device weight | 2.49 kg |
| Packaged dimensions (L × W × H) | 280 × 280 × 164 mm |
| Ambient operating temperature | 10 – 40 °C |
| Control Unit | NAE (included) |
| Application | Microelectronics, SMD/SMT service and rework, electronics design |
| Manufacturer (GPSR) | JBC Soldering SL, Ramón y Cajal 3, ES-08750 Molins De Rei, www.jbctools.com |
JBC NASE-2C – reliable precision and full control when working with the smallest SMD components.
