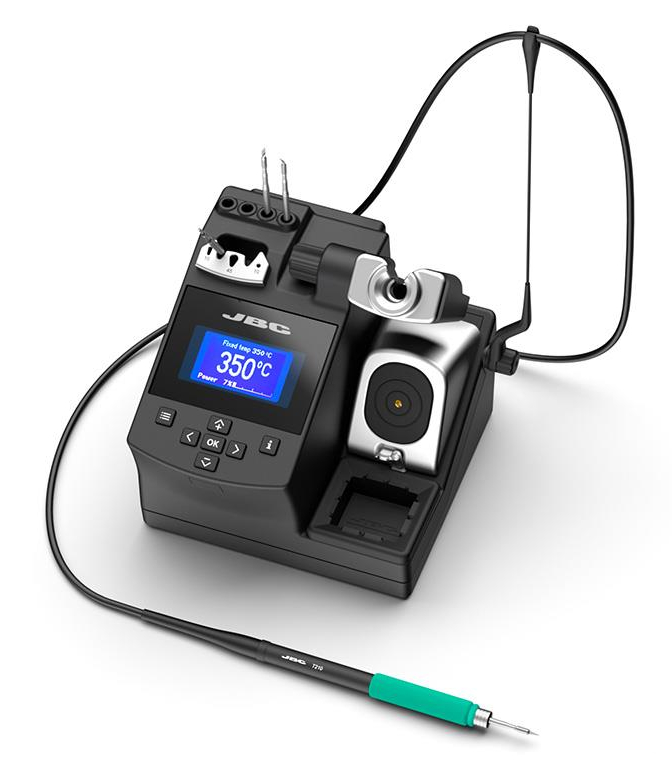

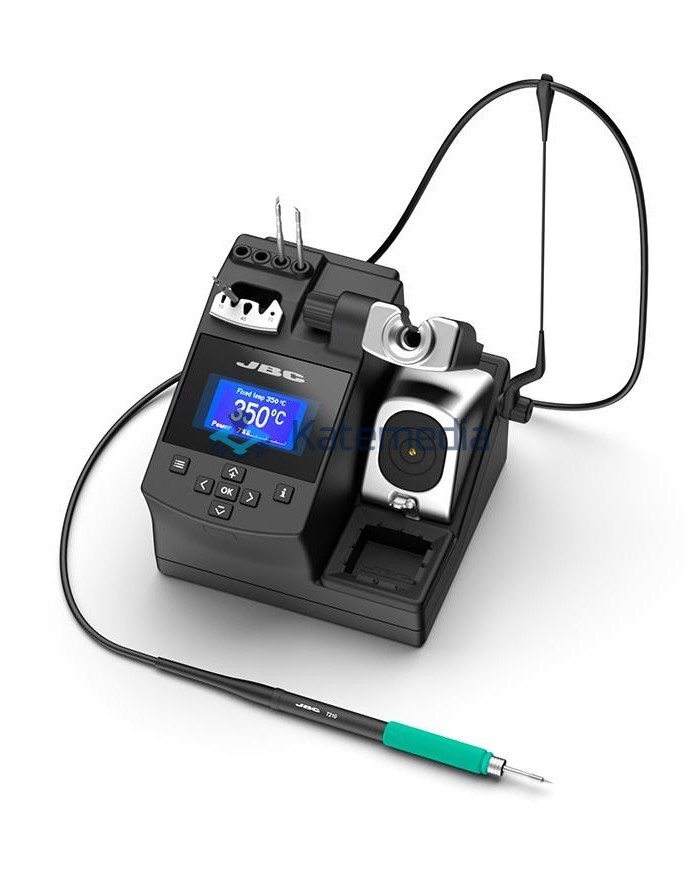

JBC CD-2SQF soldering station with T210-A iron
JBC CD-2SQF soldering station with T210-A iron
SMD precision and work comfort – JBC CD-2SQF
JBC CD-2SQF is a compact, single-channel station for precise SMD soldering with a lightweight design. T210 iron. It ensures fast heating and stable heat transfer thanks to the JBC Most Efficient Soldering System, while Sleep/Hibernation modes automatically lower the idle temperature, extending tip life and reducing energy consumption. 90–450°C range and 40 W peak power allow you to work with both small components and smaller ground pads. The built-in Cartridge Extractor facilitates safe cartridge replacement. The station is ESD safe (<2 Ω / <2 mV RMS), works with over 30 C210 series tips, and offers over 10 customizable parameters. Dimensions 150×175×145 mm.
Note: Tip not included.
zł2,399.99
Tax included
Product availability
Last remaining items
Delivery options
Learn more
Dobierz akcesoria
JBC CD-2SQF Soldering Station – SMD Precision with T210 Handle (230V)
Discover JBC CD-2SQF – a compact station for Precision soldering on densely packed PCBs and under a microscope. Thanks to the JBC Most Efficient Soldering System technology and Hibernation mode, you get excellent joint quality and extended tip life.
Important Note!
We recommend using only original JBC tips.
They provide the best thermal conductivity, repeatability, and longer service life. Using substitutes may result in decreased performance and faster wear.
Key Advantages of the JBC CD-2SQF Station
- 🎯 Precise SMD Soldering: T210 Handle Ideal for Working on Densely Packed Boards and Under a Microscope.
- 🚀 Most Efficient Soldering System: Very Fast Response thermal insulation and excellent heat transfer for perfect connections.
- 💤 Sleep Mode & Hibernation: Automatically lowers the temperature when idle, extending tip life and saving energy.
- 🔁 Cartridge Extractor: Built-in cartridge extractor allows for quick and safe tip replacement.
- 🛠️ Wide Compatibility: Over 30 C210 series tips with various geometries for tasks from micro to universal.
- ⚙️ Personalization: Menu with 10+ parameters – Customize the station to your work preferences.
JBC CD-2SQF Technical Specifications
- 🔌 Power supply voltage: 230 V
- 🌡️ Temperature range: 90–450°C
- ⚡ Peak power: 40 W
- 🛡️ Tip-to-ground resistance: < 2 Ω
- 🛡️ Tip-to-ground voltage: < 2 mV RMS
- 🌍 Ambient operating temperature: 10–50°C
- 📐 Dimensions (W×D×H): 150 × 175 × 145 mm
- 🖊️ Holder included: T210-A (precision)
- 🧩 Compatible tips: C210 Series (30+ geometries)
- 🧽 Tip maintenance: Cleaning system (dry and wet) + built-in Cartridge Extractor
- ⚙️ Settings: >10 parameters in the menu (work personalization stations)
Package Contents
- • 1× JBC CD soldering station (model CD-2SQF, 230 V)
- • 1× T210-A handle (precision)
- • Tip not included – selected separately (C210 series)
Ideal Applications
• Soldering SMD and micro-SMD components • working under a microscope • precise corrections and rework on dense PCBs • precision electronics service
FAQ:
Is a tip included? No, you need to purchase a C210 series cartridge appropriate for the application.
Which tip should I choose to start with? A universal solution is, for example, a small chisel ~0.8–1.2 mm and a fine cone for 0402/0603.
JBC CD-2SQF – the choice for precise SMD work, where speed, stability, and tool durability are key.
