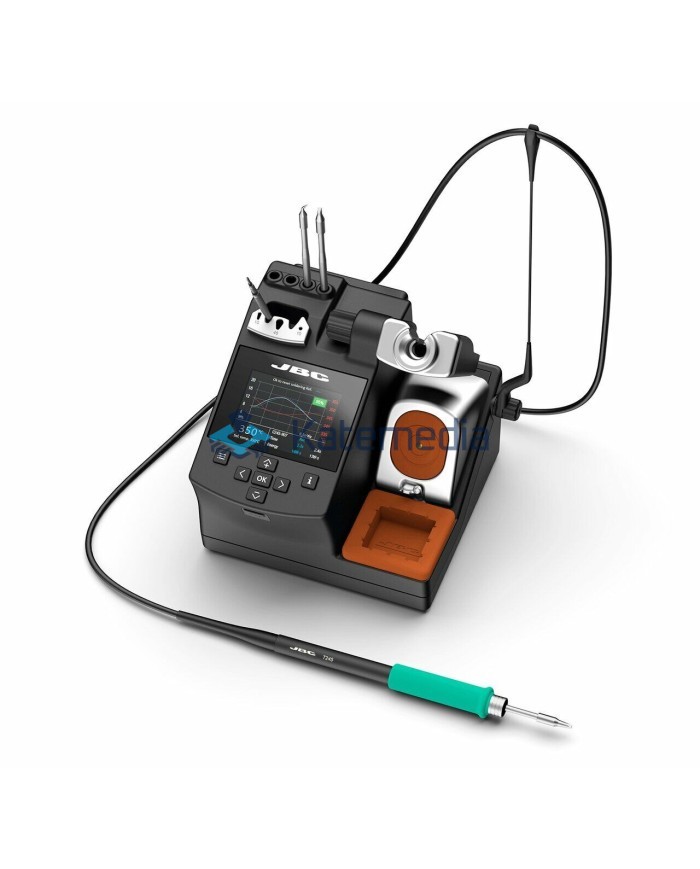

JBC CDE-2BQA soldering station with T245-A iron
JBC CDE-2BQA soldering station with T245-A iron
Precise Process Control – JBC CDE-2BQA
JBC CDE-2BQA is a compact station from the Excellence line, designed for general service and production applications. The built-in Soldering Assistant first measures the energy delivered to the joint, compares each point with a stored reference, and guides the operator to the optimal temperature and insert selection. The universal T245 handle works with C245 inserts, making the station ideal for SMD and THT soldering, including ground pads. The 90–450°C range, very fast heating, and intelligent Sleep/Hibernation modes increase repeatability and tip life. The ESD-safe design and USB-B connectivity ensure full process control, while the small size facilitates work station organization and quality standardization within the team.
zł2,899.99
Tax included
Product availability
Last remaining items
Delivery options
Learn more
Dobierz akcesoria
JBC CDE-2BQA Soldering Station – Soldering Assistant, T245, 230 V
Explore JBC CDE-2BQA – a compact 230 V station with a built-in Soldering Assistant, which evaluates the soldering process in real time and helps to select the temperature and insert. Includes T245 universal handle (C245 tips – sold separately).
⚠️ Important Note
Use only original JBC tips. They provide the highest precision, thermal conductivity, and longer service life. Substitutes may reduce performance and extend runtime.
Key Advantages of the JBC CDE-2BQA
- 🧠 Soldering Assistant: measures the energy delivered to the joint and compares each solder joint with a saved reference solder joint – you can select the temperature and insert faster.
- 🚀 Very fast heating: exclusive JBC heating system for high efficiency and process stability.
- 😴 Sleep & Hibernation Modes: Automatic sleep and hibernation reduce tip wear and save energy.
- 🛠️ Universal T245 Handpiece: Ideal for SMD and higher power applications; wide range of C245 cartridges.
- 🖥️ PC connectivity: USB-B port for software updates and computer communication.
- 🔒 ESD-Safe & Process control: antistatic design, full control over operating parameters.
How does the Soldering Assistant work?
- Select the cartridge type (C245) and perform the reference soldering.
- Save it in the station's memory as a reference point.
- Each subsequent soldering is compared with the reference, and the station displays clear information about compliance.
JBC CDE-2BQA Technical Specifications
- Power Supply: 230V AC
- Power: 150 W
- Temperature range: 90–450°C (190–840°F)
- Handle included: T245 (tips sold separately)
- Compatible cartridges: C245 series
- Communication ports: USB-B (PC / firmware update)
- Dimensions (L×W×H): 170 × 176 × 145 mm
- Weight: 2.94 kg
- ESD safety: Antistatic design; tip-to-ground resistance < 2 Ω, ground voltaget-earth < 2 mV RMS
- Product type: soldering station (compact)
Kit Contents
- 1× JBC CDE soldering station
- 1× T245 handle
- 1× instructions Instructions
- Note: The tip is not included in the kit – please select the appropriate C245 refill.
Applications
Ideal for general electronics work, assembly, and service: SMD (0603/0402 and larger), THT, connectors with increased heat demand, ground pads, and work requiring a quick thermal response.
Frequently Asked Questions (FAQ)
Is a tip included?
No. Choose the right cartridge from the C245 series for your tasks.
Can the station be connected to a computer?
Yes, via the USB-B port (updates/PC communication).
Is this the 230V version?
Yes, the CDE-2BQA model is designed for a 230V power supply.
JBC CDE-2BQA is a professional station for demanding users – choose repeatability, quality, and work comfort.
