Quick TV2 200W Desoldering Station
Quick TV2 200W Desoldering Station
QUICK TV2 – Intelligent 200W Desoldering Station
QUICK TV2 is a professional desoldering station designed for quick and effective soldering of through-hole components (THT) and clearing metalized holes in PCBs. Thanks to its 200W power and stable temperature control, it works reliably even on larger solder joints.
The efficient vacuum pump provides powerful suction at 650 mmHg, significantly reducing desoldering time and reducing the risk of damaging solder pads. The easy-to-read LCD display with intuitive operation facilitates quick temperature setting (range 300–500°C), while features such as sleep mode, calibration, and settings lock improve work comfort in the service center.
zł1,599.99
Tax included
Product availability
Product available
Delivery options
Learn more
QUICK TV2 – intelligent desoldering station 200W (tin suction)
QUICK TV2 is a professional desoldering station with powerful solder suction. Stable temperature control, an efficient vacuum pump, and a clear LCD screen make desoldering through-hole components (THT) and cleaning metalized holes quick, repeatable, and safe for PCBs.

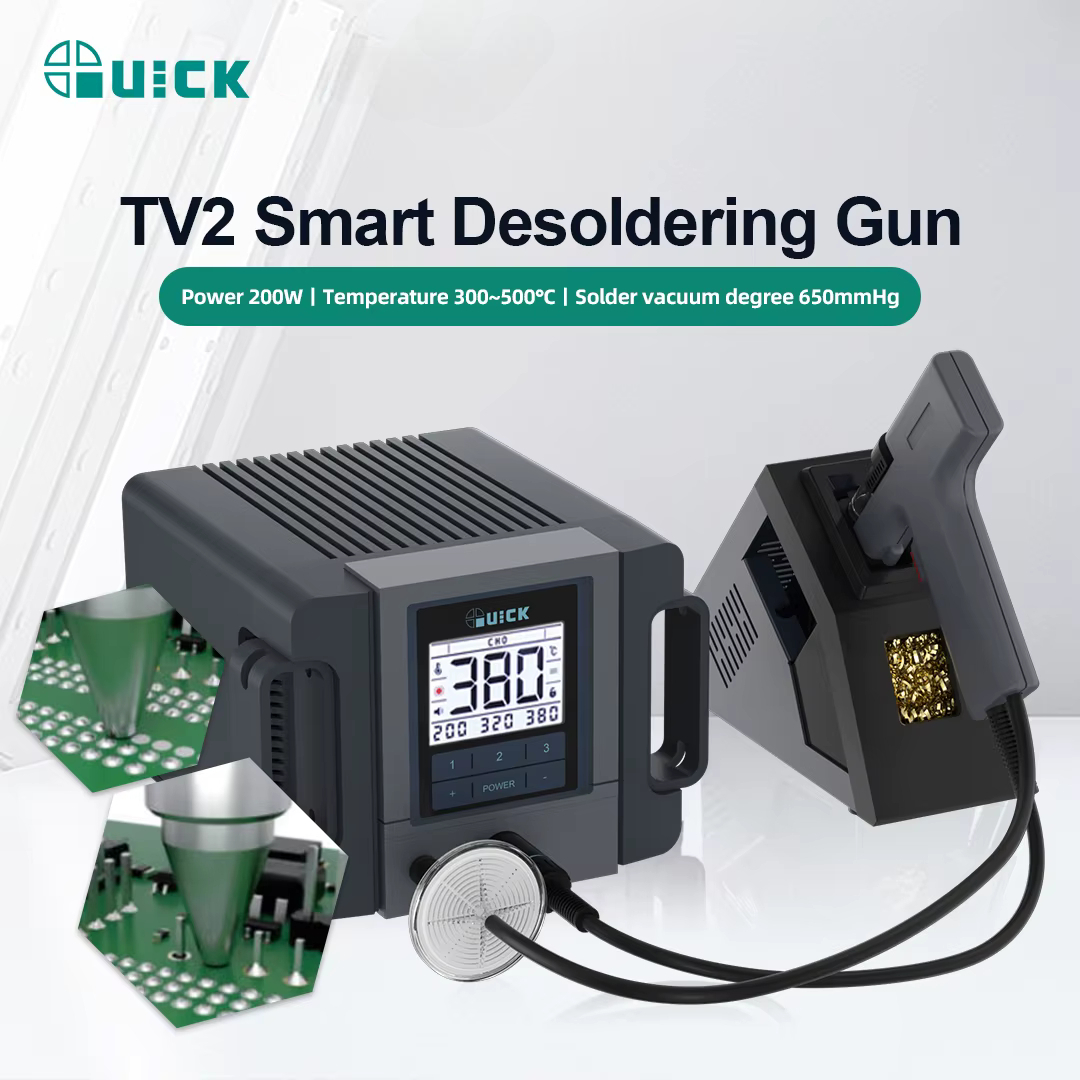

Power 200 W • Range 300–500°C • Vacuum 650 mmHg
The QUICK TV2 station is designed for intensive service work – It is ideal for desoldering connectors, through-hole components and for unclogging solder holes. Thanks to the efficient membrane pump and stable heating, solder is effectively extracted, and the risk of damaging solder pads is significantly reduced.
Key Advantages of QUICK TV2
-
200 W power and fast heating
High power allows you to work efficiently even on larger solder points and joints.
-
Powerful solder extraction – 650 mmHg
The powerful vacuum pump makes desoldering and unclogging holes easier without constantly reworking with a braid.
-
Easy-to-read LCD screen + 3 temperature presets
The intuitive display shows the operating status and temperature. Three channels/presets make switching settings faster while working.
-
Sleep mode, calibration, and setting lock
Sleep mode helps reduce nozzle/tip wear, calibration allows you to adjust temperature readings, and a lock protects settings from accidental changes.
-
Easy cleaning of the collector and suction path
The station's design makes it easy to empty the collector and perform maintenance, which is crucial in devices with suction. tin.

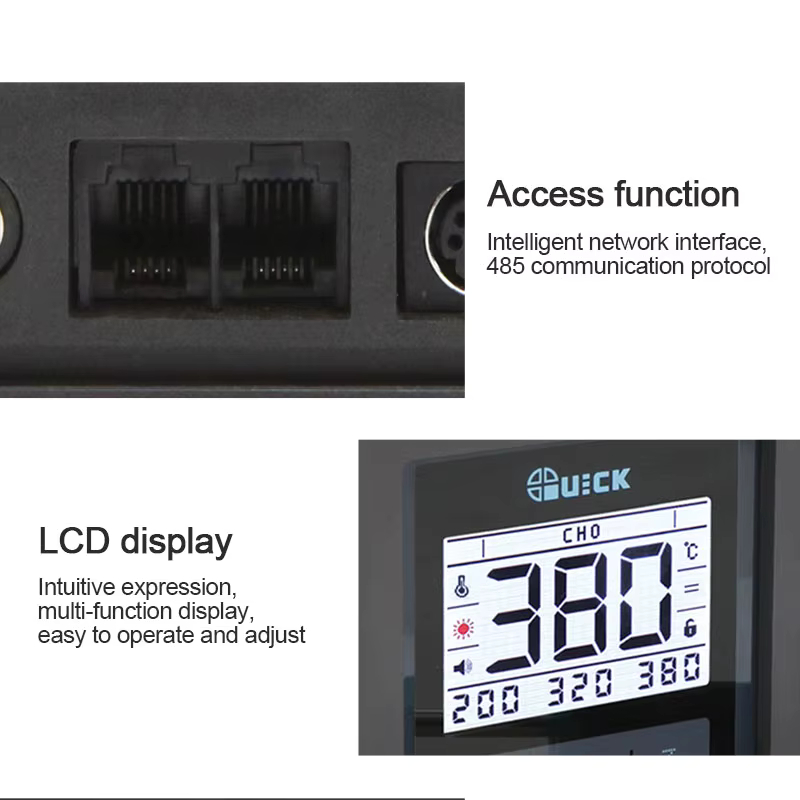

Communication function (RS-485) and a clear LCD display – quick operation and convenient adjustment.
QUICK TV2 has an RS-485 communication interface, useful in workplace and service applications. On the screen you can see, among other things, Temperature status, unit (°C/°F), heating indication, and active presets.

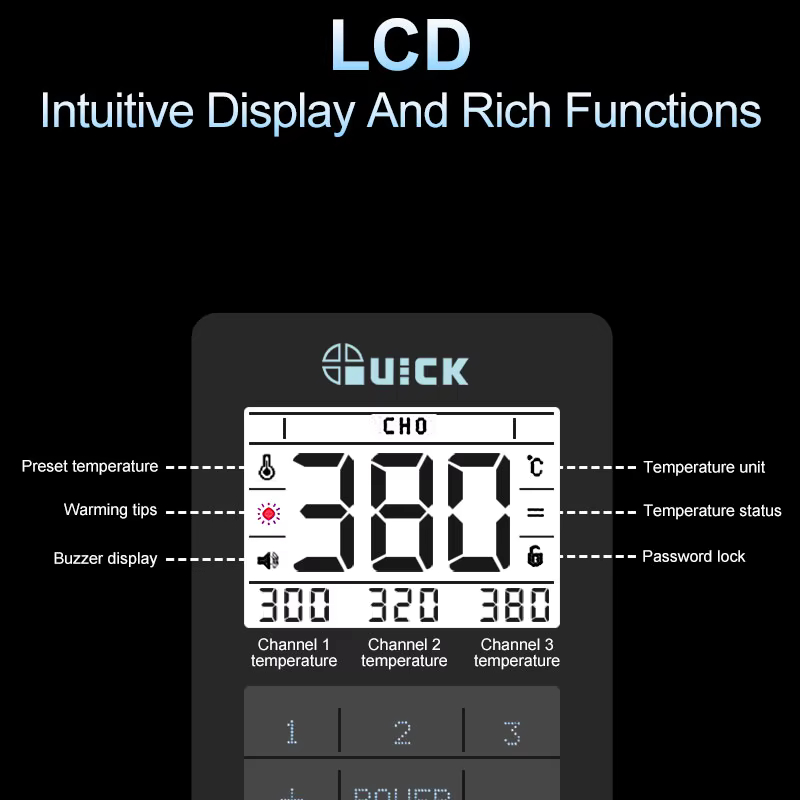

LCD: saved presets, heating status, unit and temperature status, and setting lock.
Technical specifications
| Model: | QUICK TV2 |
| Device type: | Desoldering Station (Solder Suction) |
| Power: | 200 W |
| Temperature range: | 300°C – 500°C |
| Vacuum: | 650 mmHg |
| Pump: | Membrane (power supply 12 V / 2 A) |
| Communication interface: | RS-485 |
| Dimensions: | 199 × 189 × 134 mm |
| Weight: | approx. 3.2 kg |
| ESD parameters (point grounding): | Tip resistance < 2Ω, tip potential < 2 mV |
Nozzles (compatible)
The station works with AN01 series nozzles (different diameters for different types of holes and leads):
- AN01-08 (0.8 mm)
- AN01-10 (1.0 mm)
- AN01-13 (1.3 mm)
- AN01-16 (1.6 mm)
Set Contents
- 1× QUICK TV2 Desoldering Station
- 1× Desoldering Iron
- 1× Iron Stand
- 1× Copper Cleaner
- 1× Heat-resistant Pad
- 1× Grounding Wire
- 4× Nozzle (one on the desoldering iron)
- Ceramic Filters (Set)
- 1× Nozzle Cleaner
- 1× Filter Tube
- 1× Power Cord
- 1× User Manual
- 1× Warranty Card
Service Tip: For maximum suction power, regularly clean the collector, replace the filters, and unclog the nozzle with a cleaner. This is the easiest way to keep your station working "like new."
