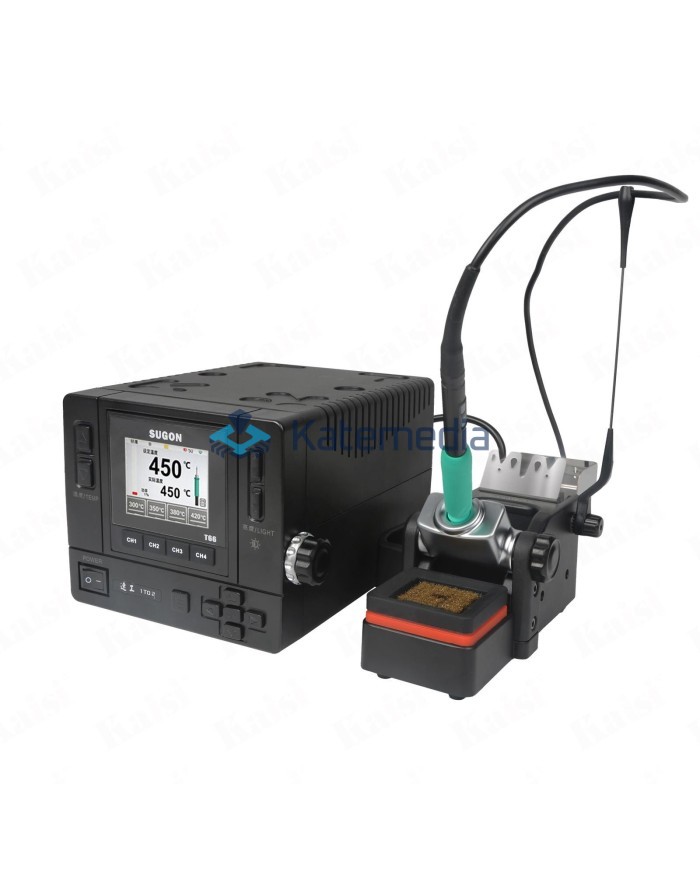

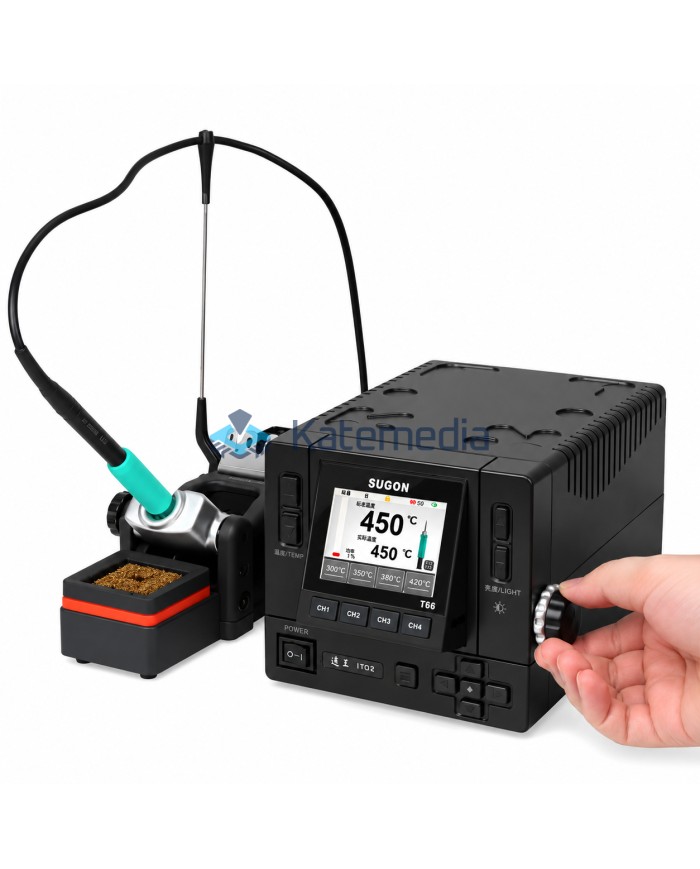

Sugon T66 – Single-Handle Soldering Station

Sugon T66 is a high-performance soldering station designed for electronics repair, GSM service centers and precise work performed under a microscope.

The offered set includes a B210 handle and 3 tips: C115, C210 and C245, allowing you to choose the right tip for different types of soldering work.

Fast Heat-Up

The T66 is designed to reach operating temperature very quickly. According to the manufacturer, it heats from 25°C to 350°C in approximately 0.8 seconds.

The fast response of the heating system also helps maintain a stable temperature when the tip comes into contact with components that absorb heat quickly.

100–450°C Temperature Range

The station allows temperature adjustment within the range of:

100–450°C

This makes it possible to match the working temperature to the solder type, component size and specific repair task.

Supports C115, C210, C245 and C470 Systems

Sugon T66 supports several popular soldering tip systems:

• C115 – for very precise work and the smallest components,

• C210 – for electronics, SMD components and motherboard repairs,

• C245 – for larger solder joints and more demanding work,

• C470 – for applications requiring very high thermal performance.

The set includes one C115, one C210 and one C245 tip.

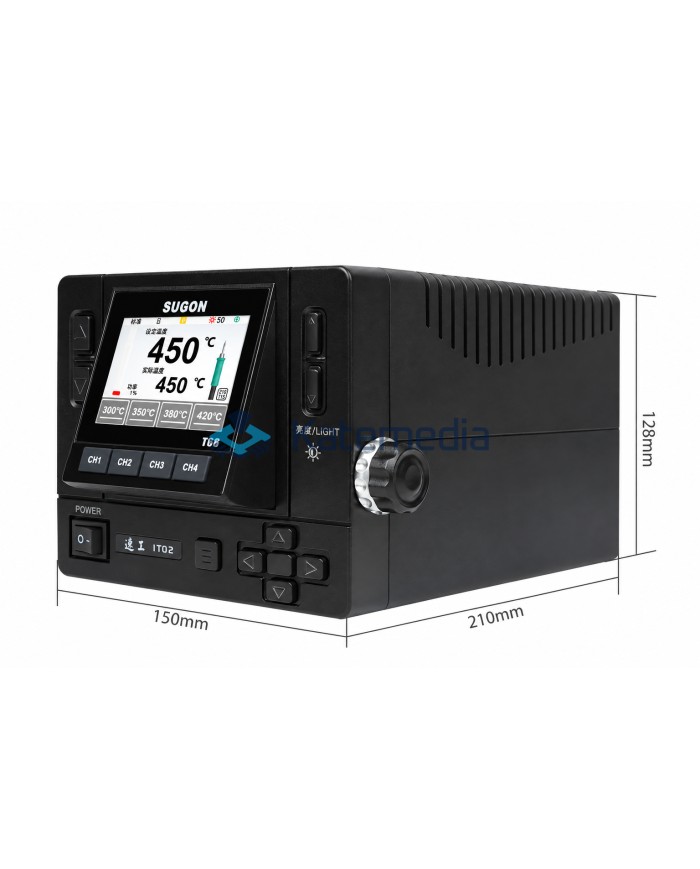

Color Display Rotatable by 180°

The station is equipped with a color display that can be rotated by 180°.

This allows the interface orientation to be adjusted to the position of the station on the workbench and provides convenient access to operating parameters.

Sleep Function

When the soldering handle is placed in the stand, the station can enter sleep mode and reduce the tip temperature.

This helps limit unnecessary heating during breaks and can reduce tip wear.

High Thermal Performance

The station's power output depends on the tip system being used.

For the C210 system, the manufacturer specifies 38 W continuous power and up to 90 W peak power.

When used with the C470 system, the station can deliver up to 230 W of continuous power.

The T66 also uses a toroidal transformer, providing stable power for the heating system.

Applications

Sugon T66 is suitable for:

• smartphone and tablet motherboard repairs,

• SMD soldering,

• microscope-assisted work,

• connector and socket repairs,

• wire soldering,

• consumer electronics servicing,

• jobs requiring higher thermal performance.

Key Features

• single-handle soldering station,

• B210 handle included,

• 3 tips: C115 + C210 + C245,

• supports C115 / C210 / C245 / C470 systems,

• 100–450°C temperature range,

• heats to 350°C in approximately 0.8 s,

• color display,

• display rotatable by 180°,

• sleep function,

• toroidal transformer,

• up to 230 W with the C470 system.

Specification

Brand: Sugon
Model: T66
Version: Single-handle
Handle included: B210
Tips included: C115 + C210 + C245
Supported systems: C115 / C210 / C245 / C470
Temperature range: 100–450°C
Heat-up time: approx. 0.8 s from 25°C to 350°C
C210: 38 W continuous / up to 90 W peak
C470: up to 230 W continuous power
Display: Color, rotatable by 180°
Number of workstations: 1

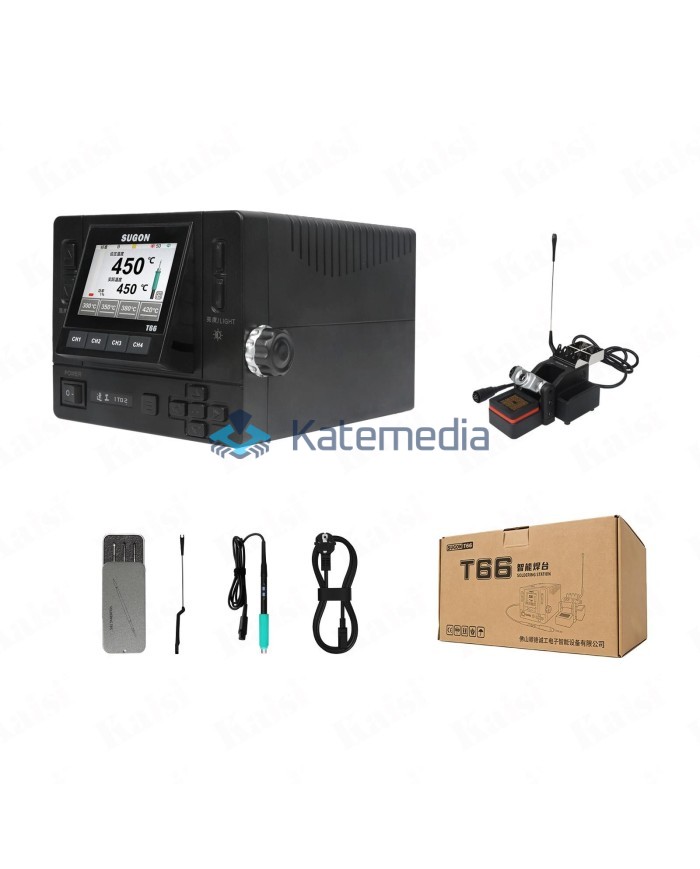

Package Contents

• Sugon T66 soldering station,

• 1 × B210 handle,

• 1 × C115 tip,

• 1 × C210 tip,

• 1 × C245 tip,

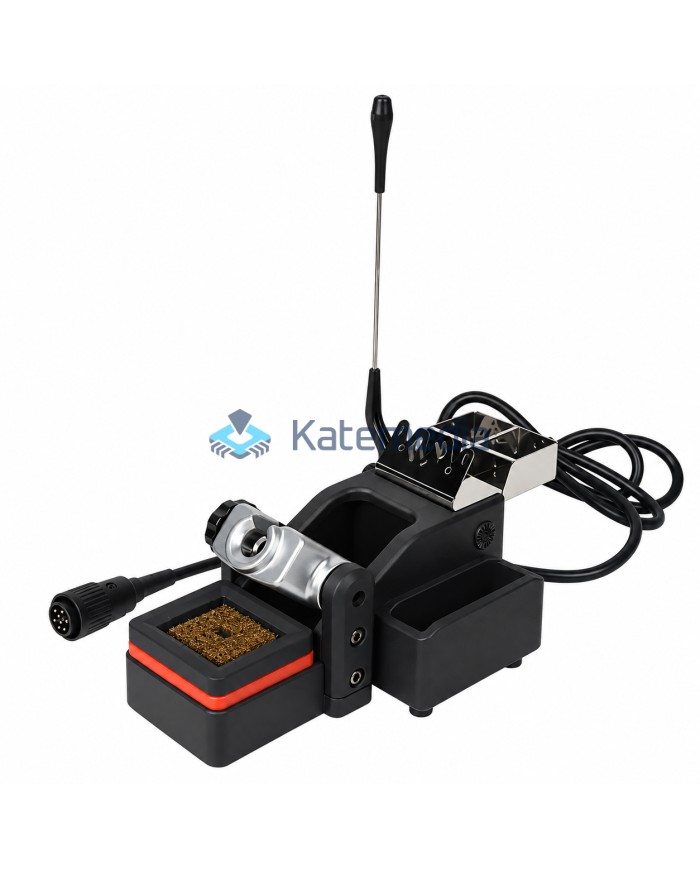

• soldering iron stand,

• power cable.
