Features and functions:

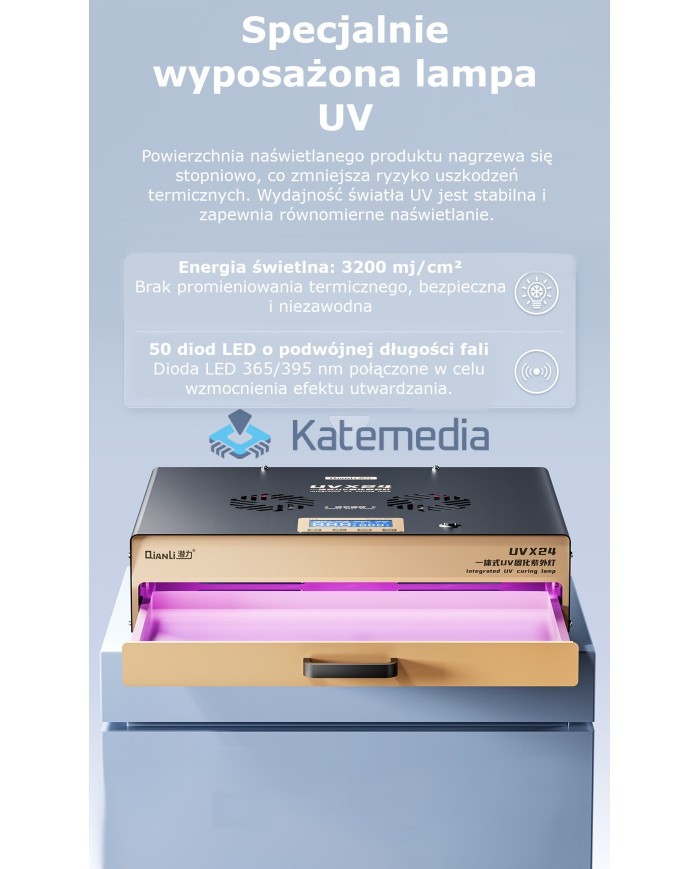

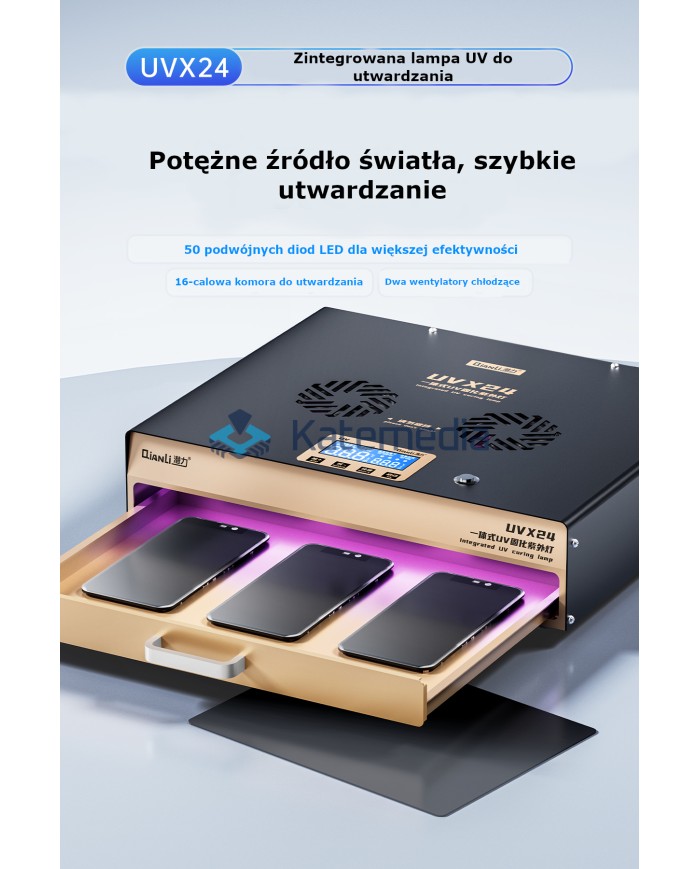

• 50 dual-wavelength UV LEDs (365/395 nm) - fast and even curing
• Light output: 3200 mJ/cm² - no heat radiation, safe work

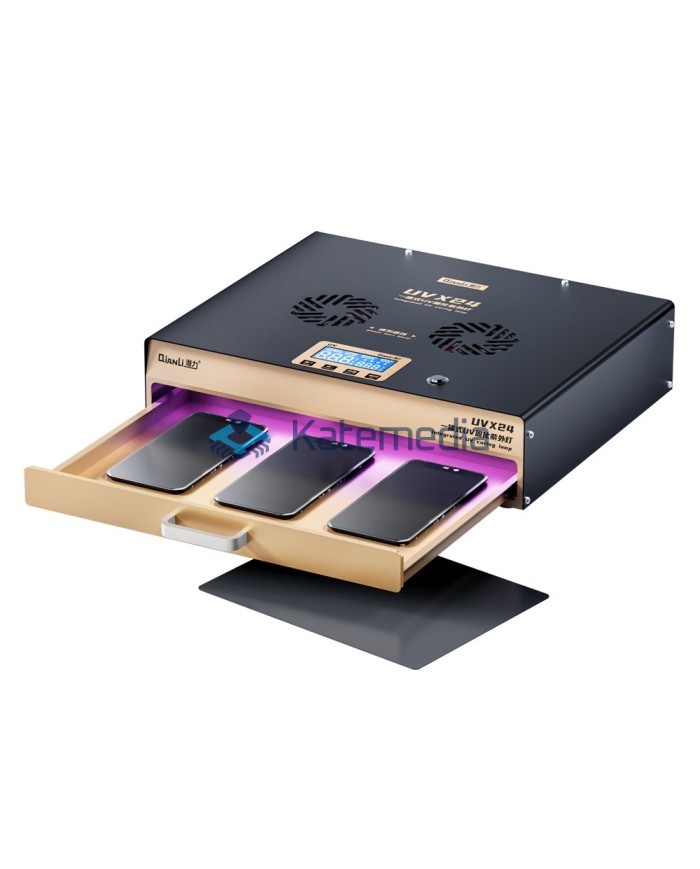

• 16-inch curing chamber - holds several screens at once
• Designed for flat and curved screens.

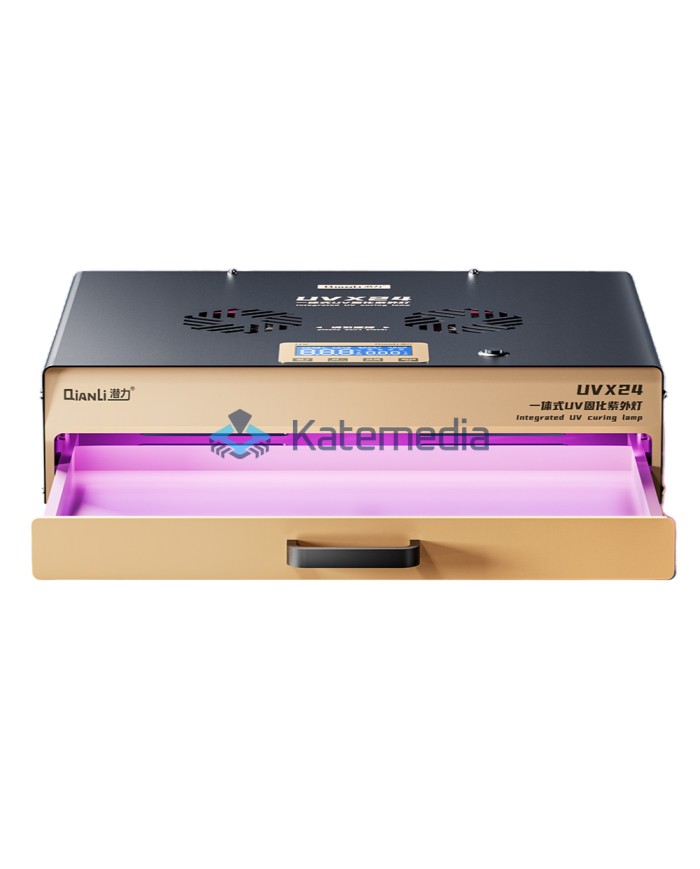

• Drawer design - space-saving and convenient to use

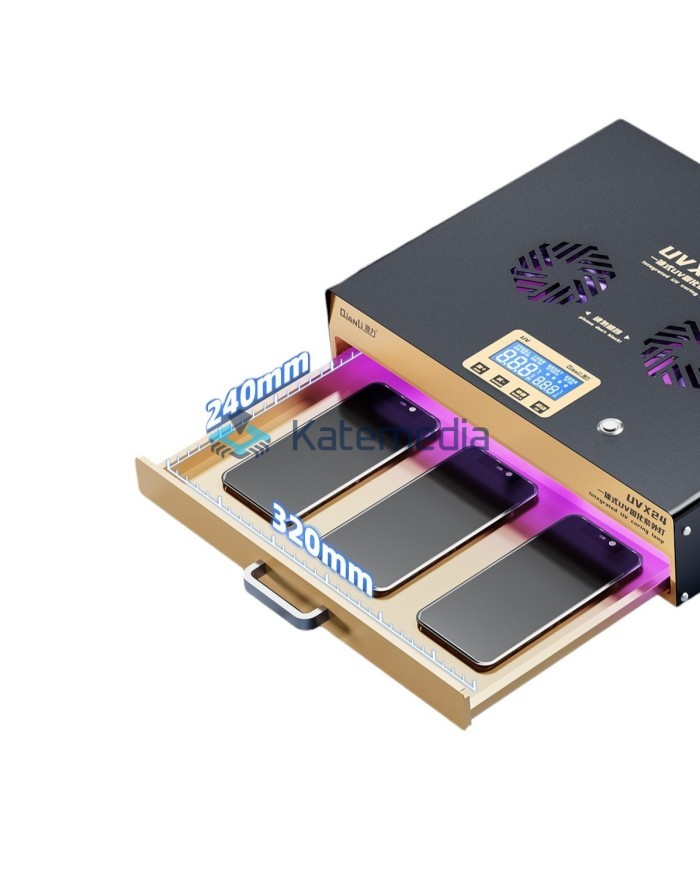

• Drawer dimensions: 320 × 240 mm
• 2 fans - effective cooling and extended service life
• Aluminum housing, non-slip feet
• Precise digital panel with time control (including quick selection: 100/200/300/400 s)

Application:

• OCA and UV glue curing
• Screen glass lamination
• LCD and AMOLED screen repair
• Removes wrinkles and bubbles in OCA glue

Specification:

• Model: QianLi UVX24
• LED: 50 pcs. (365/395 nm)
• Light power: 3200 mJ/cm²
• Weight: 4.3 kg (with packaging: 5.15 kg)

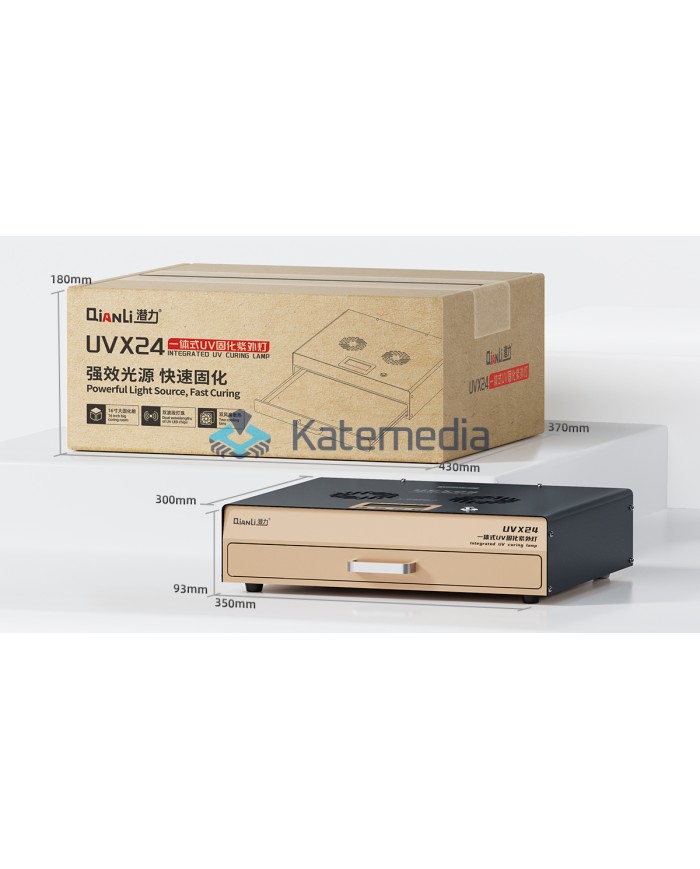

• Dimensions: 350 × 300 × 93 mm
• Chamber: 320 × 240 × 14.5 mm
• Drawer dimensions: 320 × 240 mm

Set contents:

• 1 × QianLi UVX24 UV lamp
• 1 × Power Cable
