Key advantages:

• 22 UV LEDs with two wavelengths – 365nm and 395nm – mixed diode arrangement guarantees effective and even curing even on curved screens.
• 60W power, compact design (98 x 180 x 70mm), weight approx. 1.1kg.
• Curing area: 180 x 95mm – sufficient for most phone screens.
• Large cooling fan – reduces overheating and ensures even curing without denting the OCA.
• Large, easy-to-read LCD display and shortcut button – setting the curing time becomes intuitive and quick.
• Hands-free mode – allows for convenient use without the need for a holding the device in your hand

Technical parameters:

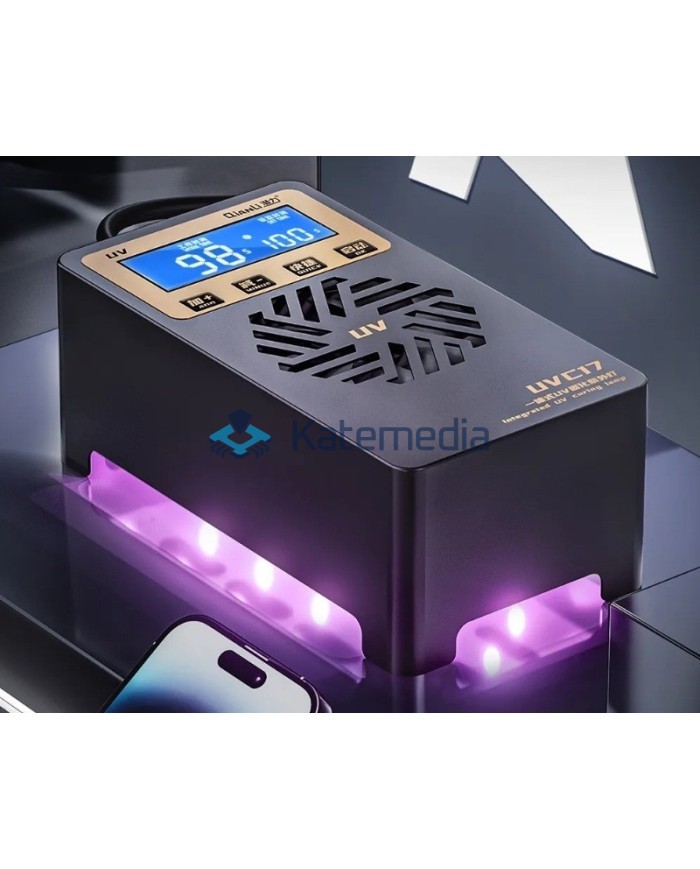

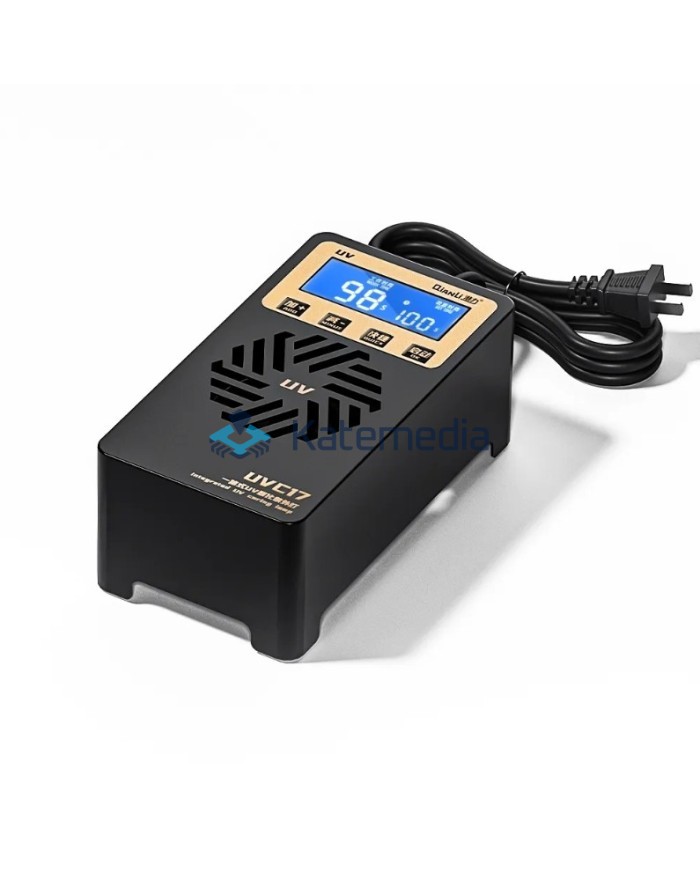

• Model: QianLi UVC17 Integrated UV Curing Lamp
• LEDs: 22 pieces, mixed wavelengths 365nm + 395nm
• Power: 60W
• Curing area: ~180 × 95mm
• Device dimensions: approx. 98 × 180 × 70mm
• Gross weight: approx. 1.10kg

Application:

• Open screen lamination using the OCA method (sticky glue for screens) touchscreens)
• Curing UV adhesives, optical adhesives (OCA), UV resins, and inks

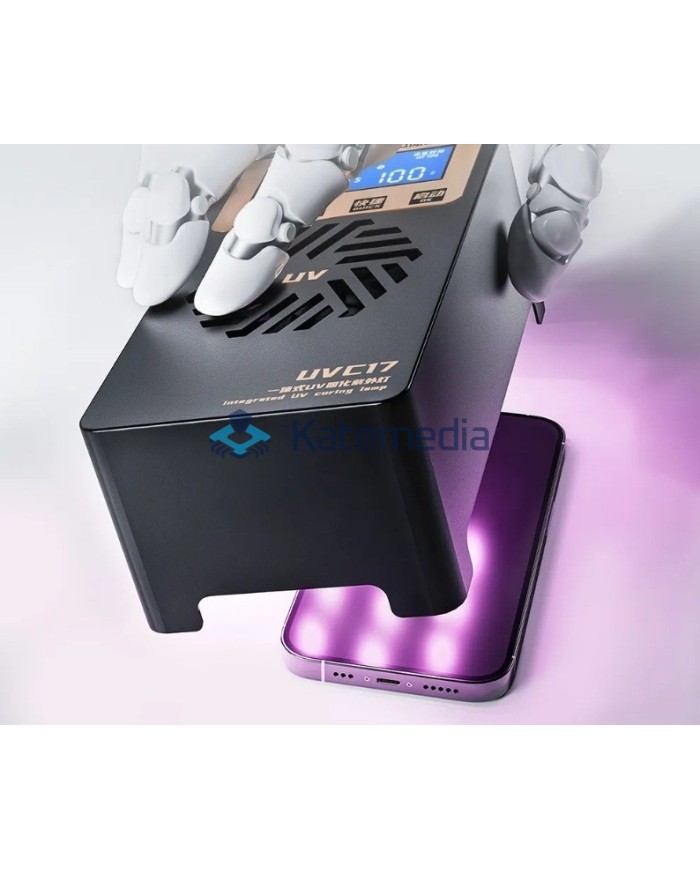

• Smartphone screen repairs – flat and curved
• Diagnostics and use of fluorescent substances (e.g., in quality control)
