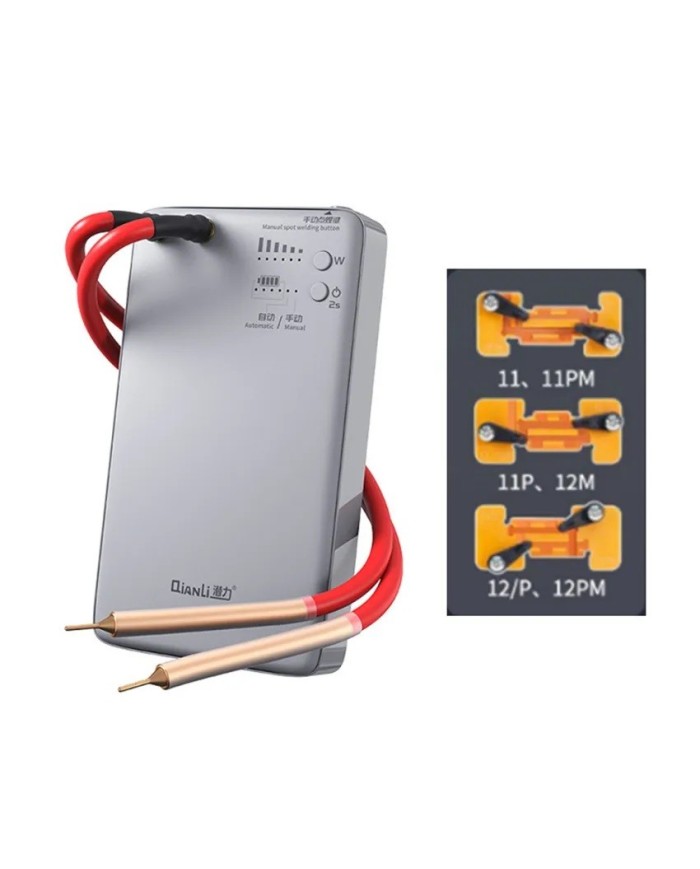

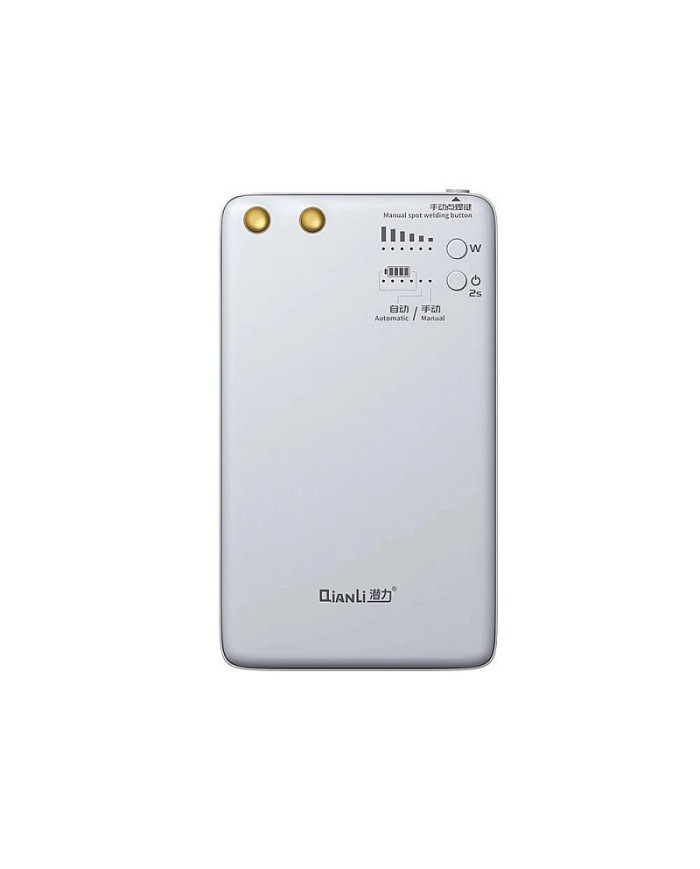

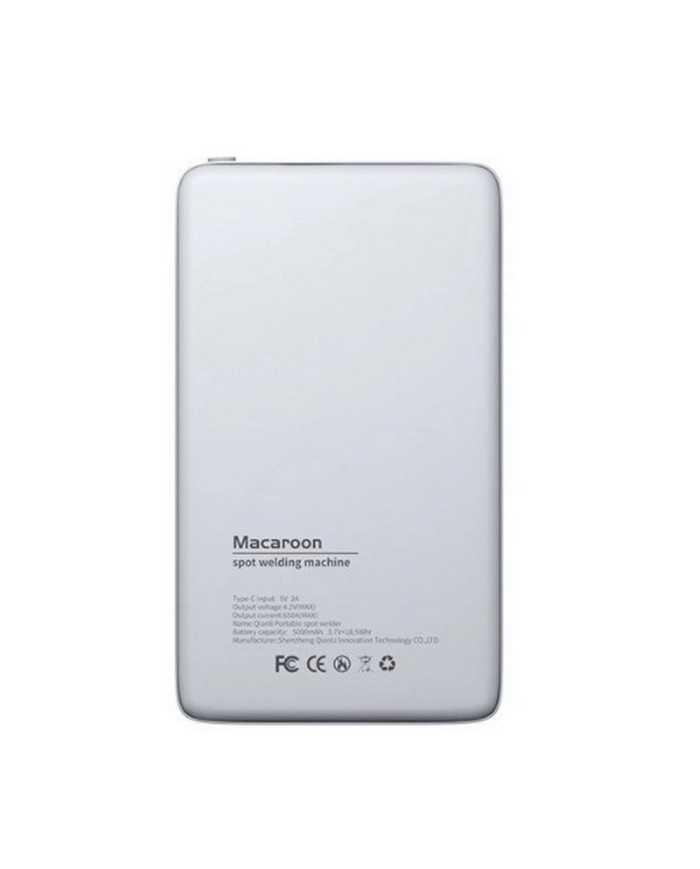

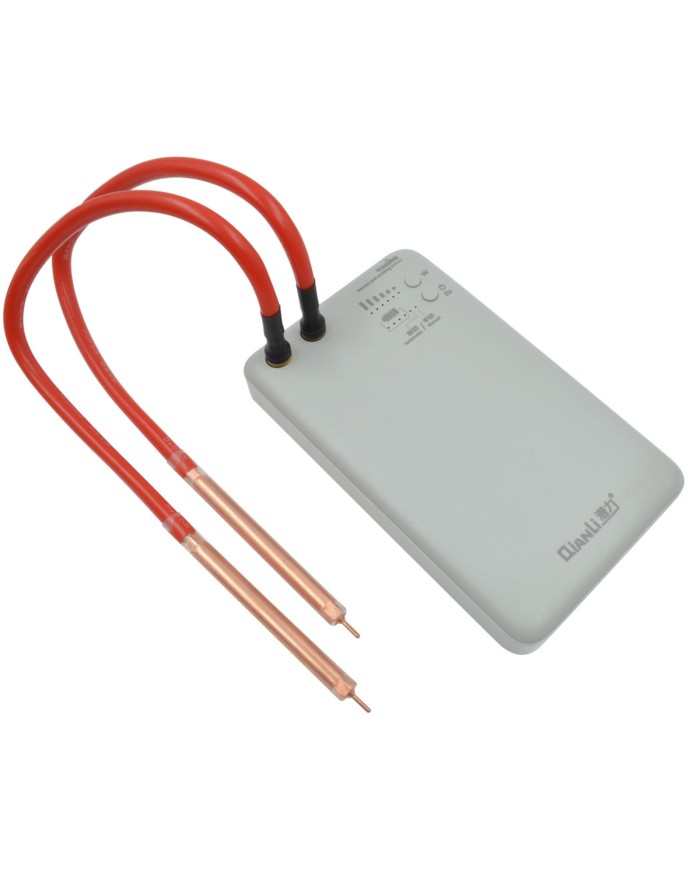

Professional device for welding electronics when replacing batteries. In Apple iPhone XS models and up, you need to transfer the electronics from the old battery to the new one to avoid the message about the non-genuine battery and have access to the health. This device comes with help, which allows you to go through the process of welding BMS electronics in an easy and quick way.

The welder has 6 power modes, we can switch on a scale from 1 to 6 with a button. The device can operate in automatic and manual mode. The temperature sensor used ensures safety during operation, when the temperature exceeds 60°C, the power supply will be turned off.

Automatic mode - the device detects itself when both ends touch metal and heats.

Manual mode - to weld a given element, press the button on device housing.

Special holders are included to hold the battery during operation , fit iPhone 11 - 12PM

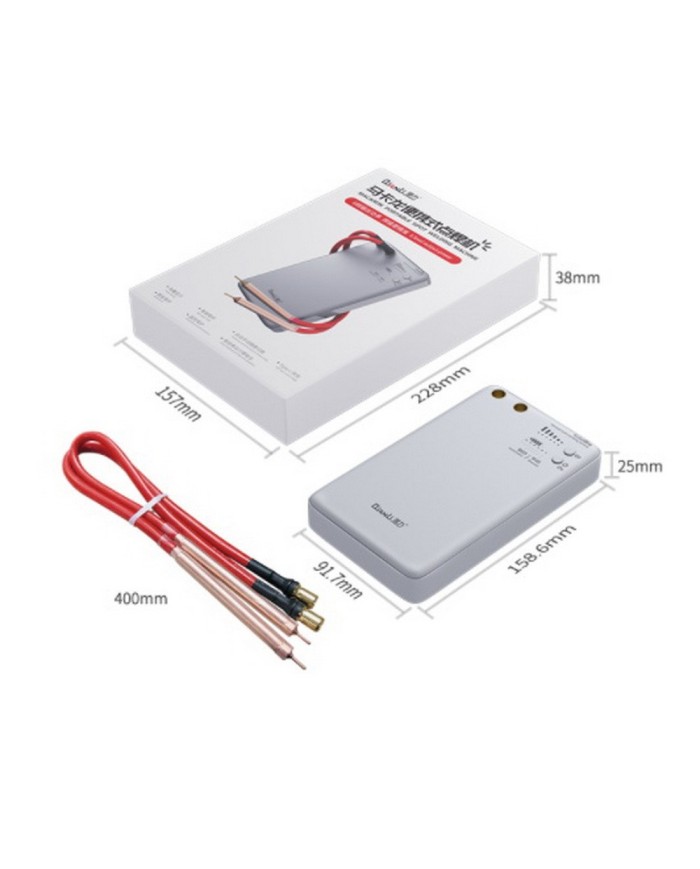

Set content:

• Welder
• Welding cables
• iPhone 11 - 12PM battery holders
• File
• Nickel sheet

Technical data:

• Output voltage: 4.2V (MAX)
• Output current: 650A (MAX)
• USB output: 5V/2.4A(MAX)
• Charging port type C: 5V/2A
• Recommended nickel thickness 0.1 - 0.12mm
