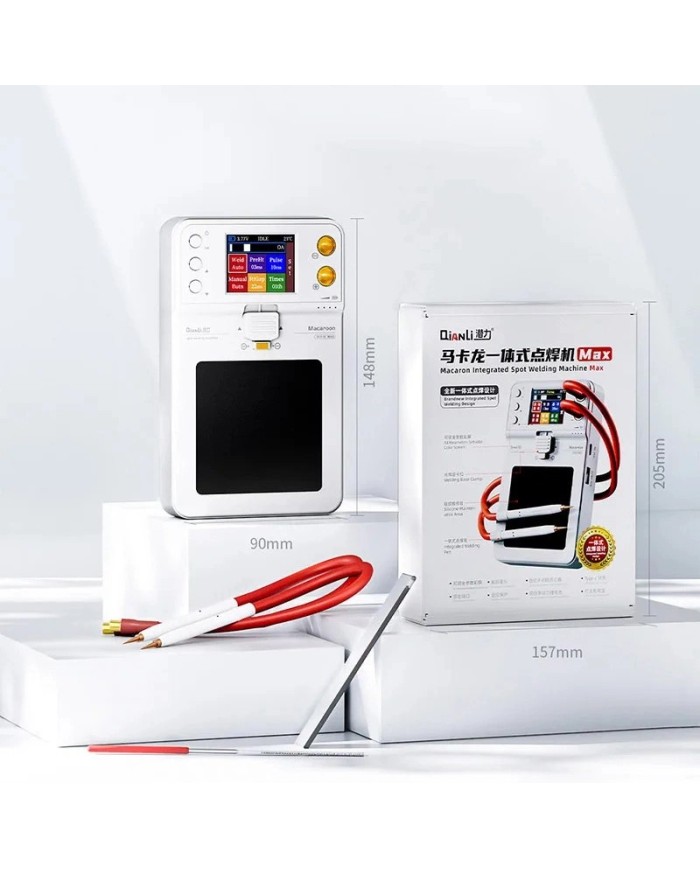

• The latest version of the Macaron Max welder - a new approach to welding, minimalist design, more stable operation
• The device has been equipped with a special welding base clamp, it does not require the use of a separate external holder (welding bases)
• A completely new, integrated design with a color screen with the possibility of setting all parameters
• Integrated spot welding / Double pulse spot welding (Multi-segment pulse provides strong spot welding)
• Improved welding handles: Even better conductivity thanks to the use of red copper tip and protected by thermal insulation protection
• Base plated on one side with red copper, avoids burning of BMS board components
• Exposed side facilitates side welding
• Heat-resistant silicone, provides better stability
• Automatic burn-out: This function is a newly added function that can be used by service technicians who have in-depth knowledge of the "burn-in" principle. Standard MAX output: 3V 3A. Please use it with caution and bear any consequences caused by improper use

Double-pulse spot welding First outputs a preheating pulse, and then outputs the main spot welding pulse after a period of time, which is stable and reliable

1. Heating pulse: Cleans the oxide layer on the surface to reduce spark spatter.

2. Main pulse: Effectively improves welding reliability and ensures strong and stable welds

Color screen with the ability to set all parameters The color screen allows real-time visualization of spot welding parameters: preheat, pulse, HtGap and times (continuous spot welding). The buttons allow you to adjust the spot welding parameters as needed.

Function panel introduction: Spot welder power, real-time voltage, temperature, dual pulse wave simulation display, welding current display, spot welder information: preheat, pulse, HtGap and times (continuous spot welding).

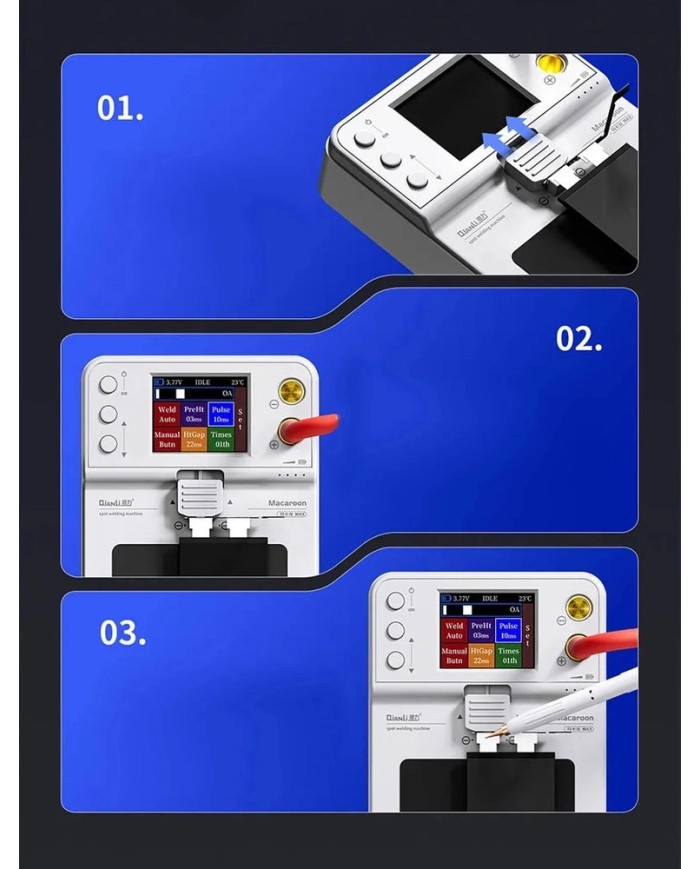

Preparation:

1. Place the cell on the silicone area of ​​the spot welder, adjust the clamp of the welding base to tighten the welded part of the cell.

2. Adjust Spot Welding Parameters By selecting with the "up" and "down" buttons and confirming with the "OK" button, the preheat, pulse, HtGap and times (continuous spot welding) parameters can be adjusted to the appropriate spot welding power.

3. Start spot welding: Press the tip of the welding gun to the welding spot appropriately, make sure the tip of the gun has good contact with the nickel sheet, without any looseness or poor contact. End welding after current output.

Specification:

Output Current: 650A (MAX)

Type battery: lithium polymer

Output voltage: 4.2V (MAX)
