AiXun T405 – Professional 100W Soldering Station for T115 Tips

AiXun T405 is a precise and technologically advanced soldering station designed for professional GSM services, electronics and repair technicians. Thanks to the support of the T115 series of tips with a built-in heater and a peak power of 100W, the device ensures lightning-fast heating and incredible temperature stability, even in the most demanding jobs.

⚡ Extreme power and instant heating

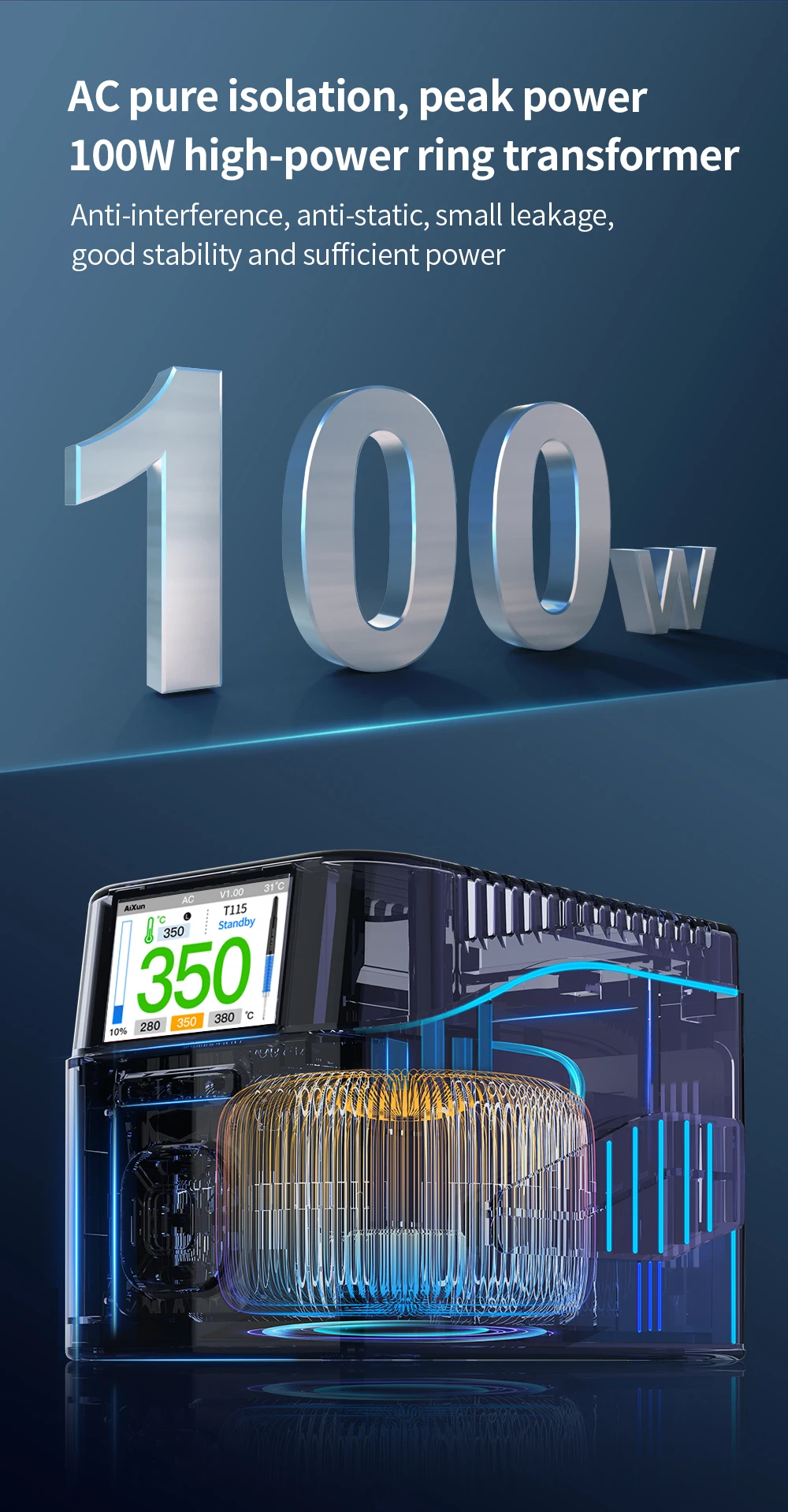

The station reaches a temperature of 350°C in just 2 seconds, making it one of the fastest devices in its class. The high-current toroidal transformer guarantees constant power and full power even in continuous operation. This makes the AiXun T405 perfect not only for delicate SMD/BGA systems, but also for soldering thick wires, ground fields, and even thin-walled copper tubes.

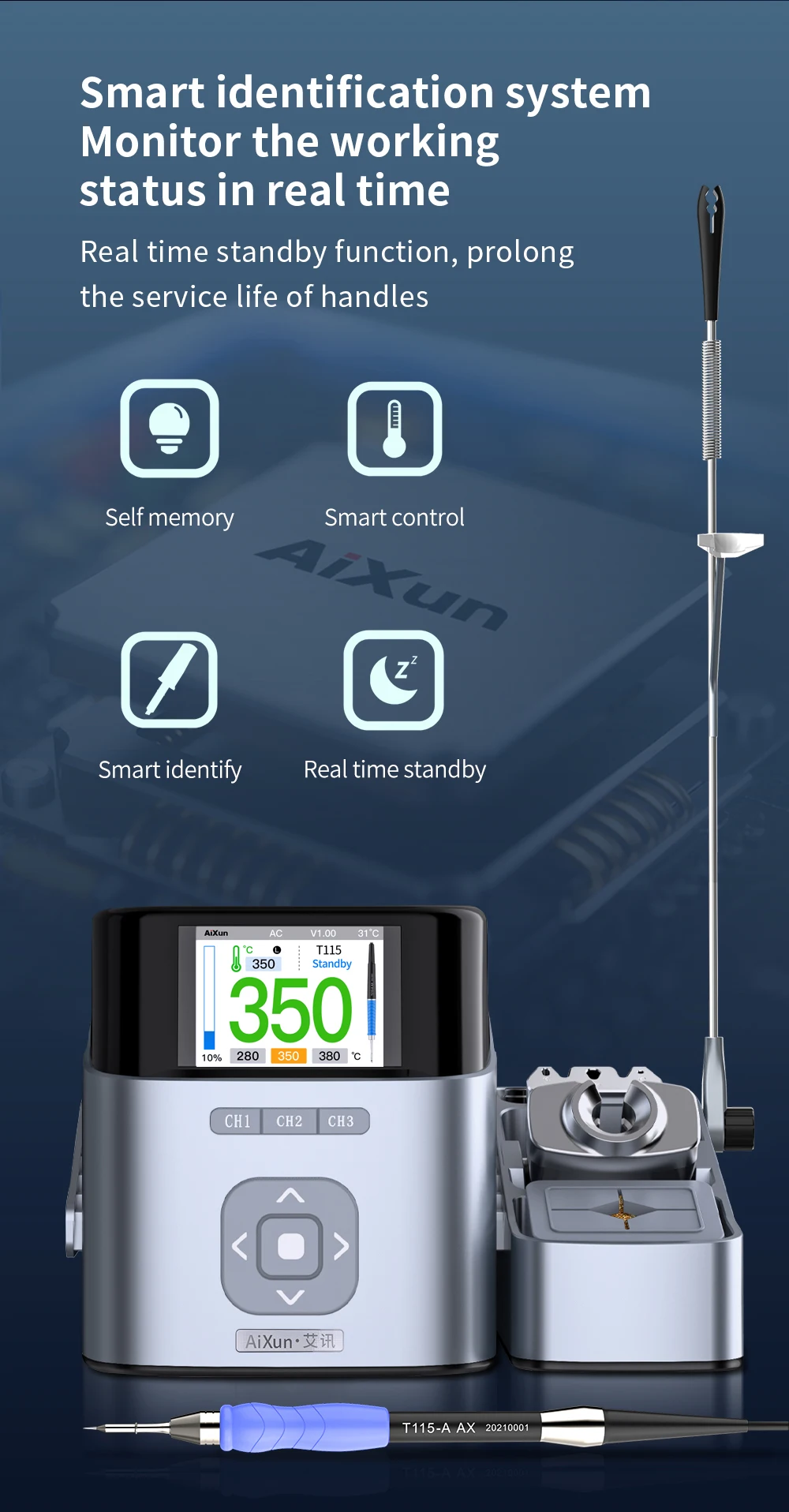

🎛️ Intelligent operating modes

• Operation mode - after lifting the iron from the holder, the tip automatically heats up to the programmed temperature.
• Sleep mode - when the soldering iron is put away, the temperature drops to a safe value, protecting the tip from wear.
• Hibernation mode - the station reduces the temperature after a longer period of inactivity (time and level can be set).
• Sleep mode - the screen automatically turns off, saving energy and extending the service life display.

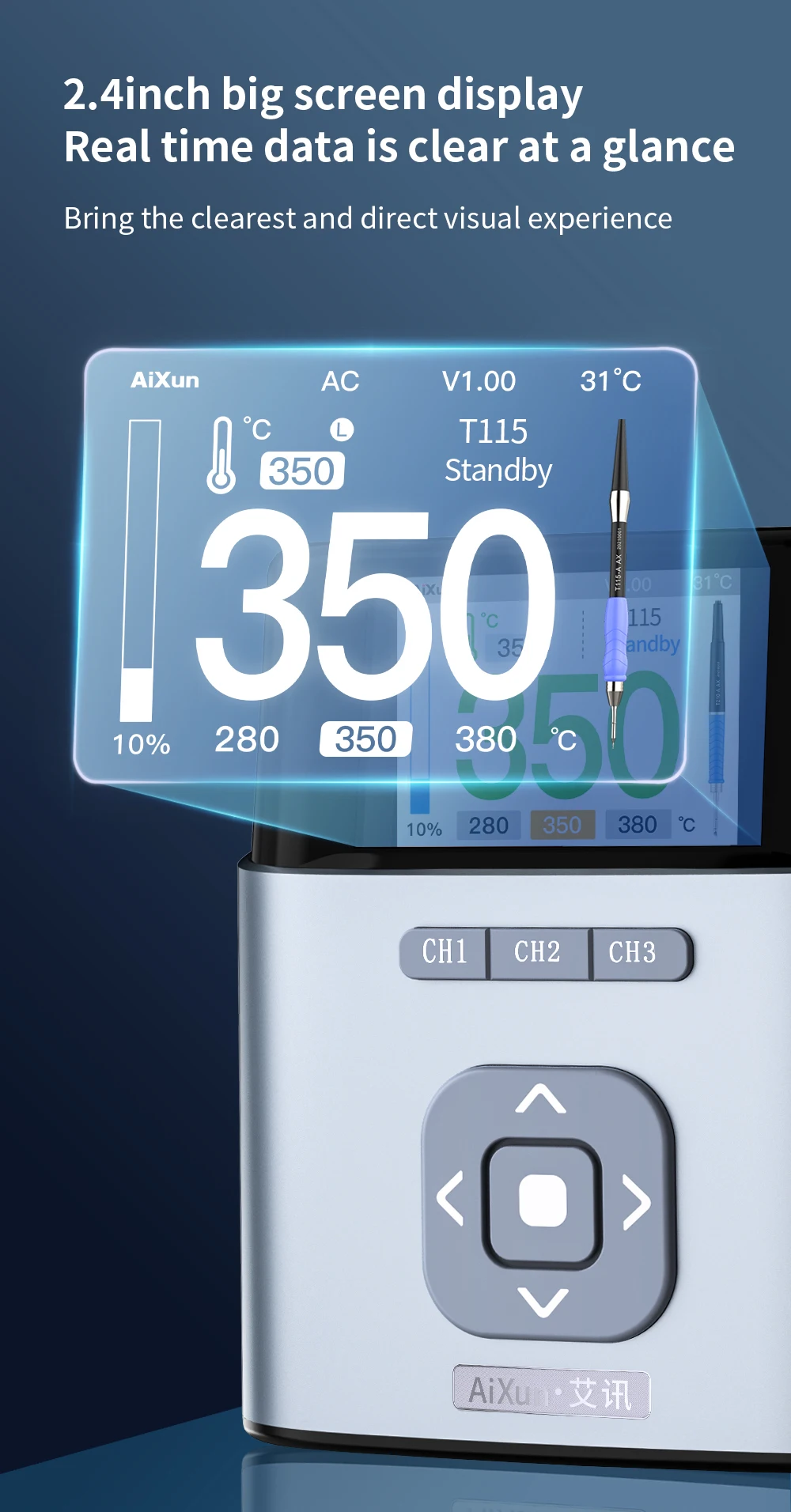

🖥️ Intuitive, color display

A large color LCD screen provides a full view of the station's operating status - actual and set temperature, operating mode and currently consumed power. Thanks to the simple and logical interface, the station is easy to use for both beginners and advanced users.

• Ability to save 3 temperature settings and quickly switch between them
• Display of tip temperature and system temperature
• Information about the power supply status and current mode

🔁 Replacing the tip "with hot”

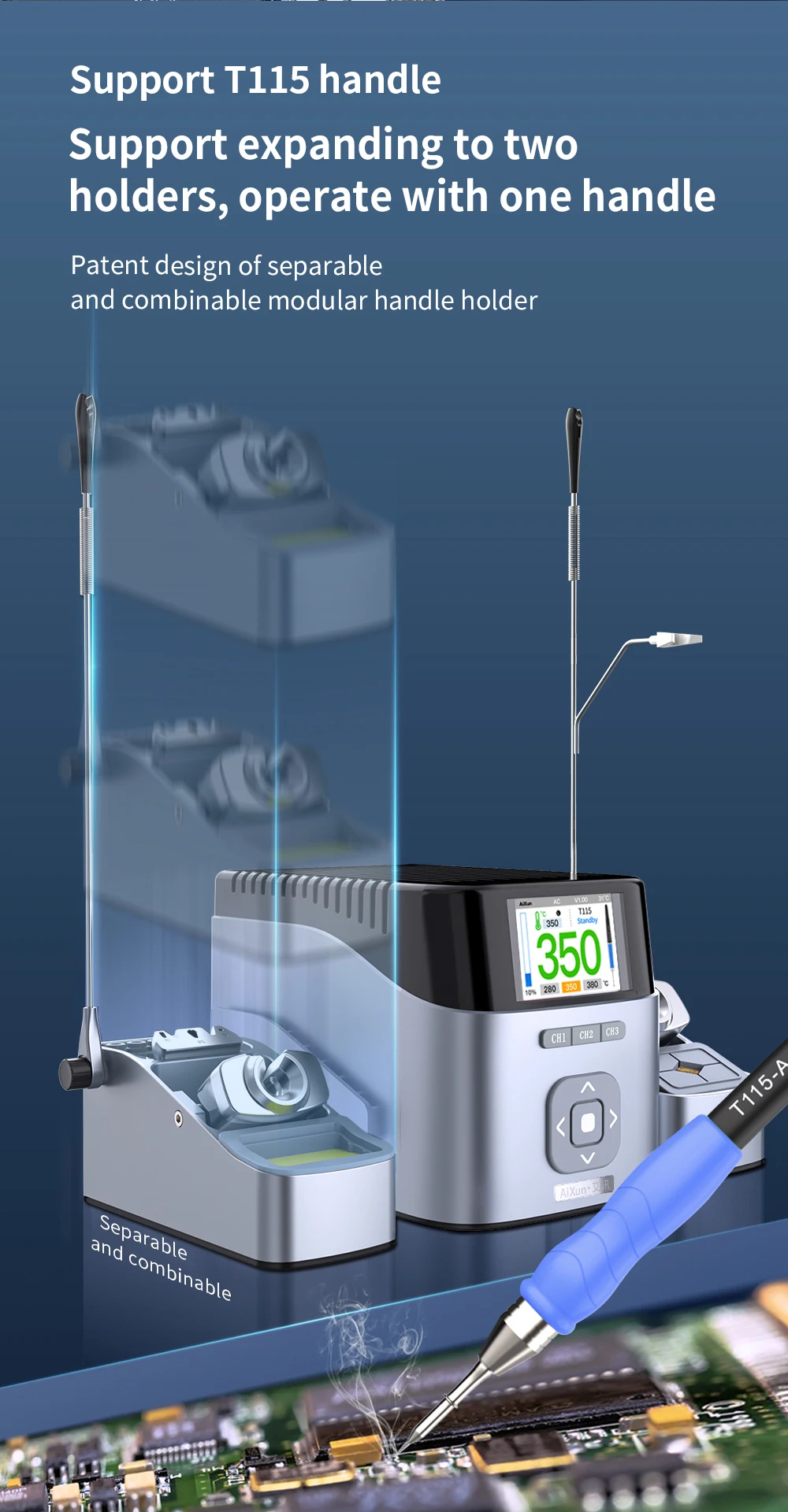

The tip can be removed and replaced without having to turn off the station and wait for it to cool down. The handle with a cleaner and a replacement hole allows you to safely remove the heated tip and then press in a new one. The push-in mechanism secures the tip and allows you to continue working immediately.

🛡️ Professional protection

• Surge protection
• Overcurrent protection
• Overheat protection
• Short circuit protection
• ESD protection - full electrostatic protection compliant with industrial standards
• Resistance to ground <2Ω - crucial for safe soldering of integrated circuits

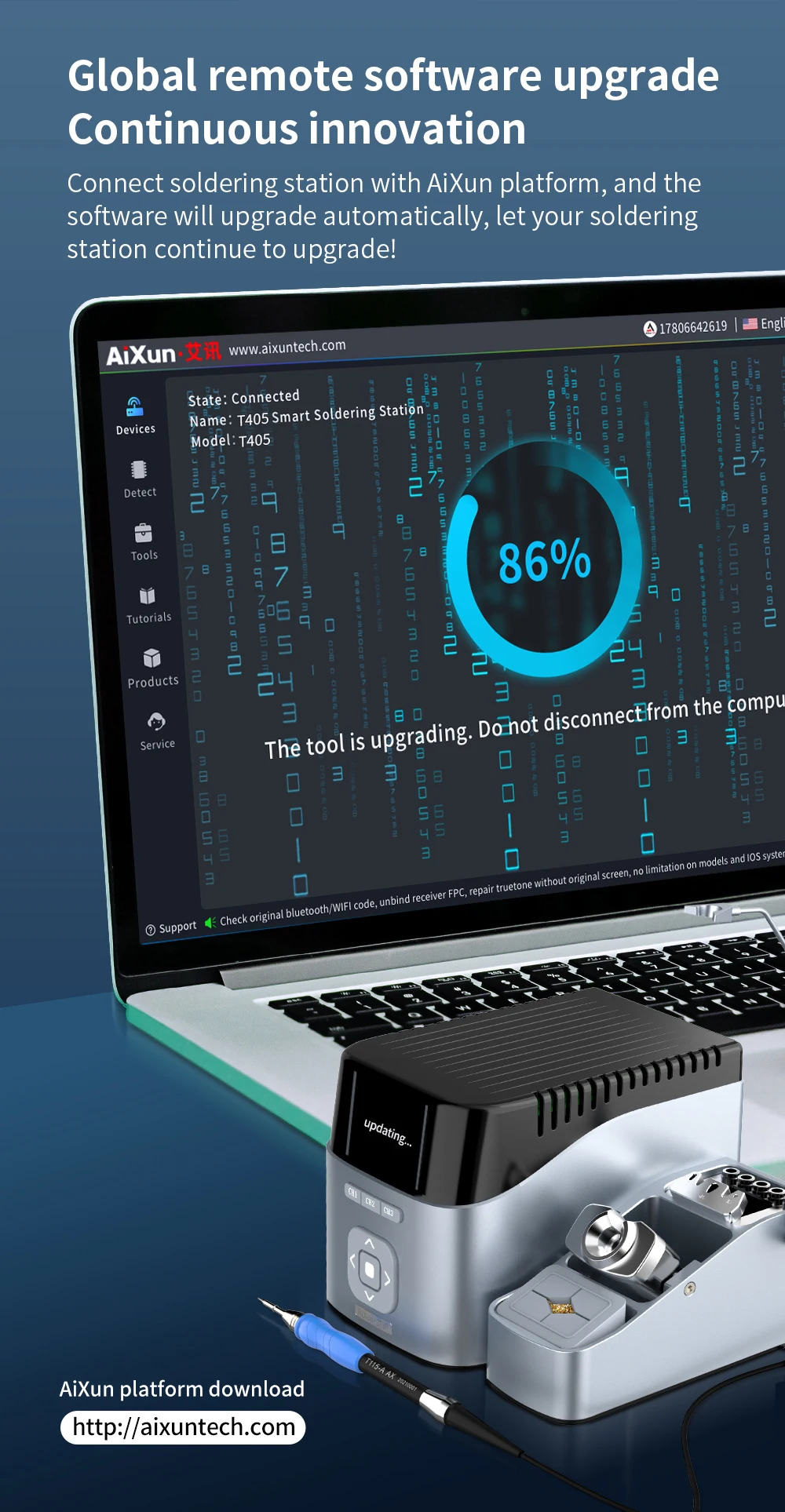

🔌 Modern software

AiXun provides regular updates for T405 station. The update is instant and allows you to expand the device's capabilities with new functions, better temperature control algorithms or visual changes to the interface.

📦 Kit Contents

•  T405 100 Soldering StationW
•  Handle with tip cleaner
•  T115 stock
•  C115-K030 tip

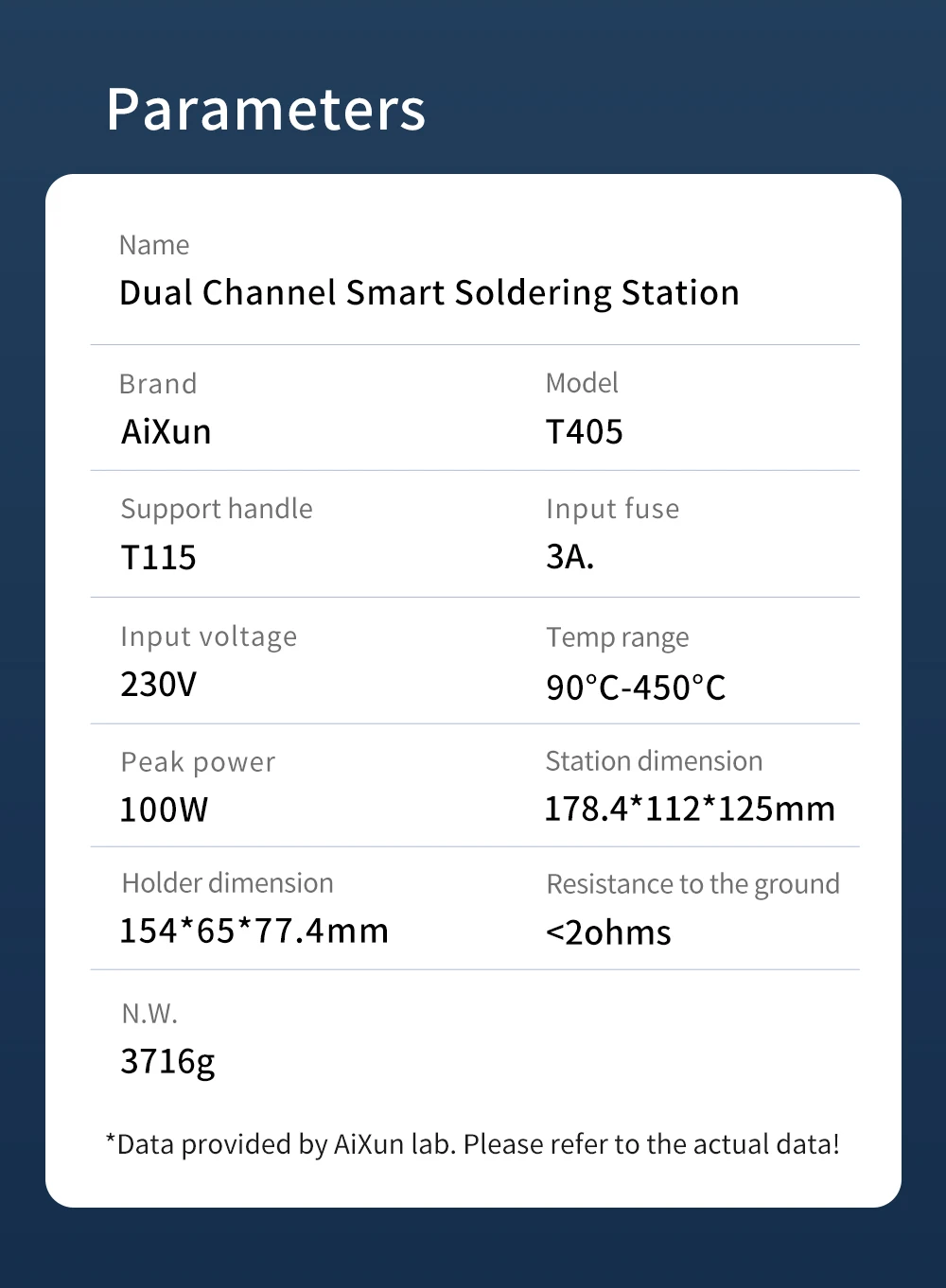

📐 Technical specification
