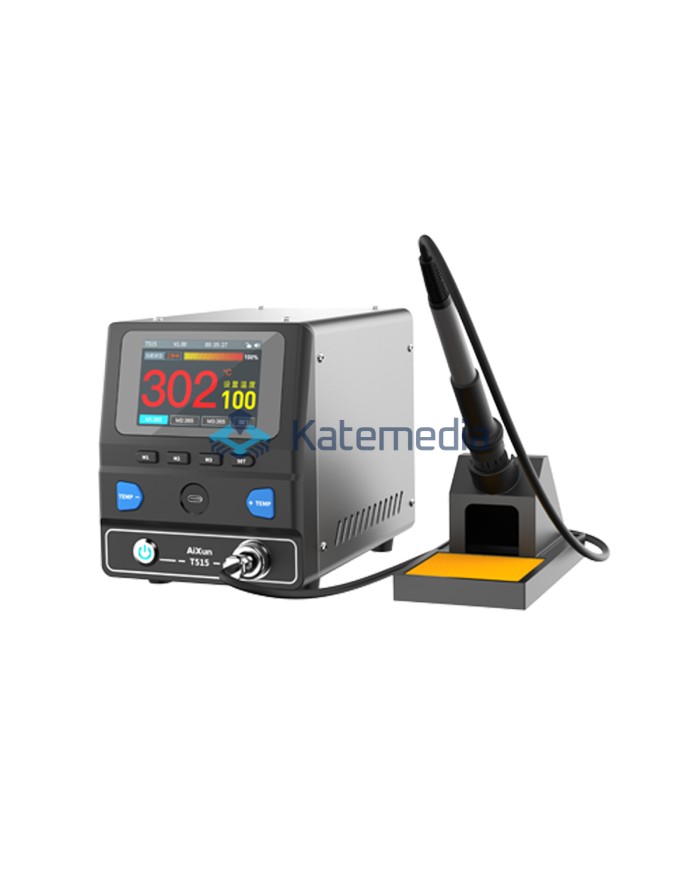

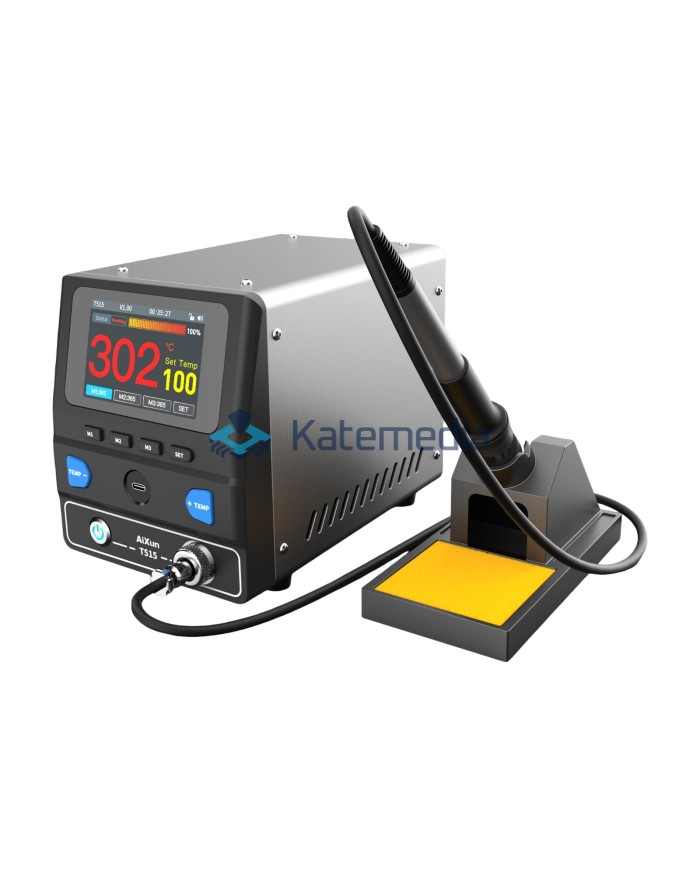

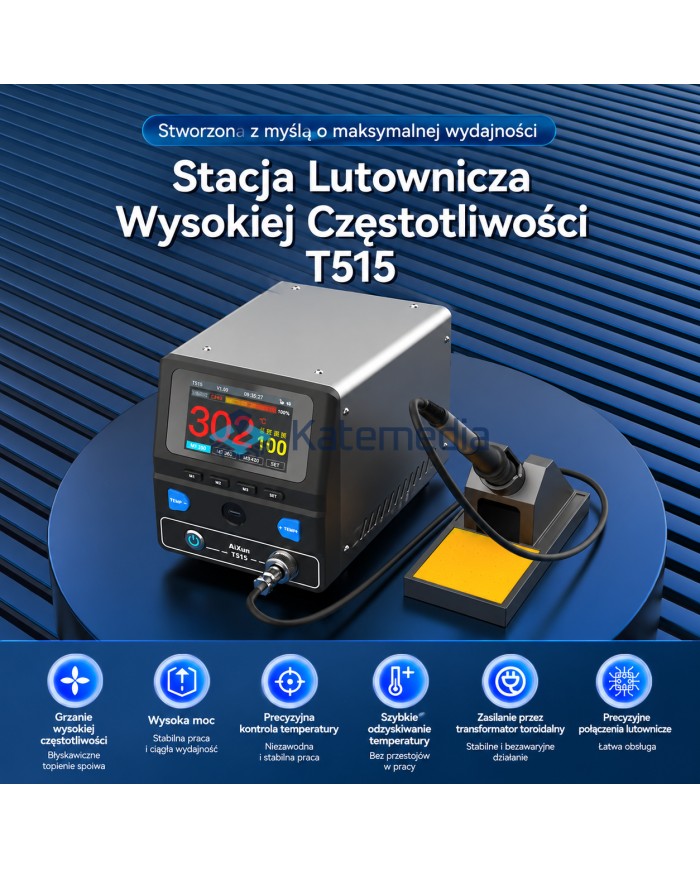

AiXun T515 is an advanced high-frequency soldering station designed for professional electronics repair, intensive workshop use and demanding industrial soldering applications.

The station uses high-frequency eddy current heating technology, allowing heat energy to be transferred to the soldering tip extremely quickly. This provides fast temperature recovery when the tip comes into contact with large solder joints, ground planes or other components with high thermal mass.

Up to 200W of power

AiXun T515 provides:

• 150W rated power
• 200W peak power
• temperature range of 90–550°C
• temperature stability of ±2°C

Its high available power makes the station suitable for both precision electronic repairs and more demanding soldering tasks involving large ground planes, thick wires and components that require a high amount of thermal energy.

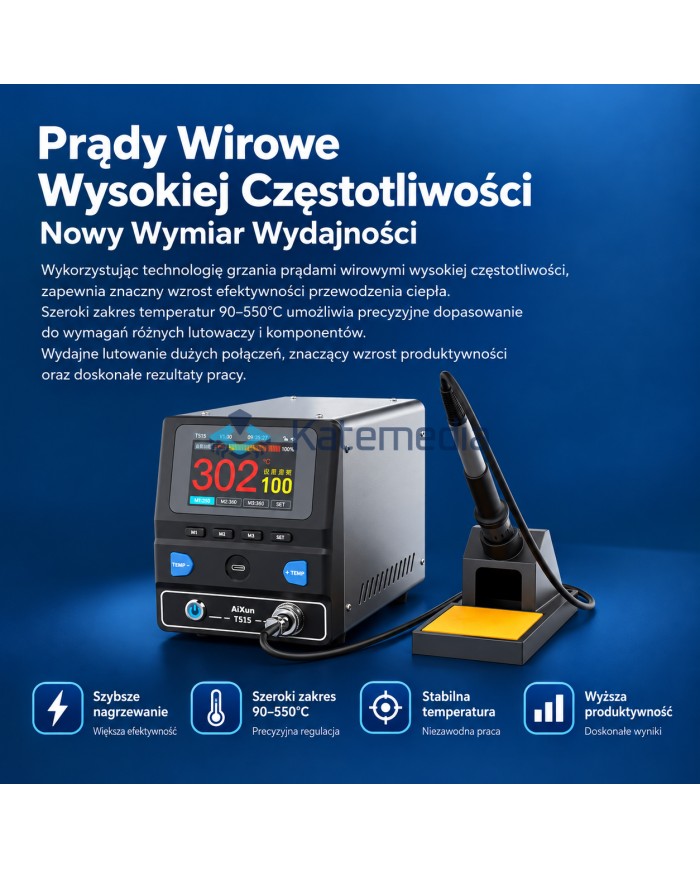

High-frequency heating technology

Unlike conventional soldering stations, the T515 uses high-frequency eddy current heating technology.

This technology provides:

• rapid heating,
• fast response to temperature drops,
• excellent thermal recovery,
• stable soldering temperature,
• efficient operation on high thermal mass components,
• consistent performance during intensive soldering work.

500 Series soldering tips

The AiXun T515 works with the 205H soldering handpiece and 500 Series soldering tips.

The standard set includes two tips:

• 500-3C
• 500-SK

The combination of high power and efficient heat transfer makes the station suitable for precision SMD soldering as well as larger and more demanding solder joints.

3.5-inch IPS HD display

The T515 is equipped with a 3.5-inch IPS HD colour display with a resolution of 480 × 320 pixels.

The interface provides two convenient display modes:

• digital parameter display,
• real-time temperature curve.

The temperature graph allows the user to monitor the behaviour of the station and observe temperature changes during soldering.

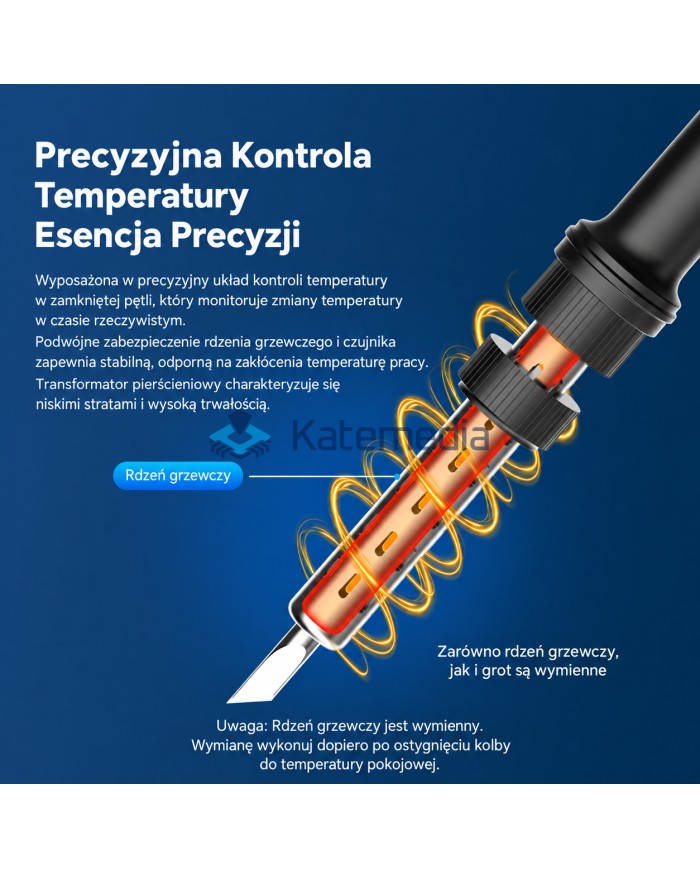

Precise temperature control

A closed-loop temperature control system combined with dynamic temperature compensation continuously monitors operating conditions.

When the soldering tip temperature drops during contact with the workpiece, the station quickly increases heating power to restore the set temperature.

This provides stable and repeatable soldering conditions during demanding repair work.

Toroidal transformer

The AiXun T515 uses a low-loss toroidal transformer designed to provide stable power delivery and reliable long-term operation.

This solution is particularly useful in professional workshops and other environments where the station is used intensively for extended periods.

Professional functions

The station includes a wide range of functions designed for professional use:

• M1 / M2 / M3 preset channels,
• programmable standby mode,
• adjustable standby delay,
• Smart Lock Mode with PIN protection,
• °C / °F temperature unit selection,
• adjustable display brightness,
• sound settings,
• multilingual menu,
• dual protection for the heating element and temperature sensor.

Smart Lock allows important working parameters to be protected against accidental changes, making the station suitable for shared workshop and production environments.

USB and RS485 connectivity

The T515 is equipped with:

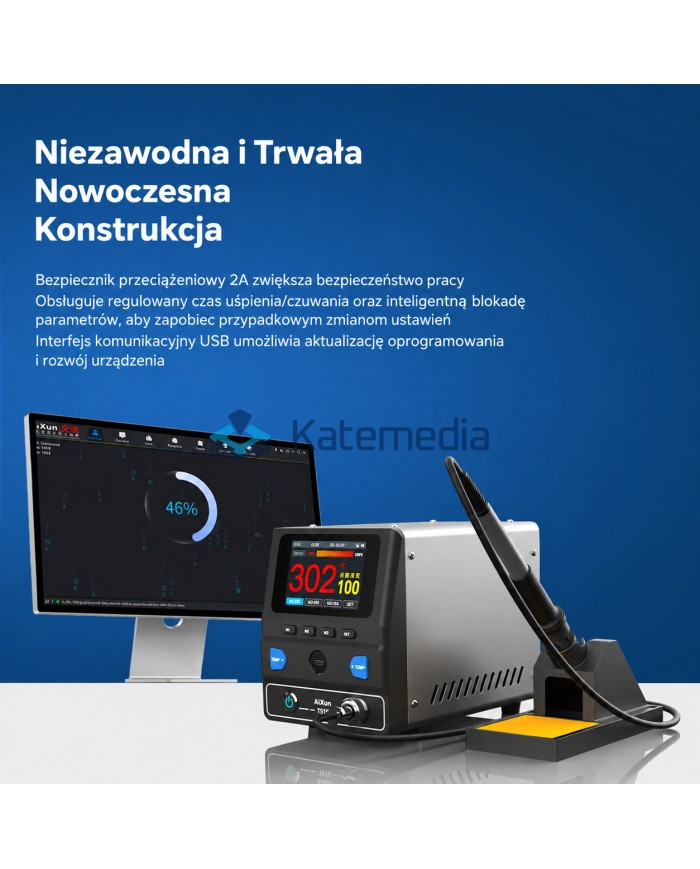

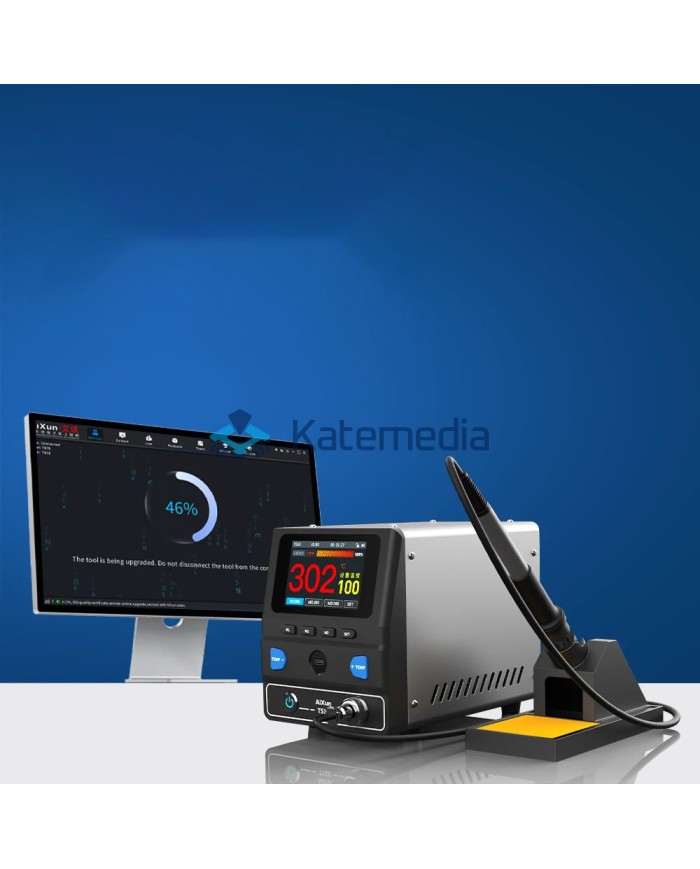

USB – suitable for firmware updates and communication with a computer.

RS485 – allows communication with compatible AiXun equipment and integration into a professional soldering workstation.

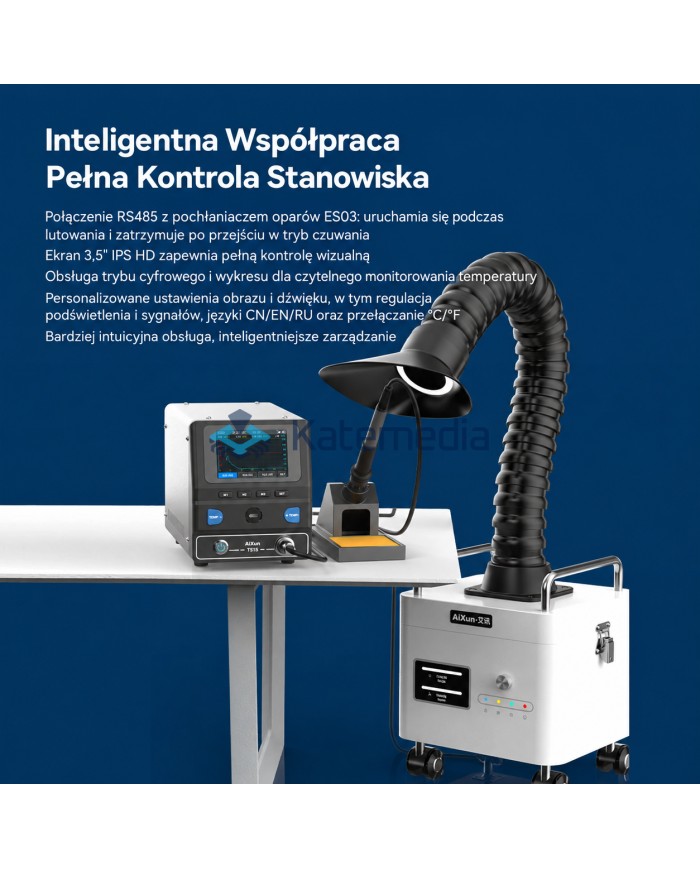

The station can also work as part of an AiXun ecosystem with compatible equipment such as the AiXun ES03 fume extractor.

Key features

• professional high-frequency soldering station,
• high-frequency eddy current heating technology,
• 150W rated power,
• 200W peak power,
• temperature range: 90–550°C,
• temperature stability: ±2°C,
• compatible with 500 Series tips,
• 205H soldering handpiece,
• 3.5" IPS HD 480 × 320 display,
• real-time temperature curve display,
• toroidal transformer,
• M1 / M2 / M3 preset channels,
• programmable standby mode,
• Smart Lock with PIN protection,
• USB interface,
• RS485 interface,
• solid metal housing,
• compatible with selected AiXun ecosystem devices.

Technical specifications

Brand: AiXun
Model: T515
Product type: High-Frequency Soldering Station
Input voltage: 230V AC ±10%
Rated power: 150W
Peak power: 200W
Temperature range: 90–550°C
Temperature stability: ±2°C
Heating technology: High-frequency eddy current heating
Soldering handpiece: 205H
Compatible tips: 500 Series
Display: 3.5" IPS HD, 480 × 320 px
Communication interfaces: USB, RS485
Tip-to-ground resistance: 2 Ω
Tip-to-ground potential: 2 mV
Net weight: 3.5 kg
Gross set weight: 4.6 kg

Package contents

• 1 × AiXun T515 High-Frequency Soldering Station
• 1 × 205H soldering handpiece
• 1 × soldering iron stand
• 1 × 500-3C soldering tip
• 1 × 500-SK soldering tip
• 1 × antistatic grounding cable
• 1 × RS485 terminal block
• 1 × 230V power cable
• 1 × instruction card
• 1 × original packaging
