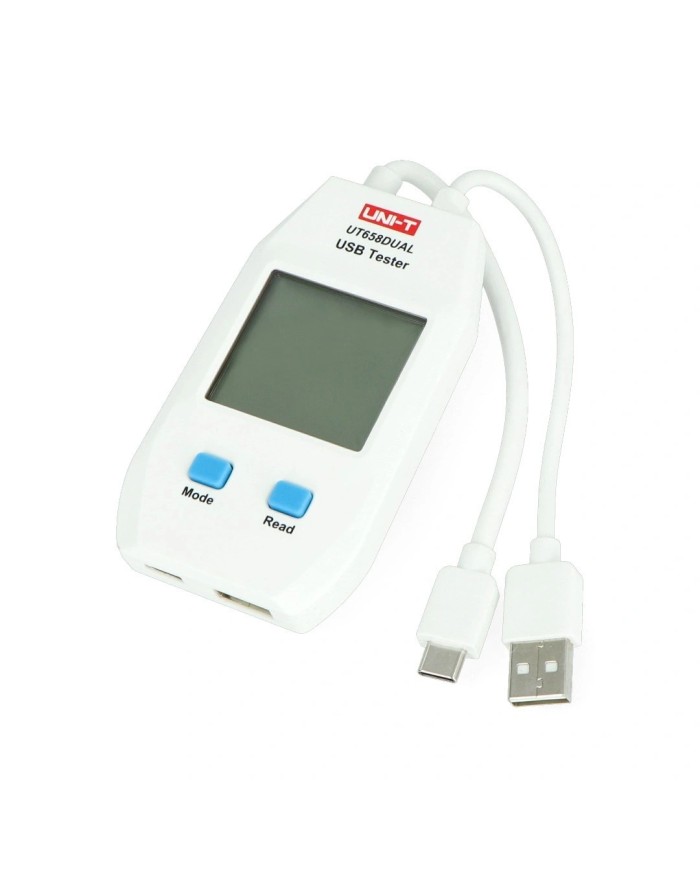

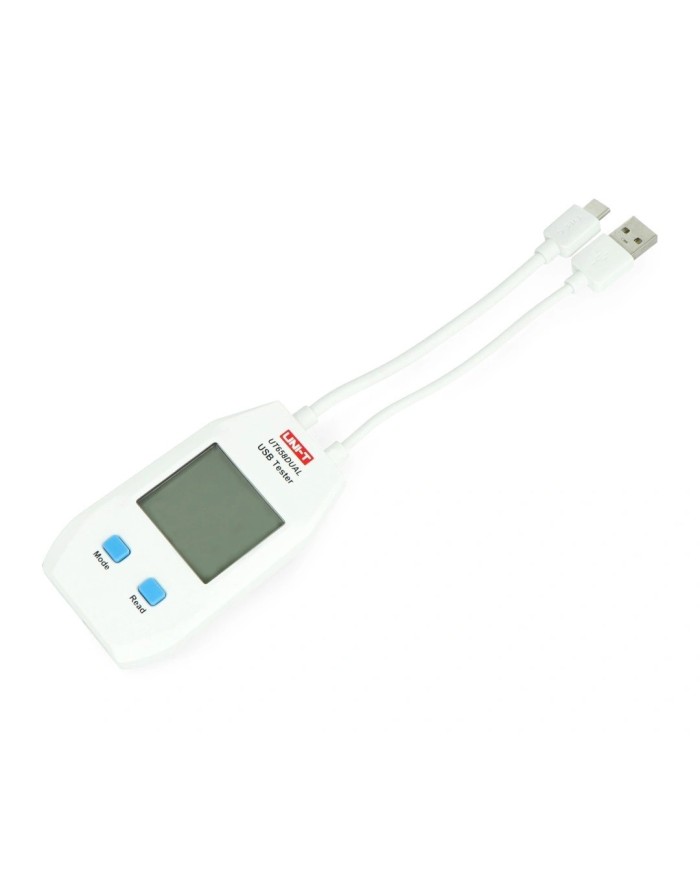

UNIT UT658 Dual USB/USB C universal charging tester
UNIT UT658 Dual USB/USB C universal charging tester
UNI-T UT658 DUAL
USB socket tester UNI -T UT658 Dual allows you to test USB chargers, portable power sources, USB type A and C cables, as well as other charging devices. UT658 allows you to check the output voltage, current, energy, capacity and resistance of the USB cable.
zł94.99
Tax included
Product availability
Last remaining items
Delivery options
Learn more
Specification:
- Input/output ports: USB Type A and C
- Data/charging protocol: 2.0 (3.0 / 4.0)
- Voltage range: 4V to 24V (0.01V resolution)
- Current range (type A): from 0.05 A to 3 A (resolution 0.01 A)
- Current range (type C): from 0.05 A to 5 A (resolution 0.01 A)
- Capacity: from 0 mAh to 999999 mAh (resolution 1 mAh)
- Energy: from 1 Wh to 1000 Wh
- Circuit resistance: 1 Ω to 480 Ω
- USB data cable voltage (D+, D-): 0V to 3.3V
- Data storage: 10 sets
- Maximum recording time: 99 h, 59 min, 59 sec (1 s resolution)
- Fast charging protocol (type A): QC 3.0 fast charge
- Fast charging protocol (type C): QC 4.0 fast charge
- Color: white
- Dimensions: 93 x 55 x 13 mm
- Weight: 65.8 g
- Included in the set: tester
SUNITUT658
