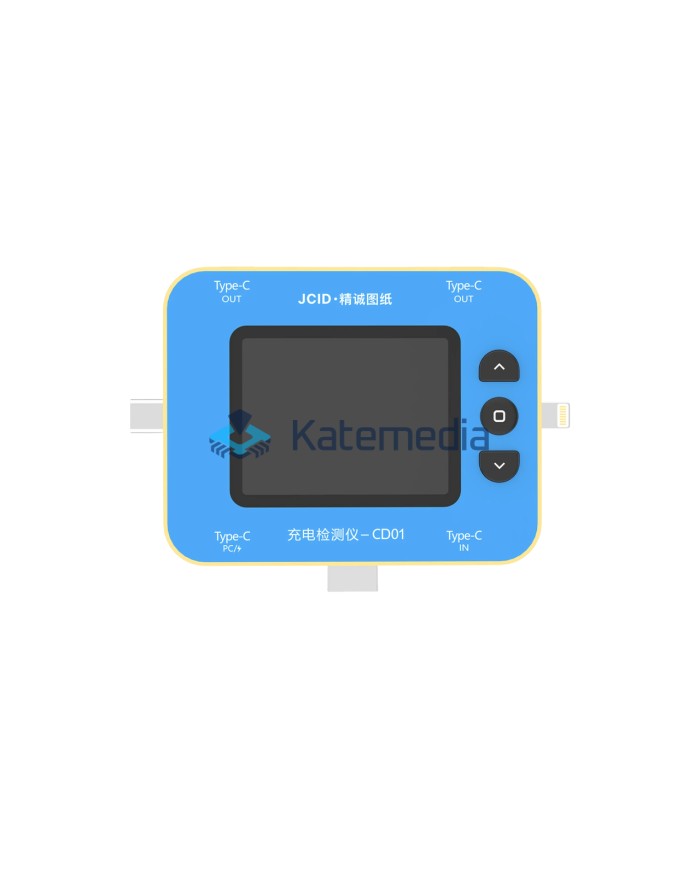

JCID CD01 – Professional Charging Detector (Type-C / Lightning)

Precise voltage and current measurement, with support for fast charging protocol detection

The JCID CD01 is an advanced diagnostic tool designed for precise analysis of charging parameters. The detector automatically connects to JCID software when plugged into a computer and includes a built-in monthly JCID Draw license – no physical card required. If the connection is not recognized, simply reconnect the device.

Key Features:

• Voltage and current measurement – real-time analysis of charging data.
• Fast charging protocol detection – supports PD, QC, SCP, VOOC, FlashCharge, and others.
• Resistance testing without disassembly – quick diagnostics without removing the mainboard.
• Automatic value comparison with JCID database – helps locate damaged components more easily.
• Rotating display (gyroscope) – screen orientation adjusts to device position.
• USB line monitoring – tracks voltage on D+D, CC1, and CC2 lines.
• Full JCID software integration – automatic syncing upon connection to a computer.
• Customizable interface – language, sounds, and screen layout can be adjusted to preference.

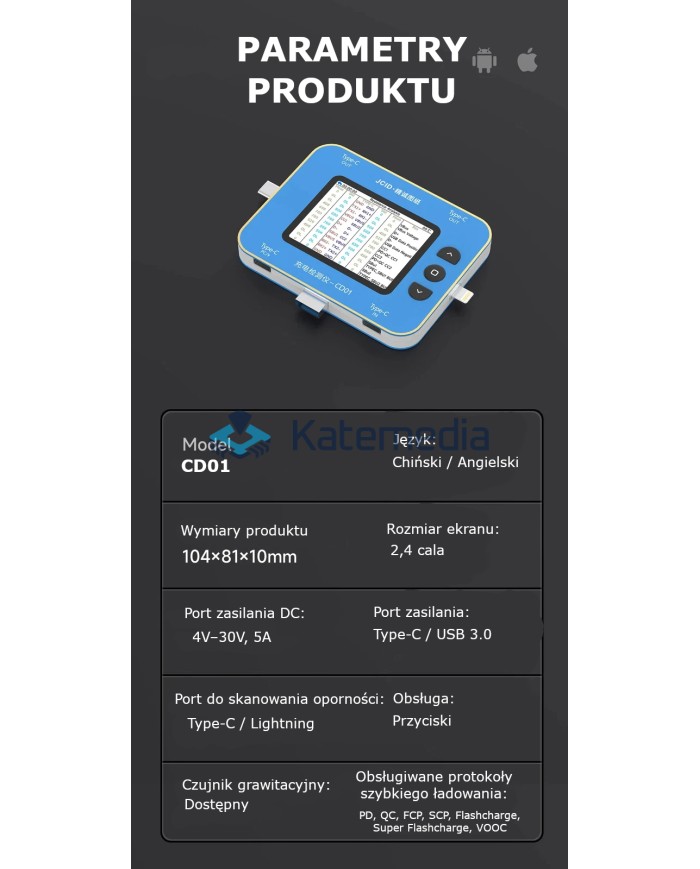

Technical Specifications:

• Model: JCID CD01 – Charging Detector
• Menu language: Chinese / English
• Dimensions: 104 × 81 × 10
