Key features:

• 4in1 – one tool for four iPhone models (12 mini, 12, 12 Pro, 12 Pro Max)
• Expandable with Apple A8-A14 processors
• Strong magnetic base – 4 small and 3 large high-temperature magnets ensure stability and precision
• Precise positioning – the steel mesh and motherboard are perfectly matched
• High-quality construction – made of wear-resistant metal alloy
• Easy and convenient ball planting – tight fit ensures even solder distribution
• CNC machining – precision workmanship for accurate assembly
• Reduced reballing errors – eliminates unevenness, solder fusion and missing balls

User manual:

1. Separate the positioning plate from the magnetic base and fix the main board in the positioning frame.
2. Place the appropriate template on the positioning frame, making sure that the steel mesh and the main board are in the same direction.
3. Press the positioning frame onto the magnetic base and evenly apply the tin balls.
4. Remove the main board and heat it with a hot air gun.

Technical specifications:

• Name: AiXun AX-Z12
• Material: Aluminum alloy and synthetic stone
• Base dimensions: 90 × 65 × 6 mm
• Weight: 213 g
• Compatibility: iPhone 12, 12 Mini, 12 Pro, 12 Pro Max and Apple A8-A14 processors (requires additional module)

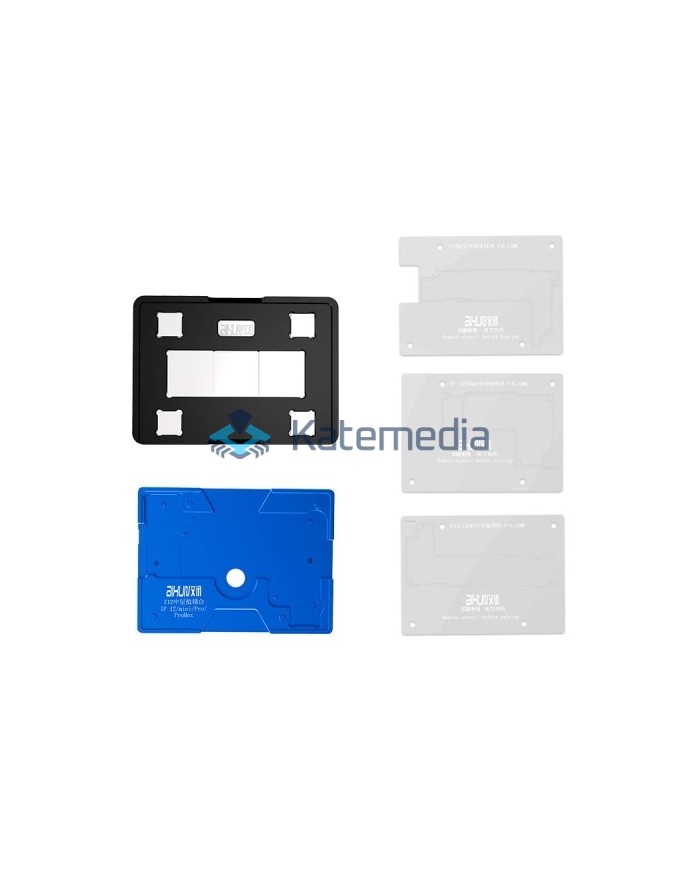

Bundle Contents:

• Magnetic base
• Positioning frame
• Templates for iPhone 12 Mini, 12, 12 Pro, 12 Pro Max
