TX K352 352 LED Coaxial Shadowless Microscope Ring Light

JTX K352 ChipVision is an advanced microscope illumination system designed for precise inspection of PCBs, integrated circuits, processors and other electronic components.

Unlike conventional microscope ring lights, the K352 uses a multi-layer coaxial lighting system that directs light toward the center of the working area. This provides more even illumination while significantly reducing shadows, glare and poorly illuminated areas.

352 High-Density LEDs

The lamp is equipped with 352 LEDs arranged in multiple concentric rings.

The high LED density provides uniform illumination across the entire working area and helps eliminate visible bright spots and dark zones.

Coaxial Lighting

The coaxial lighting design directs the light along the microscope's viewing axis.

This makes it easier to inspect:

• PCB traces
• IC markings
• solder joints and pads
• CPU, RAM, NAND and BGA components
• glass and reflective surfaces
• small cracks and surface defects
• fine electronic components

The design improves contrast and visibility, especially when working at lower magnification.

Multi-Layer Concentric LED Arrangement

The LEDs are arranged in several layers with different illumination angles.

The lighting structure includes:

• outer wide-angle layer
• middle-angle layer
• inner narrow-angle layer
• central converging layer

This design concentrates light more effectively in the center of the working area and improves illumination uniformity.

Reduced Shadows and Reflections

The K352 is designed for applications where standard microscope lighting may create strong reflections or shadows.

The coaxial arrangement helps reduce glare and improves the visibility of surface details, PCB tracks and component markings.

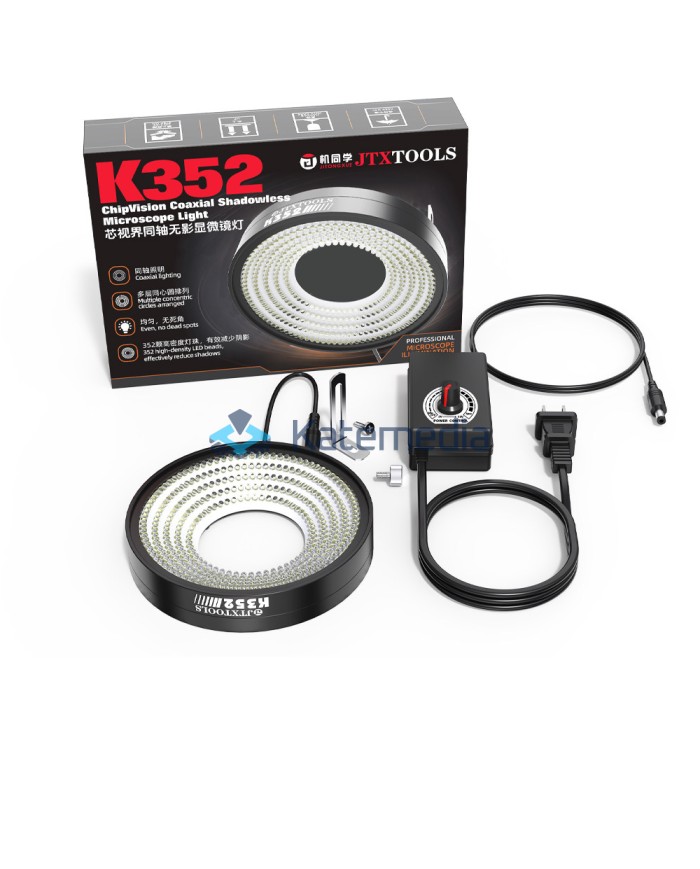

Adjustable Brightness

The included controller allows the light intensity to be adjusted according to the type of work, microscope magnification and inspected surface.

This makes it easier to obtain the correct balance between brightness, contrast and reflections.

Ideal for Electronics Repair

JTX K352 is particularly suitable for:

• smartphone motherboard repair
• microsoldering
• PCB inspection
• CPU and BGA inspection
• checking solder joints and pads
• reading chip markings
• component inspection after soldering
• precision electronics repair

Key Features

• 352 high-density LEDs
• coaxial illumination
• shadowless lighting design
• multi-layer concentric LED arrangement
• uniform working-area illumination
• reduced shadows
• reduced reflections and glare
• improved visibility of PCB traces and markings
• adjustable brightness
• suitable for most standard repair microscopes
• ideal for PCB, CPU, BGA and precision electronics work

Specifications

Brand: JTXTOOLS / JITONGXUE
Model: K352
Series: ChipVision
Type: Coaxial shadowless microscope ring light
LED Quantity: 352 LEDs
LED Arrangement: Multi-layer concentric rings
Inner Diameter: approx. 58.7 mm
Outer Diameter: approx. 134 mm
Thickness: approx. 25 mm
Brightness Adjustment: Yes
Application: Electronics repair, PCB inspection, microsoldering and microscope work
