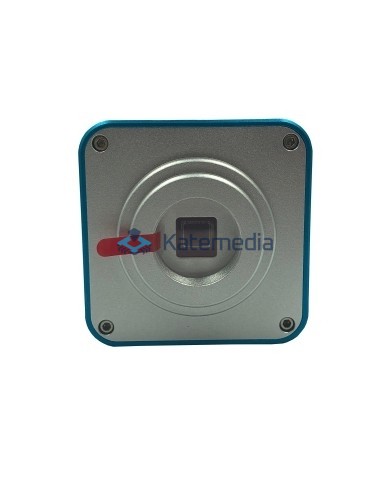

Mechanic MOS 4K Pro – 4K USB / HDMI Microscope Camera
Mechanic MOS4K Pro is an advanced industrial/microscope camera equipped with a high-quality Sony IMX678 sensor with a nominal resolution of 55 MP, which provides clear and Detailed images. Thanks to HDMI and USB outputs, it can transmit 4K (3840 x 2160) images at 30 fps, allowing you to view them on a monitor or save footage.
The camera is ergonomically designed – cable outlets are located at the back to keep the device's surface tidy, and the body itself is slightly tilted, making it easier to use without having to bend over too much. This increases work comfort and efficiency, especially when working with the microscope for extended periods.
zł799.99
Tax included
Product availability
Product not available
Delivery options
Learn more
Mechanic MOS 4K Pro – 4K Microscope Camera
Mechanic MOS4K Pro is a modern and efficient 4K industrial camera, equipped with a Sony CMOS sensorCMOS 840W, which provides a clear, stable and highly detailed image ideal for service work, electronics inspection, technical microscopy and laboratory applications. The combination of HDMI and USB outputs makes it an exceptionally versatile tool for professionals.
Key Advantages of the Mechanic MOS 4K Pro Camera
Sony CMOS 840W Sensor – High Sensitivity and Sharpness Image
The camera uses one of the best sensors in its class – the Sony CMOS 840W, which offers high detail, excellent color reproduction, and excellent image quality in both good and low light.
HDMI and USB output – full work flexibility
The device offers 4K 30FPS HDMI output and USB, allowing you to preview the image on a monitor, record on a computer, or work with analytical software.
Memory card storage
The camera supports microSD cards up to 64 GB, allowing you to store photos and videos without having to connect a computer.
Adjustable guide lines (delineate)
MOS4K Pro offers up to 8 configurable auxiliary lines: changing the position, color, and thickness perfectly supports precise service work or optical measurements.
Advanced image adjustment
Automatic or manual white balance, exposure, and full RGB adjustment allow you to precisely adjust the image to the lighting conditions of your workstation.
Ergonomic, modern design
The camera housing has been designed so that all cables exit from the back, keeping the workspace tidy. The lightweight, angled body ensures comfortable use even during extended use.
MOS4K Pro Camera Applications
- Electronics service – motherboard diagnostics, soldering, BGA/CPU/IC inspection
- Technical and educational laboratories
- Smartphone and mobile device repair
- Production quality analysis and visual inspection
- Research Microscopes in Industry and Science
- Video and Photographic Documentation of Service Work
Technical specifications
| Model: | Mechanic MOS4K Pro |
| Sensor: | Sony CMOS 840W, 8.29MP |
| Output resolution: |
HDMI: 3840×2160 (4K) @ 30 FPS 1920x1080 (FullHD) @ 60 FPS USB: 3840×2160 (4K) @ 30 FPS 1920x1080 (FullHD) @ 30 FPS |
| Lens mount: | C / CS |
| Memory: | MicroSD card support up to 64 GB |
| Power: | DC 5V – 12V |
| Additional features: | 8 adjustable lines auxiliary, white balance: auto/manual/single-point (RGB), remote control, EN/CH menu |
| Dimensions: | 56 × 56 × 72 mm |
| Weight: | ~188–192 g |
The Mechanic MOS4K Pro microscope camera is an indispensable tool for service technicians, electronics engineers, laboratories, and anyone who requires a clear, stable, and extremely detailed image. Thanks to its advanced features and robust construction, it significantly increases work comfort and efficiency.
