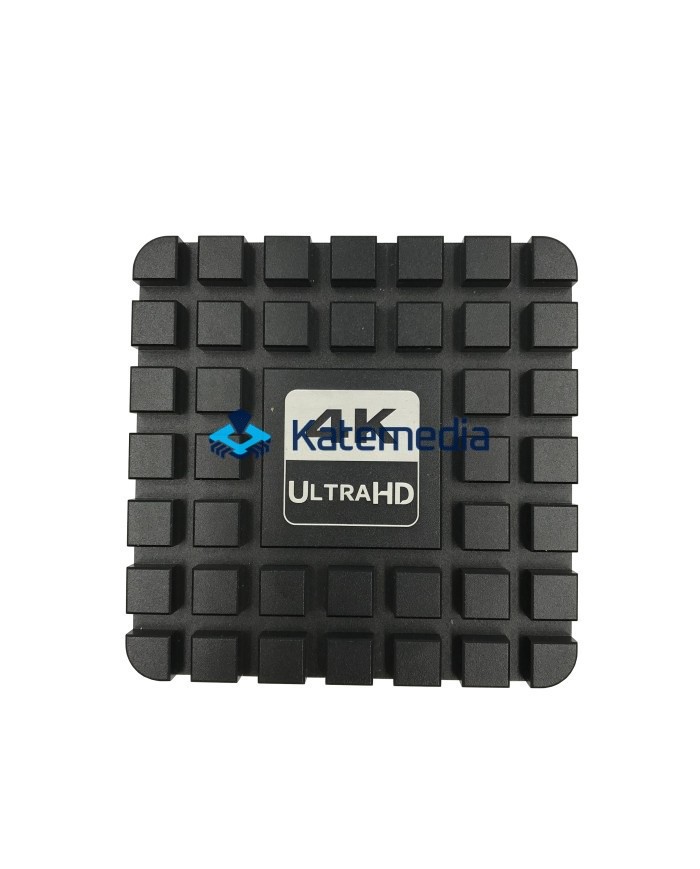

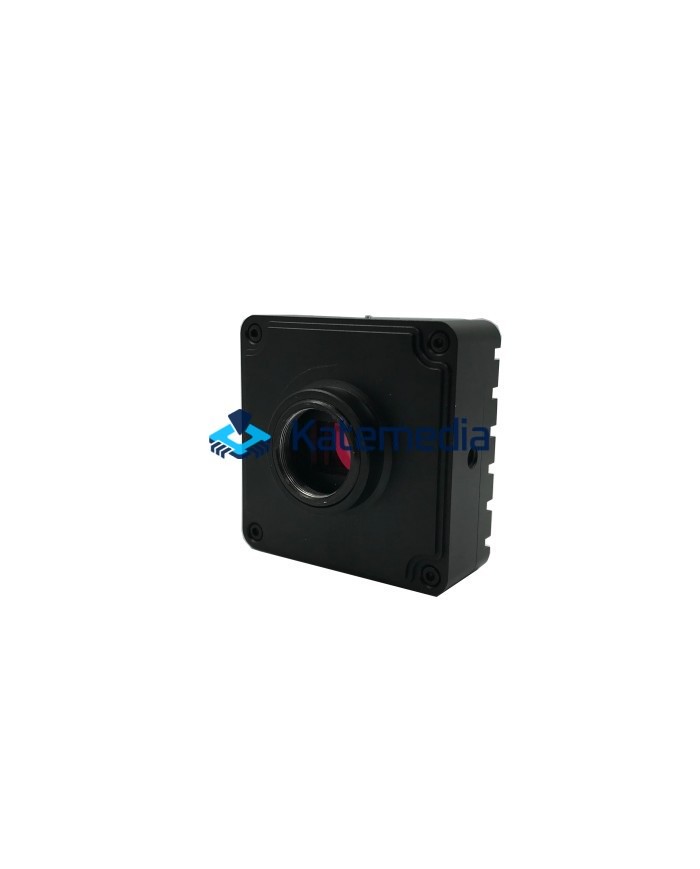

4K Ultra HD Microscope Camera – Sony IMX226 (C-mount)

Professional camera for trinocular microscopes

The 4K Ultra HD microscope camera with Sony IMX226 sensor (1/1.8") is an advanced solution for observation, documentation, and analysis of microscopic objects. It delivers excellent color reproduction, low noise levels, and smooth live imaging. Ideal for GSM repair services, laboratories, precision electronics, and education.

The camera is operated directly using a mouse connected to the camera – no computer required.

Key features

• Sony IMX226 sensor – 1/1.8" CMOS
• 4K Ultra HD resolution – 3840 × 2160
• Up to 60 fps – smooth live image
• Monitor connection via HDMI (no PC required)
• Mouse control – on-screen menu
• 2D measurement functions and electronic lines
• Video recording and image capture
• Multilingual menu (EN / JP / CN)
• C-mount – wide compatibility

Measurement and imaging functions

• Electronic measurement lines
• Two-dimensional image measurement (2D)
• Scale and digital zoom (up to 10×)
• Image rotation and mirror flip
• Screenshots during measurements

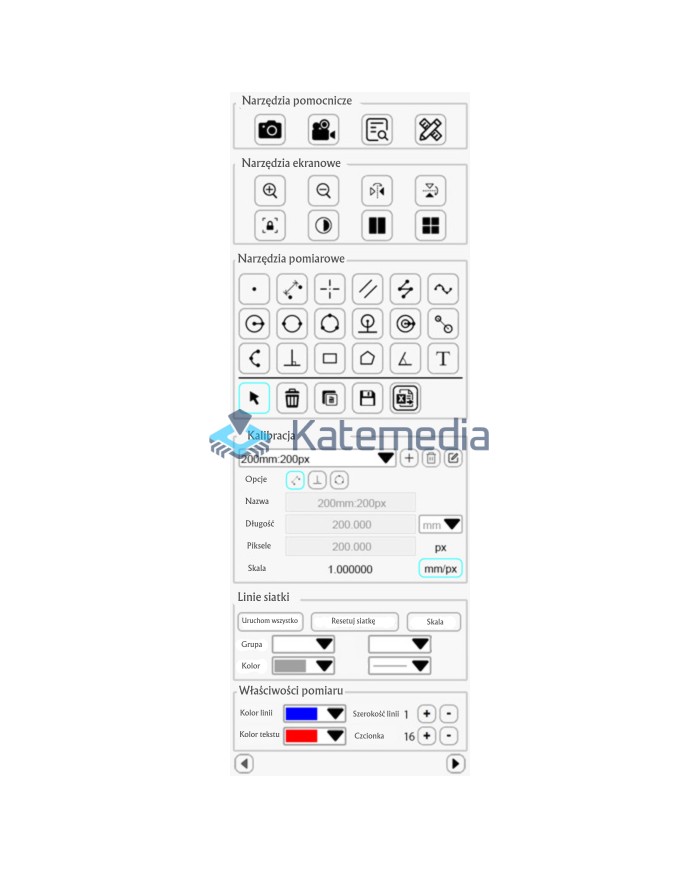

The function panel appears automatically when the mouse cursor is moved to the edge of the screen.

Image storage

• Photos: BMP / JPEG
• Video: MP4 (4K 30 fps / Full HD 60 fps)
• Storage media: USB flash drive or microSDHC card (up to 64 GB)
• Continuous recording: up to 60 minutes per file

Technical specifications

Interfaces

• HDMI 4K (3840×2160 / 1920×1080 – auto)
• USB 3.0 – computer connection
• USB 2.0 ×2 – mouse + USB storage
• microSDHC slot
• UVC (measurement functions not supported)

Package contents

• 4K Ultra HD microscope camera
• 12V power adapter
• HDMI cable
• USB-A ↔ USB-A cable
• USB mouse

Applications

• GSM repair services / precision electronics
• Trinocular microscopes
• Laboratories and education
• Photo and video documentation
