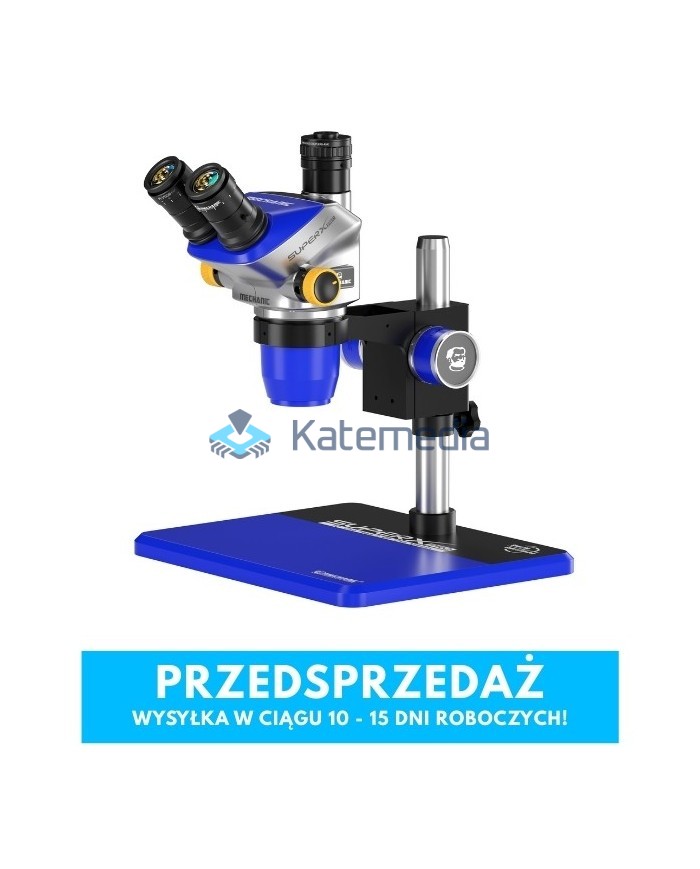

Mechanic Super X Pro 6.5X-52X Stereo Triocular Microscope

Professional microscope for PCB soldering, electronics maintenance, and laboratory research

The Mechanic Super X Pro 6.5X-52X is an advanced stereo triocular microscope designed for precise observation of objects in high resolution. With its wide magnification range and modern optical system, it provides exceptional image quality without distortion, making it an excellent tool for electronics technicians, engineers, and laboratory workers.

Key Features:

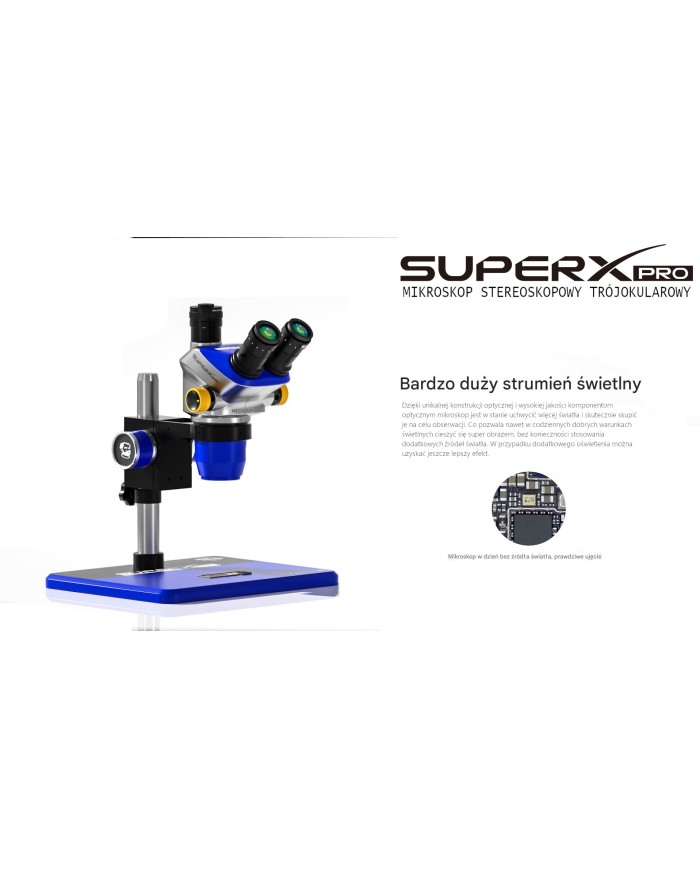

Ultra bright image – modern optics deliver exceptionally clear images even in low light.
Adjustable PL10X26 eyepieces – wide field of view up to 26 mm, minimizes image distortion.
Magnification 6.5X-52X – smooth, touch-adjustable magnification without unnecessary knobs.
Image clarity and brightness – advanced Greenough optical system in a V shape increases light transmission for a clear and high-contrast image.
Ultra high magnification ratio 1:8 – flexibility for observing both large and fine details.
CCD 0.45X CTV adapter – eliminates dark corner effects, clearer image when connecting a camera.
Durable construction – modern IML (In Molding Label) technology, resistant to wear, corrosion, and UV radiation.
Advanced dust protection – sealed head, anti-reflective optical glass for longer optical element life.
Third port for camera – ability to connect a camera for image capture.
Convenient ergonomics – 45° tilted head, adjustable interpupillary distance (54-76 mm), 360° rotation.
Large working surface – stable B11 base with dimensions 320 x 260 mm, compatible with various accessories.
Supports various light sources – compatible with LED ring lights, includes LS3 Ring Light.

Why choose this microscope?

Ultra bright image – the modern optics provide very bright and clear images, even in low light, with the entire workspace visible.
Adjustable PL10X26 eyepieces – wide field of view (up to 26 mm), no distortion, allowing focus on details.
Smooth zoom adjustment – 6.5X-52X with touch zoom control – easy and convenient adjustment with a single motion!
Advanced Greenough optics – optimizes light propagation, enabling clear observation without additional lighting.
Long-lasting durability – IML technology makes the microscope resistant to corrosion and damage, keeping its appearance fresh for a long time.
Comfortable working distance of 115 mm – reduces fatigue during long observation sessions.
Third optical port – ability to connect an external camera for image recording.

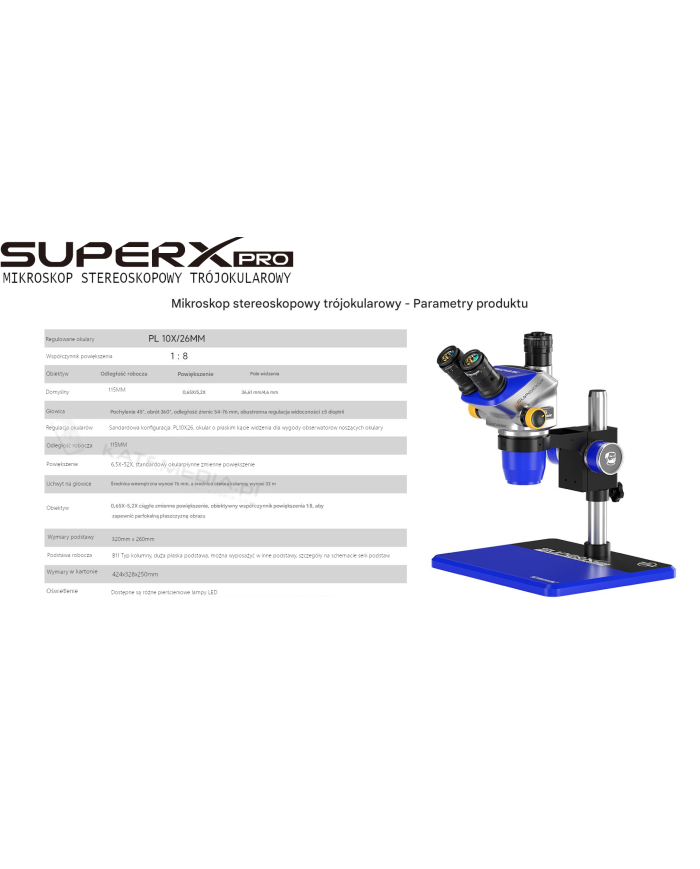

Technical Specifications:

• Magnification: 6.5X-52X (continuous adjustment)
• Working distance: 115 mm
• Zoom ratio: 1:8
• Field of view: 36.61 mm – 4.6 mm
• Head: 45° tilt, 360° rotation, diopter adjustment ±5
• Focusing support: inner diameter 76 mm, column hole diameter 32 mm
• Base: flat, column B11 (interchangeable with other models)
• Microscope dimensions: 424 x 328 x 250 mm
• Lighting: compatible with various LED ring lights

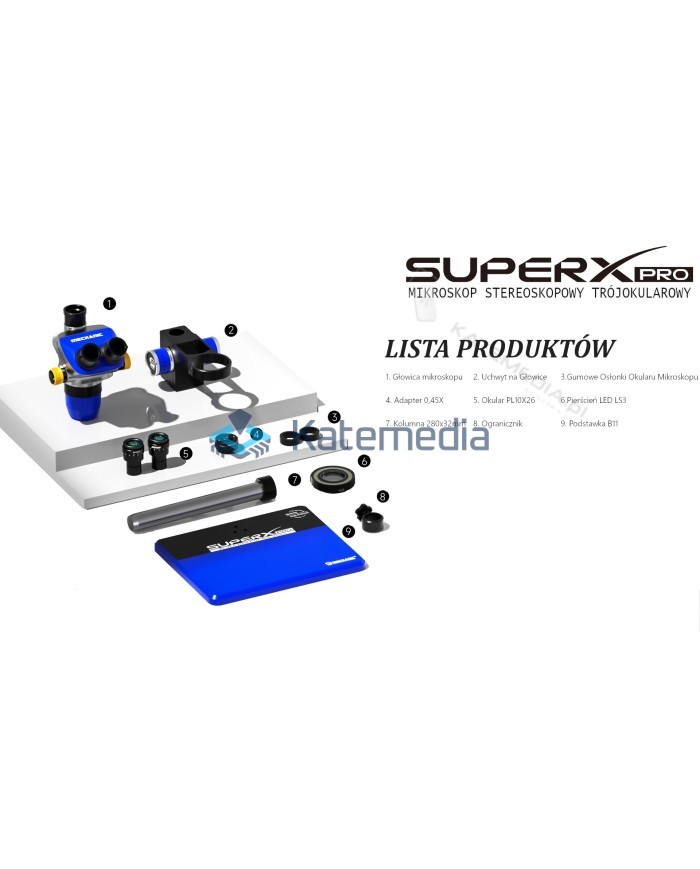

Package Contents:

✅ 1x Mechanic Super X Pro Microscope
✅ 2x PL10X26 Eyepieces
✅ 1x B11 Base (320 x 260 mm)
✅ 1x CCD 0.45X CTV Camera Adapter
✅ 1x Dust cover
✅ 1x Head holder
✅ 1x Rubber eyepiece covers
✅ 1x Basic LED light

What to buy additionally?

1️⃣ Microscope stand:

• FlexArm – wide adjustment range, mountable on a clamp or screws, makes work easier.
• Mechanic L2 – more stable construction, smaller adjustment range, requires more workspace.

2️⃣ Objectives to increase the working area:

• 0.3X – working distance 287 mm
• 0.5X – working distance 160 mm
• 0.7X – working distance 120 mm

3️⃣ LED illuminator – allows brightness adjustment of the image.

The Mechanic Super X Pro 6.5X-52X is a reliable and professional tool that meets the needs of even the most demanding users. With modern optical solutions, ergonomics, and high durability, it is ideal for both precision service work and advanced laboratory research.

Choose quality and precision – choose Mechanic Super X Pro!
