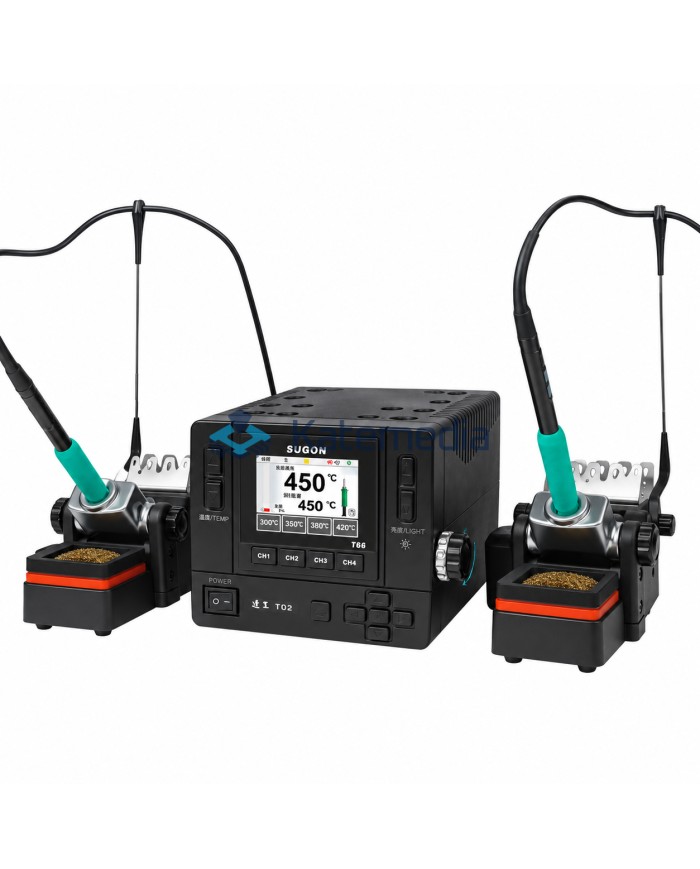

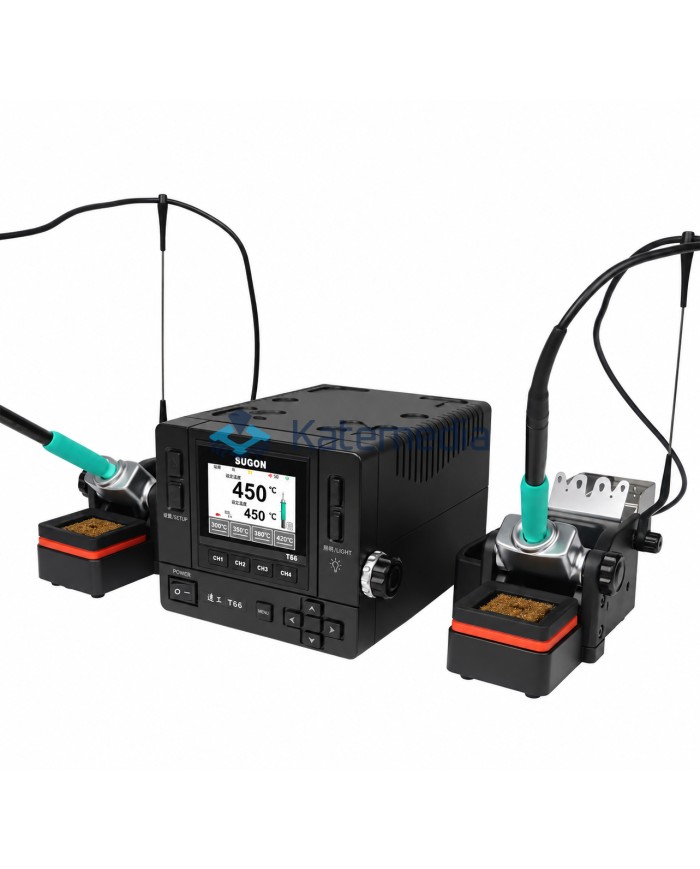

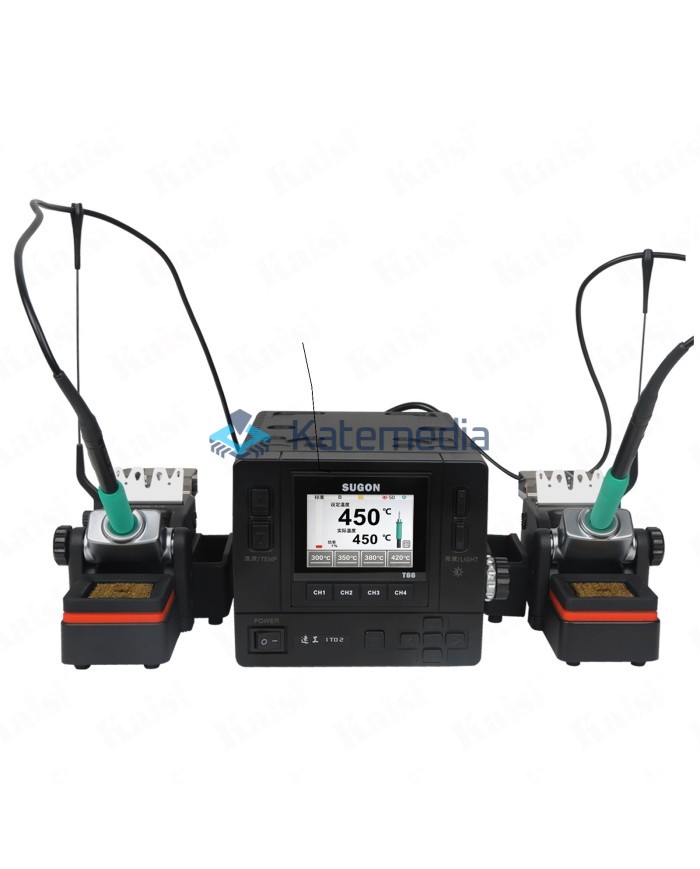

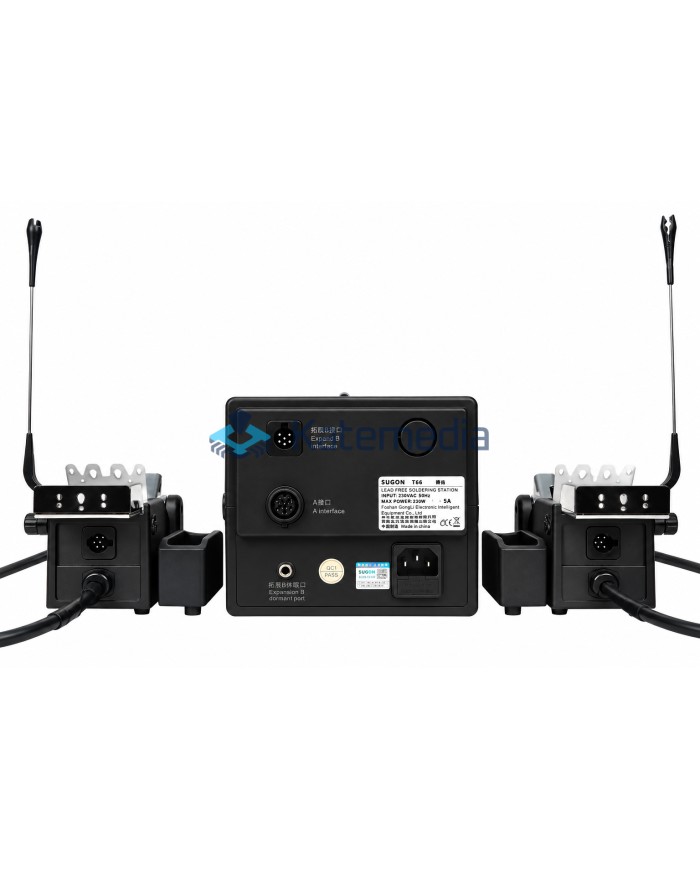

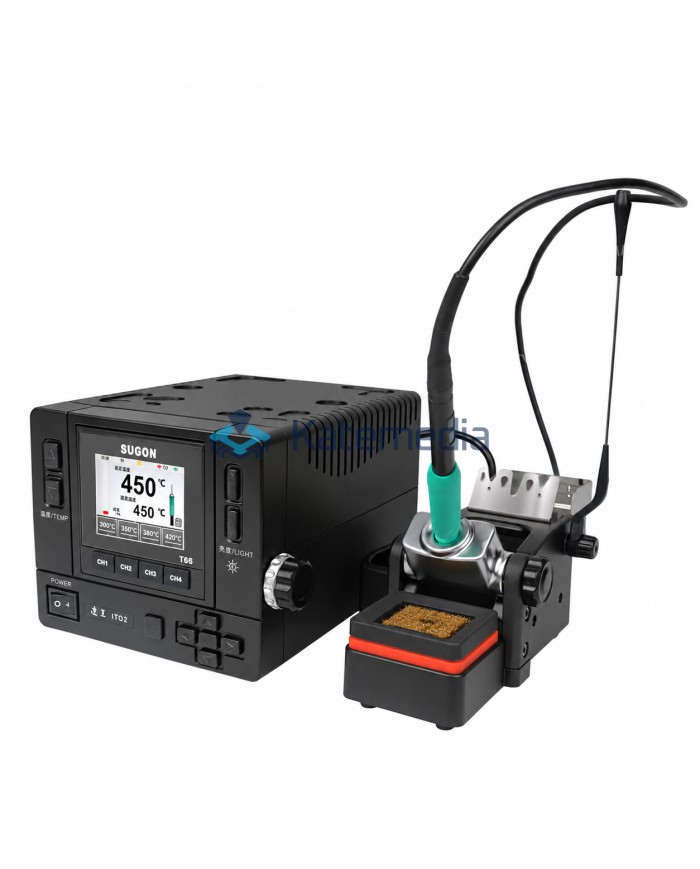

Sugon T66 Double Soldering Station – two stations for professional repair work

Sugon T66 Double is a professional soldering station designed for electronics and mobile device repair workshops. Its dual-station design allows two soldering handles to remain connected and ready for use at the same time.

The station supports C115, C210, C245 and C470 heating systems, making it suitable for both highly precise soldering work and applications that require significantly more thermal power.

Two soldering handles – less swapping, faster workflow

The main advantage of the Double version is the ability to work with two soldering handles.

Two different configurations can remain ready on the bench, allowing the technician to switch between them without repeatedly changing cartridges or handles.

This is particularly useful during motherboard repairs, where one handle may be used for small components while the second is prepared for larger solder joints, ground planes or other areas requiring greater thermal performance.

Compatible with C115 / C210 / C245 / C470

Sugon T66 is designed as a versatile platform compatible with four popular heating systems:

C115 – highly precise soldering and very small components
C210 – versatile electronics soldering
C245 – higher thermal performance and a wide range of applications
C470 – demanding work requiring high heat transfer

This allows one soldering station to cover a wide range of repair tasks without the need for several separate devices.

Fast heat-up and high thermal performance

The T66 reaches operating temperature extremely quickly. According to the manufacturer, heating from 25°C to 350°C takes approximately 0.8 seconds.

The C210 system provides 38W continuous output and up to 90W peak power, while the C470 system can deliver up to 230W continuous power.

This allows the station to respond quickly when the soldering tip comes into contact with components or areas that absorb a large amount of heat.

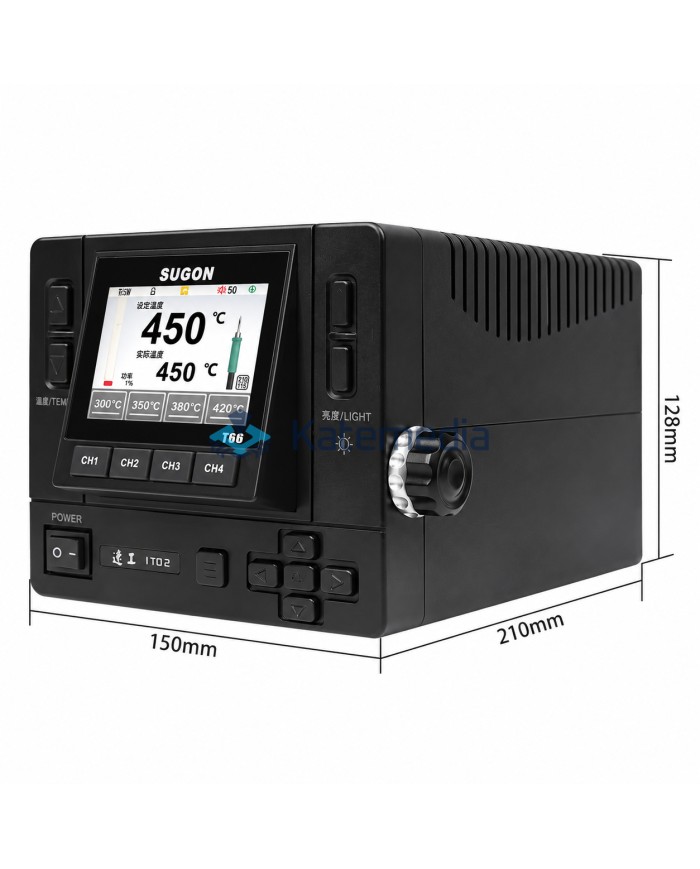

180° rotating color display

The station features a color display that can be rotated by 180°.

The clear interface allows convenient monitoring of operating temperature and station settings, while the adjustable screen orientation helps adapt the unit to different workstation layouts.

The T66 also provides preset operating modes and temperature curves for easier configuration during different types of soldering work.

100–450°C temperature range

The wide temperature adjustment range makes the station suitable for many professional repair applications.

Temperature range: 100–450°C

Typical applications include:

• smartphone motherboard repair,

• SMD soldering,

• connector and socket repair,

• wire soldering,

• electronics repair,

• work on larger ground planes,

• precision soldering under a microscope.

Solid holders with sleep function

The set includes two soldering iron holders, giving each handle its own dedicated position on the workbench.

The holders are made of zinc alloy and support the station's sleep function.

When the soldering iron is placed in the holder, the station can reduce unnecessary heating during breaks, helping improve everyday workflow and reduce cartridge wear.

Toroidal transformer

Sugon T66 is powered by a toroidal transformer, providing stable power delivery for professional soldering work.

This solution is well suited to service environments where the station may operate for long periods and must respond quickly to changes in thermal demand.

Key features

✓ Double version – two soldering stations
✓ compatible with C115 / C210 / C245 / C470
✓ up to 230W continuous output with C470
✓ approximately 0.8 s heat-up from 25°C to 350°C
✓ 100–450°C temperature range
✓ color display
✓ 180° rotating screen
✓ two soldering iron holders
✓ zinc-alloy holders
✓ sleep function
✓ toroidal transformer
✓ suitable for precision and high-power soldering applications

Specifications

Brand: Sugon
Model: T66
Version: Double / dual-handle
Number of soldering stations: 2
Compatible systems: C115, C210, C245, C470
Temperature range: 100–450°C
Maximum C470 continuous power: 230W
C210 power: 38W continuous / up to 90W peak
Heat-up time: approx. 0.8 s from 25°C to 350°C
Display: color, 180° rotating
Power system: toroidal transformer
Application: professional electronics repair, mobile device repair, PCB and SMD soldering

Package contents

• Sugon T66 soldering station

• 2 soldering iron handles

• 2 soldering iron holders

• heating cartridges / tips included with the selected set

• power cable
