Mechanic LM3 Microscope Holder
Mechanic LM3 is a robust microscope holder with a double arm and a full 360° rotation range, designed for GSM services and precision electronics. It allows for stable and flexible positioning of the microscope head, ensuring maximum comfort.
The high-capacity metal construction ensures durability and stability even with heavier microscopes, while the six-point tabletop mounting system eliminates vibration. The Mechanic LM3 is a reliable solution for any professional soldering station.
zł419.99
Tax included
Product availability
Product available
Delivery options
Learn more

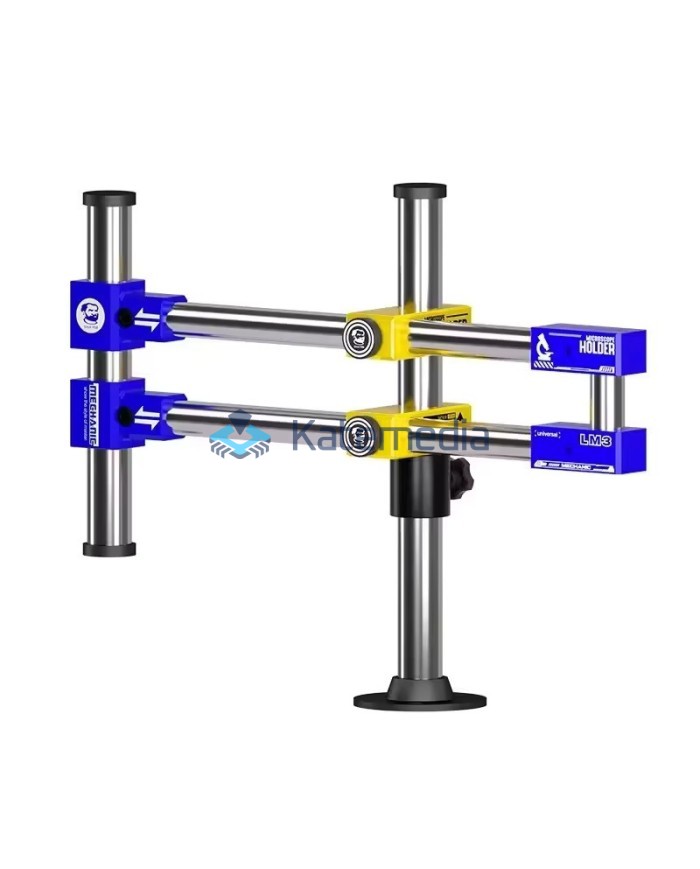

Mechanic LM3 – Microscope Holder with Double 360° Arm
The solid and precise **Mechanic LM3** holder for electronics and service technicians – ideal for mounting a stereoscope, trinocular head or camera. Provides full movement and stability when working on small components.
What makes Mechanic LM3 stand out?

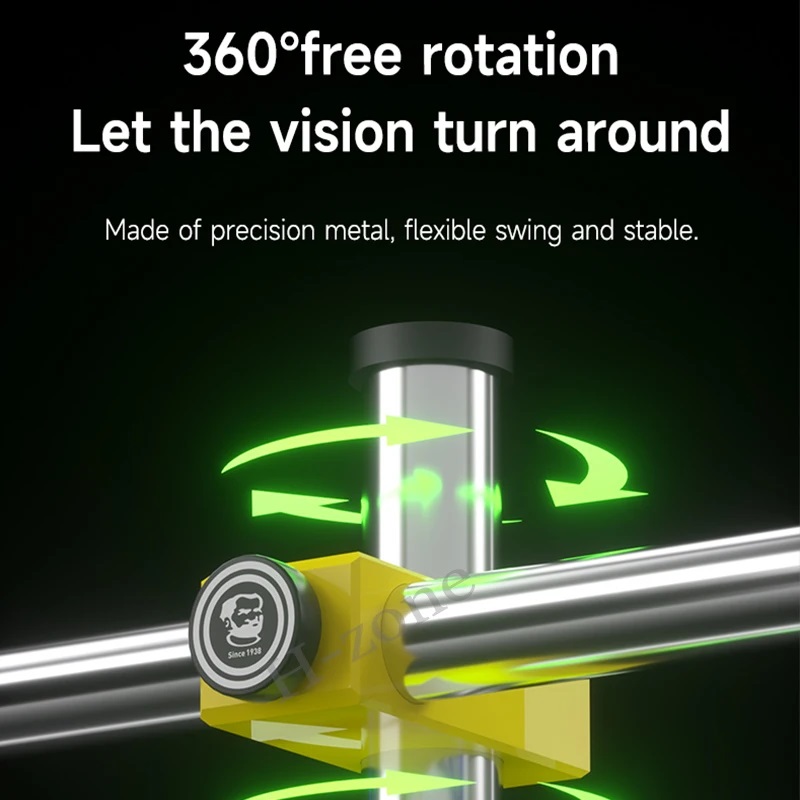

360° full rotation
Enables horizontal rotation, allowing you to position the microscope at any angle without having to move the entire structure.
Double cross arm
Two arms increase reach and stability, allowing for more flexible positioning of the head over the object.
High load capacity and durability
Metal construction, load capacity up to approximately 20 kg – sufficient even for microscopes with an LED camera or additional accessories.

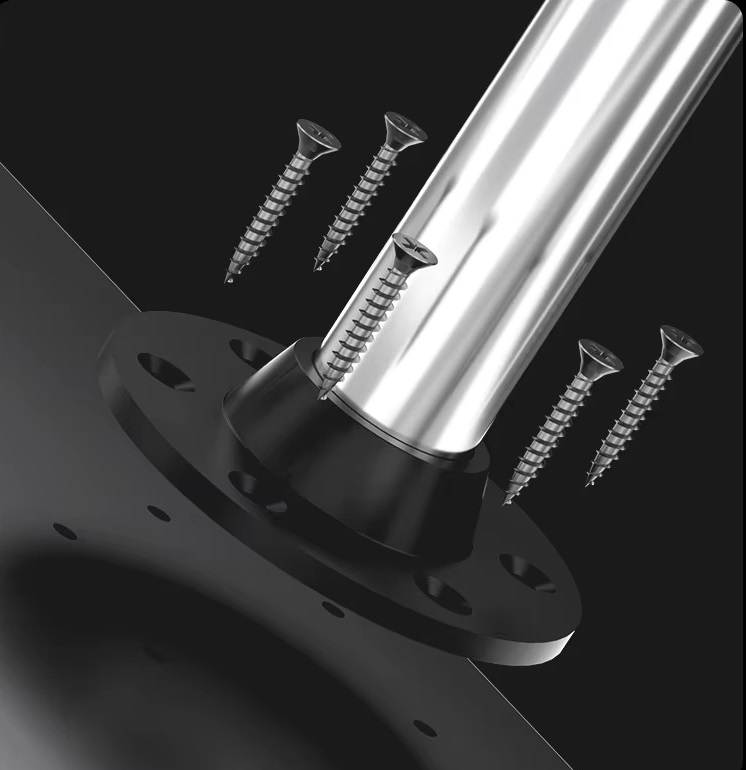

Stable tabletop mount
The base is mounted with six screws (ring cross-section), eliminating vibrations and ensuring rigidity during operation.
What will you use this holder for?
- Soldering stations and electronics repair (GSM, SMD, BGA service)
- PCB assembly, inspection, and testing
- Setting the microscope in various positions without moving the worktable
- Working with a microscope camera or lighting added to the head
Technical specifications
| Model: | Mechanic LM3 |
| Construction type: | Double arm, rotatable holder |
| Load capacity: | ~20 kg (maximum) |
| Head mounting diameter: | 32 mm (standard mounting) |
| Construction dimensions: | 485 × 382 × 260 mm |
| Net weight: | 3.8 kg |
| Assembly to Tabletop: | 6-point screw ring (screws included) |
Note: Before assembly, make sure the microscope head fits the 32 mm diameter. It is recommended to tighten the screws crosswise and evenly to avoid warping. Use the arm locks only after setting the working position.
