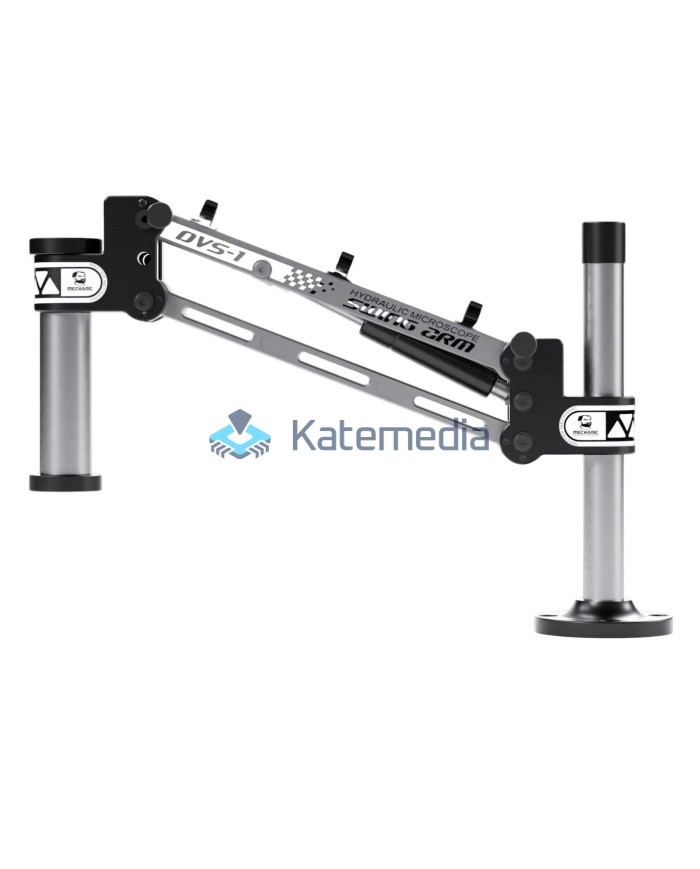

Mechanic DVS-1 microscope holder
Mechanic DVS-1 microscope holder
Mechanic DVS-1 – 360° Hydraulic Microscope Arm
Mechanic DVS-1 is a professional microscope arm equipped with hydraulic damping, which effectively eliminates vibrations and ensures stable operation in any position. Thanks to its full 360° rotation and adjustable tension, it allows for precise and smooth microscope positioning without the need to lock the mechanism.
The arm is equipped with integrated cable management clips, improving workstation ergonomics and keeping the workspace tidy. It is perfect for electronics repair shops, laboratories, and quality control stations where accuracy and comfort are paramount.
zł599.99
Tax included
Product availability
Product available
Delivery options
Learn more
Mechanic DVS-1 – 360° hydraulic microscopic arm
Mechanic DVS-1 is an advanced microscopic arm with hydraulic damping that eliminates vibrations and ensures smooth, stable operation in any position. Thanks to 360° rotation, adjustable resistance, and built-in cable clips, it's the perfect solution for professional service stations, laboratories, and quality control facilities.
Key Advantages of the Mechanic DVS-1 Tonearm
Hydraulic vibration damping
Precision hydraulic cylinders reduce vibration and provide stability—making it easier to position the microscope and maintain focus.
360° rotation and free-hanging
The arm allows for full rotation, and the "pull-to-position, push-to-stow" design allows One-finger panning and precise positioning—holds position in the air without the need for a lock.

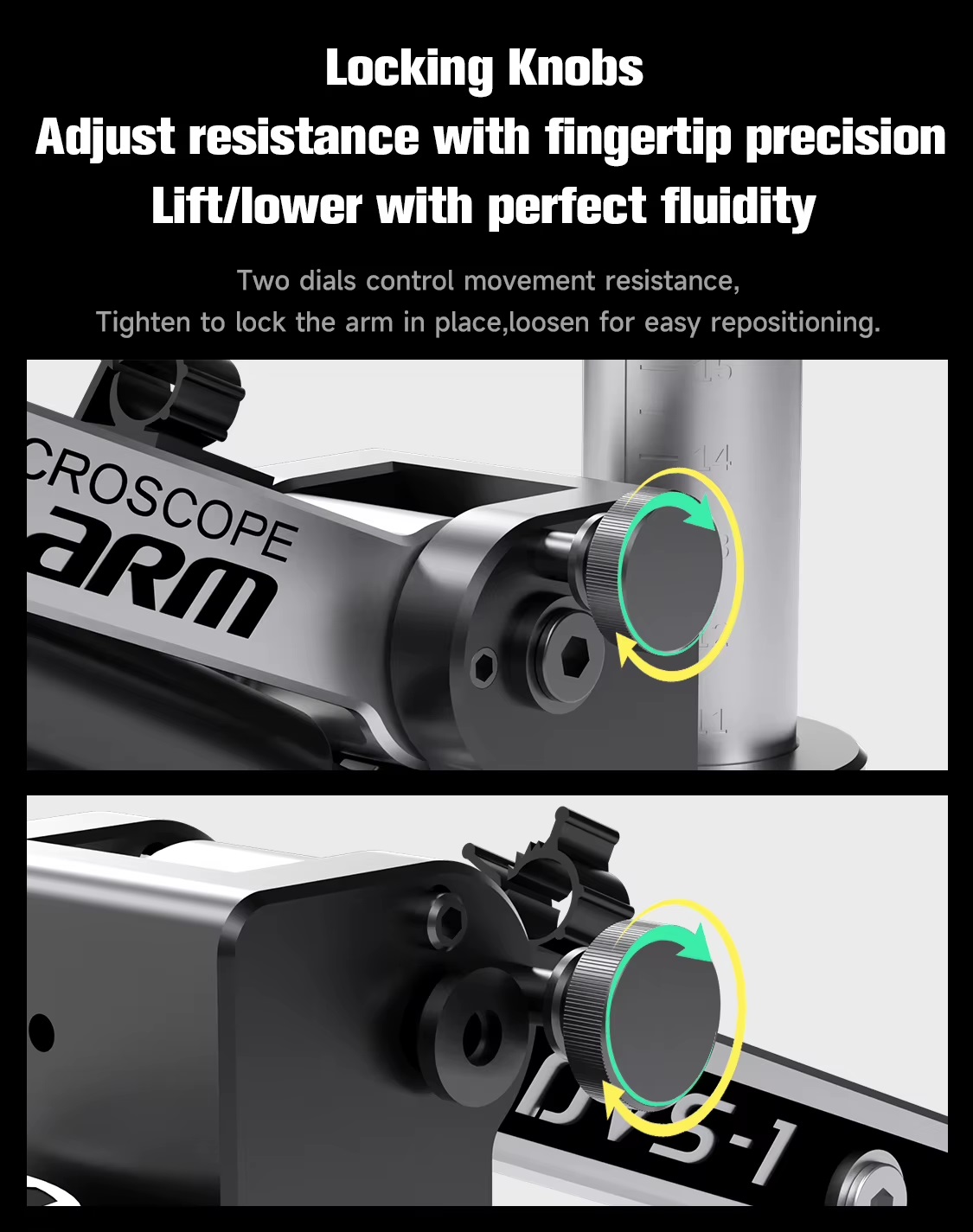

Resistance and Lock Adjustment
Two knobs let you precisely adjust the force of the arm's movement—lock them for a fixed position or unlock them for smooth movement.

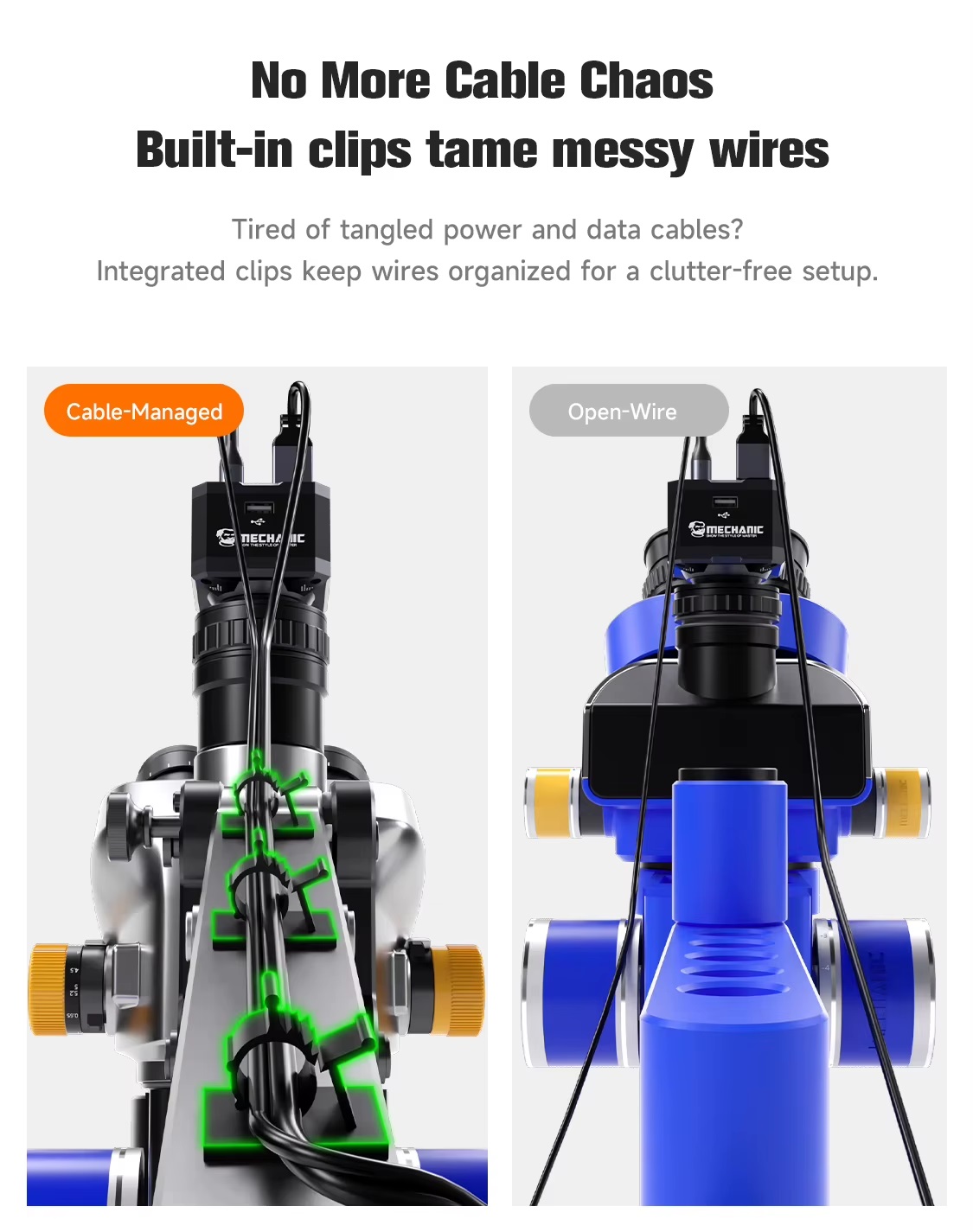

Cable Management
Integrated cable management clips keep cables neatly organized, reducing the risk of tangling or pulling when moving the arm.
Wide Compatibility
Fits all Mechanic microscope stands and most standard industrial bases—though it's worth considering the center of gravity when switching sets.
Example Applications
- Electronics services — ensures a stable microscope position during soldering and inspection
- Quality control laboratories — eliminates vibrations during observations details
- Manual repair of microsystems — easy microscope movement allows for high work flexibility
- Developing assembly stations — cable clips help organize the workstation
Technical specifications
| Model | Mechanic DVS-1 |
| Maximum load | 6 kg |
| Arm Reach | 240 – 340 mm |
| Net weight | 2.4 kg |
| Dimensions | 340 × 240 × 65 mm |
| Arm rotation | 360° free rotation |
The Mechanic DVS-1 microscope arm is a modern and versatile tool that ensures stability, flexibility, and order in your work. Thanks to hydraulic damping, adjustable resistance, and 360° rotation, it is the perfect choice for professionals requiring the highest precision.
