MaAnt RC-5 Thermal Imaging / Thermal Camera
MaAnt RC-5 Thermal Imaging / Thermal Camera

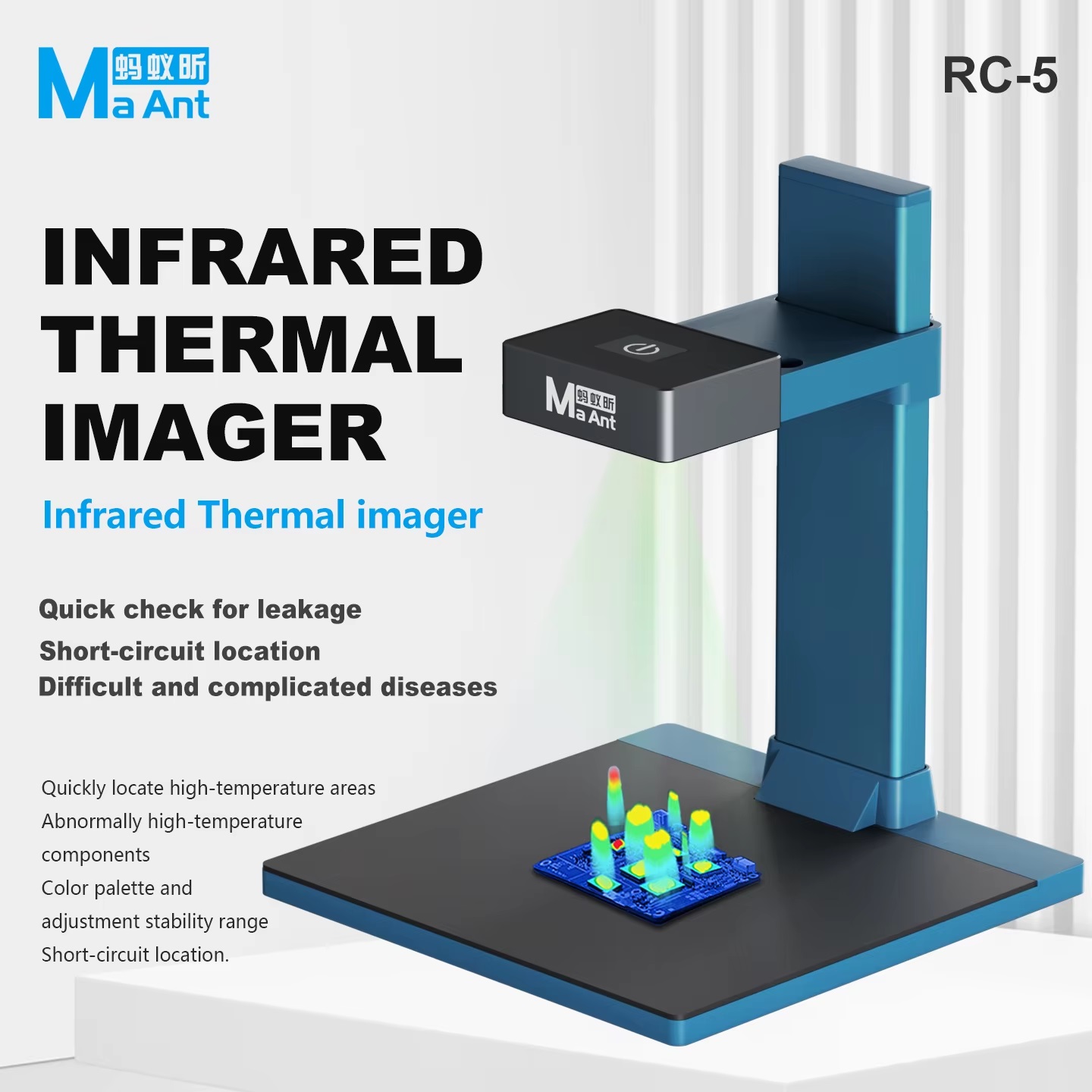

MaAnt RC-5 – Professional 3D HD Thermal Imager for PCB Repairs
MaAnt RC-5 is an advanced thermal imager with a high resolution of 256x192, designed for lightning-fast Motherboard diagnostics. The device enables precise location of short circuits and current leaks by visualizing the thermal field distribution in 3D. With a wide measurement range from -15°C to 600°C and an intelligent temperature alarm function, the analyzer significantly reduces the time needed to identify faults in complex electronic systems, ensuring the highest level of precision for service technicians.
zł1,999.99
Tax included
Product availability
Last remaining items
Delivery options
Learn more
MaAnt RC-5 – Professional 3D HD thermal analyzer for PCB diagnostics
Why choose the MaAnt RC-5 camera?

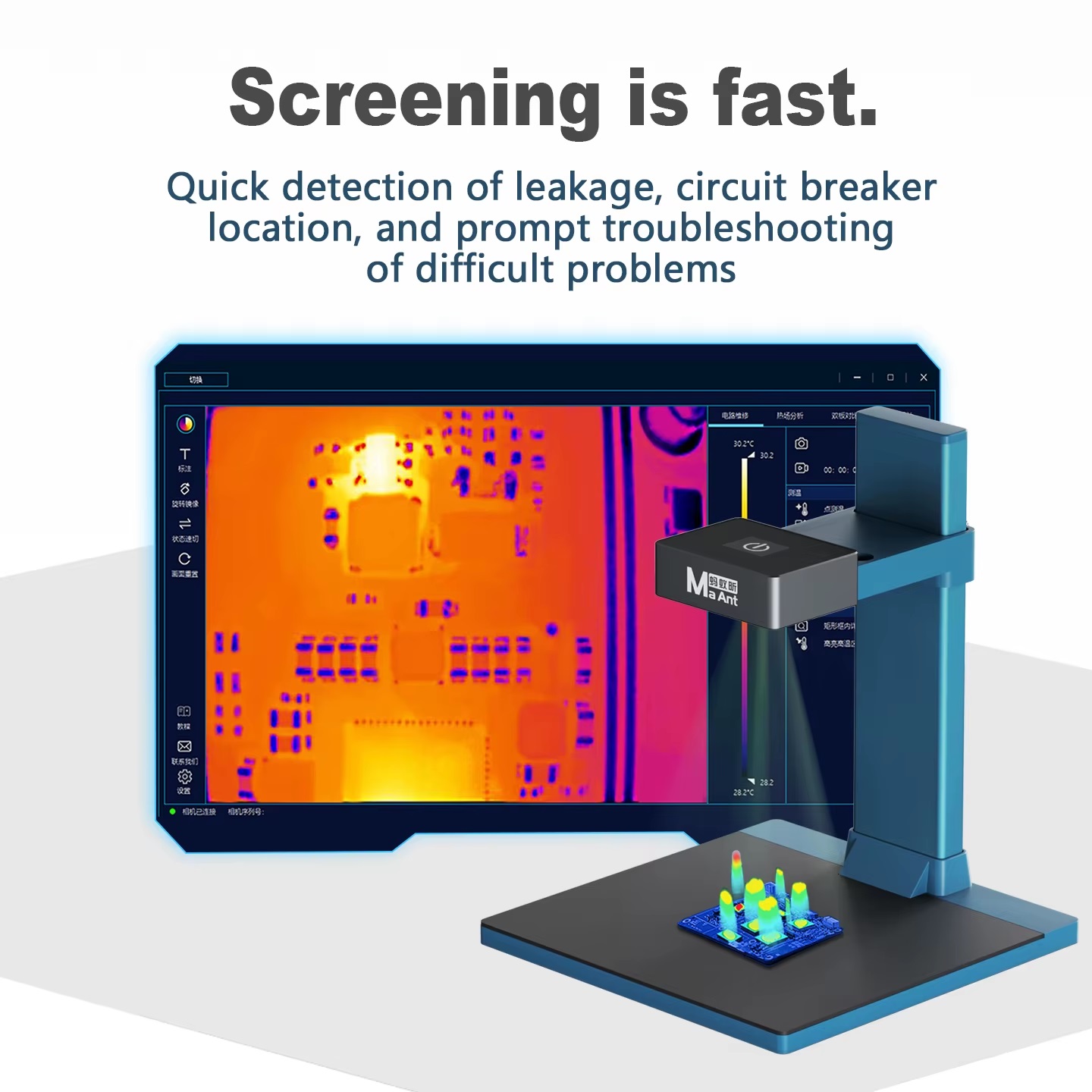

Advanced 3D thermal field diagnostics
The MaAnt RC-5 allows for intuitive display of temperature changes in 3D. This allows for multi-dimensional observation of heat dissipation and the rapid detection of anomalies that are invisible in standard 2D mode.
Precise location of short circuits and current leakage
The device enables the quick detection of current leaks and the location of circuit breaks. Thanks to its high sensitivity, the camera instantly pinpoints components with abnormally high temperatures, which is crucial when repairing phones and laptops.
Innovative Double-Board Comparison Mode
The "Double-board comparison" function allows for simultaneous analysis of two motherboards (a working one and a faulty one) divided by a line on the screen. This allows for direct comparison of temperature differences under identical conditions, drastically reducing diagnosis time.
Intelligent warning system
The camera is equipped with a temperature alarm. When the set threshold is exceeded, the device emits an audible signal (buzzer) and a flashing red frame appears on the computer screen, preventing critical heating points from being missed.
Product specifications:
- Sensor resolution: 256 x 192 px
- Refresh rate: 25Hz
- Temperature measurement range: -15℃ to 600°C (5℉ to 1112℉)
- Measuring distance: 3mm - 15mm (very close observation possible)
- Interface: USB Type-C (compatible with Windows 10 and newer)
- Device dimensions: 150mm x 150mm x 174mm
- Net weight: 425g
Kit contents:
- 1x MaAnt RC-5 Thermal Imaging Analyzer
- 1x USB Type-C Power/Data Cable
- User's Manual and access to PC software
- Original MaAnt manufacturer's packaging
