WXY P30R Pro – thermal imaging camera for motherboard diagnostics

WXY P30R Pro is a professional thermal imaging camera designed for diagnosing motherboards of phones, tablets, computers and other electronic devices. Real-time thermal imaging helps quickly locate short circuits, overheating components, and areas with unusual temperatures.

Model The WXY P30R Pro allows you to observe the temperature distribution on your motherboard without having to rely solely on traditional visual inspection. A component drawing excessive current or located in the area of ​​a short circuit can heat up faster than other components, making it easier to locate.

The camera is useful for diagnosing iPhones, Android devices, laptops, computers, tablets, consoles, and other electronic systems. It can be used both before repairs and during final inspections.

See the heat and find the fault faster

Thermal imaging allows you to see temperature differences that are not visible during a standard board inspection. The WXY P30R Pro helps pinpoint areas requiring more detailed inspection with a meter, laboratory power supply, or microscope.

WXY P30R Pro Key Features

Thermal resolution 256 × 192 px

The detector with a resolution of 256 × 192 pixels allows for a detailed image of the temperature distribution on the tested board. This is especially important when working with small components used in phones and modern electronics.

The detailed image helps distinguish a single heating element from neighboring components andnarrow the scope for further diagnostics.

Wide temperature measurement range

The WXY P30R Pro offers a declared measurement range of -20°C to 500°C. This allows the camera to be used both for observing small temperature differences on motherboards and for inspecting more heated components.

The indicated temperature may depend on the type of surface, its emissivity, working distance, focus setting, and ambient conditions.

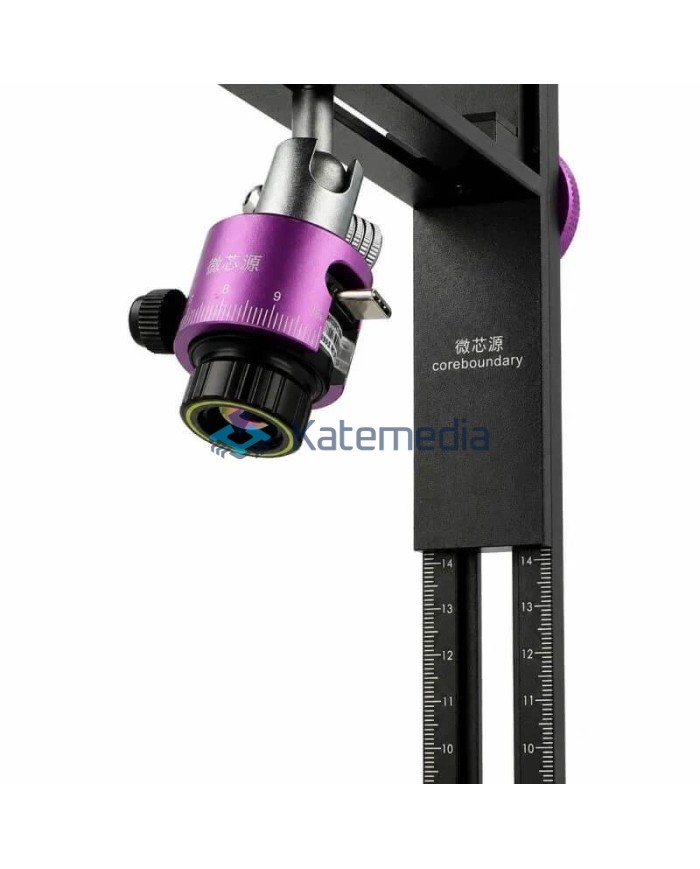

9.6 mm Germanium Lens

The camera is equipped with a 9.6 mm Germanium lens adapted to work with infrared radiation. The lens design allows for observing small boards and electronic components placed on a tripod base.

The recommended minimum working distance is approximately 10 cm. Proper distance and focus settings help obtain a clear image of the examined area.

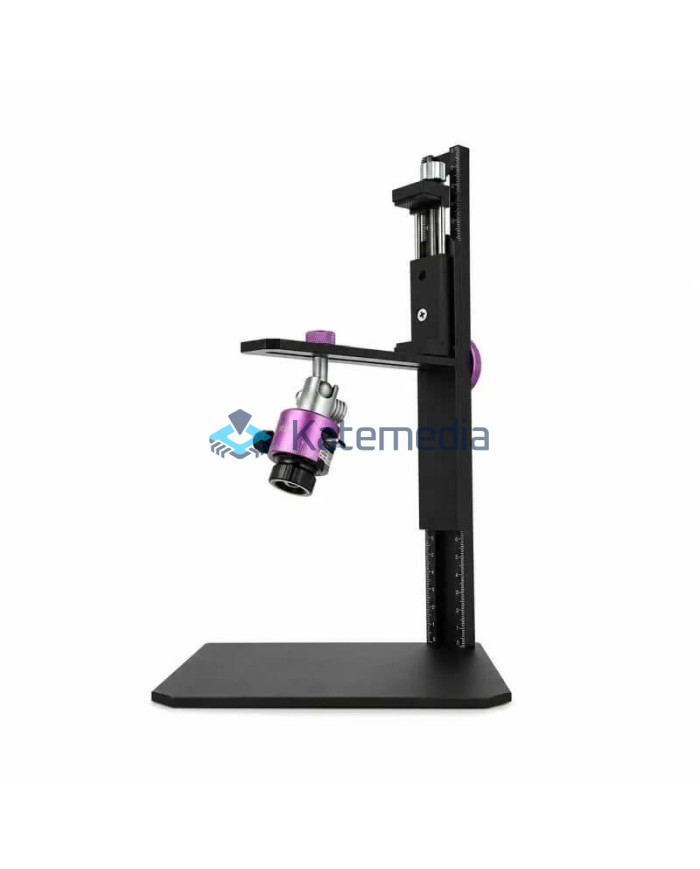

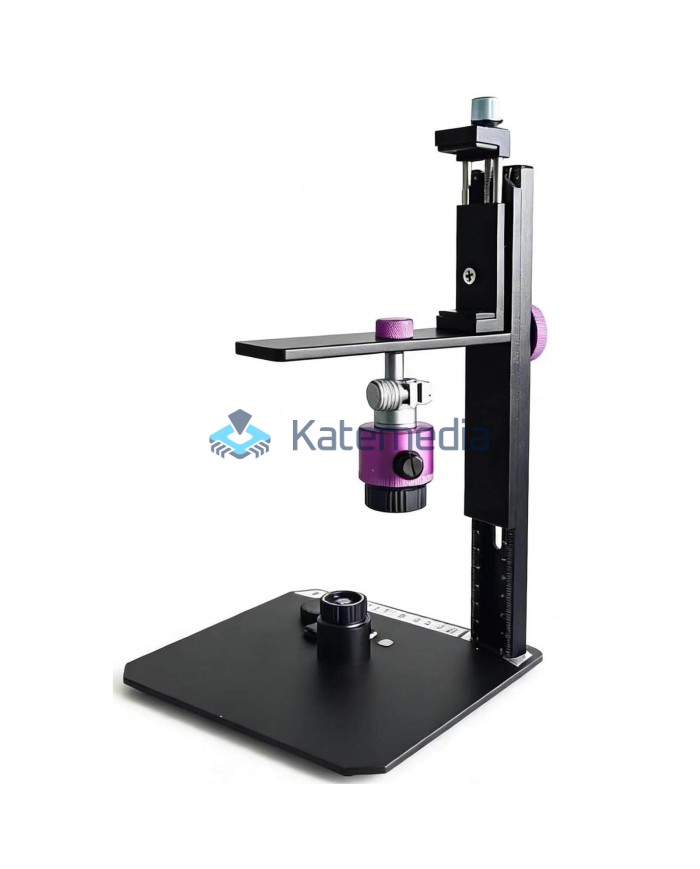

Stable and adjustable tripod

The stationary design allows the camera to be placed directly above the board being examined. The stable base reduces image shake and leaves both hands free, which is especially useful when simultaneously operating a laboratory power supply, test leads, or service tools.

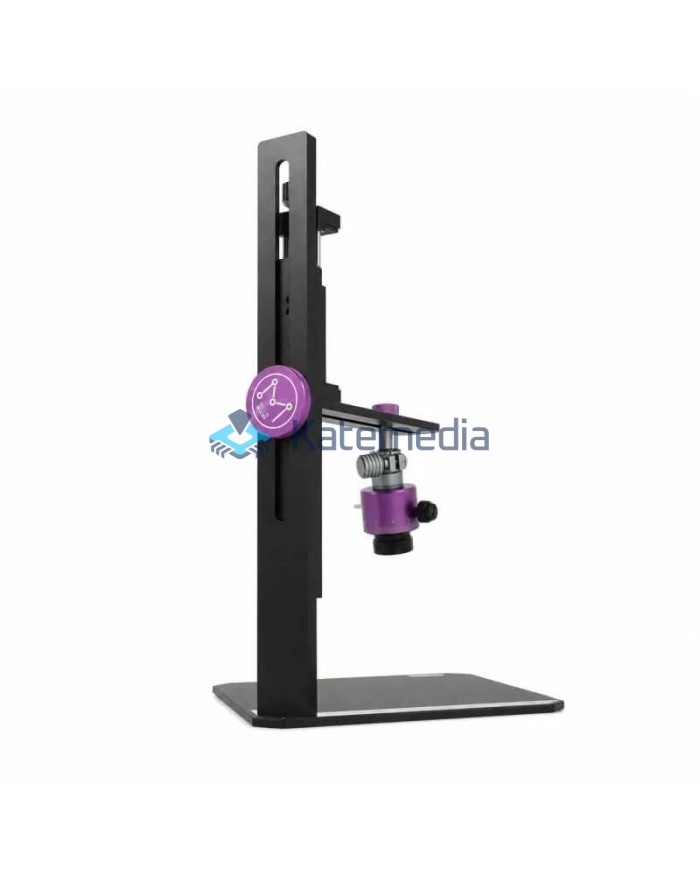

The camera's position can be adjusted to the size of the device being tested and the required field of view. The adjustable head also allows you to properly direct the lens to the desired part of the plate.

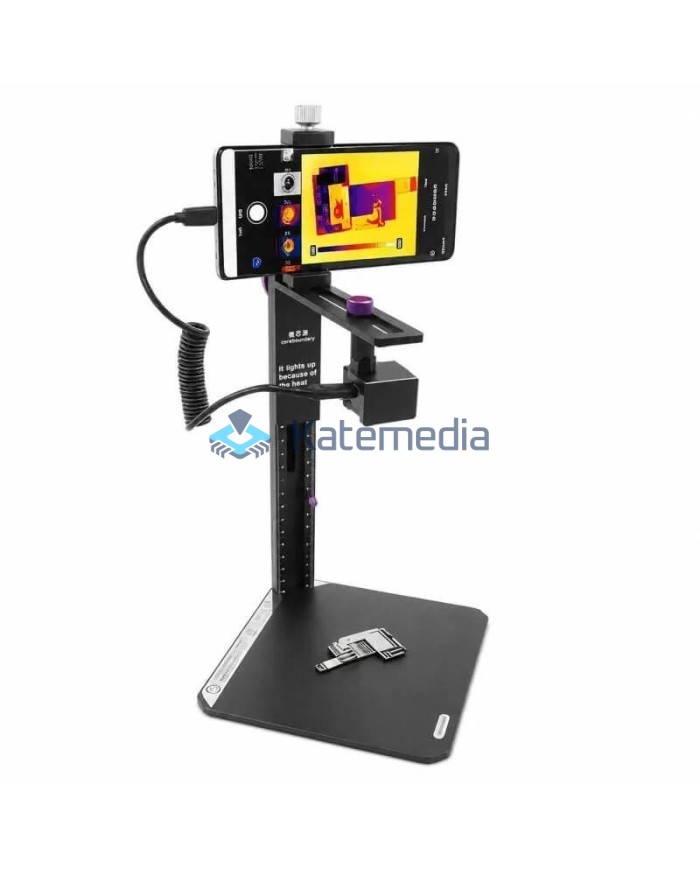

Phone and computer compatibility

The manufacturer declares that the device is compatible with iPhone phones, Android devices, and PCs. This allows you to customize the image display to the equipment of a specific service station.

Connection method, function availability, and required software may vary depending on the device, cable used, and operating system version.

Applications

• locating short circuits on motherboards,
• detecting overheating integrated circuits,
• inspecting capacitors, coils, transistors, and power supply sections,
• diagnosing phone and tablet motherboards,
• repairing laptops, computers, and consoles,
• inspecting devices before and after repairs,
• observing temperature changes after connecting the power supply,
• diagnosing electronic modules and PCBs,
• service, laboratory, educational, and inspection work.

Technical Specifications

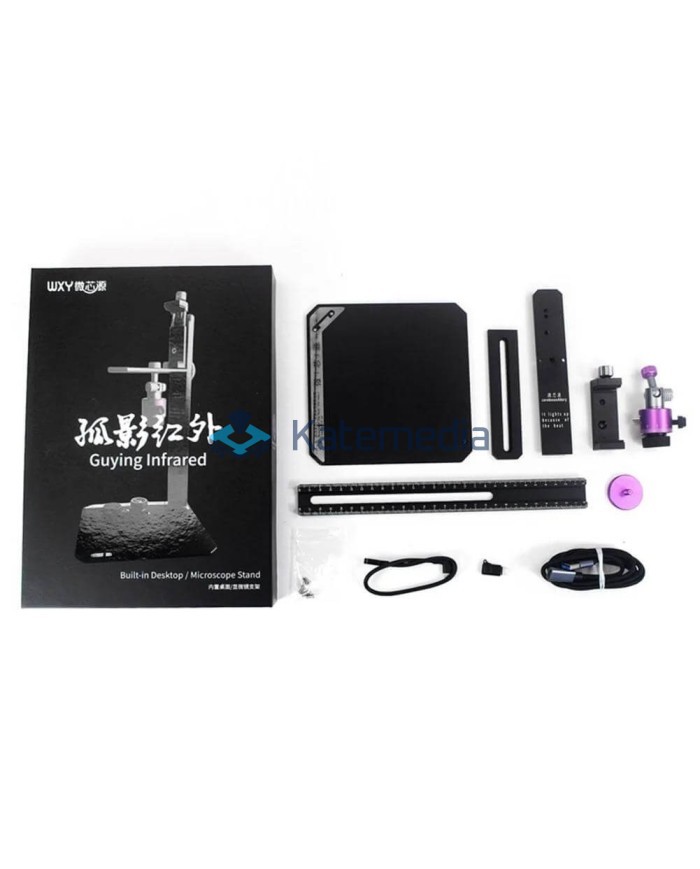

Set Contents

• 1× WXY P30R Pro thermal imaging camera,
• 1× metal base Workspace,
• 1× vertical tripod column,
• 1× adjustable mounting arm,
• 1× phone holder,
• 1× USB-C to Lightning adapter,
• Mounting hardware,
• Cables and accessories included.

Why choose the WXY P30R Pro?

The WXY P30R Pro is a practical tool for professional GSM repair shops and electronics technicians who want to shorten the time spent troubleshooting motherboards. The thermal image allows you to quickly pinpoint a suspicious area, and the stable tripod ensures comfortable operation without having to hold the camera in your hand.

The combination of 256 × 192 px resolution, a wide temperature range, a 9.6 mm lens, and phone and computer compatibility makes this device ideal for everyday repairs of phones, tablets, laptops, and other electronic devices.
