Optical and Technical Characteristics:

• Magnification Range (8X - 80X): This model offers a wide zoom range, however, please note that at the maximum magnification of 80x, the depth of field naturally decreases, which is typical for this class of devices.

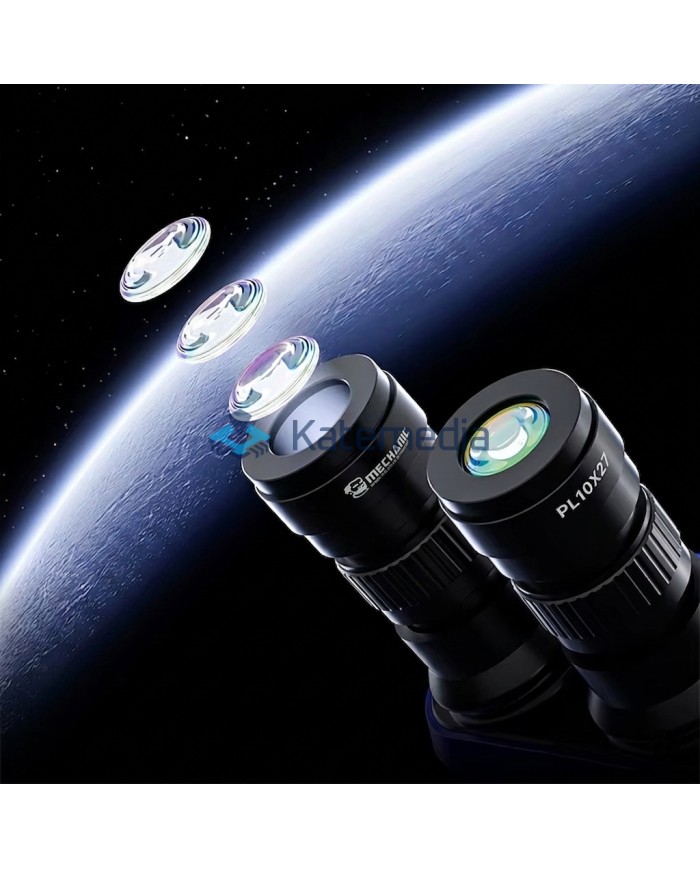

• PL10X/27mm Eyepieces: The use of wider eyepieces (27mm) makes orientation on the laminate much easier compared to the standard 20-22mm eyepieces, providing a larger viewing area at low magnifications.
• Simul-Focal System: The trinocular head allows simultaneous viewing through the eyepieces and camera, which is standard and simplifies work without the need to switch optical paths.
• Design and Coatings: The lenses made of optical glass have basic anti-reflective coatings, ensuring correct contrast and image brightness in typical workshop conditions.

Technical data:

• Sliding magnification: 8X - 80X.
• Zoom ratio: 10:1.
• Working distance: 100 mm (without additional lenses) - a standard allowing for the operation of soldering tools.
• B5 base: A classic, metal base with dimensions of 380x250 mm, ensuring adequate stability of the stand.
• Set weight: 6.6 kg (gross), which translates into the stability of the structure during work.

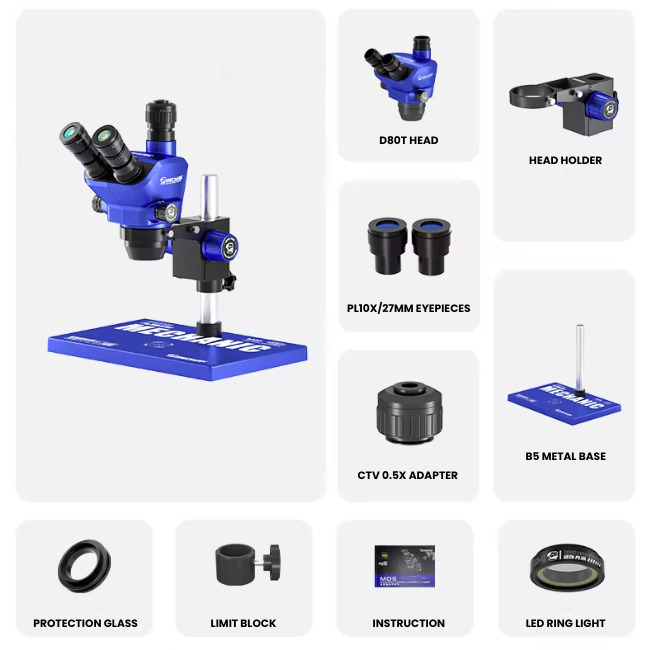

Kit contents:

1. D80T head (Triocular).
2. Head holder.
3. PL10X/27mm eyepieces with covers.
4. B5 metal base with column.
5. CTV 0.5X adapter (C-mount) for connecting a camera.
6. LED ring light (basic illumination of the work area).
7. Lens protection glass (key when working with smoke and flux).
8. Limit Block (height lock for lens safety).

What's worth buying:

1. Tripod

- FlexArm - has a wide range of adjustments, making work much easier and more enjoyable. It can be mounted with a vise or screws.

- Mechanic L2 - its design ensures head stability during work. It has a smaller range of adjustments than the FlexArm, and requires a relatively large surface area for easy operation.

2. A lens used to increase the working area when working with larger elements and more.

- 0.3x - working distance 287mm.

- 0.5x - working distance 160mm.

- 0.7x - working distance 120mm.

3. Illuminator allowing you to set the appropriate image brightness.
