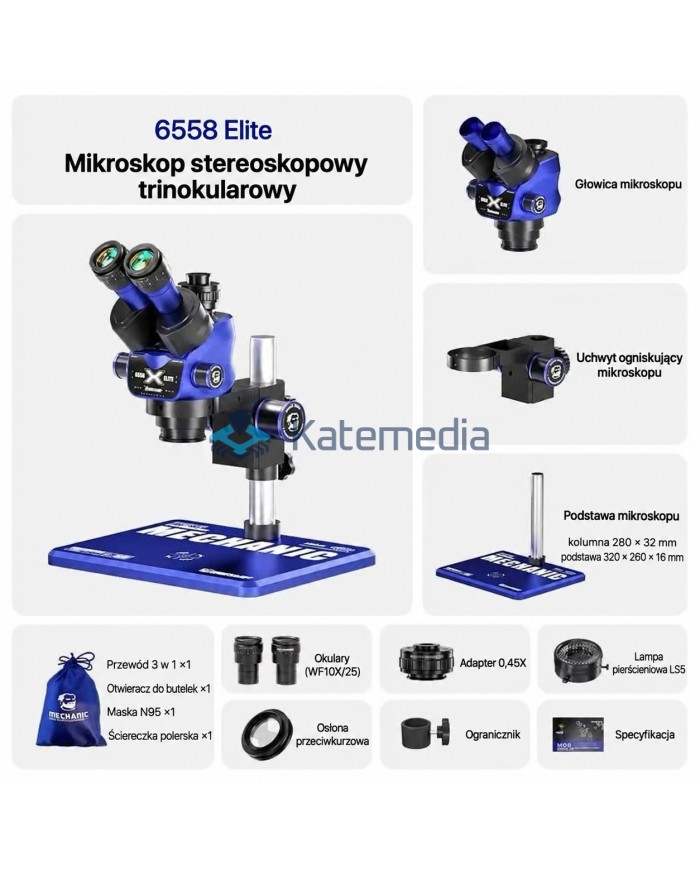

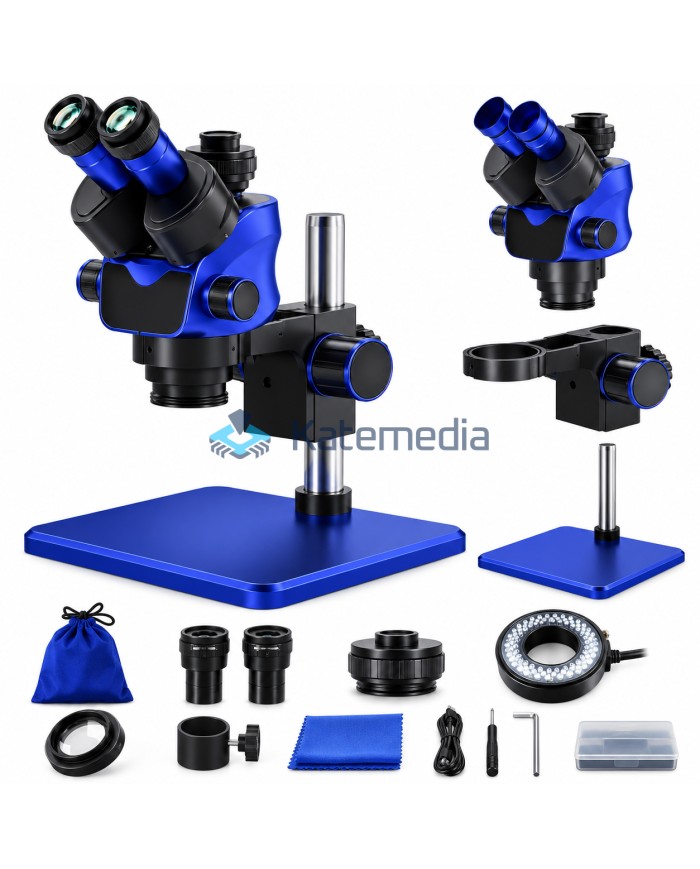

MECHANIC 6558 Elite-B11 – professional 6.5X–58X stereo microscope

MECHANIC 6558 Elite-B11 is a trinocular stereo microscope designed for precise electronics work. It is ideal for PCB soldering and inspection, mobile phone repairs, integrated circuit work and handling small electronic components.

The combination of smooth 6.5X–58X zoom, wide-field WF10X/25 HD eyepieces and a solid metal construction provides high observation precision and stability during everyday service work.

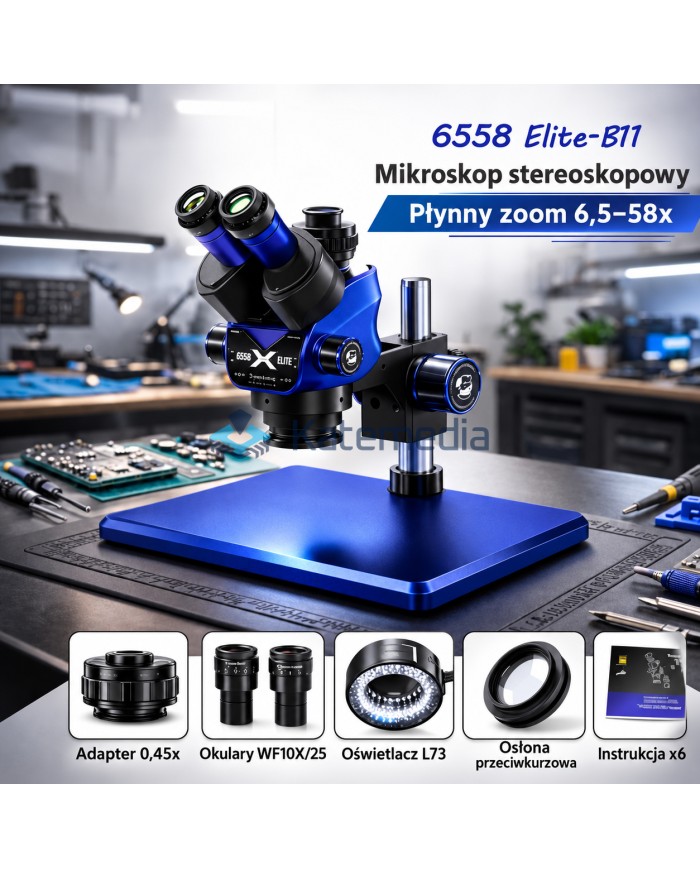

Smooth 6.5X–58X magnification

The wide magnification range makes it easy to adjust the image to the task at hand. At lower magnification, a larger area of the motherboard can be observed, while increasing the zoom allows precise inspection of small components, solder pads, traces and connections.

Smooth zoom adjustment allows the magnification level to be changed without interrupting the work.

Wide-field WF10X/25 HD eyepieces

The 6558 Elite-B11 is equipped with WF10X/25 HD eyepieces, providing a wide field of view. This is particularly important during long repair sessions, where both image precision and viewing comfort matter.

The wide field of view makes it easier to navigate across the board and reduces the need to constantly reposition the repaired component.

Trinocular design – eyepiece observation and camera connection

The microscope features an additional optical path designed for connecting a compatible microscope camera. The trinocular design allows observation through two eyepieces while also making it possible to expand the workstation with a camera for displaying the image on a monitor, taking photos or documenting repairs.

This is a practical solution for service centers that want to combine traditional eyepiece observation with digital image preview.

The camera is not included in the standard set.

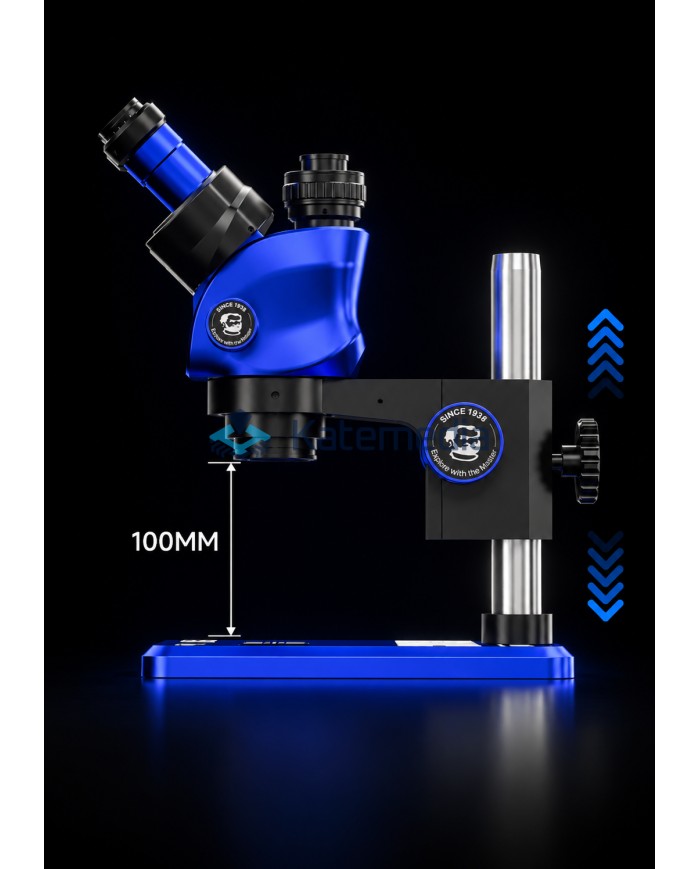

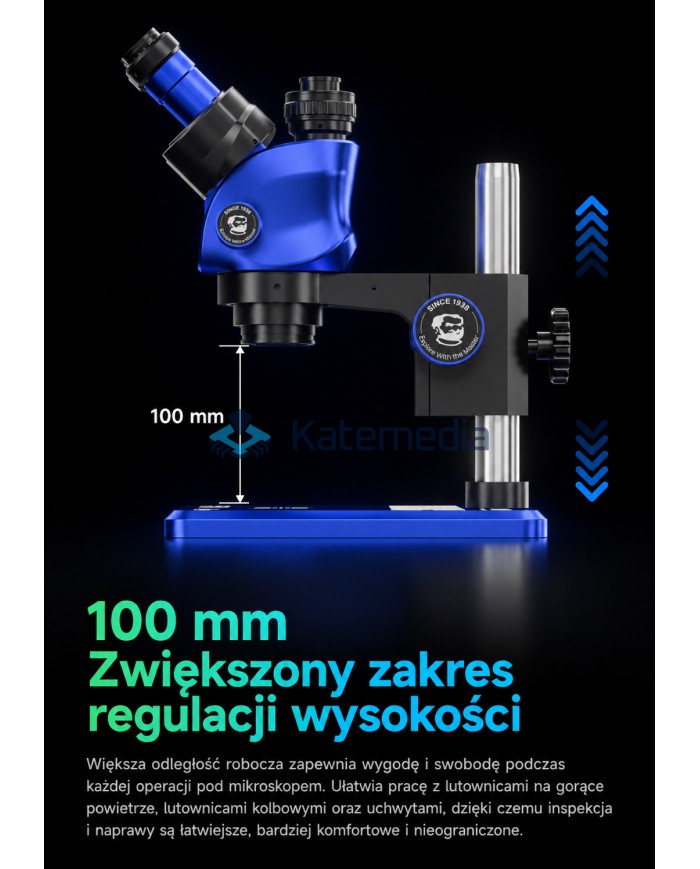

Increased height adjustment range up to 100 mm

One of the key features of the 6558 Elite-B11 is the increased height adjustment range of up to 100 mm.

This makes it easier to adjust the microscope head position to the type of work being performed and the height of the observed object. The larger adjustment range provides more freedom when working with PCBs and makes it easier to operate a soldering iron, tweezers, hot air nozzle and other service tools.

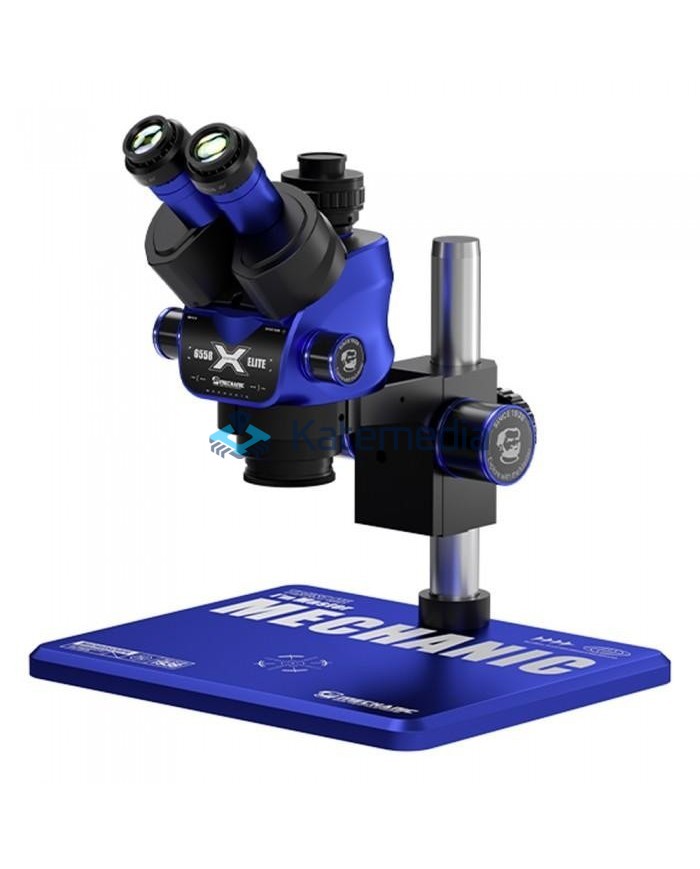

Stable metal construction

The microscope body is made of metal, providing the rigidity and stability required for precise work.

This is especially important at higher magnification levels, where even minor vibrations can make accurate soldering or inspection of very small components more difficult.

Key features

• 6.5X–58X magnification with smooth zoom adjustment
• wide-field WF10X/25 HD eyepieces
• trinocular design
• observation through two eyepieces with the option to connect a compatible camera
• increased height adjustment range up to 100 mm
• wide field of view
• solid metal construction
• designed for PCB soldering and precision electronics repair
• suitable for GSM service centers, mobile phone repair and motherboard work

Specifications

Brand: MECHANIC
Model: 6558 Elite-B11
Type: trinocular stereo microscope
Magnification range: 6.5X–58X
Magnification adjustment: smooth zoom
Eyepieces: WF10X/25 HD
Design: trinocular
Camera connection: yes
Height adjustment range: up to 100 mm
Body material: metal
Application: PCB soldering, GSM service, mobile phone repair, diagnostics and precision electronics work.
